Operations

Incident Management lists all open alerts and incidents, but let’s face it… you won’t investigate some of the alerts and incidents

They did not lead to a major issue, or they are simply too old and you should rather be focusing on what’s impacting your world NOW.

Or, maybe you resolved an issue but just forgot to change the incident status to “closed”.

To avoid more current and important issues from getting buried under older ones, Incident Management automatically closes the old alerts and incidents behind the scenes.

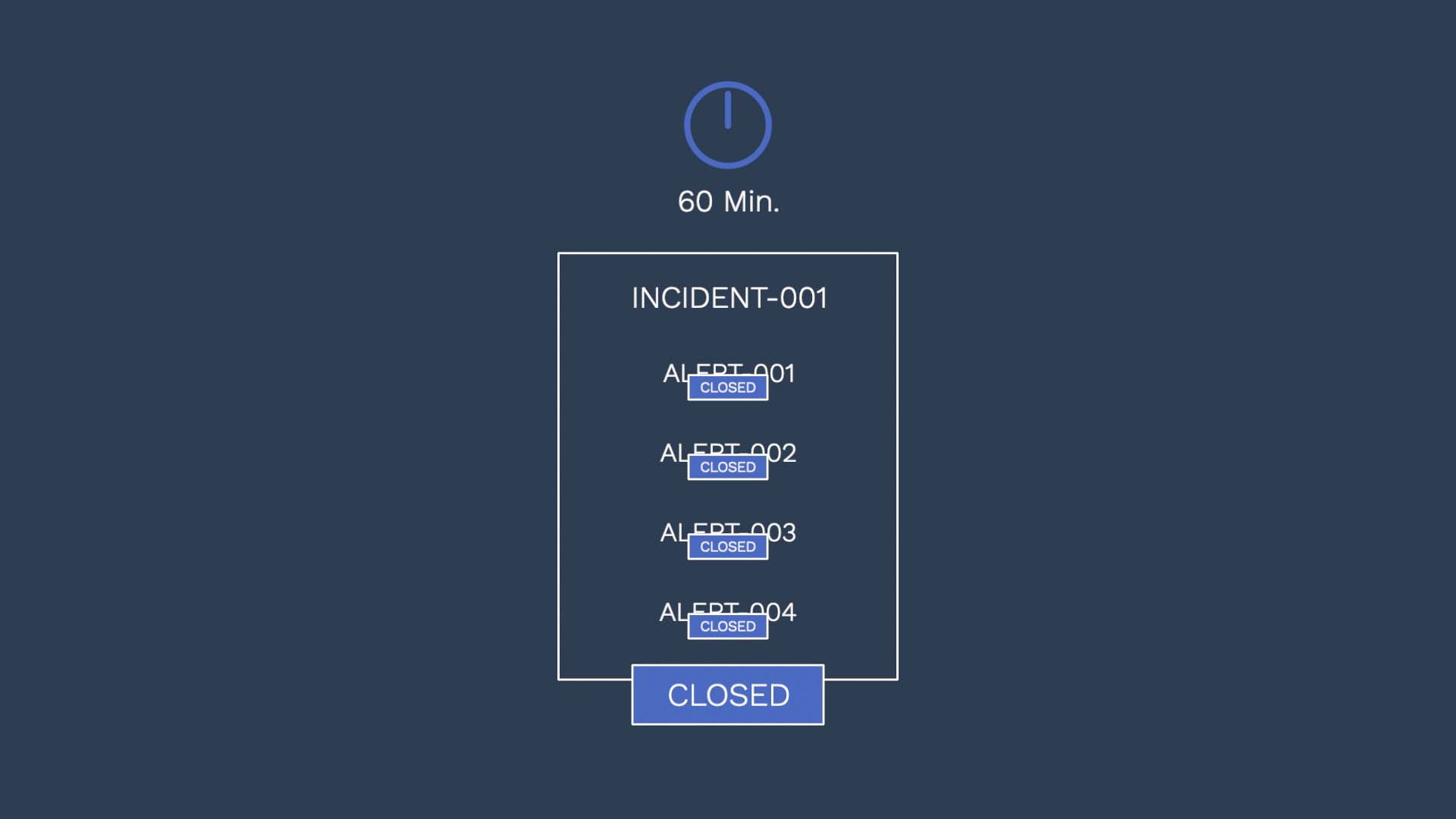

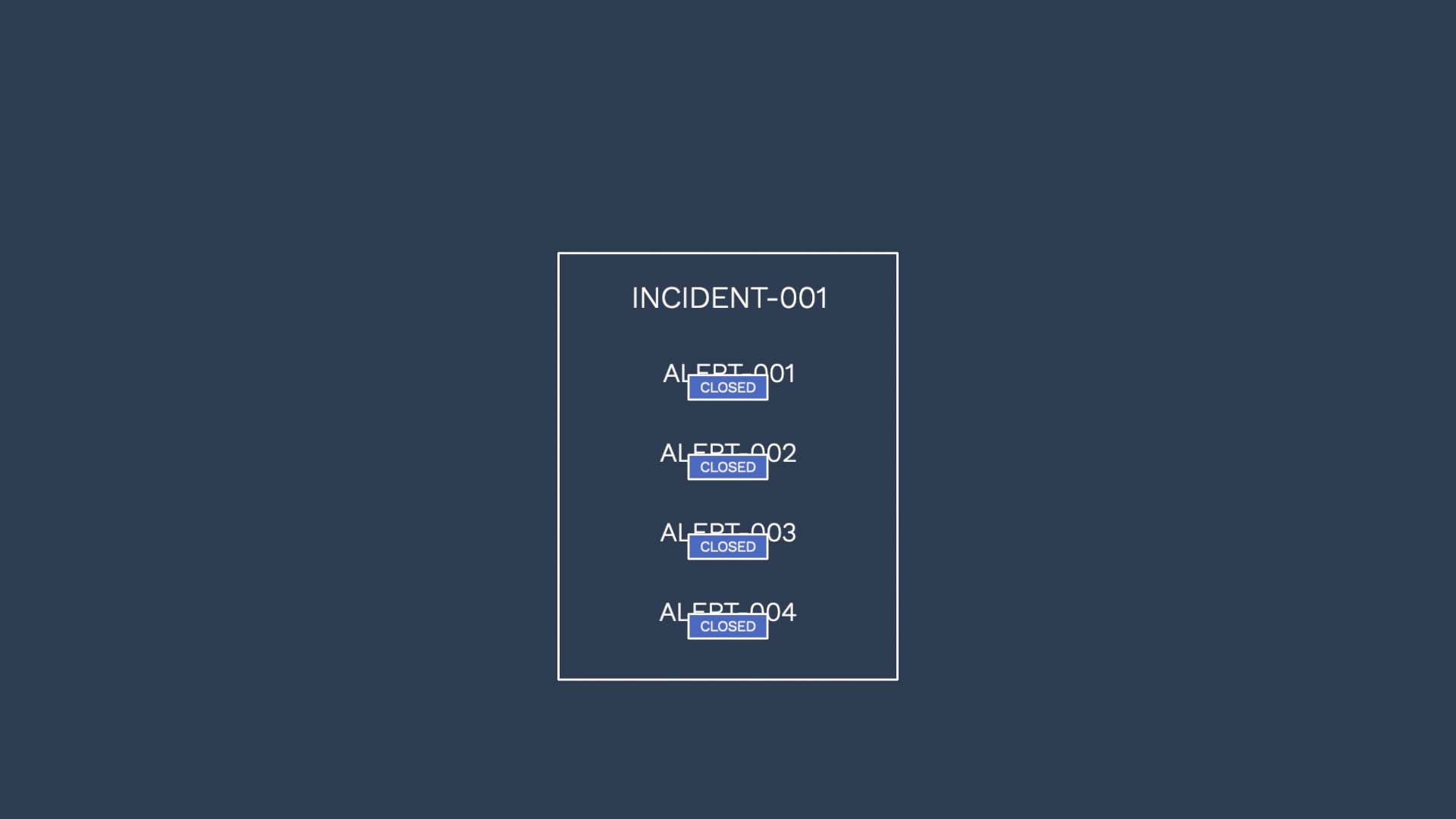

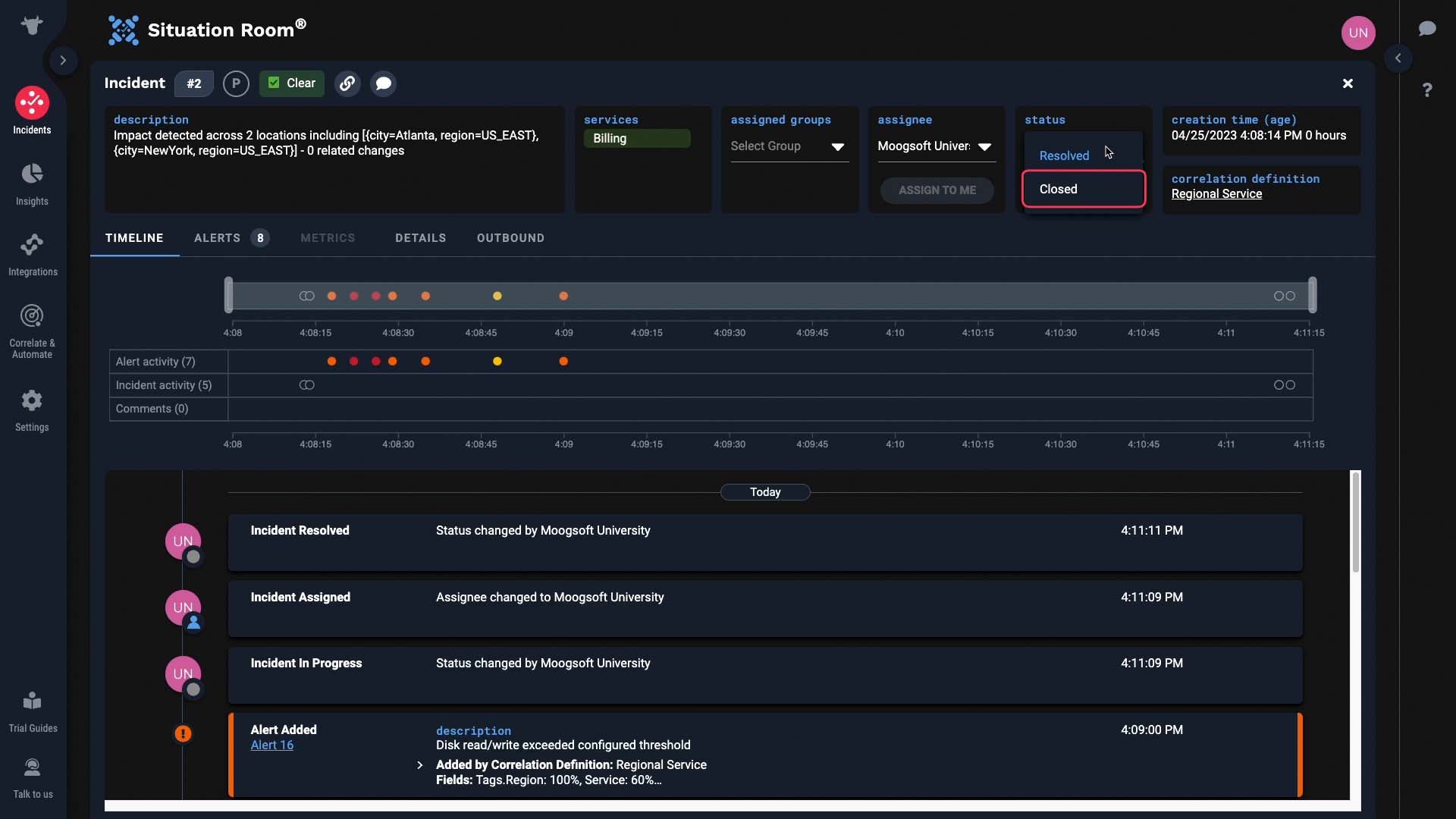

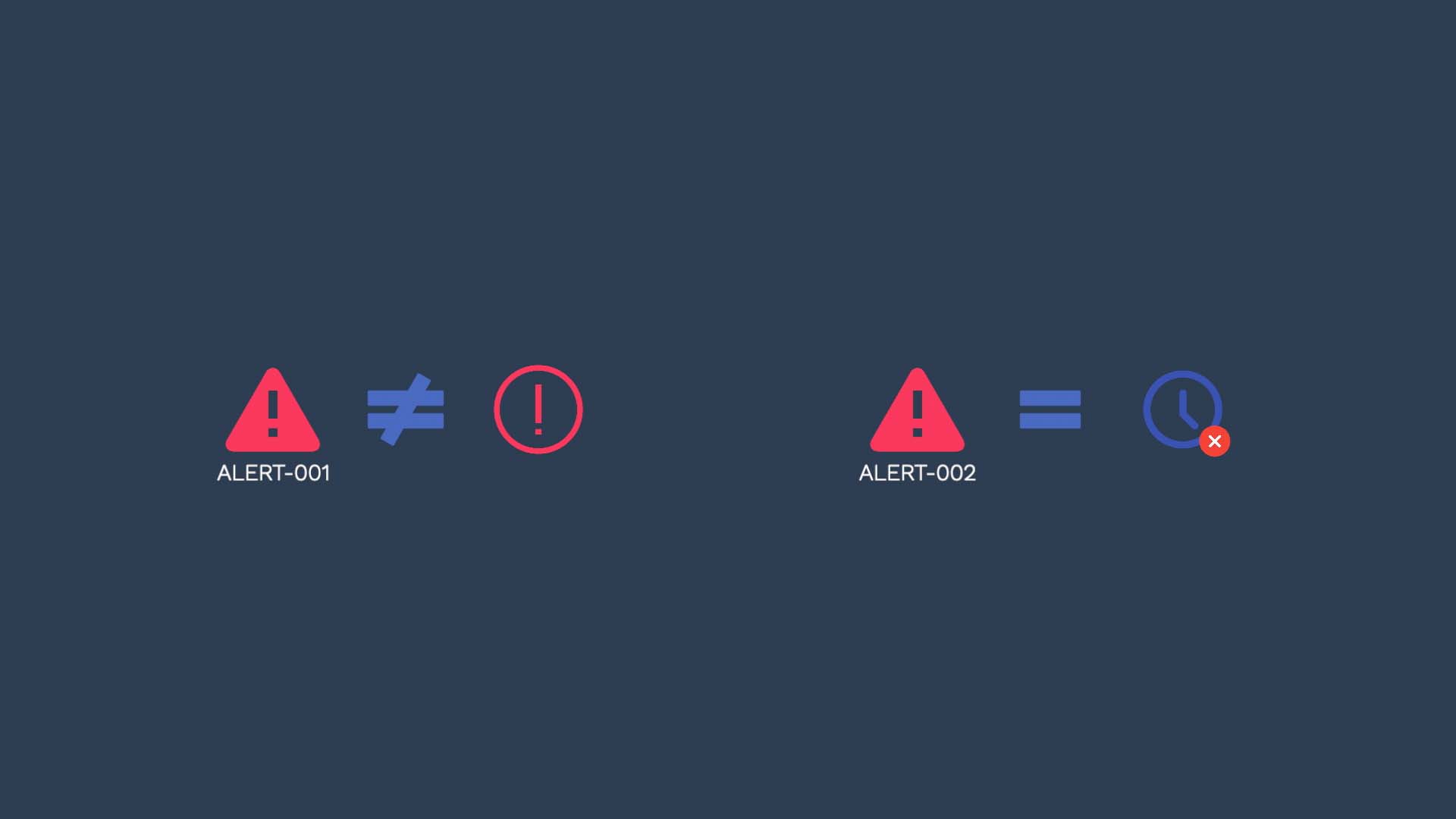

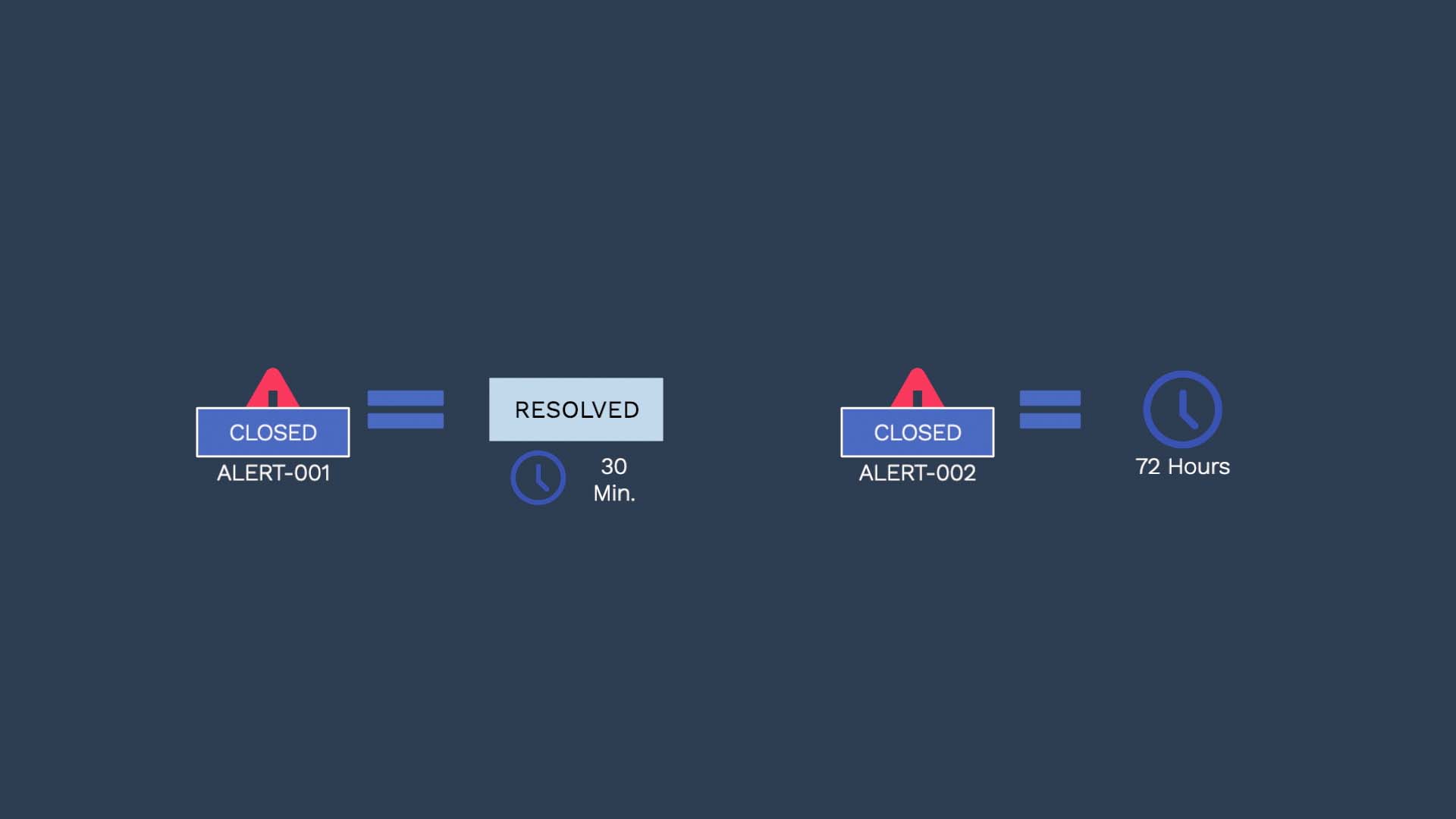

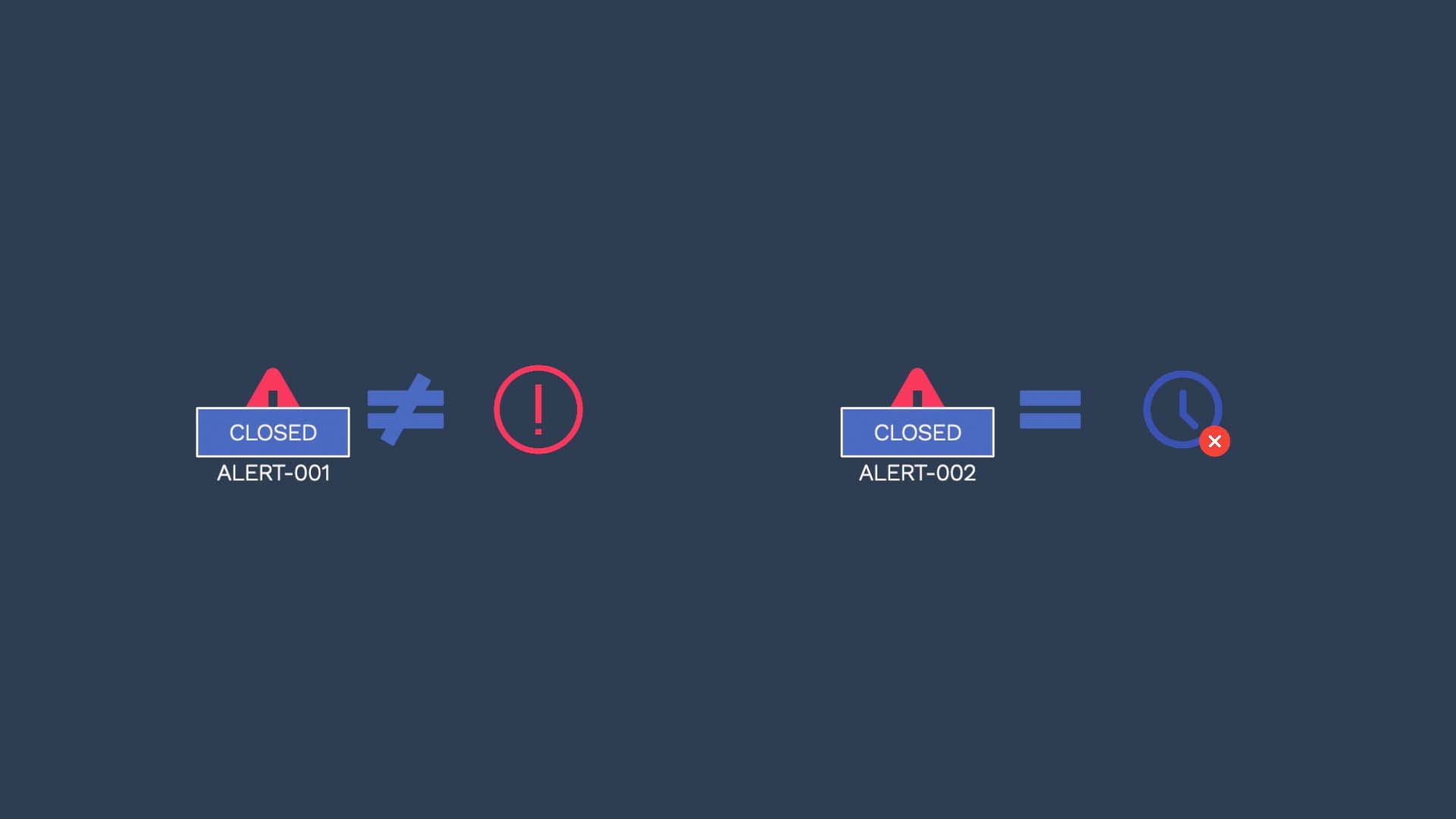

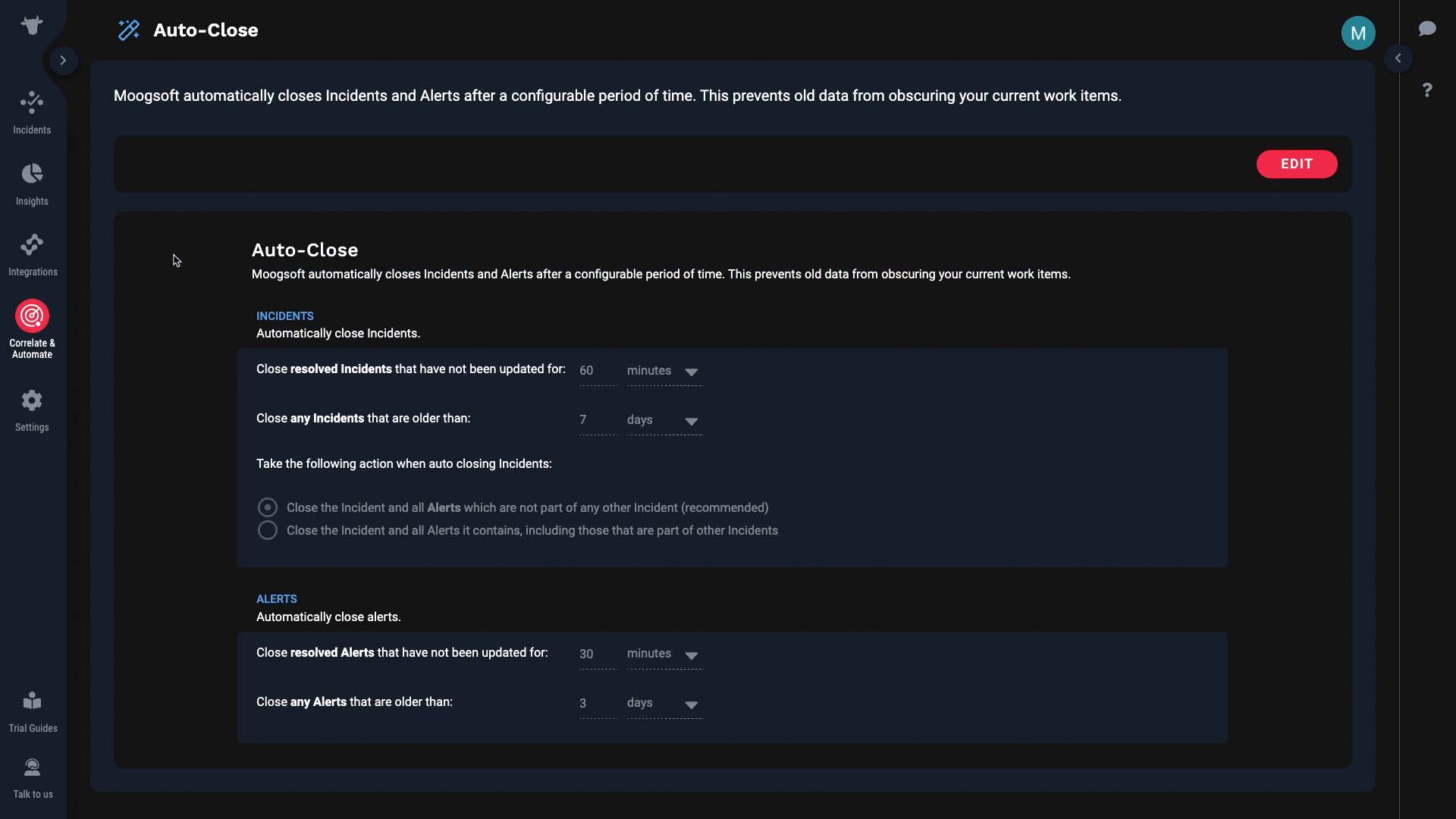

Here’s the default behavior. If all alerts in an incident are closed, then you no longer need to work on that incident.

So Incident Management waits for 60 minutes, then auto-close the incident.

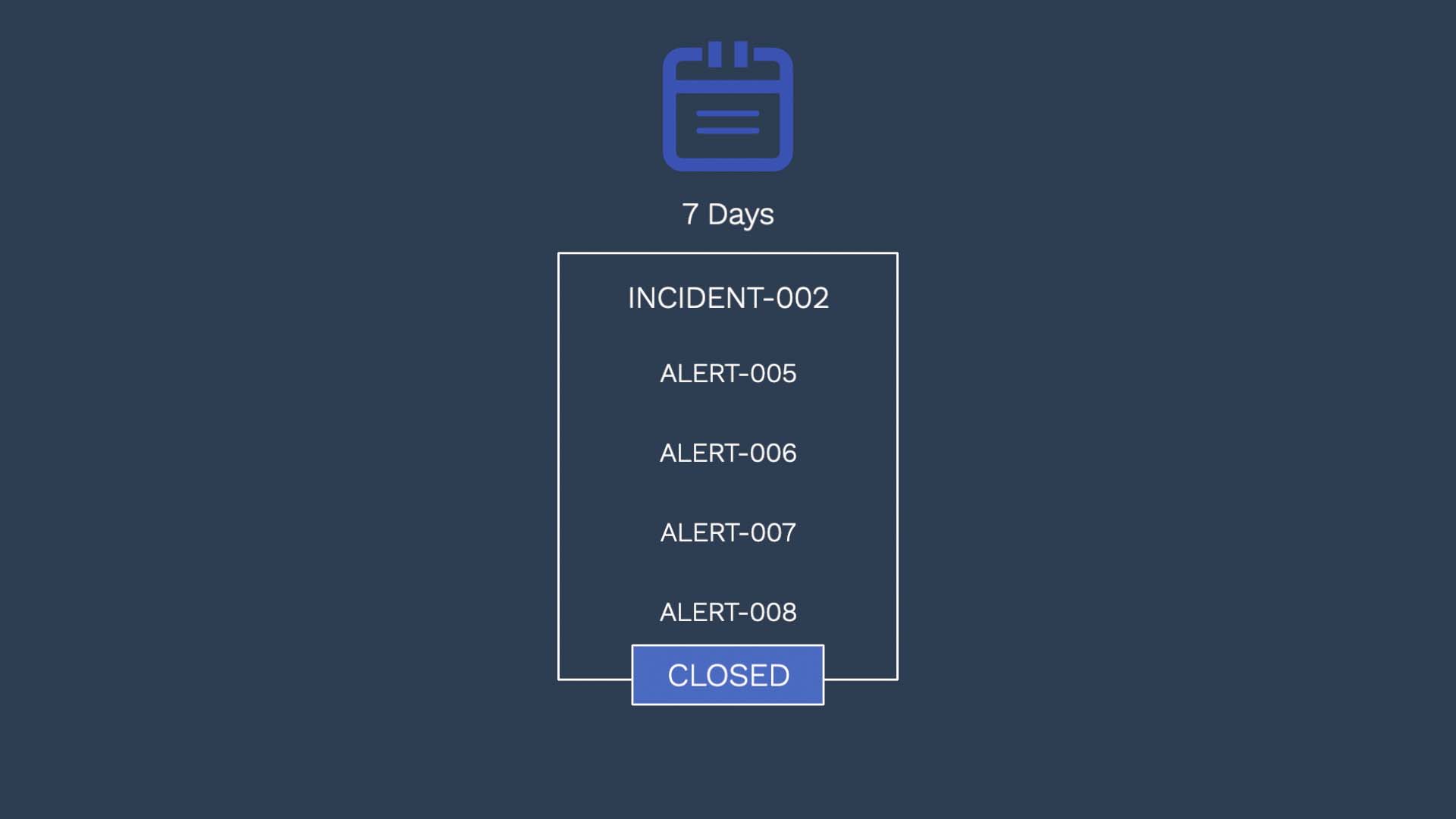

Incidents are also auto-closed if it stays unclosed for 7 days. Because honestly, you won’t be working on such an old incident, would you?

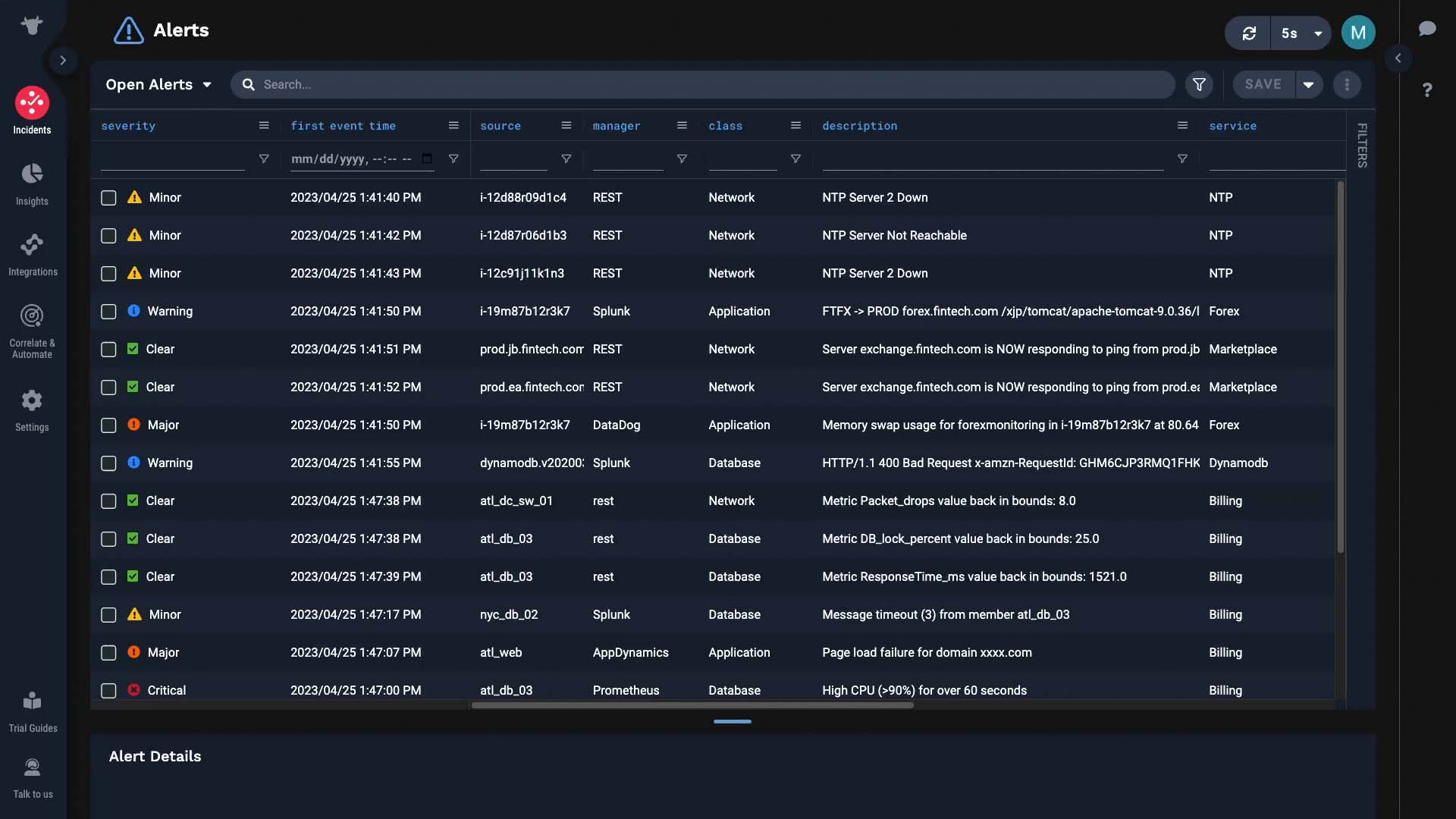

On the alert side, if an alert is resolved Incident Management will change the status of it after half an hour.  Alerts also gets closed if they are still open after 72 hours since it’s reported.

You can change the default settings from here.

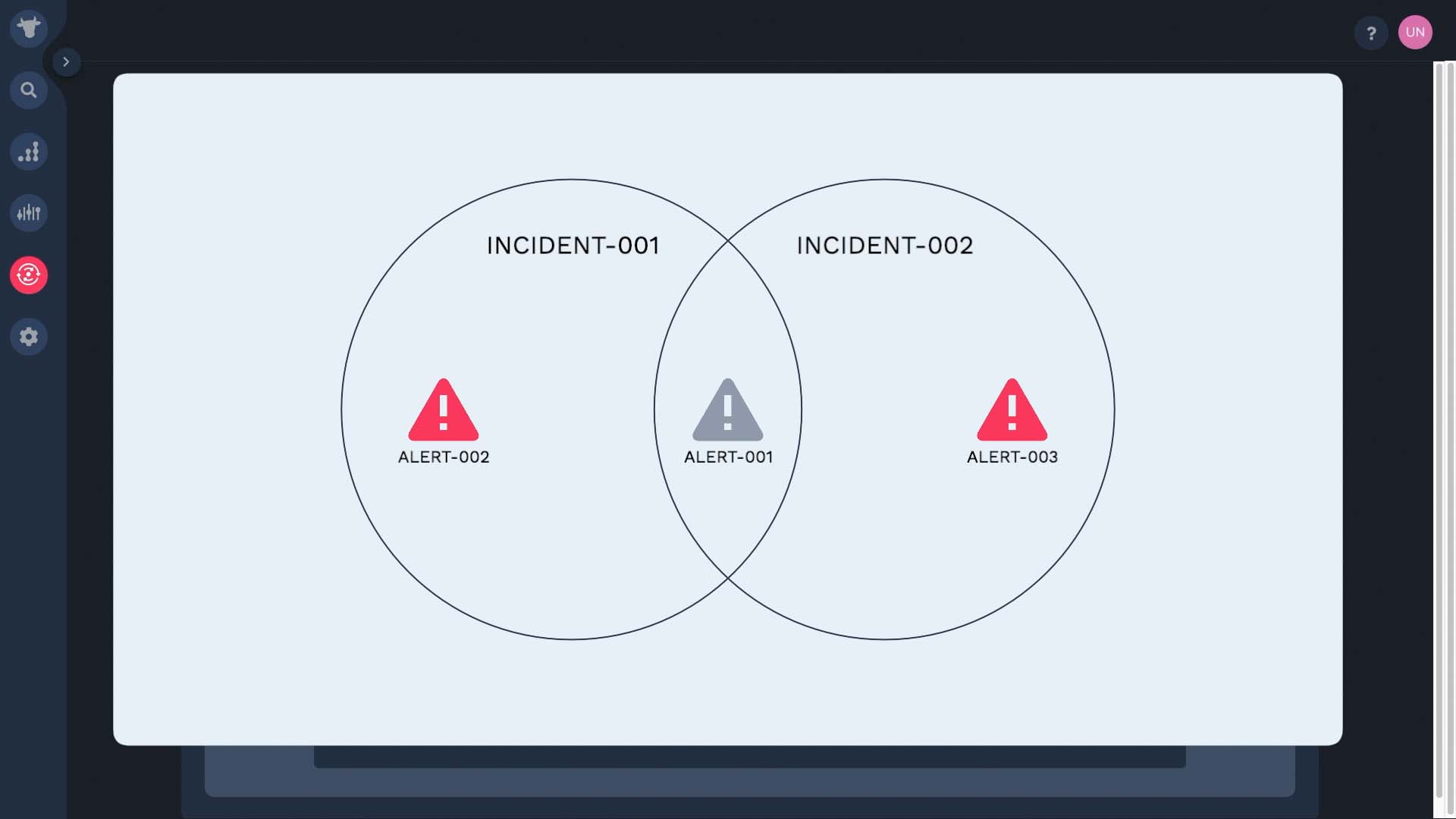

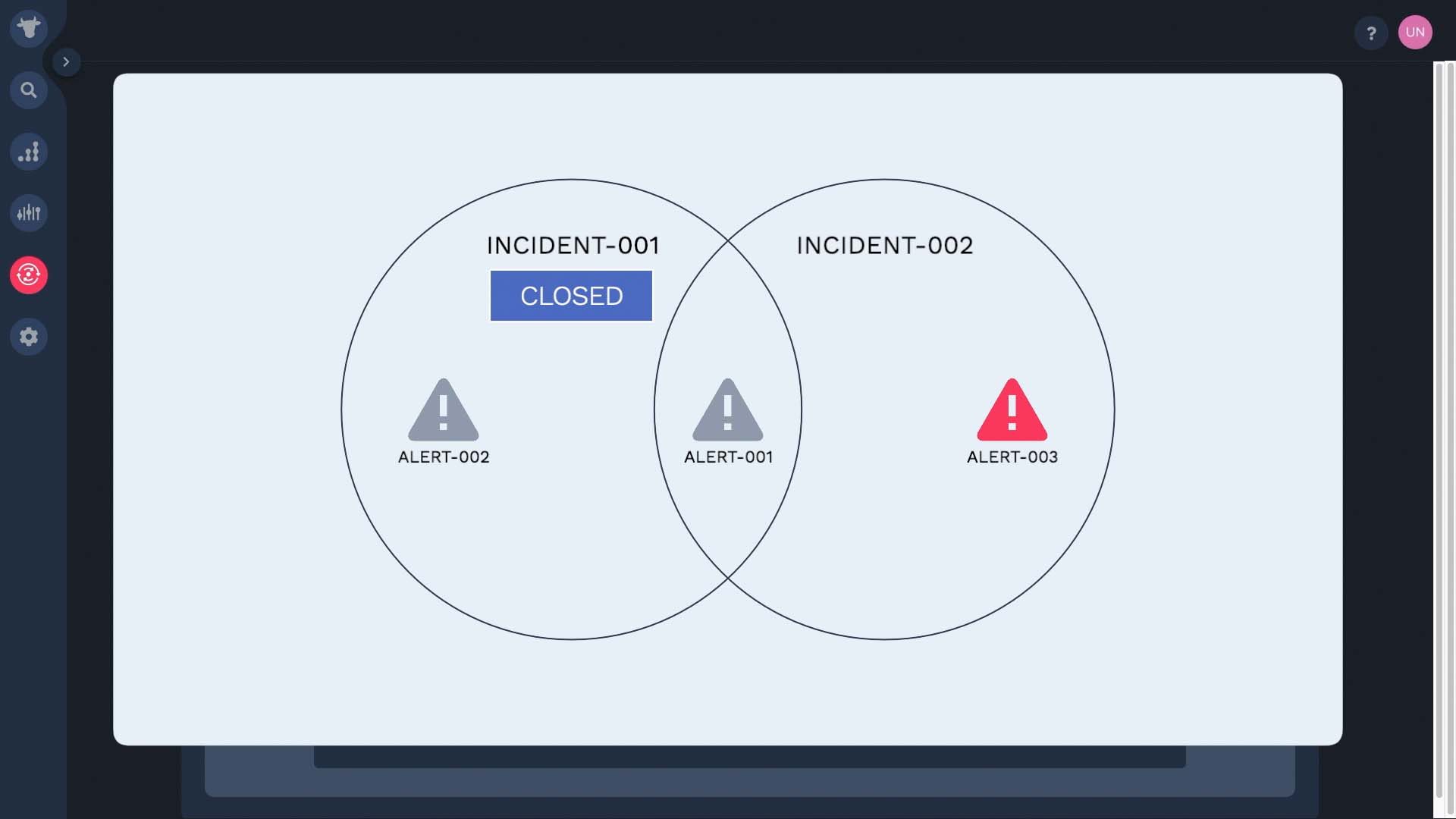

But remember, incidents and alerts are interrelated. So not only a change in one incident can affect multiple alerts included in that incident,

but also a change in status with one alert can affect multiple incidents.

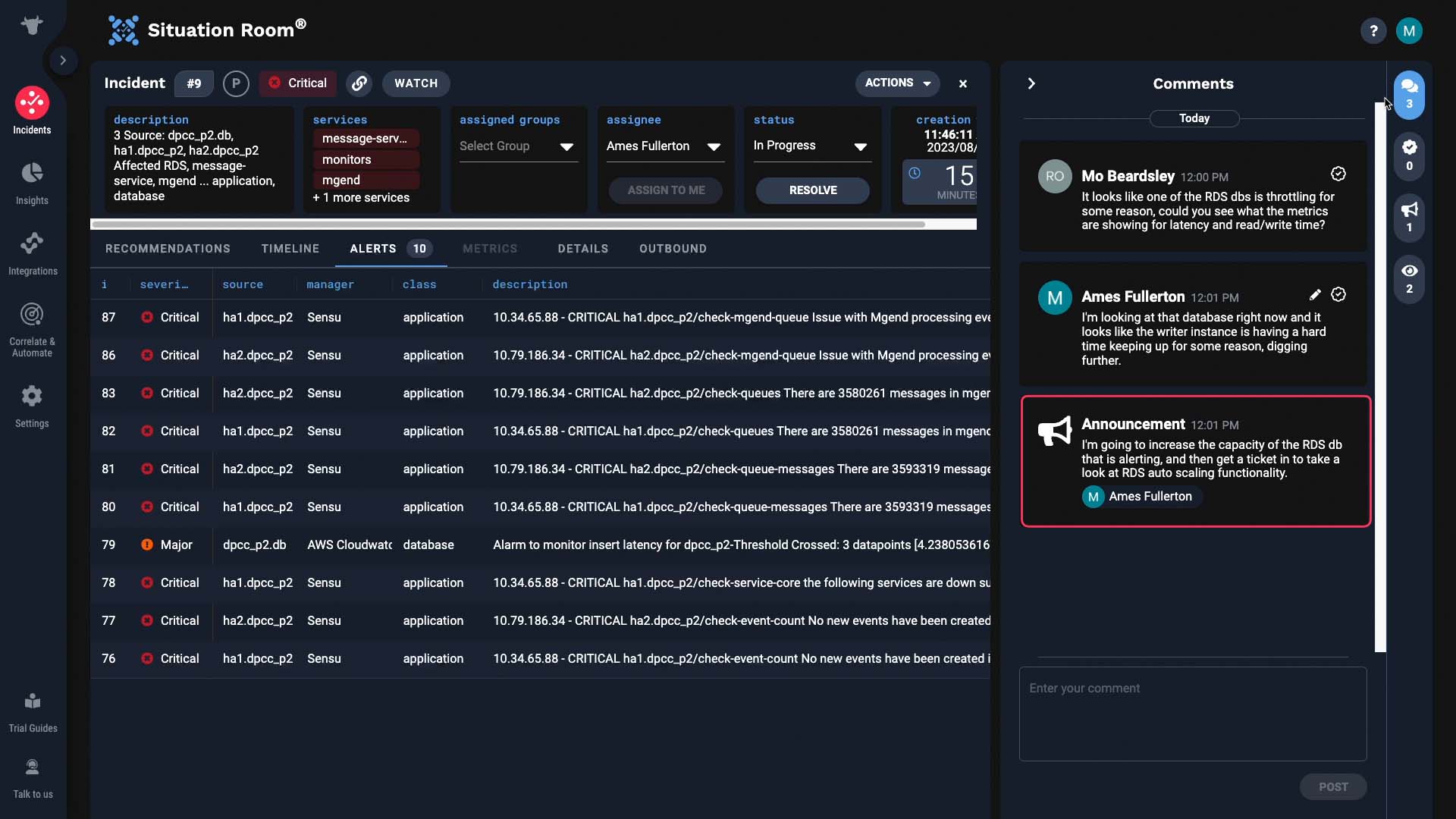

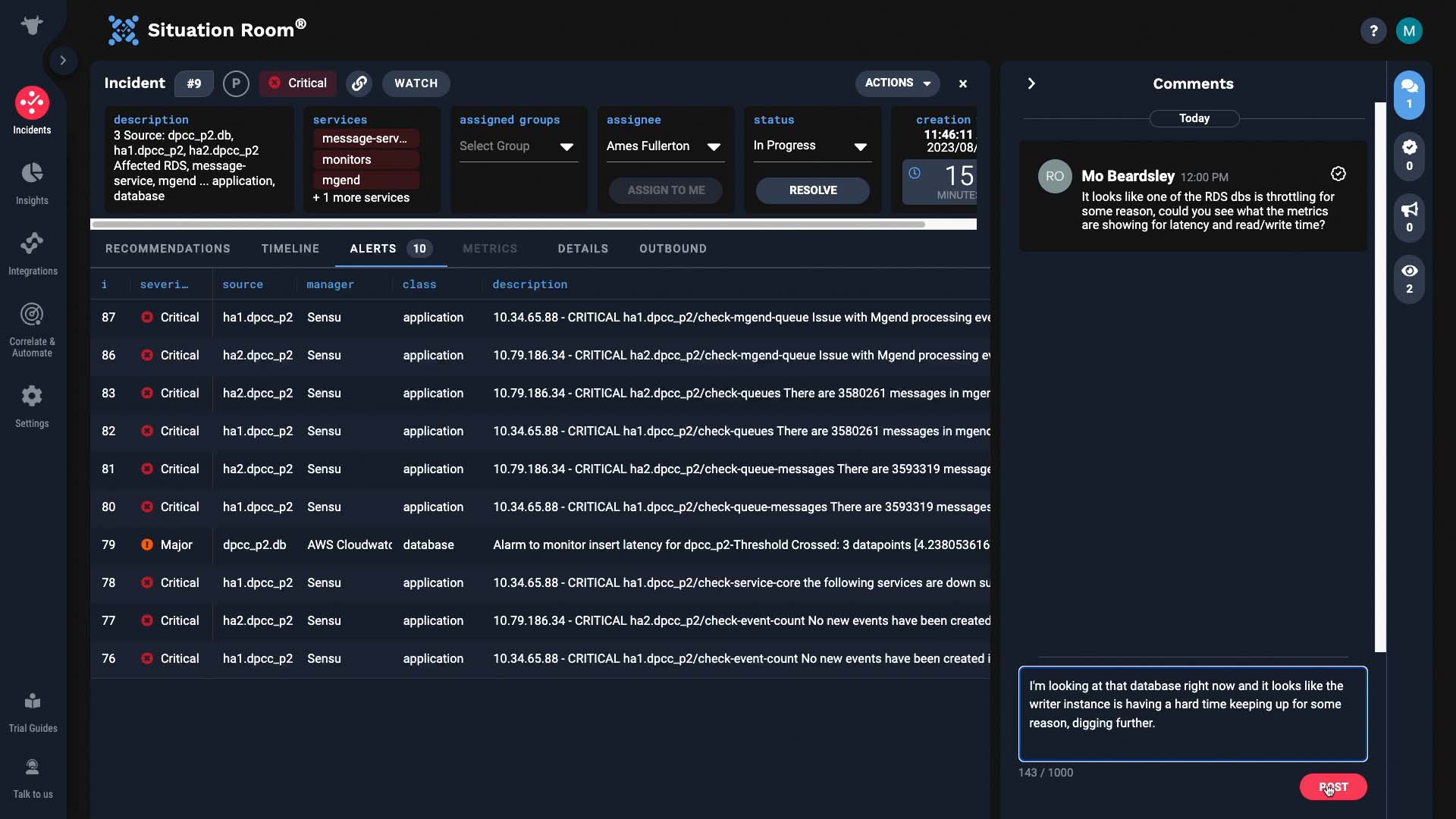

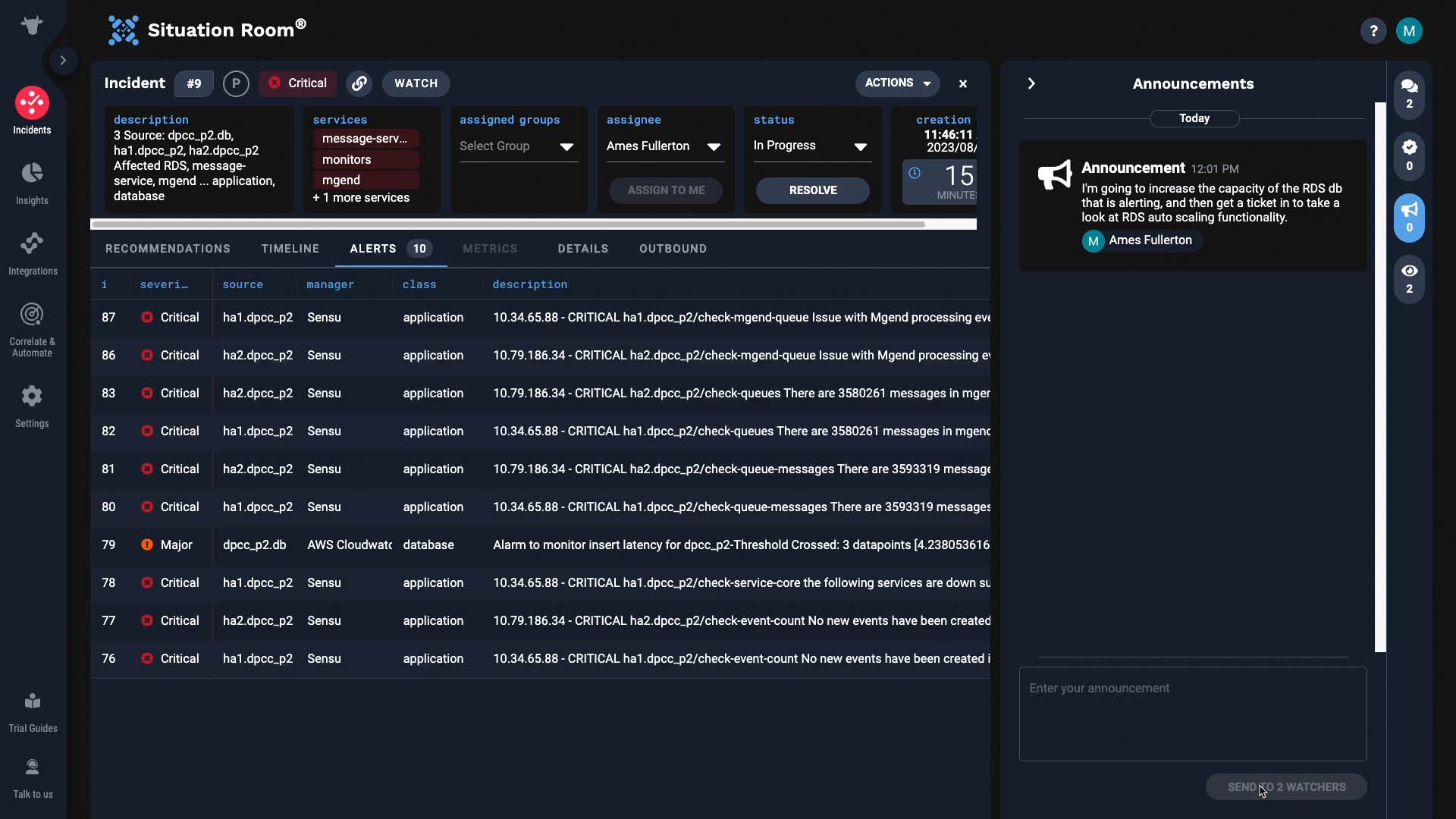

The comments tab lets you collaborate with your team easily.

As you work through an incident, all participants can chat in the comments tab.

If you want to update stakeholders who aren’t actively working in the situation room with you, comment in the announcements tab.

Your comment appears here like any other input...

But it is also emailed to these people, keeping them informed about key progress. Someone who should be notified not listed here? You can add them!

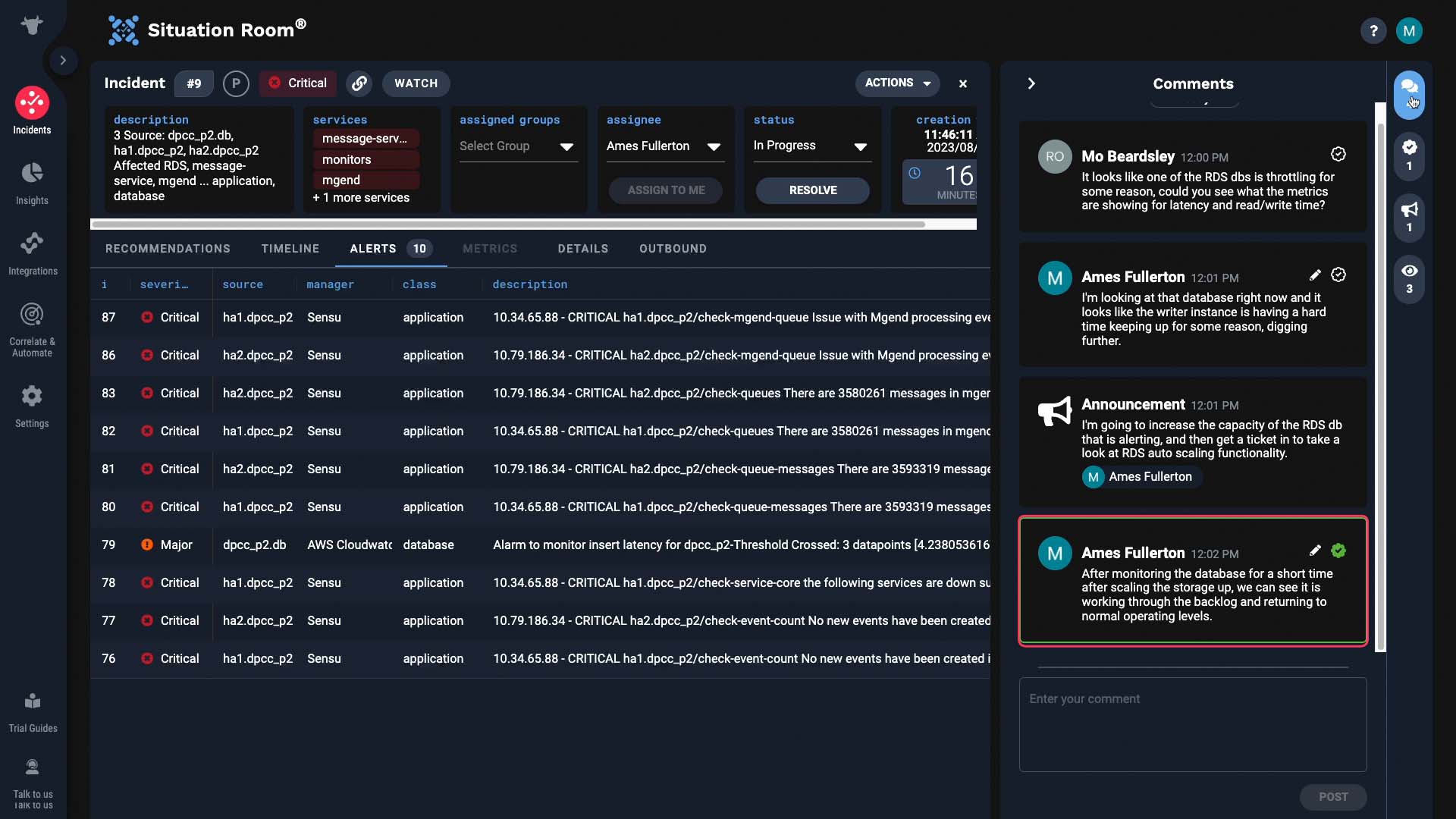

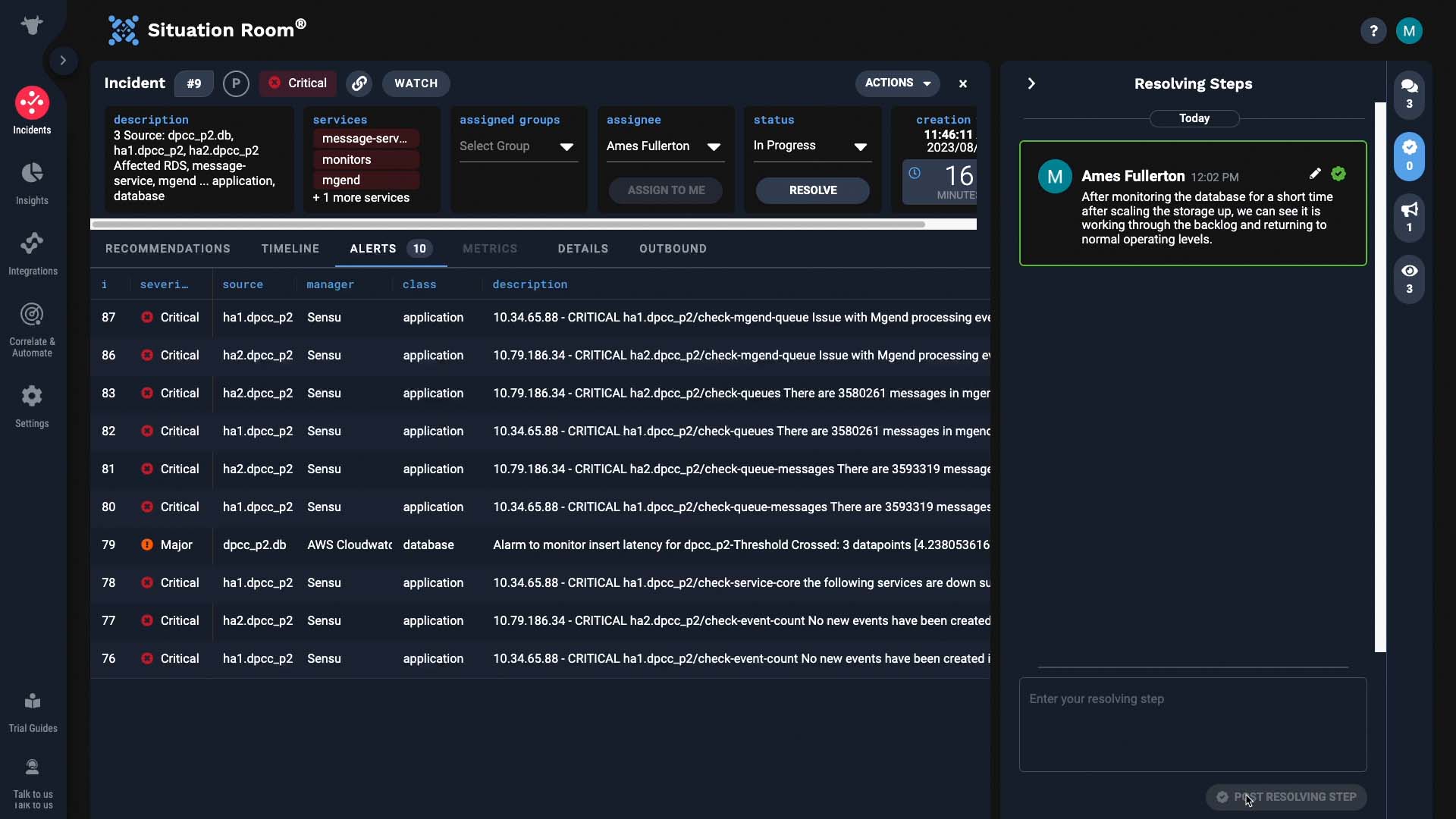

When you find out how to fix the problem, log that under the resolving steps tab.

The input also shows up in the comment thread, but there’s more to it.

Suppose a similar incident happens in future. Then Incident Management will suggest this incident as related...

...with an indicator that there’s a resolving step.

And the future 'you' will thank you for making it so easy to find how you fixed the problem last time.

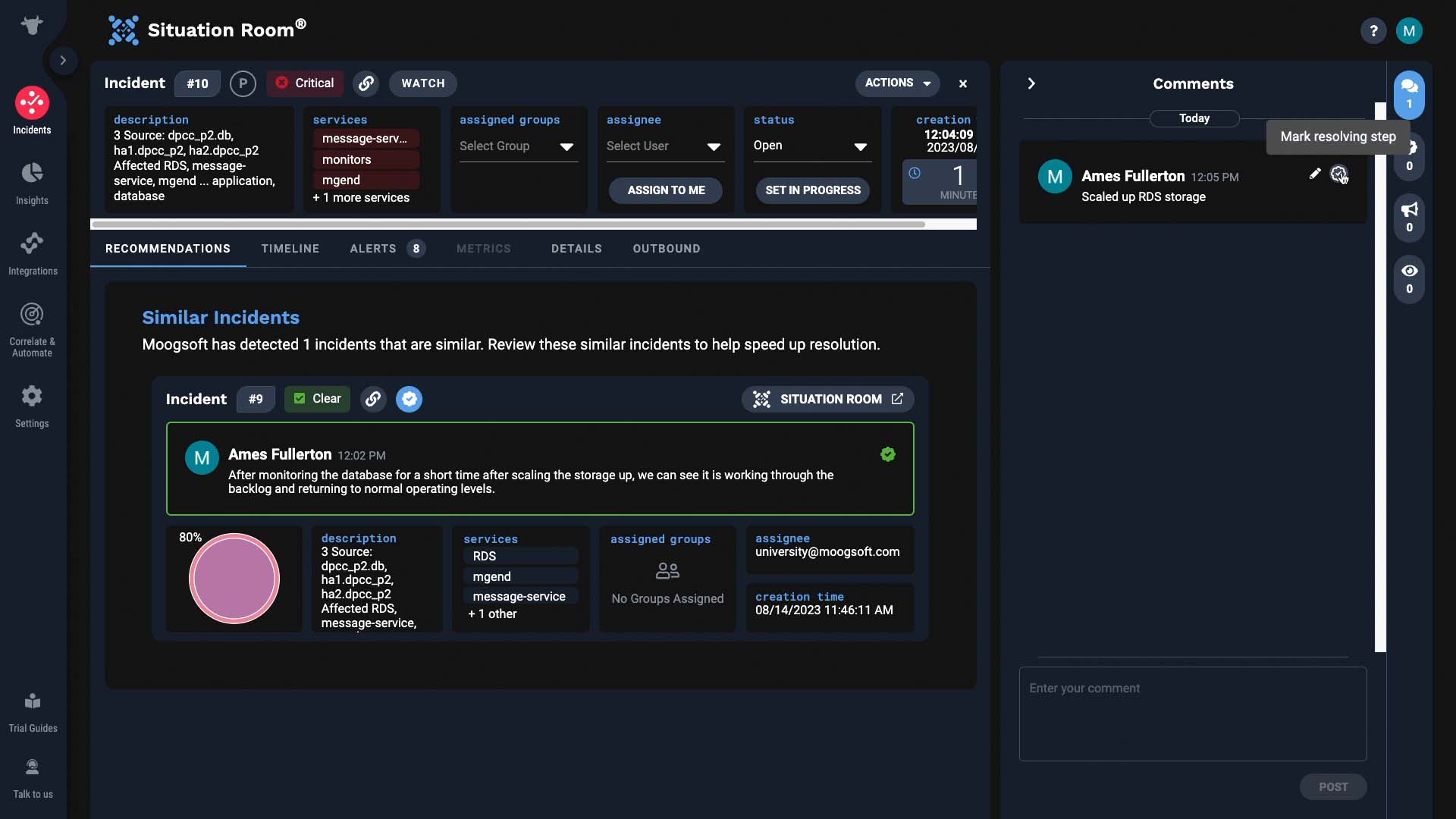

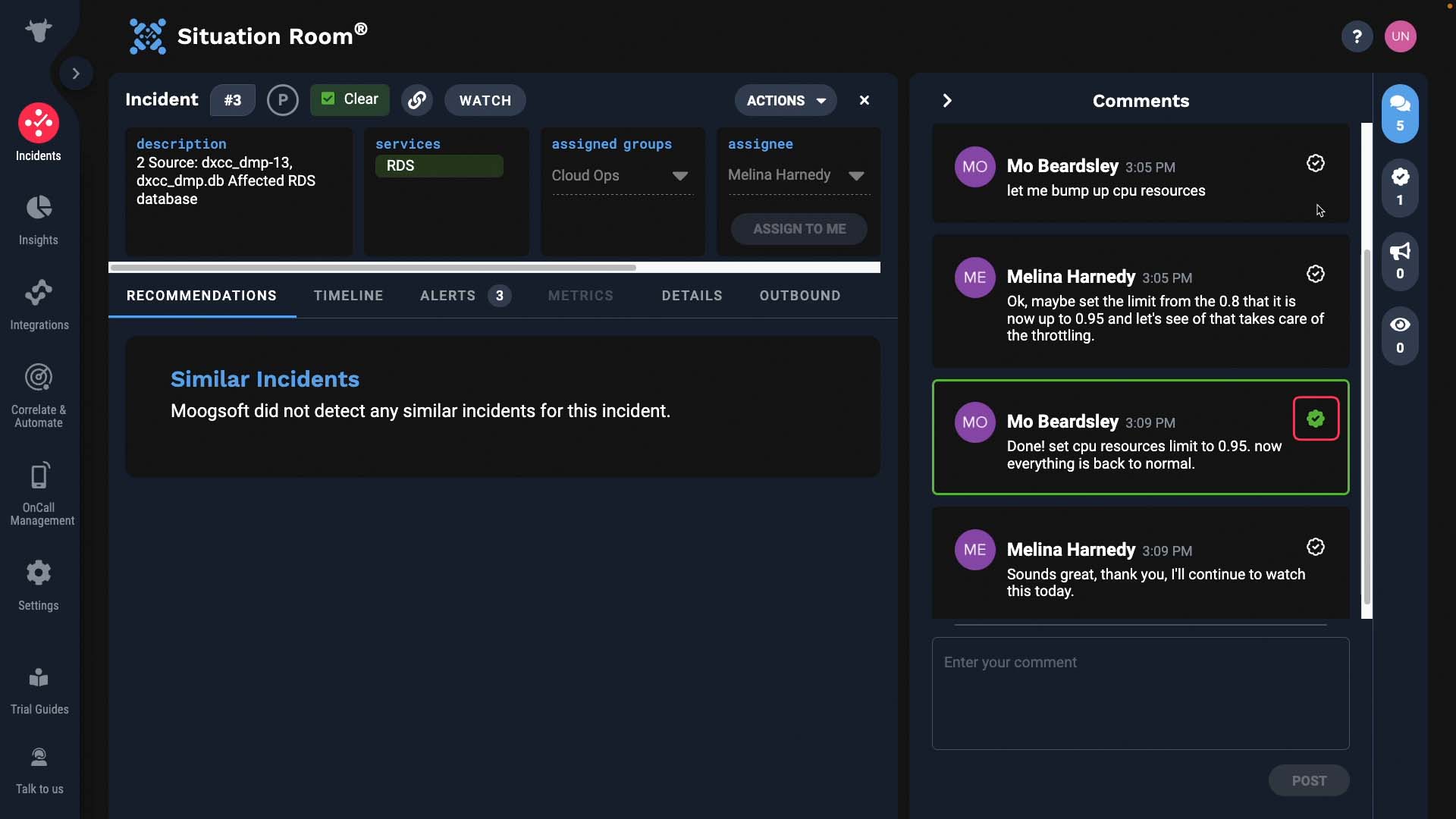

Alternatively, you can mark a regular comment as the resolving step after the fact.

It works the same way as a comment you enter in the resolving steps tab.

Now you know how to use comments. Thanks for watching!

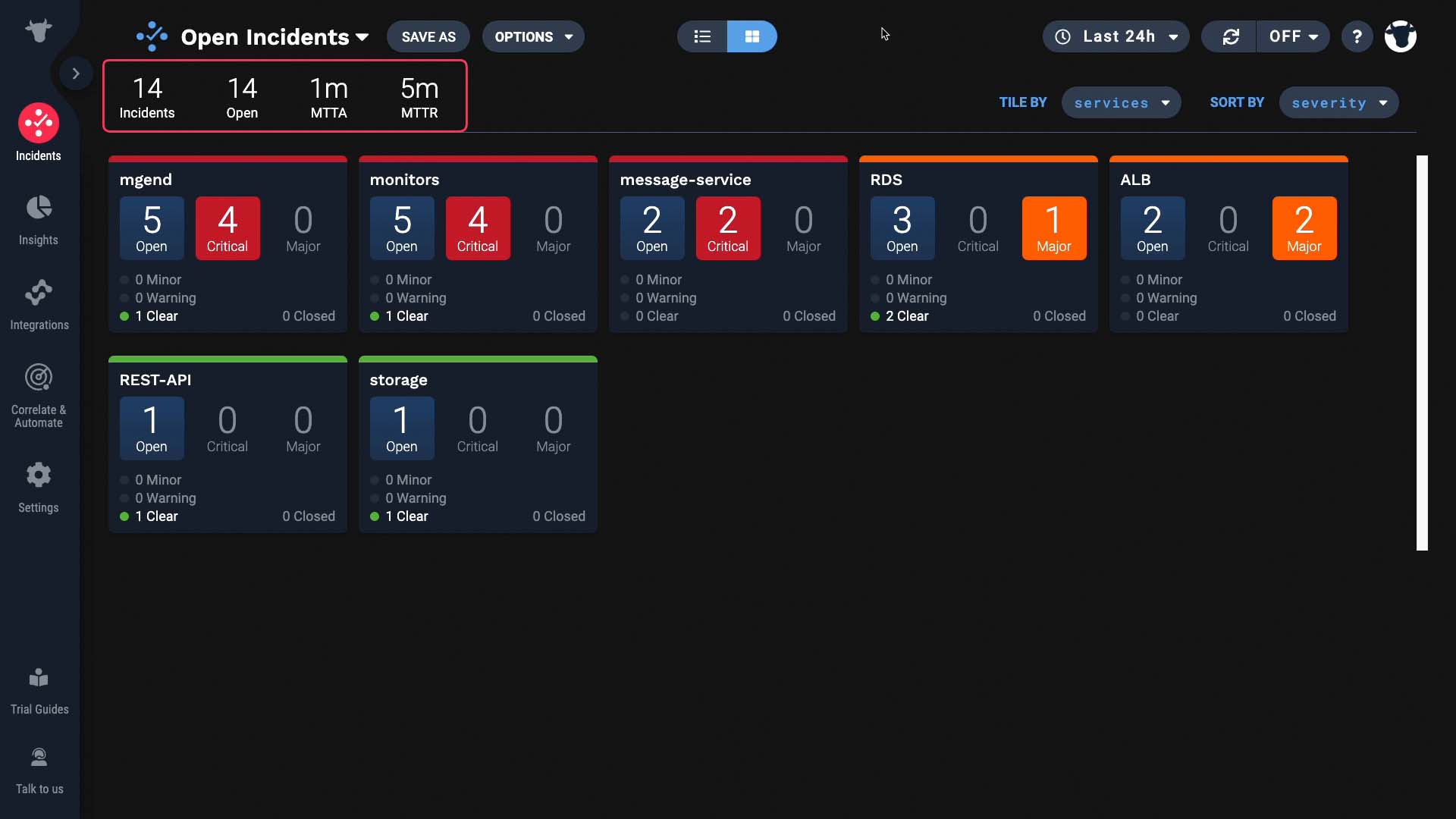

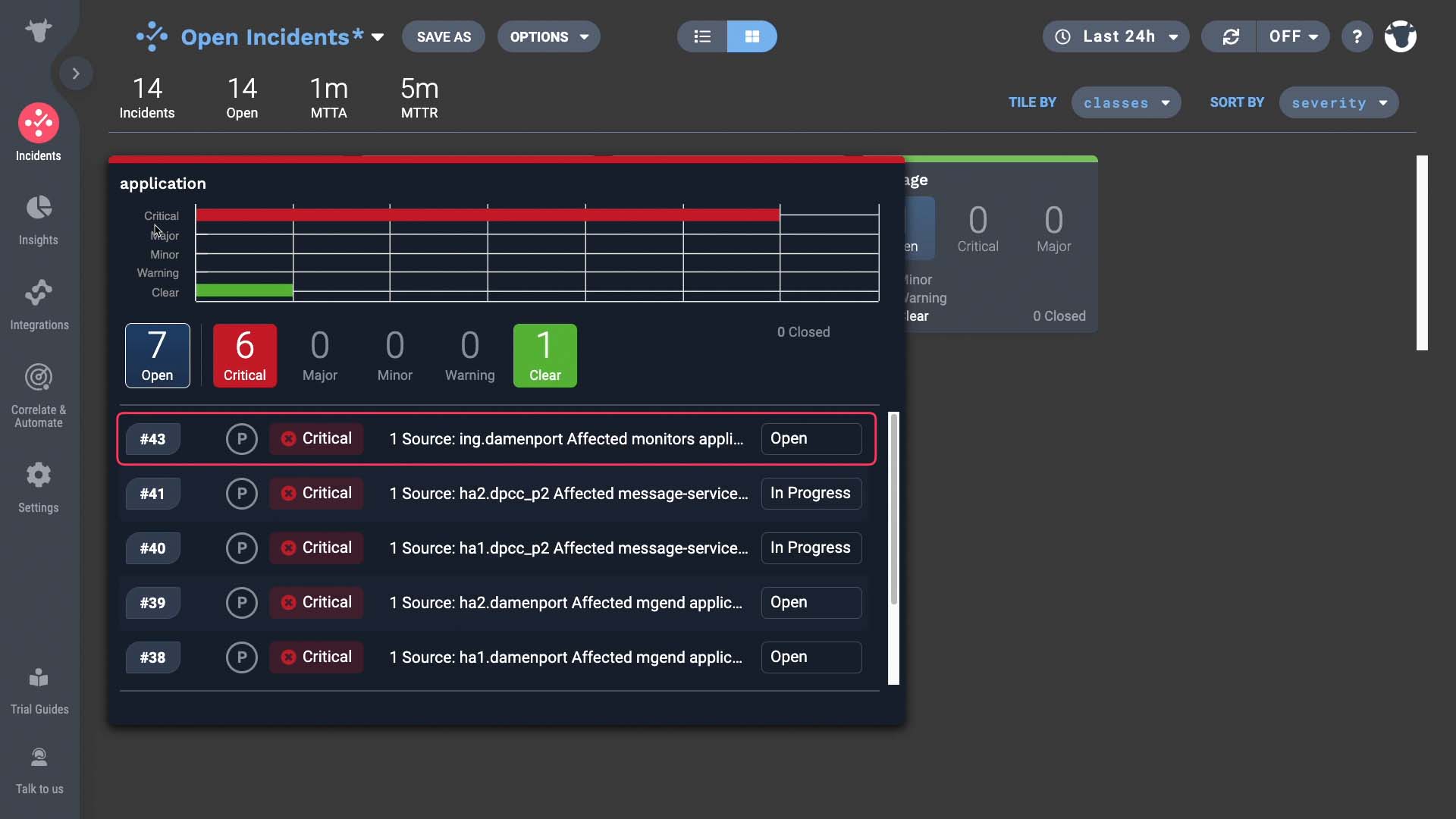

You can now create dashboards to view the team’s performance at a glance.

The incident list is useful for operations staff.

But as a manager you may need something to show how your teams or services are doing at a glance. The dashboard views are perfect for that. Here are the overall stats.

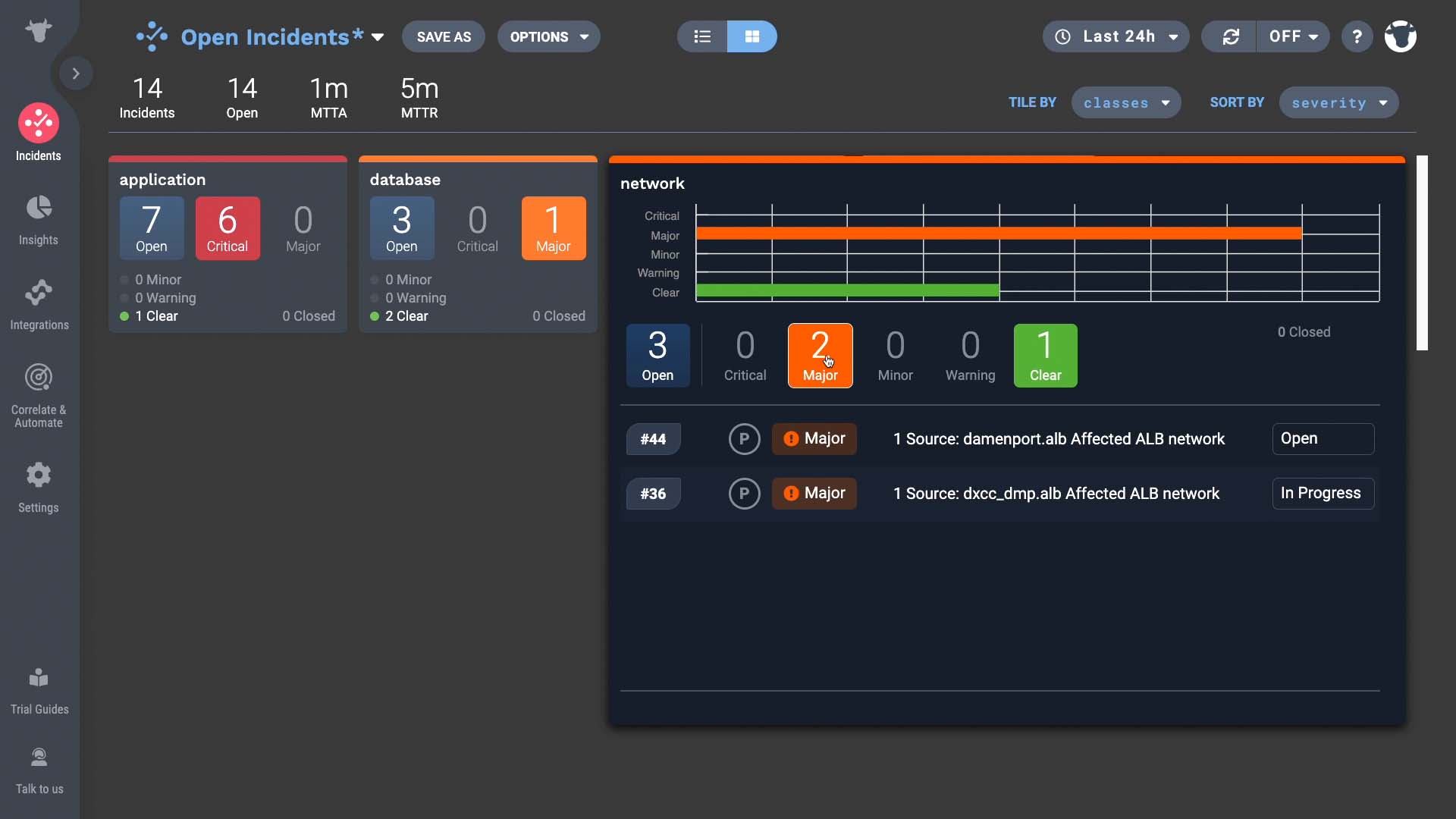

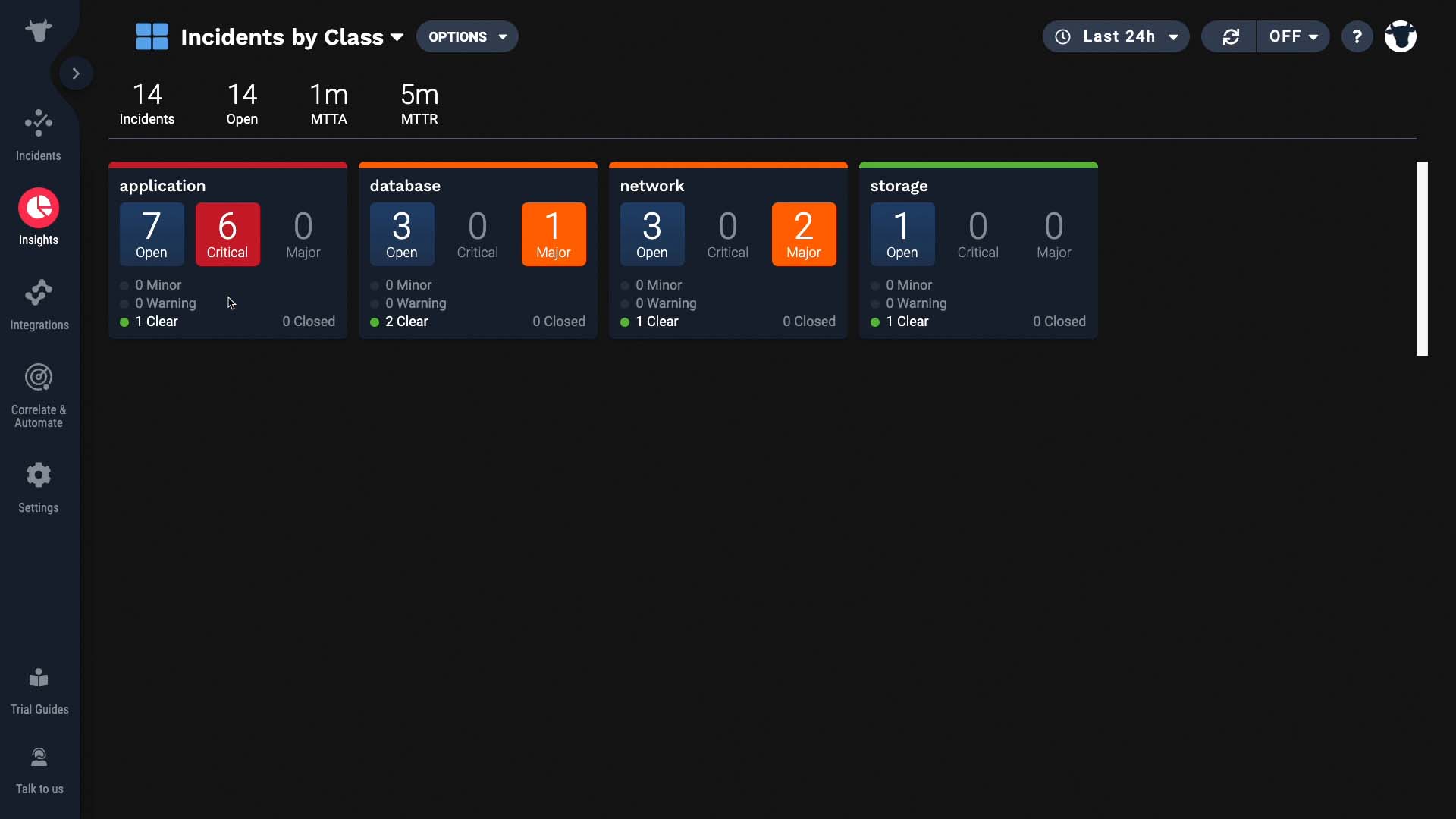

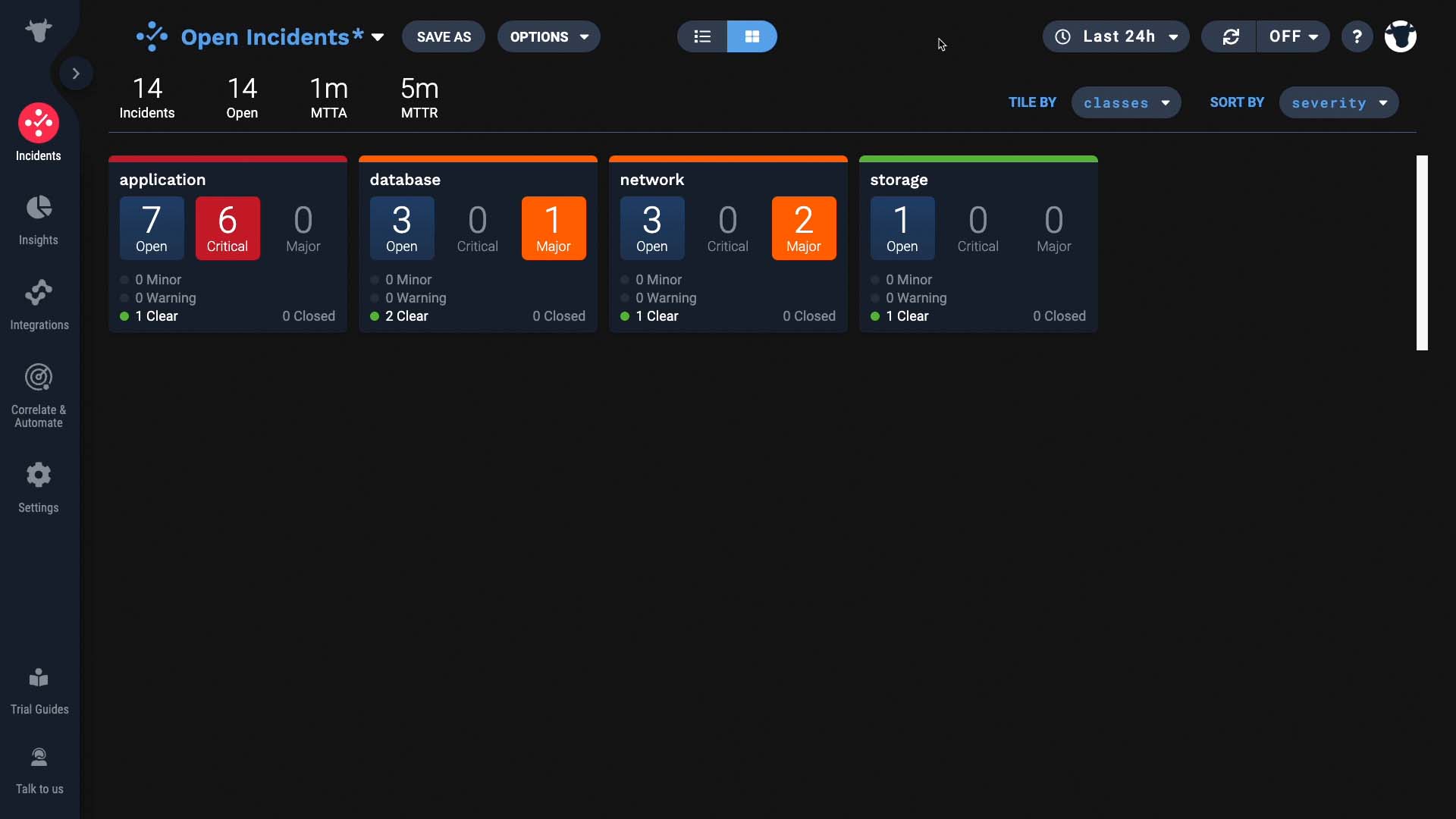

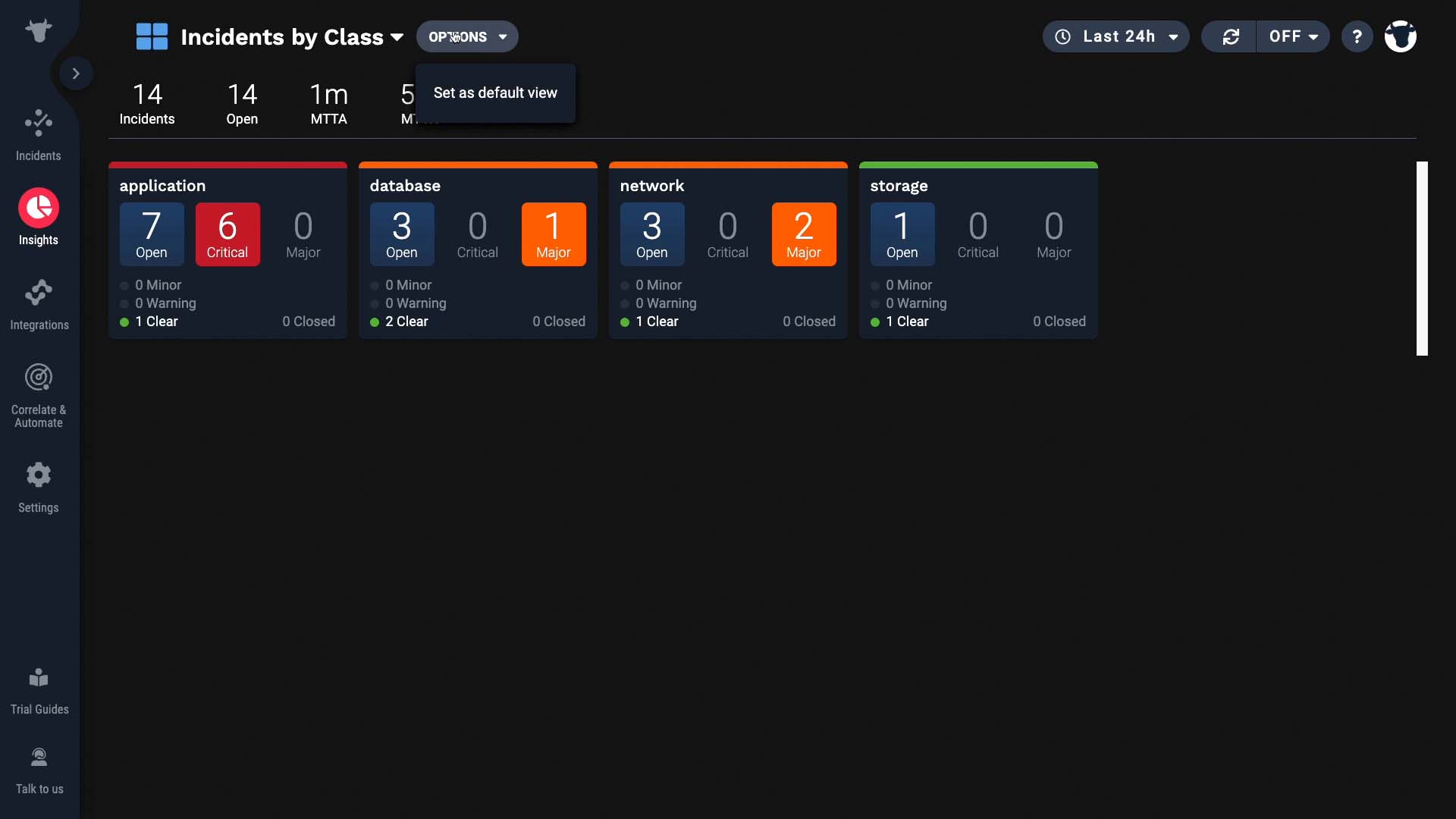

Right now it’s tiled by service, but now it’s categorized by type.

Or classes. You can slice and dice the overall category to suit your needs.

You can narrow down the list like this.

So if I wanted to learn more about critical application incidents it’s easy to do so. And, of course, go right into the Situation Room from here to start troubleshooting an incident.

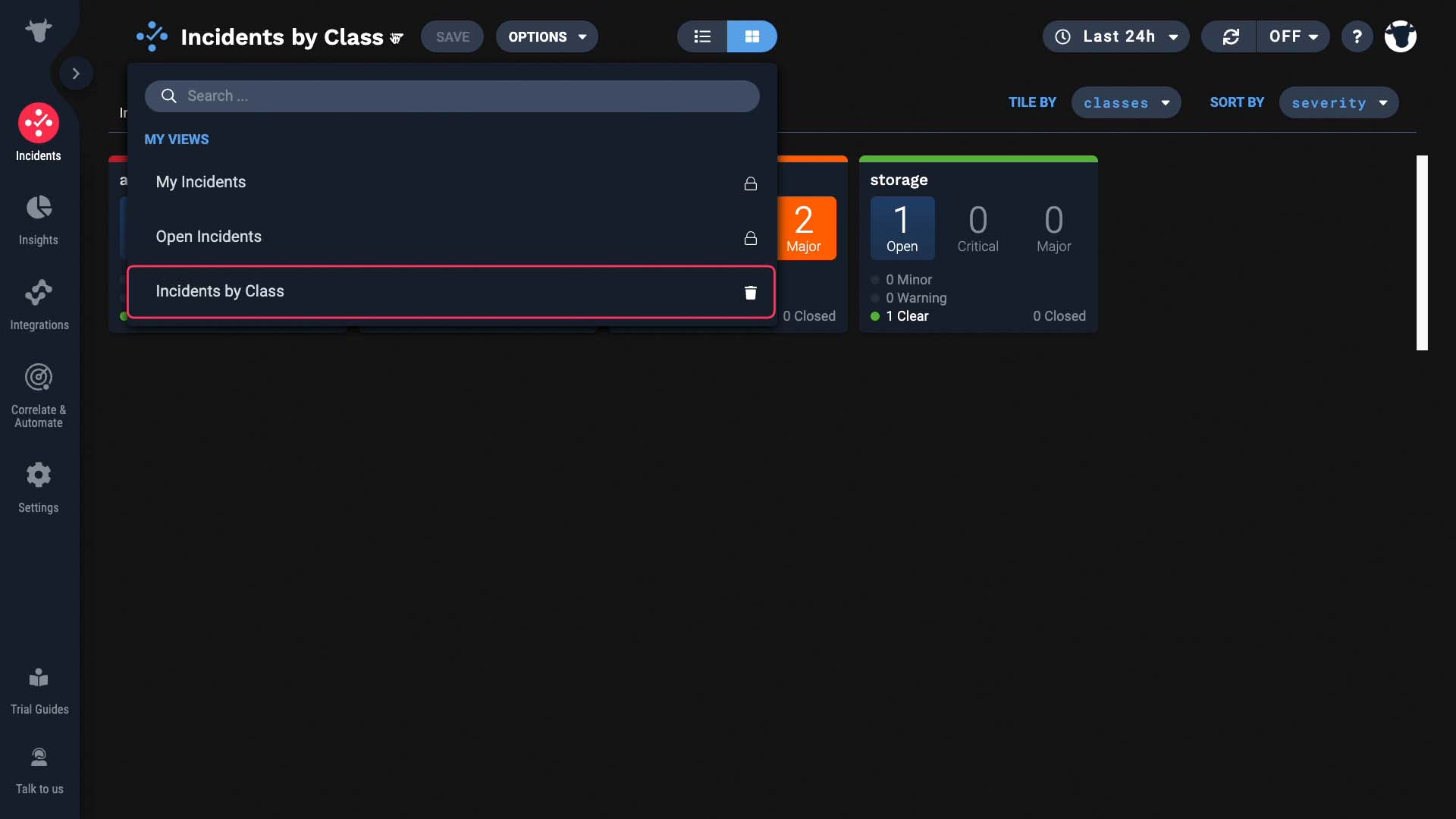

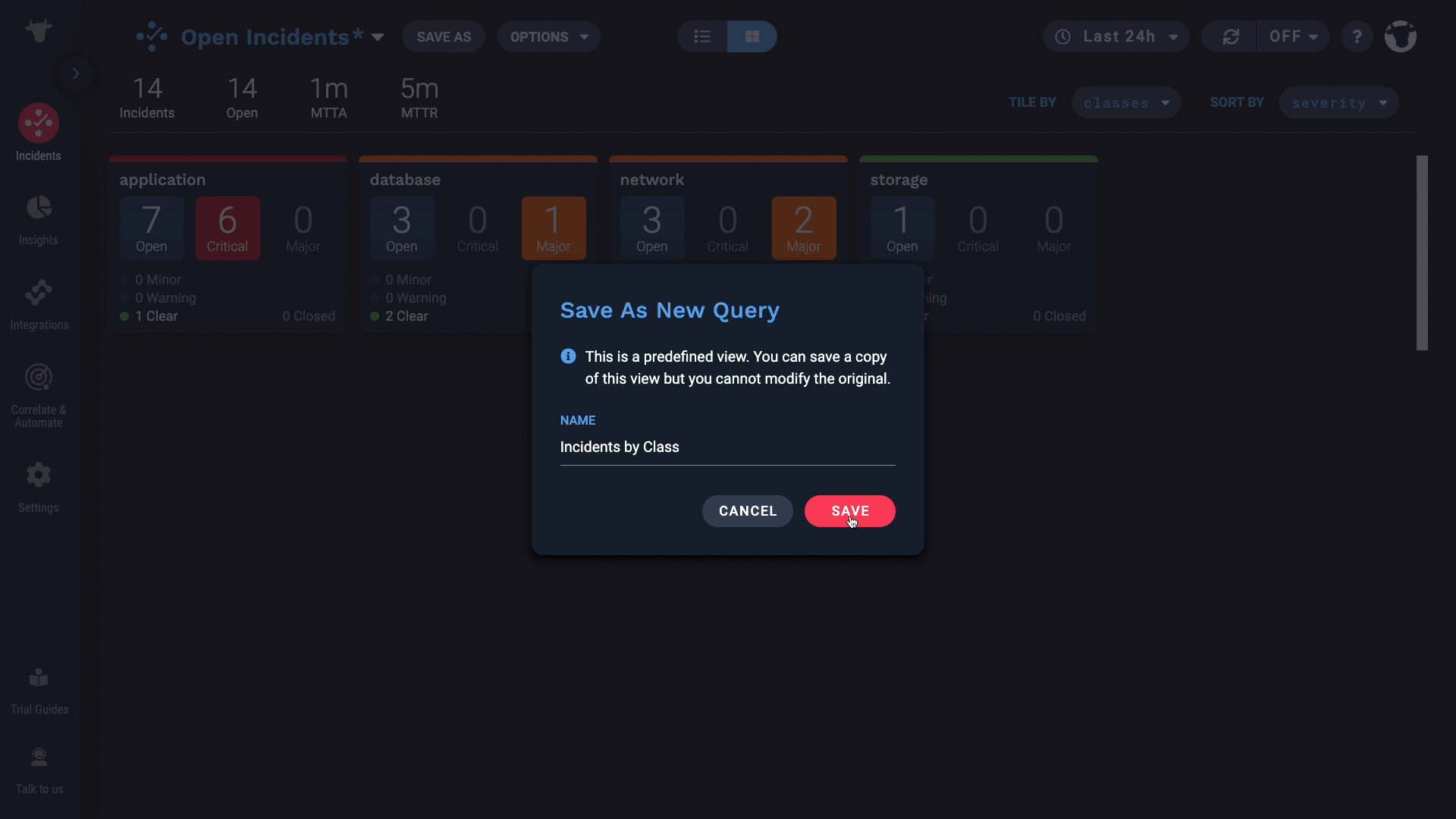

Once you get the exact data you are looking for, you can save that dashboard.

Now you have one-click access to the team’s stats!

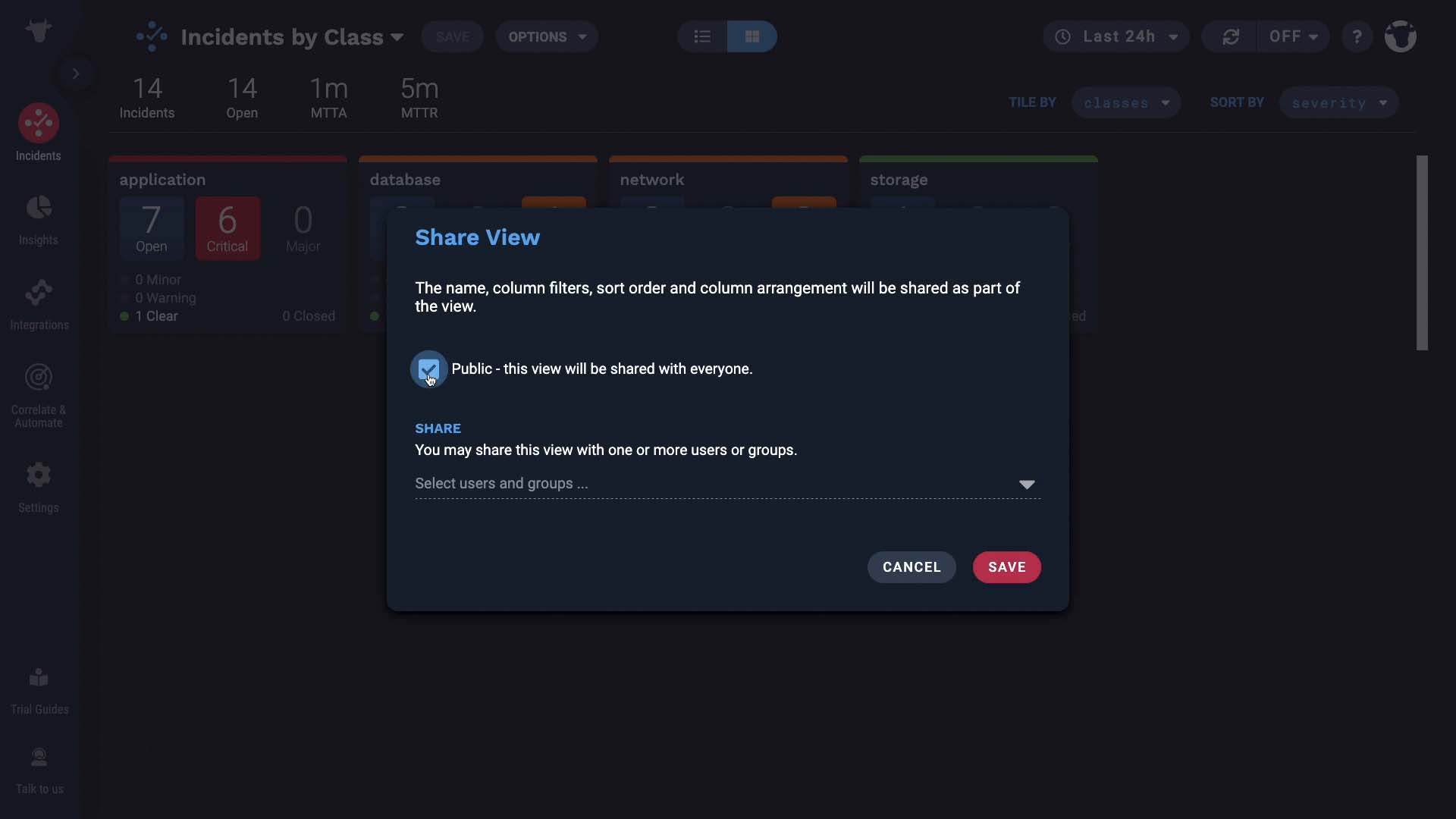

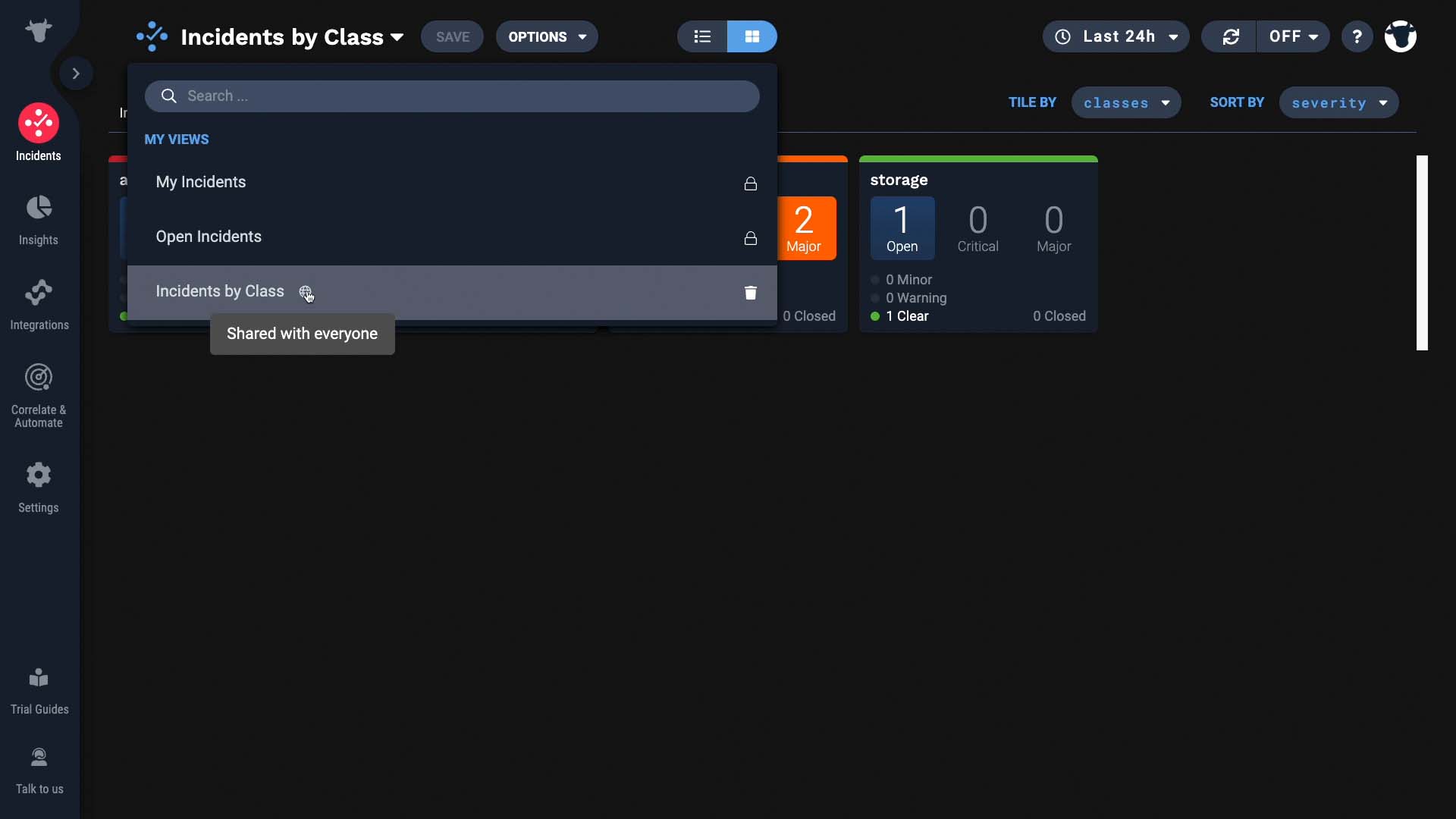

And the saved dashboards can be shared with specific groups or with everyone.

Shared dashboards are accessible from here…

…and also from the Insight section.

Now everyone can view this dashboard, and even set it as their default view!  Thanks for watching!

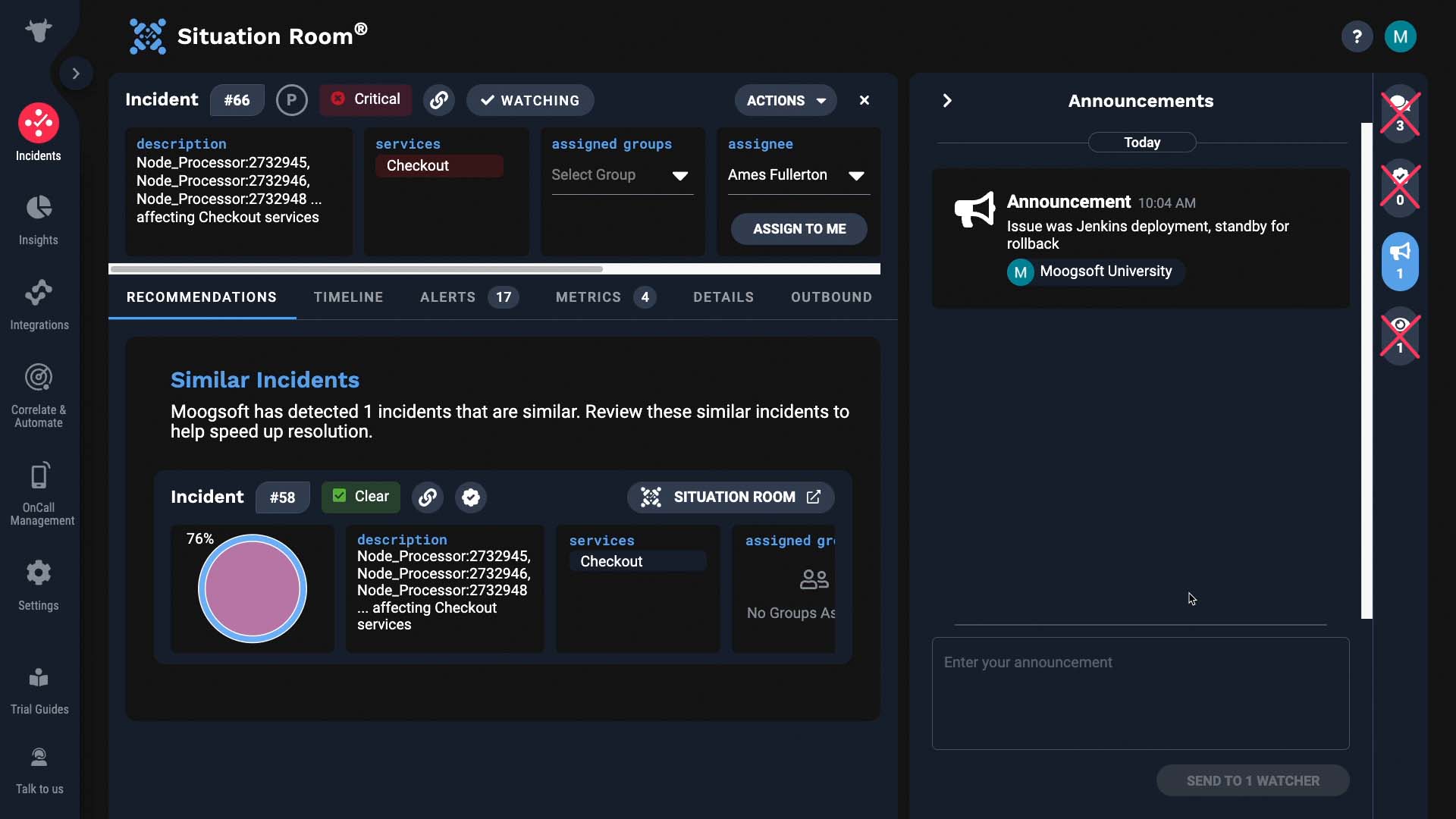

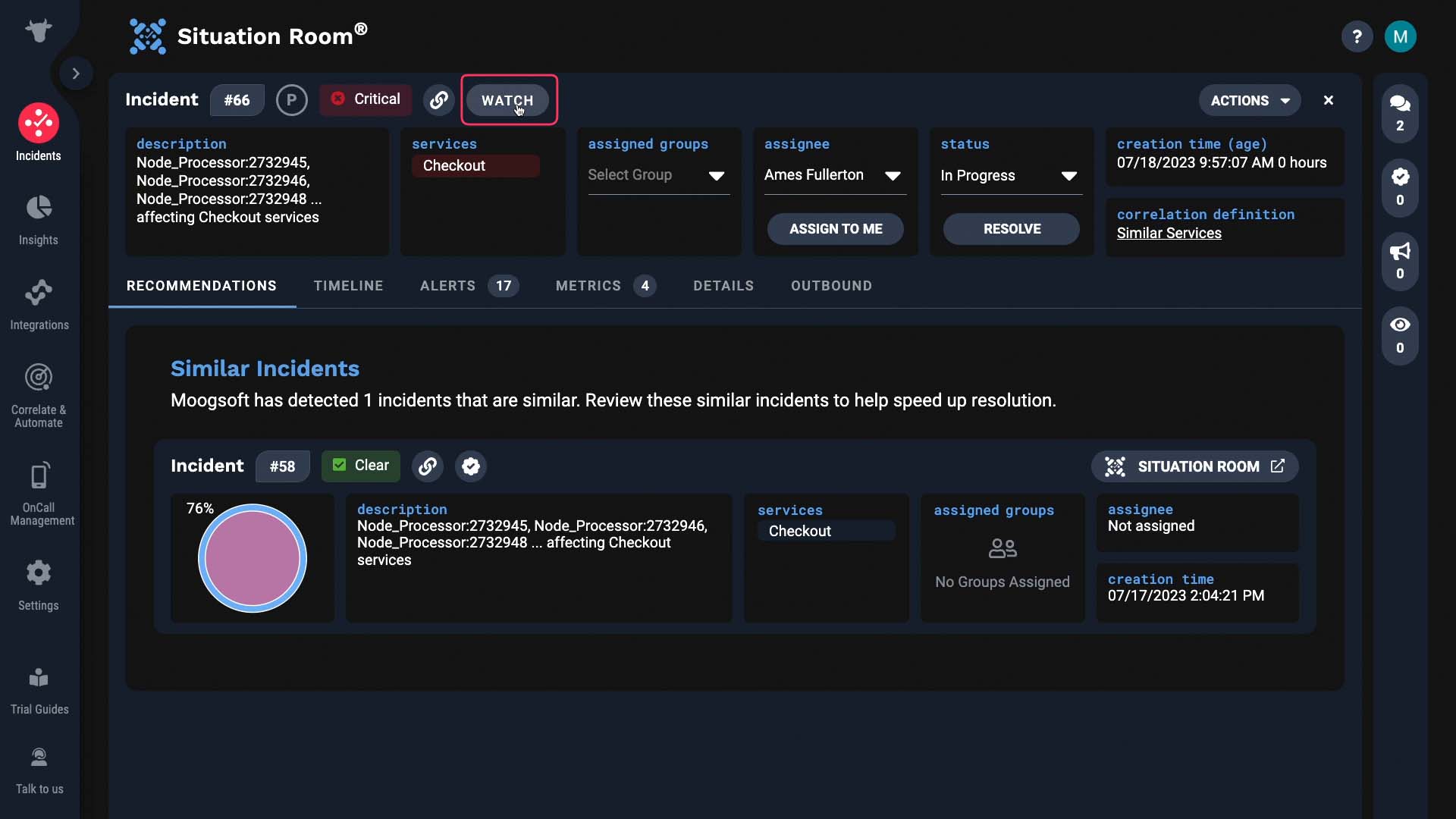

There may be incidents you don’t need to directly work on, but just want to monitor progress. You can watch such incidents and stay informed.

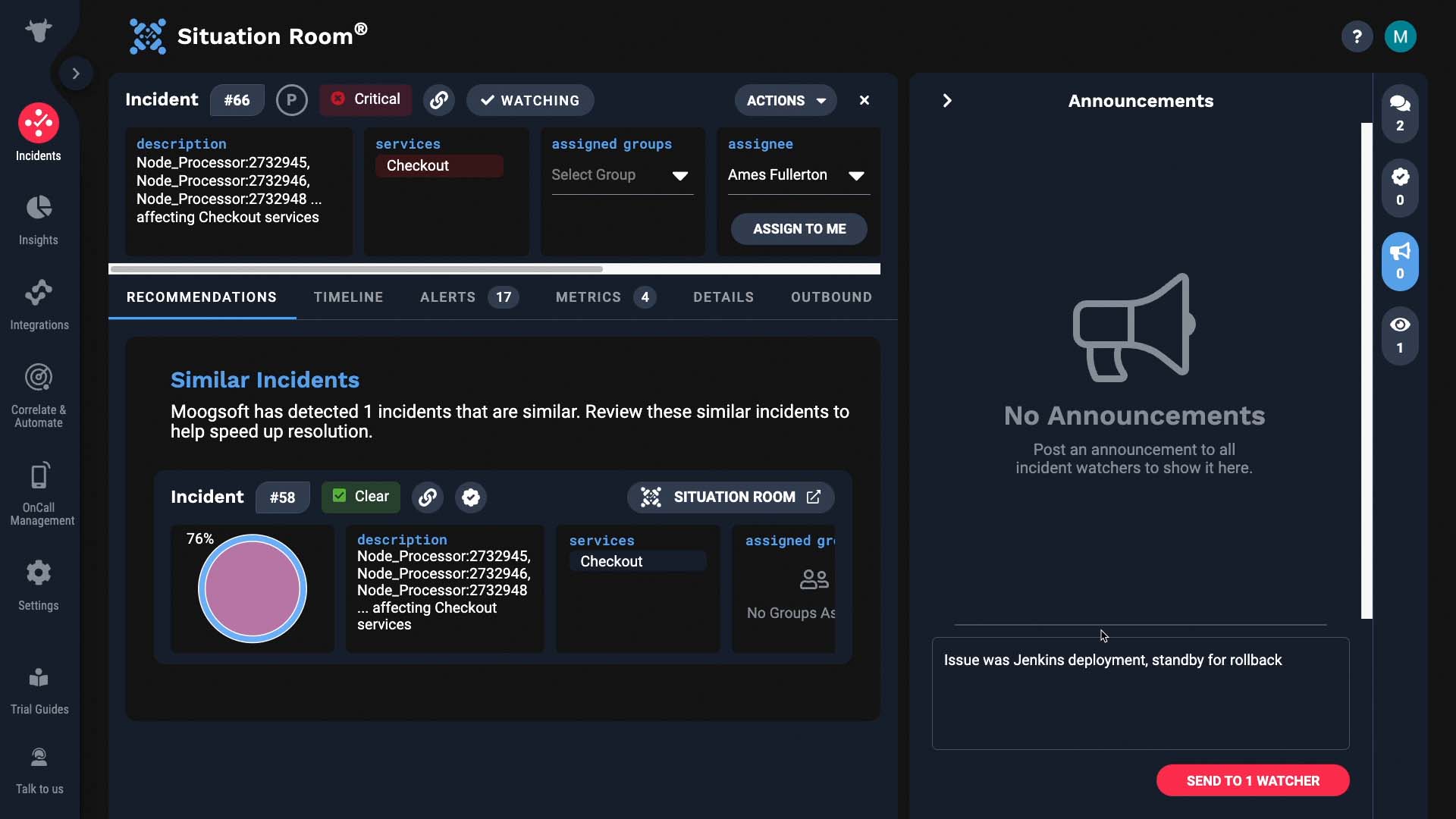

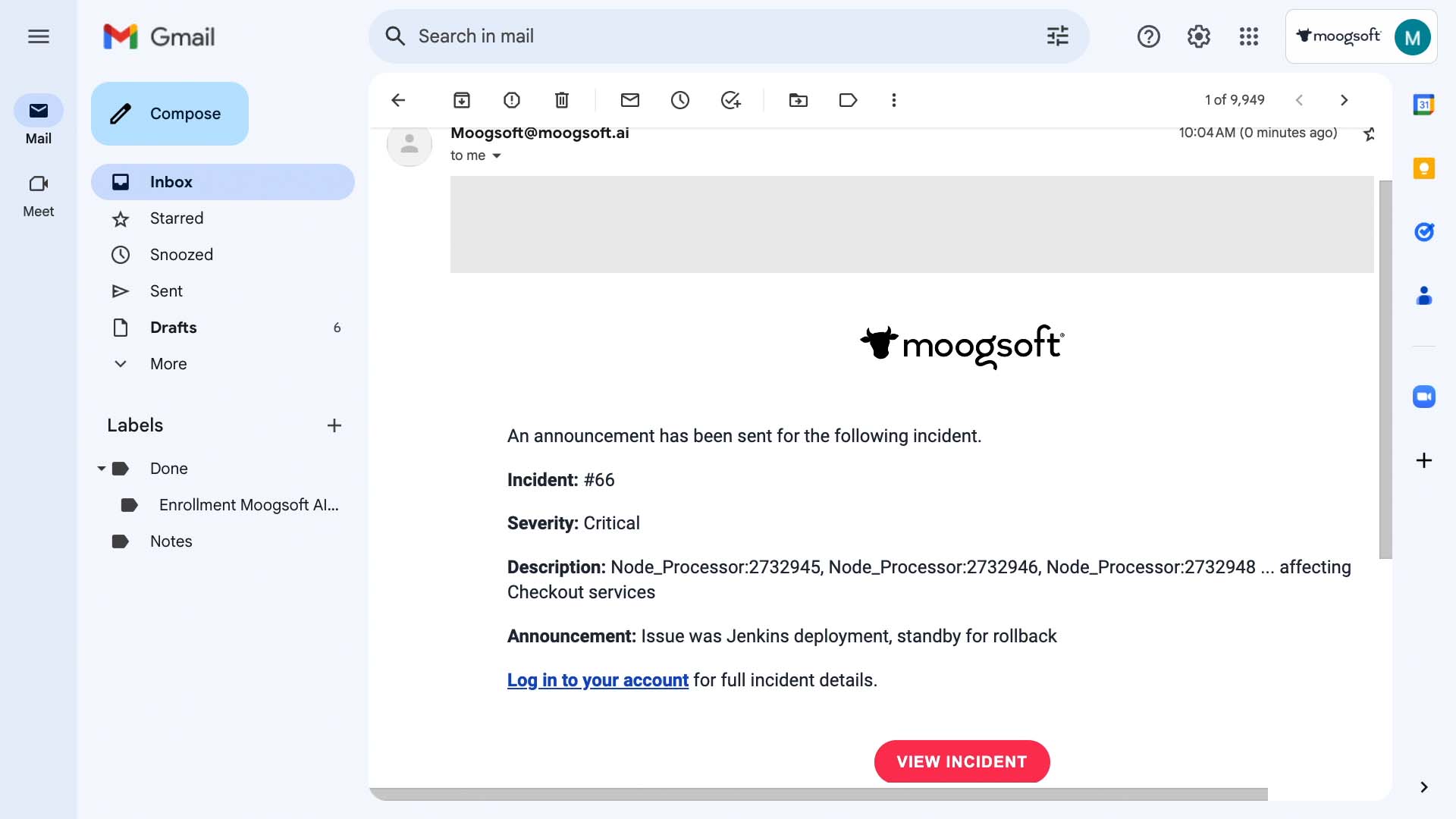

Now you are watching this incident. When anyone adds announcements, Incident Management will email you.

Like this.

Note that only announcements trigger the notification emails. Also, you can add people other than yourself to incidents, like this:

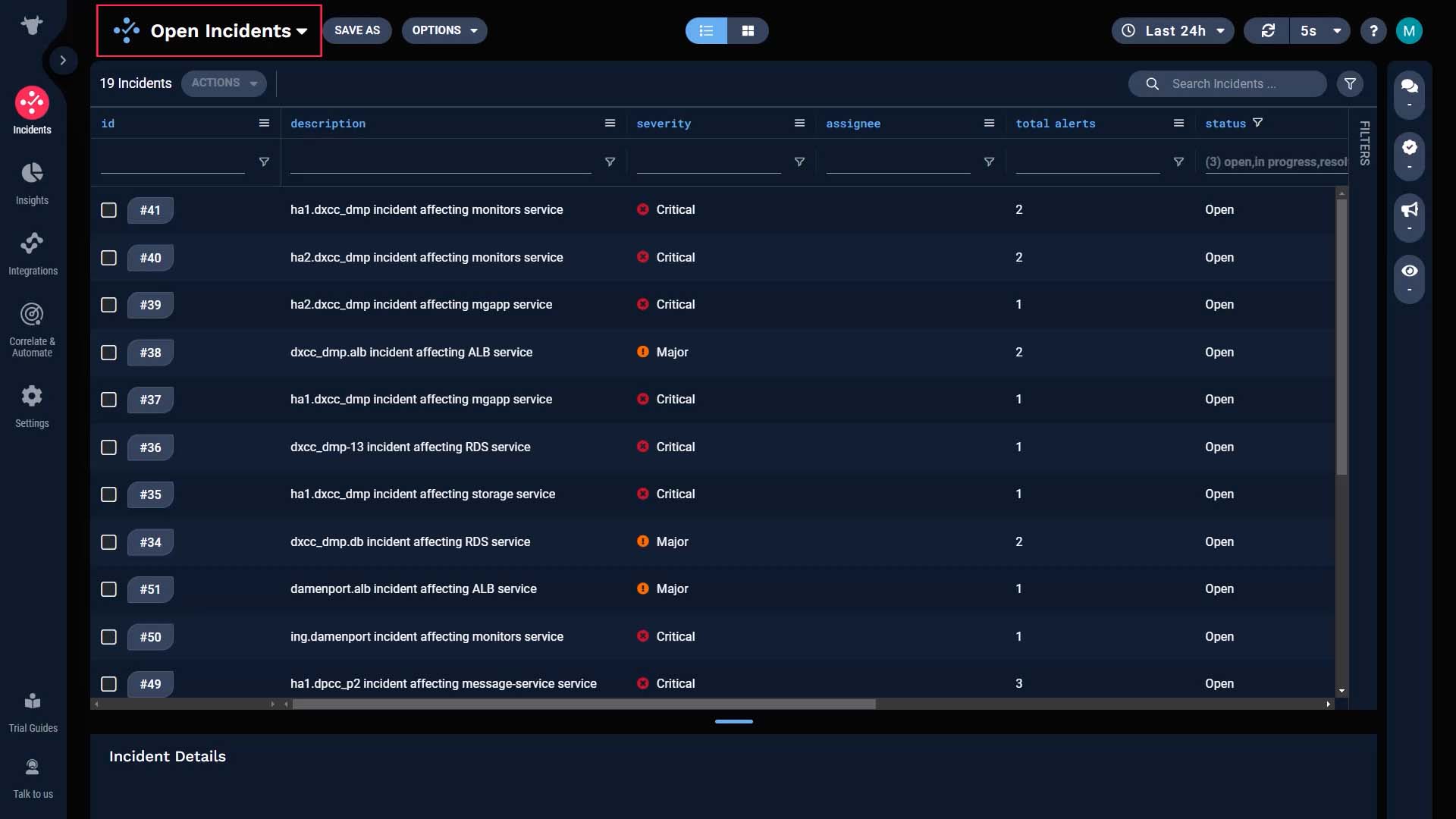

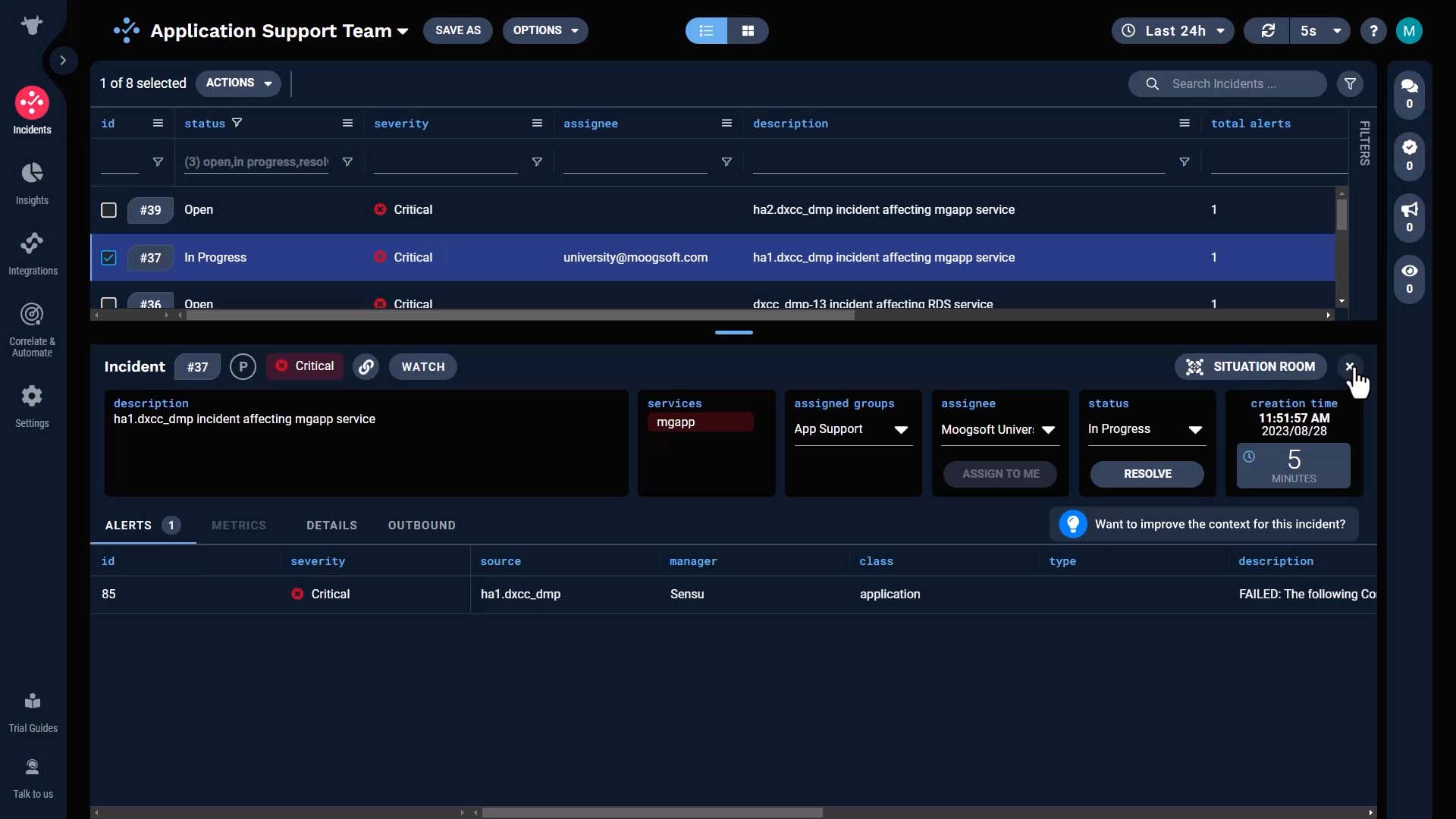

How do you know what’s coming down the pipeline for you to work on in Incident Management? This is the default incident list. This includes all open incidents, regardless of the nature of the issues or assignments.

Your operational procedure may be as simple as just looking at this list and picking an unassigned ticket.

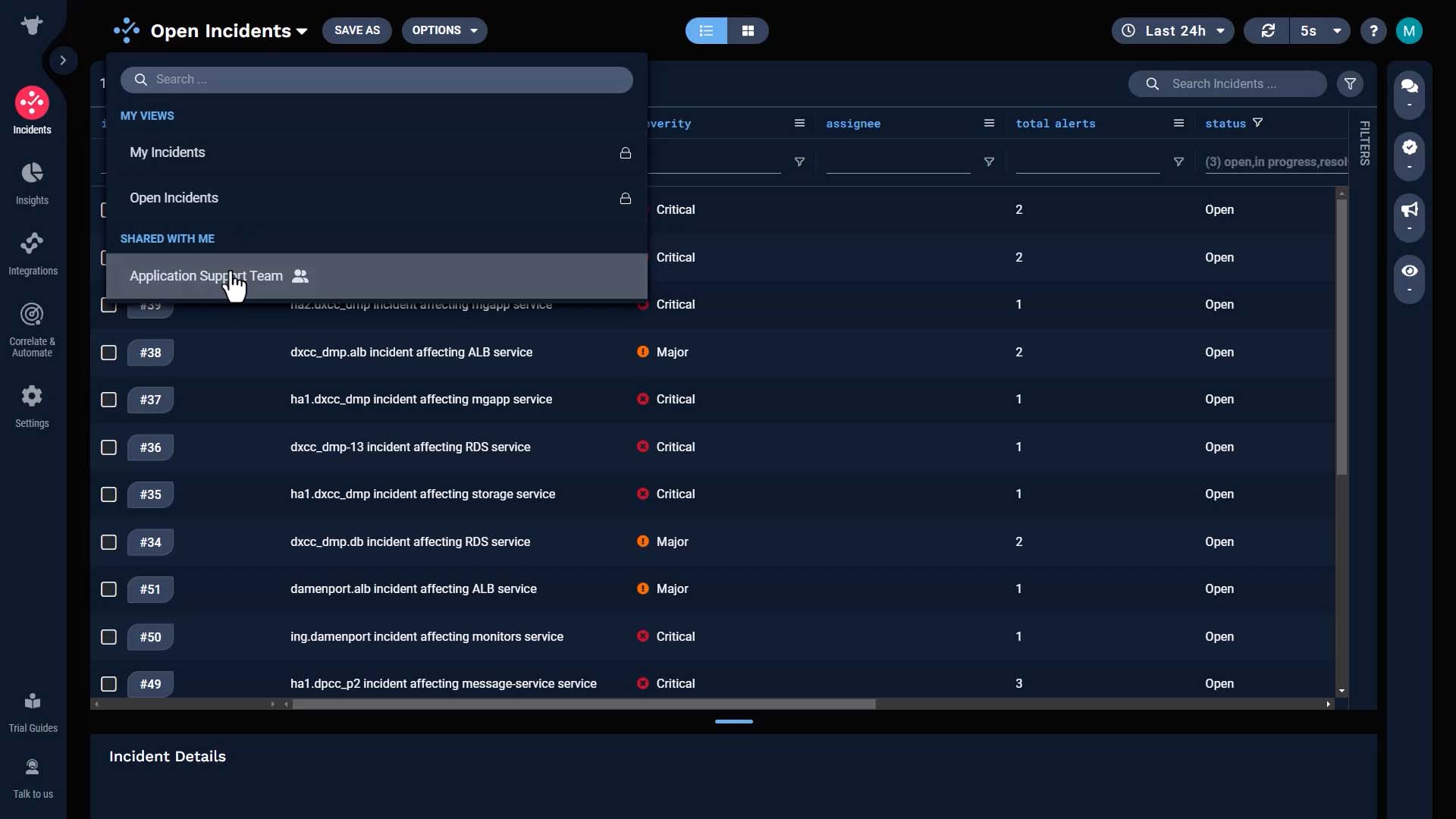

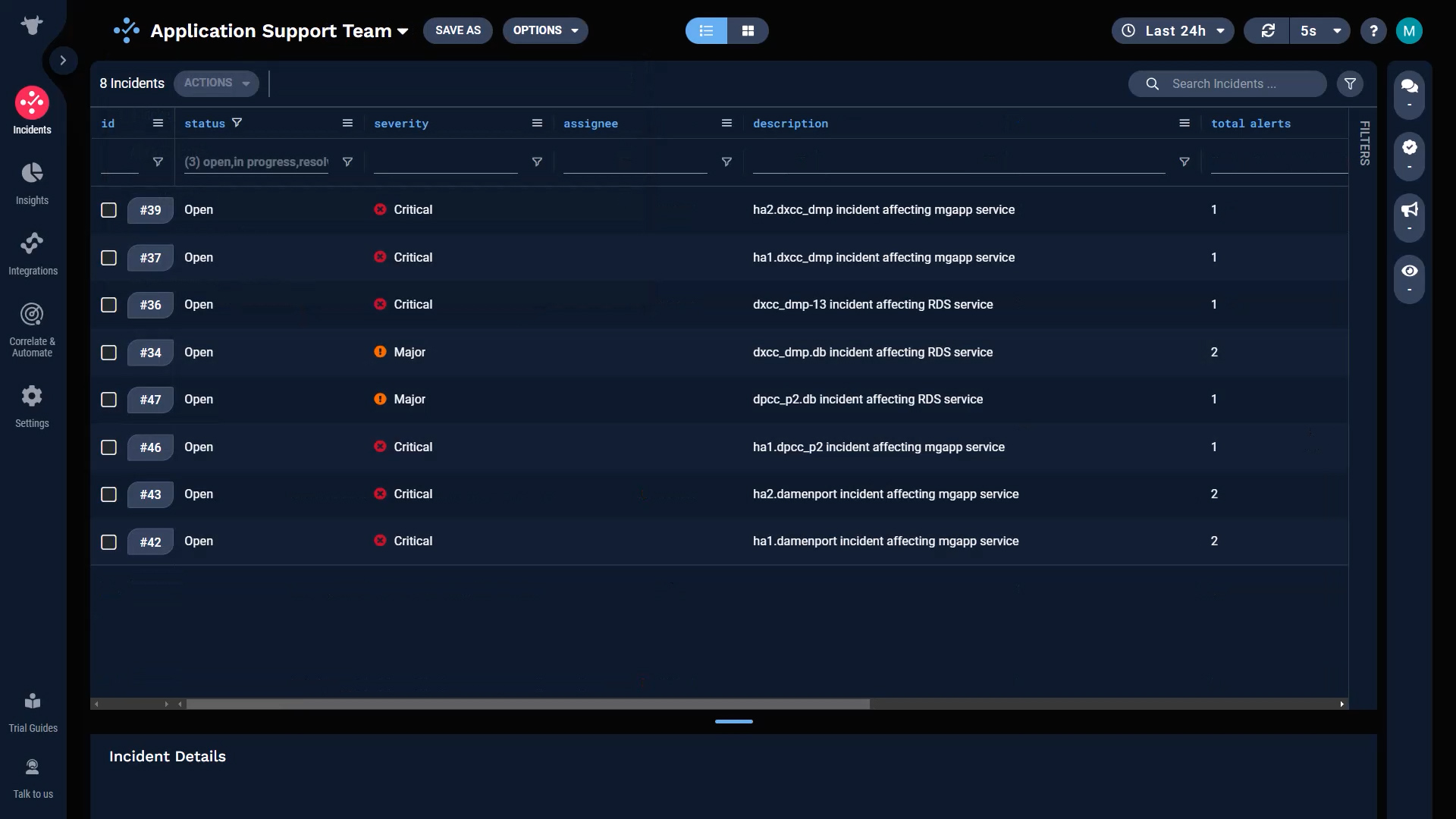

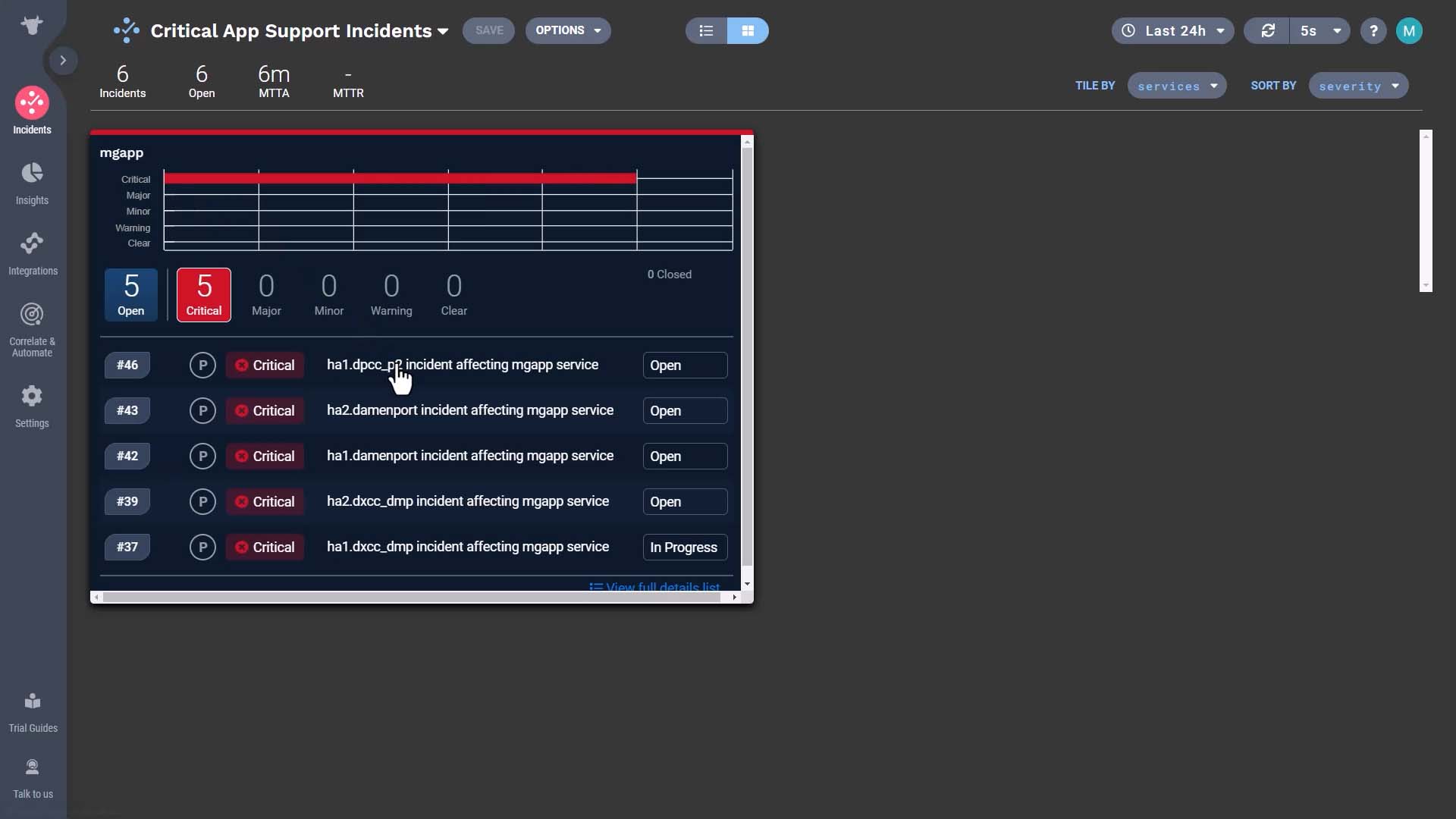

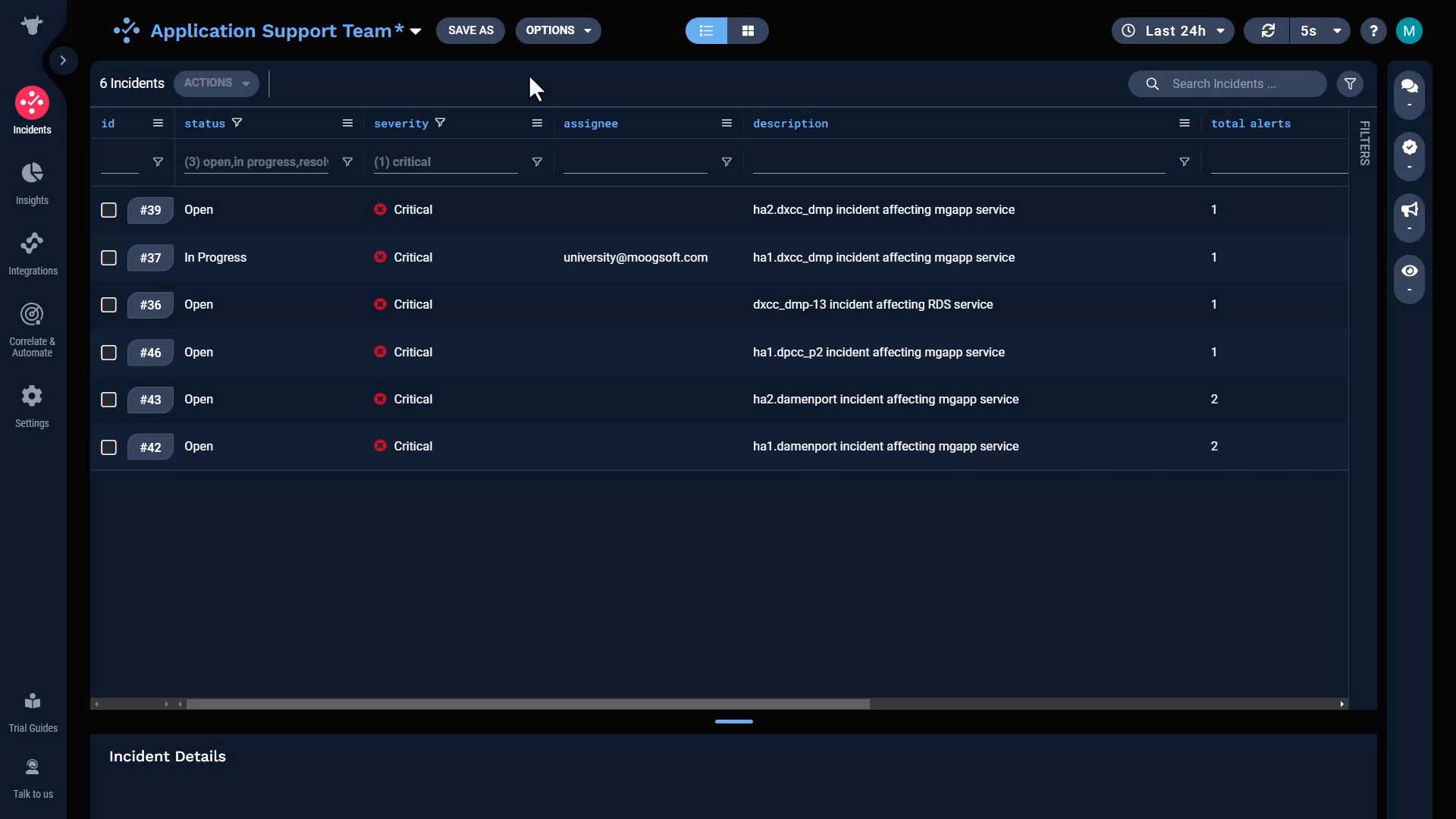

But most likely, you have a queue specific to your team. In this example, we have access to the Application Support team’s incidents view.

So basically this is a list of application-related incidents. Your administrator may have set up a workflow to set the team assignment based on the impacted services, or there may be someone triaging incoming incidents and routing the applicable ones to your team.

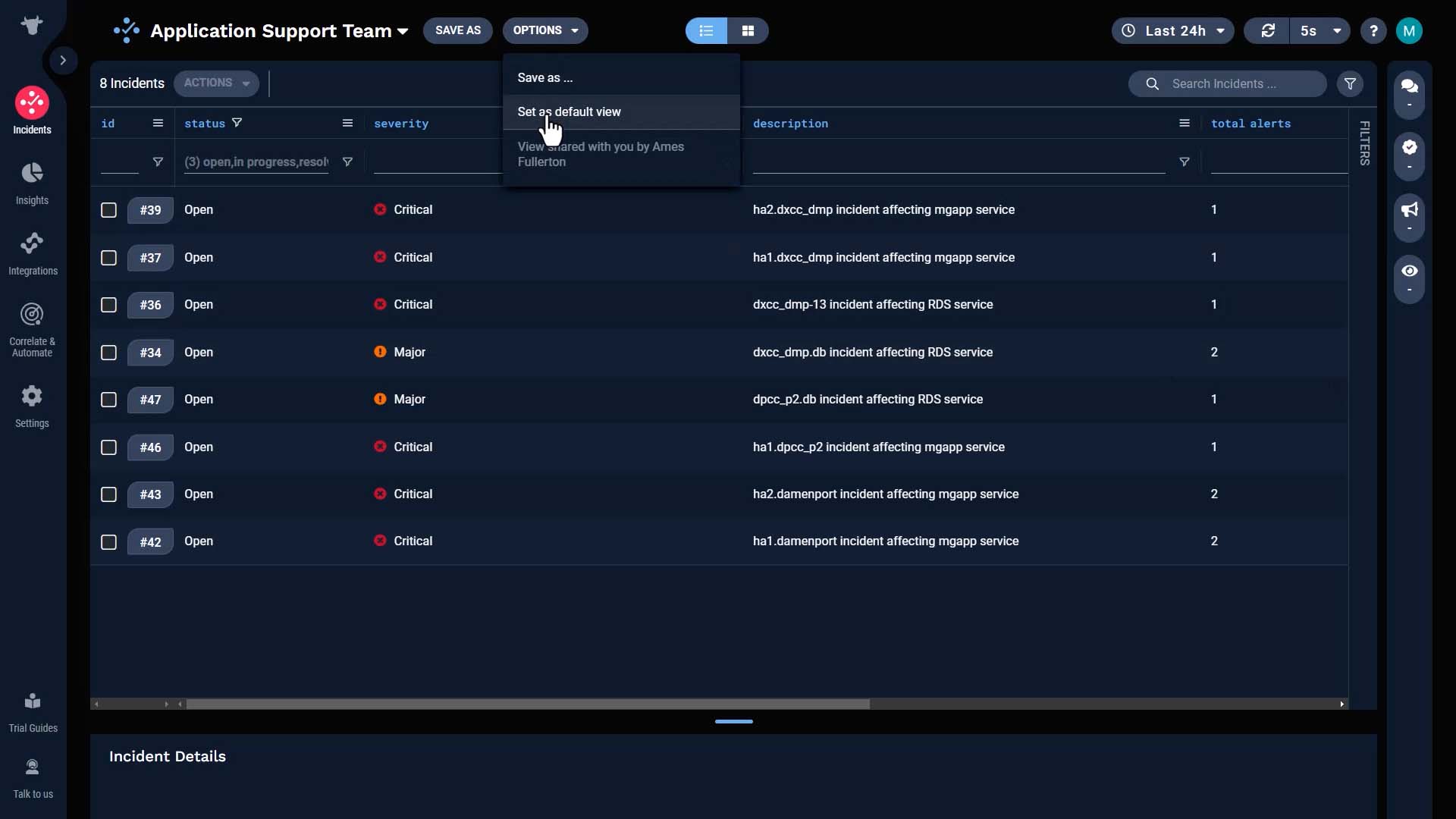

And you can make this your default view without affecting other users.

Let’s say we are going to work on this one.

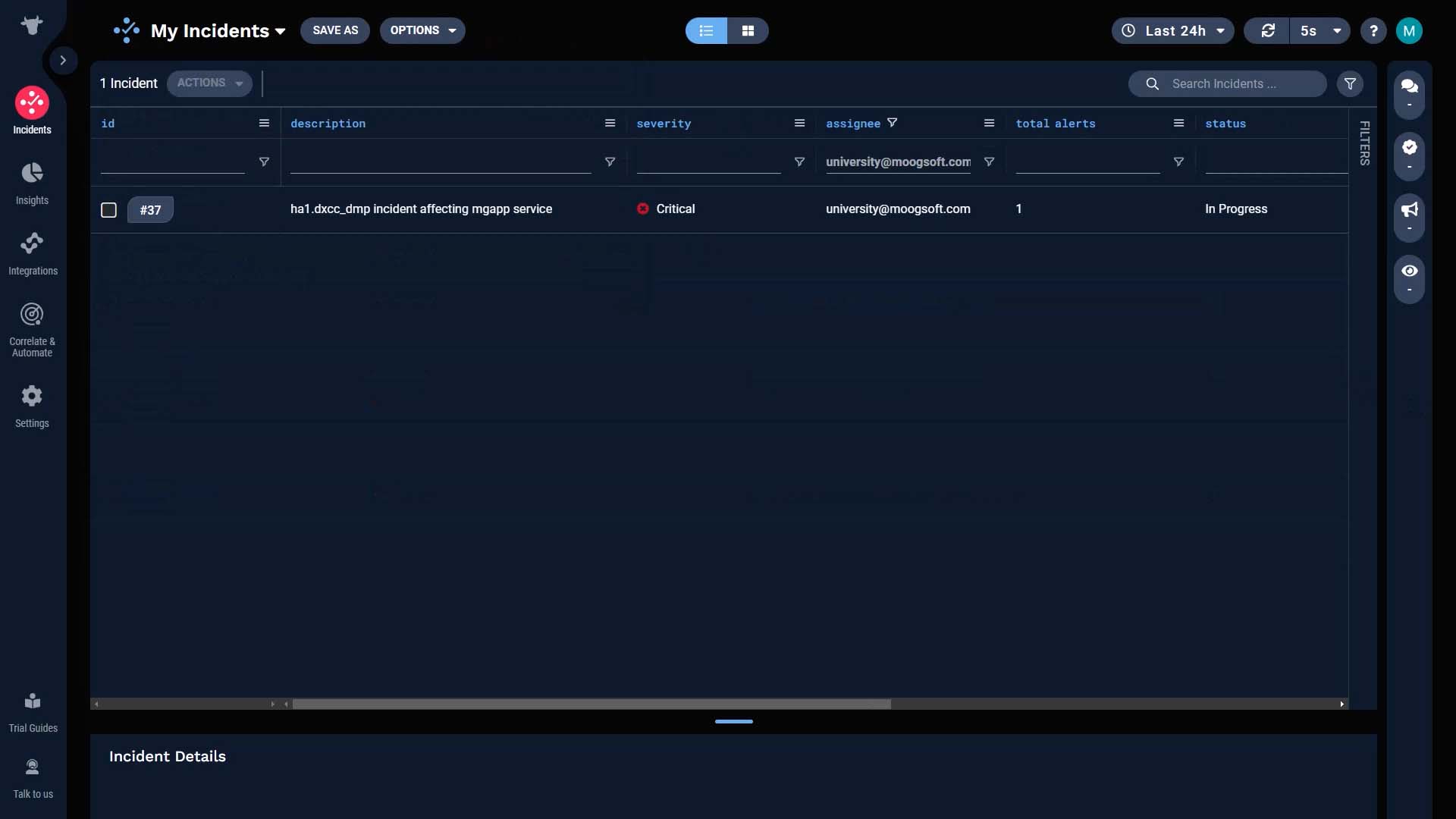

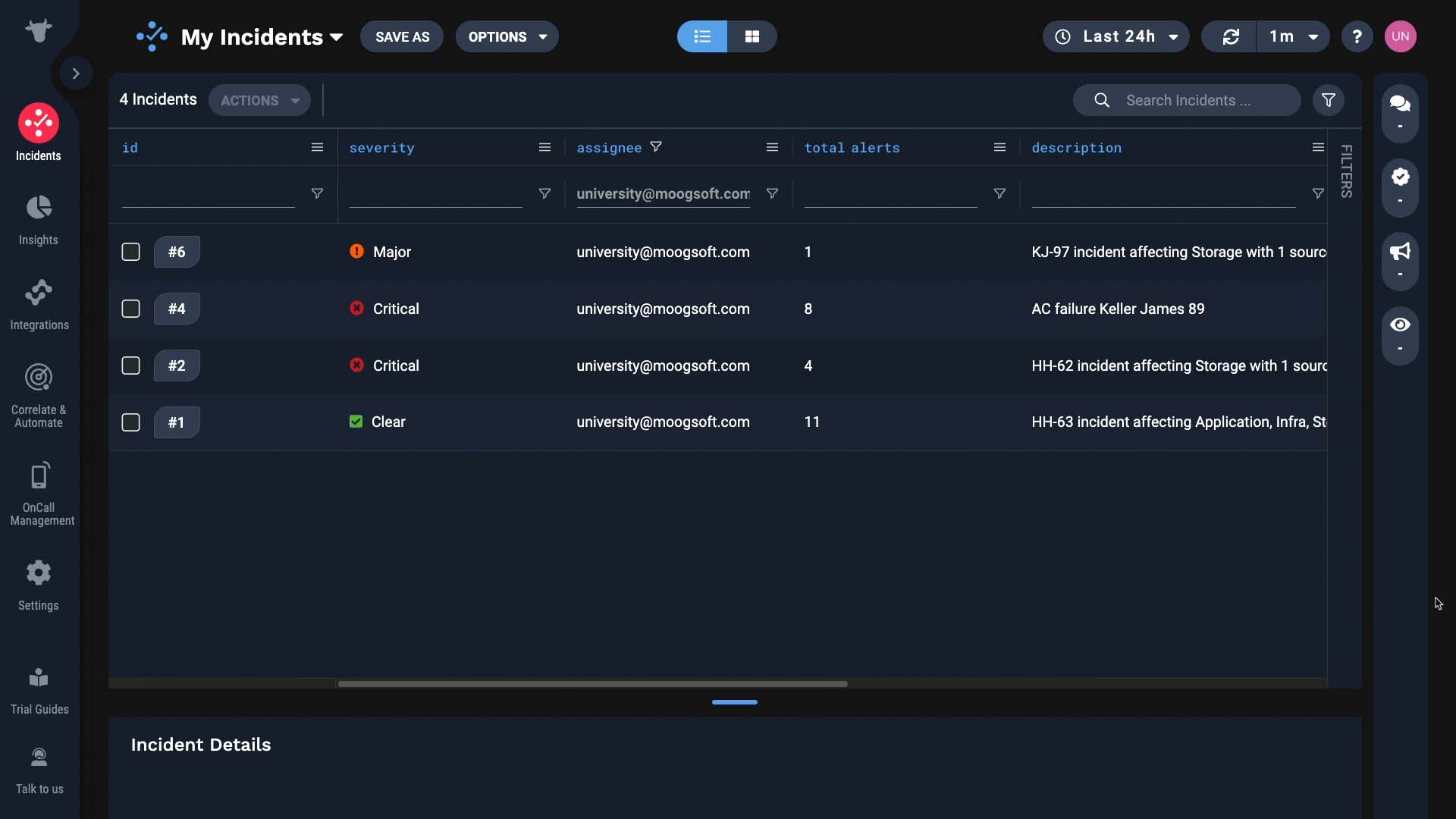

There’s a list view that only shows the incidents you are assigned to.

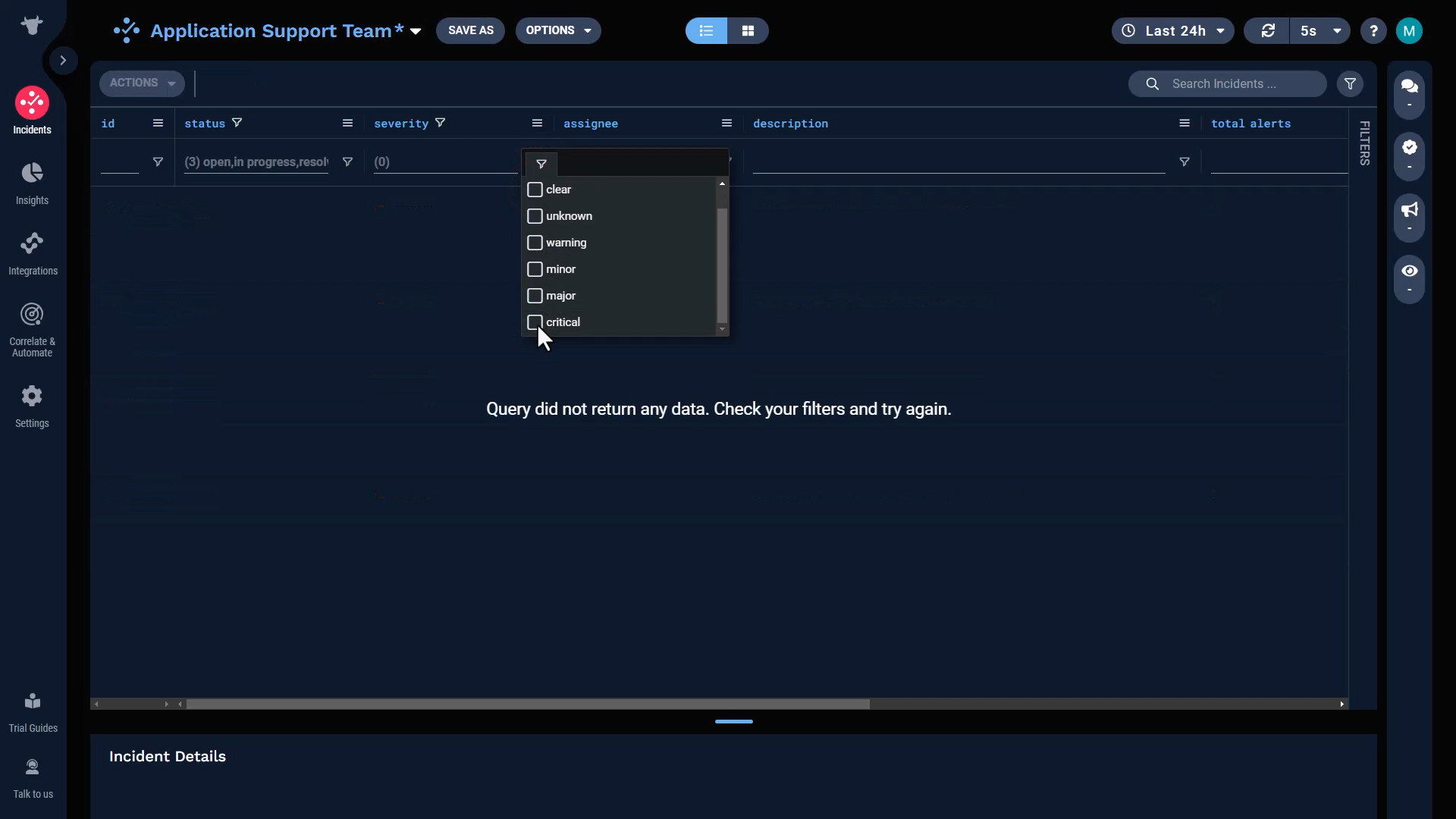

If you want to filter the list further you can do so here.

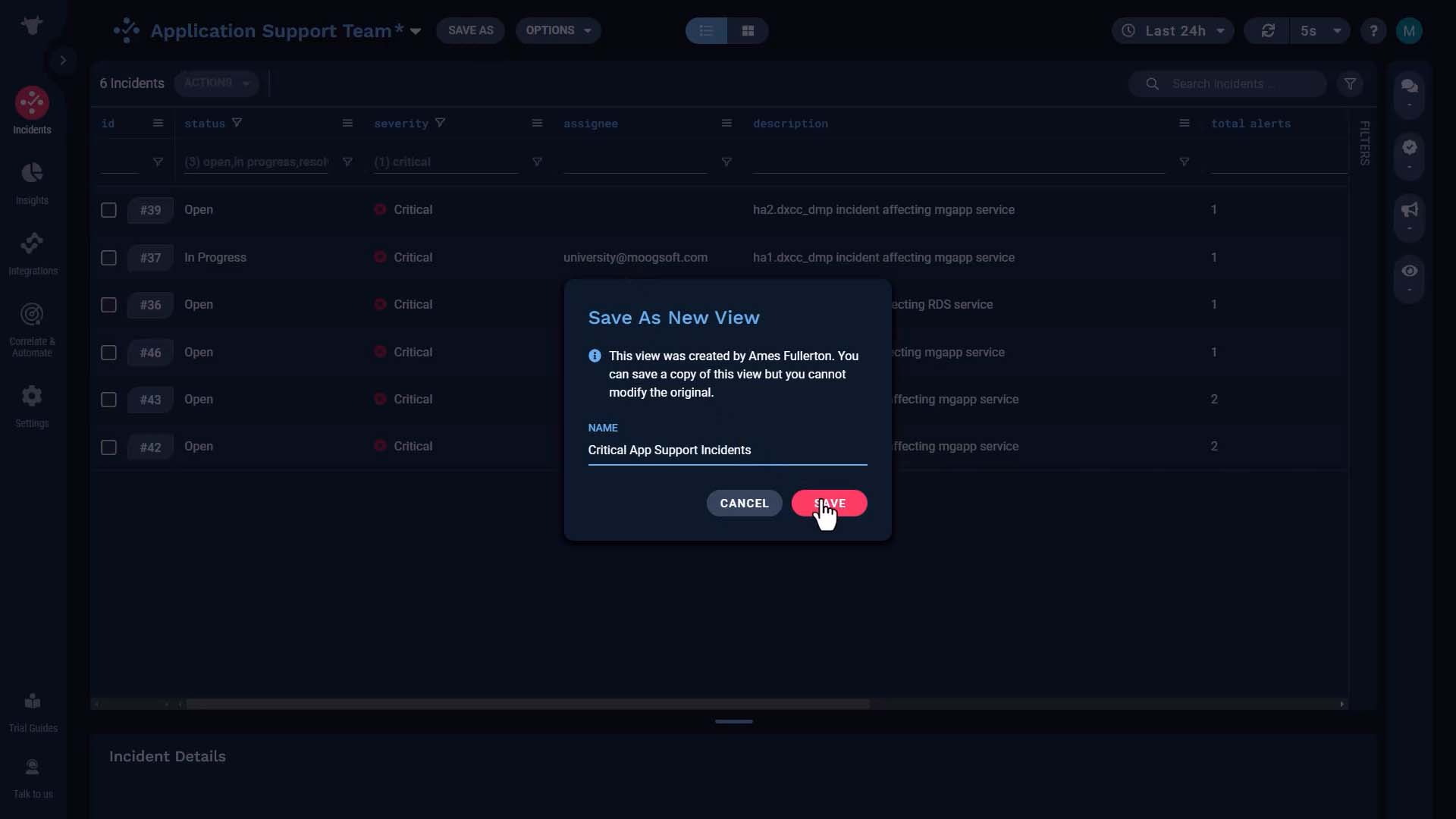

You can save the view for yourself without affecting the original view.

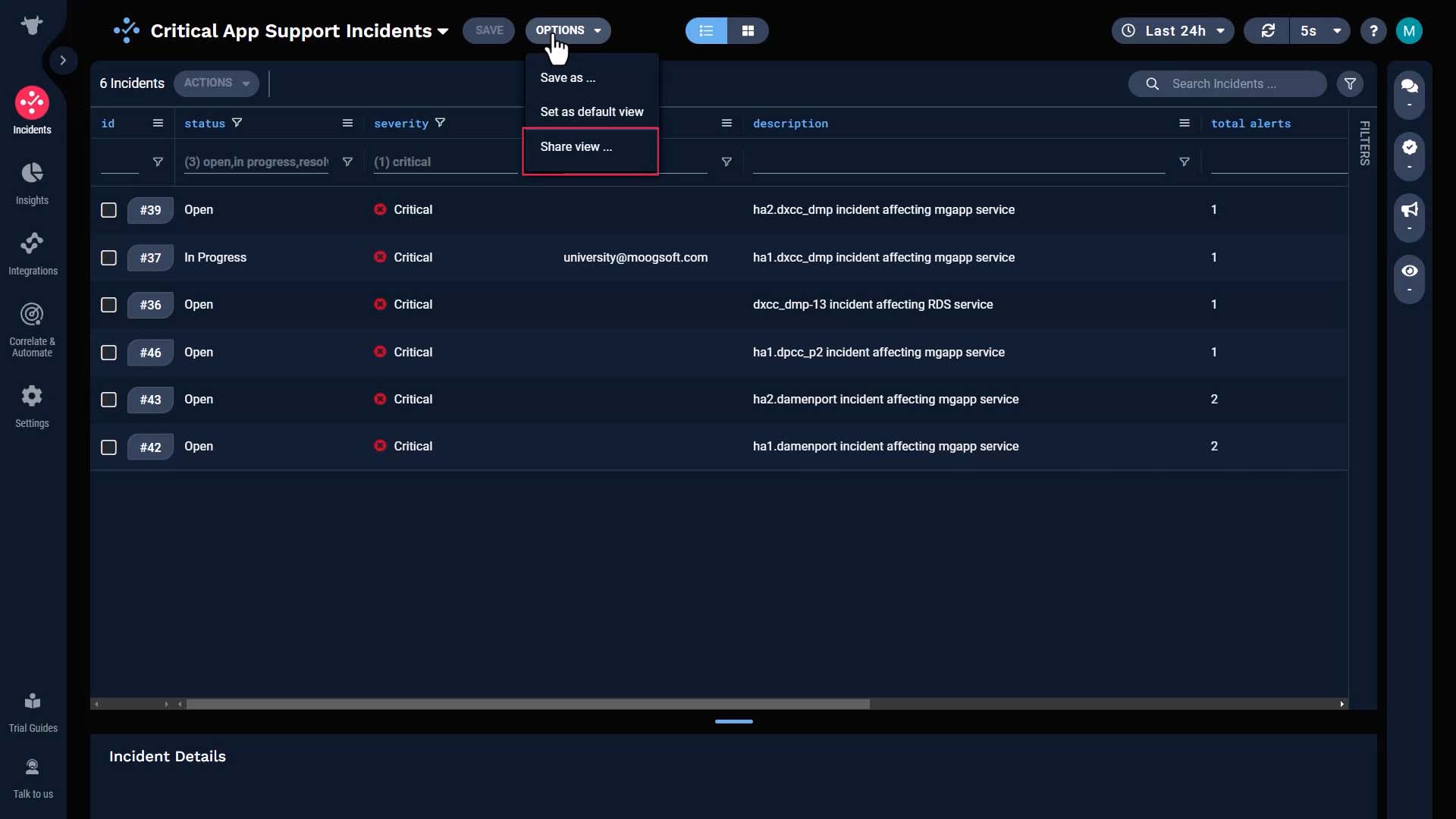

If you want to make it a shared view, you can do so here.

When you create a view, you also get a corresponding dashboard.

It presents data in a more visual manner, but you can also jump into a specific incident.

Now you know how to work with your incident queue. Thanks for watching!

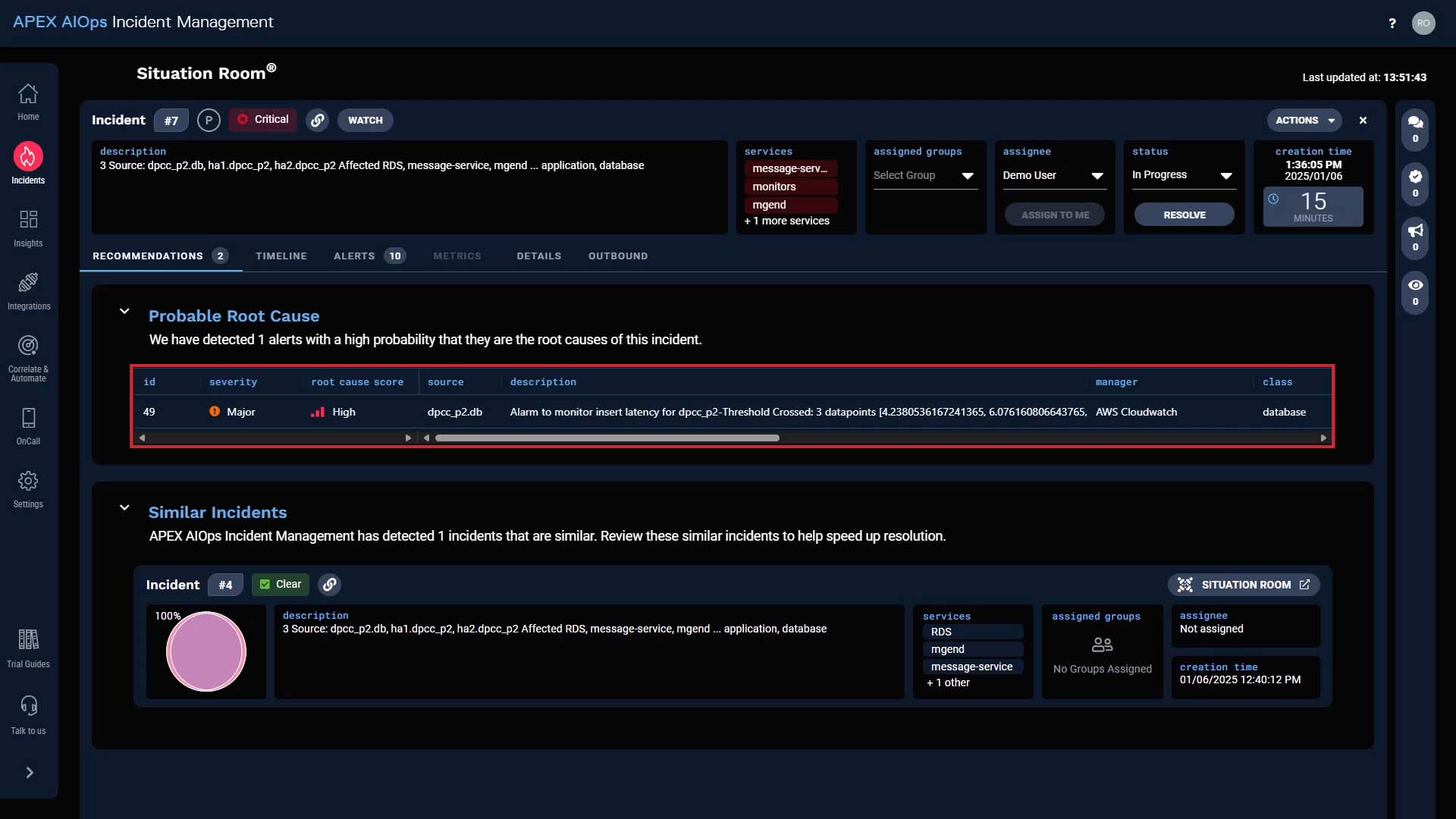

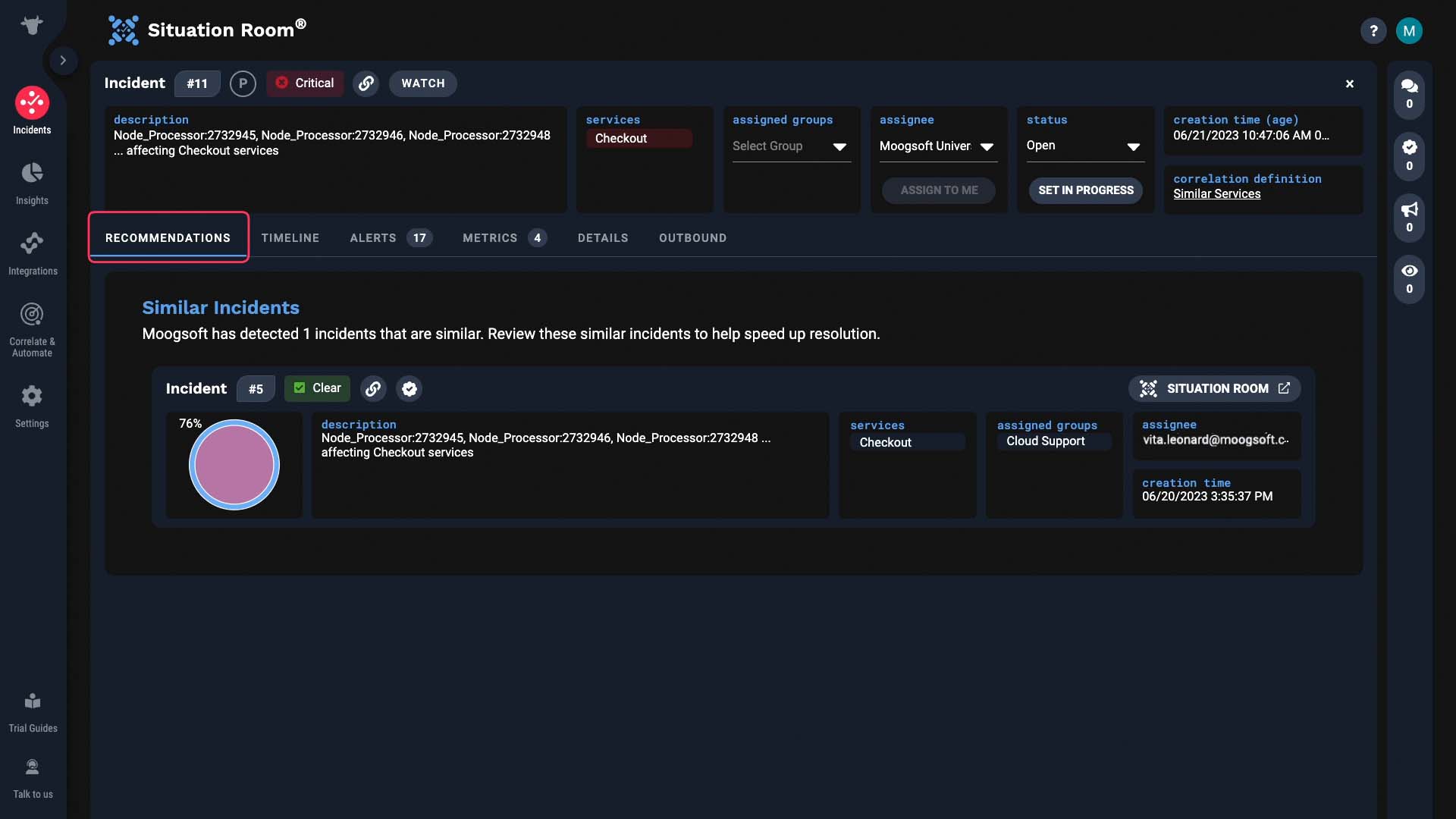

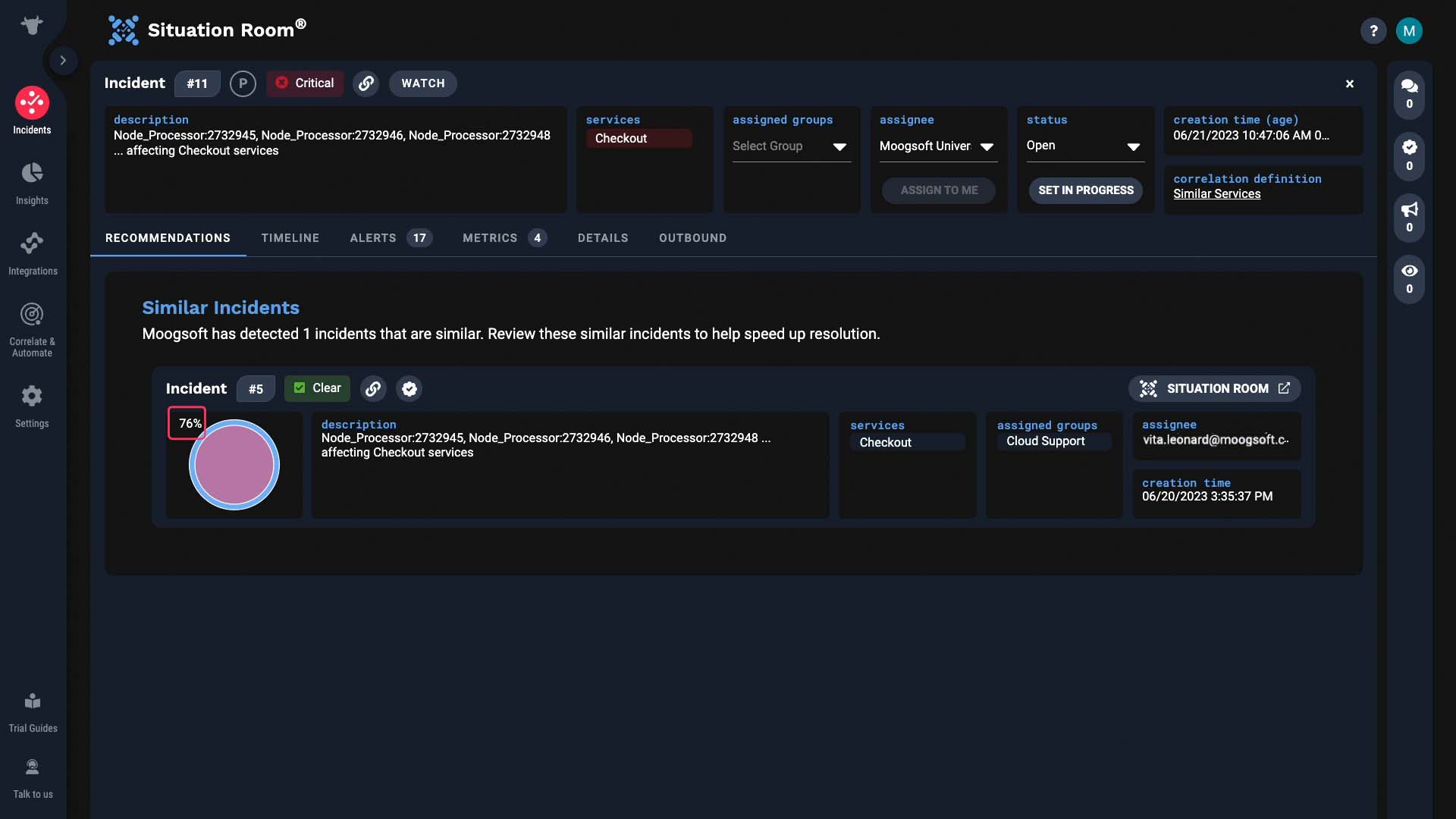

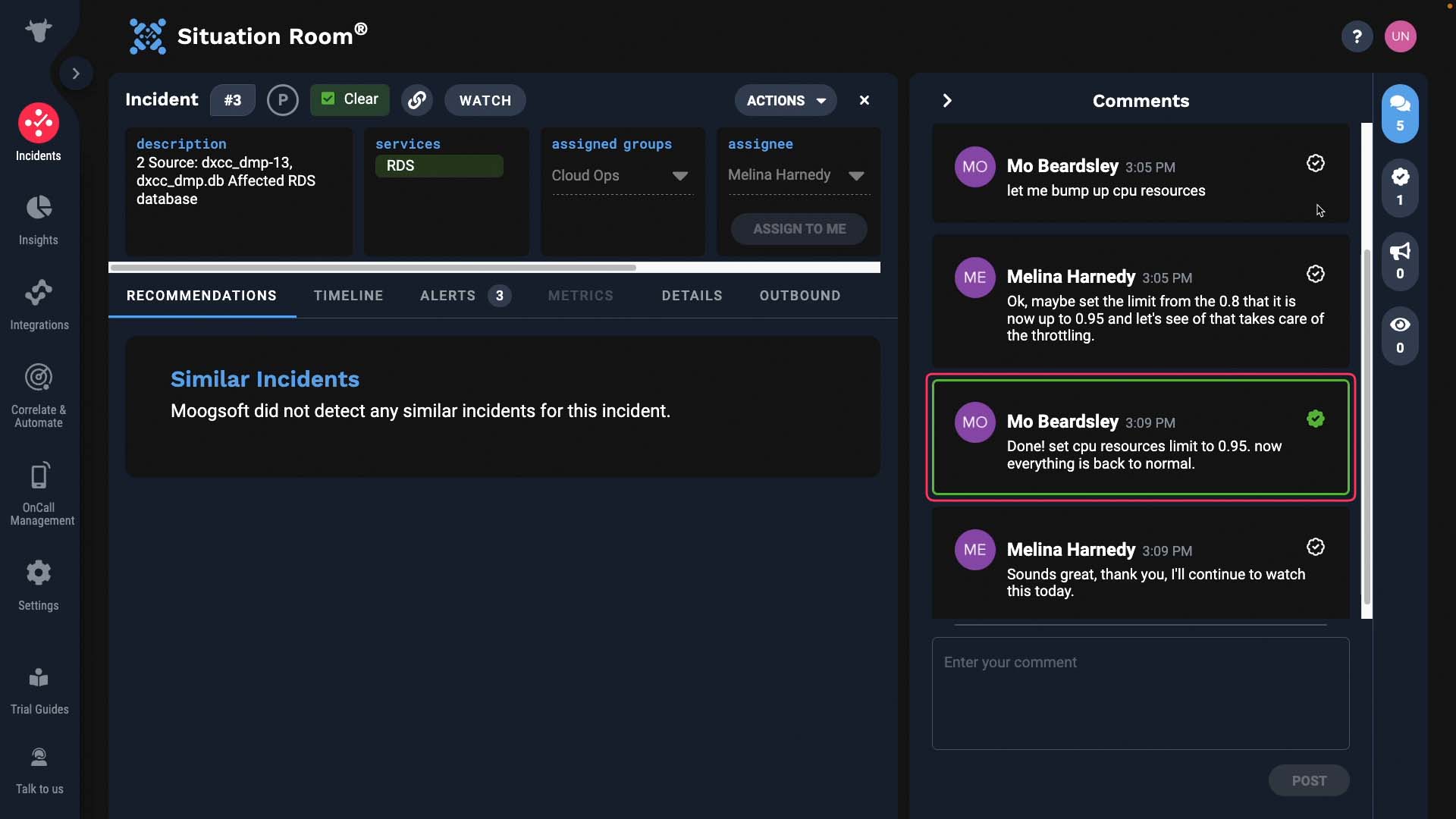

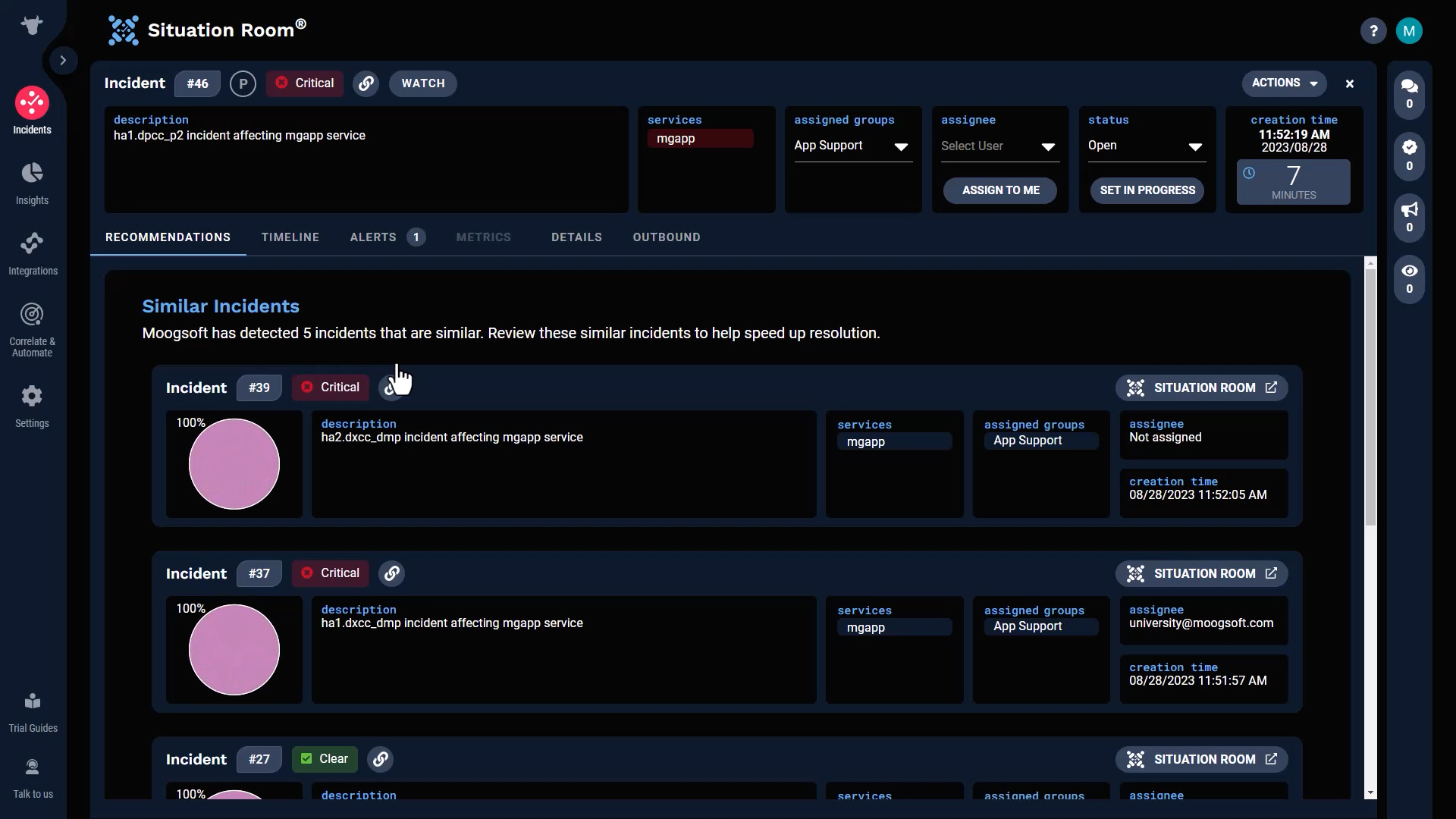

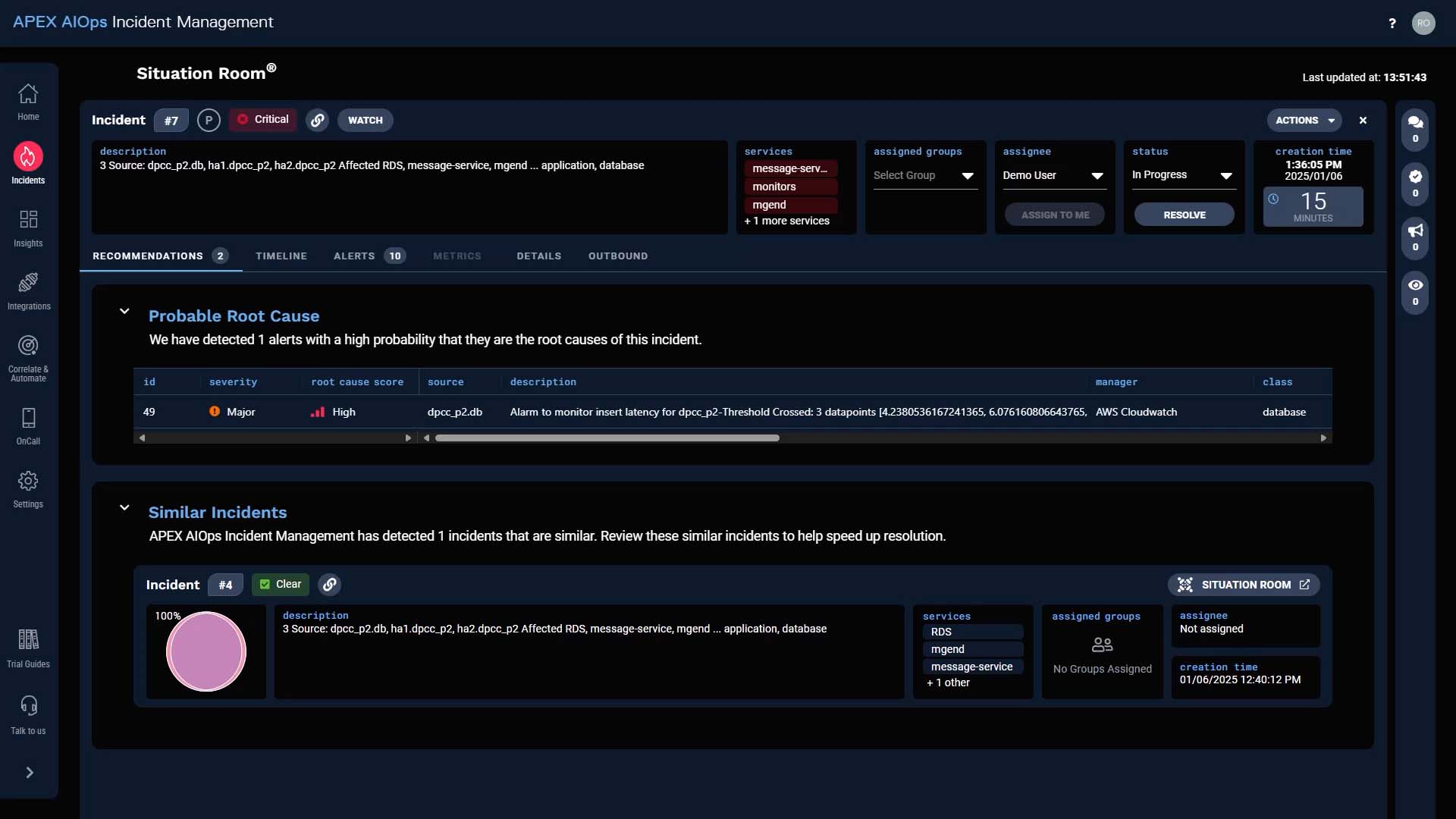

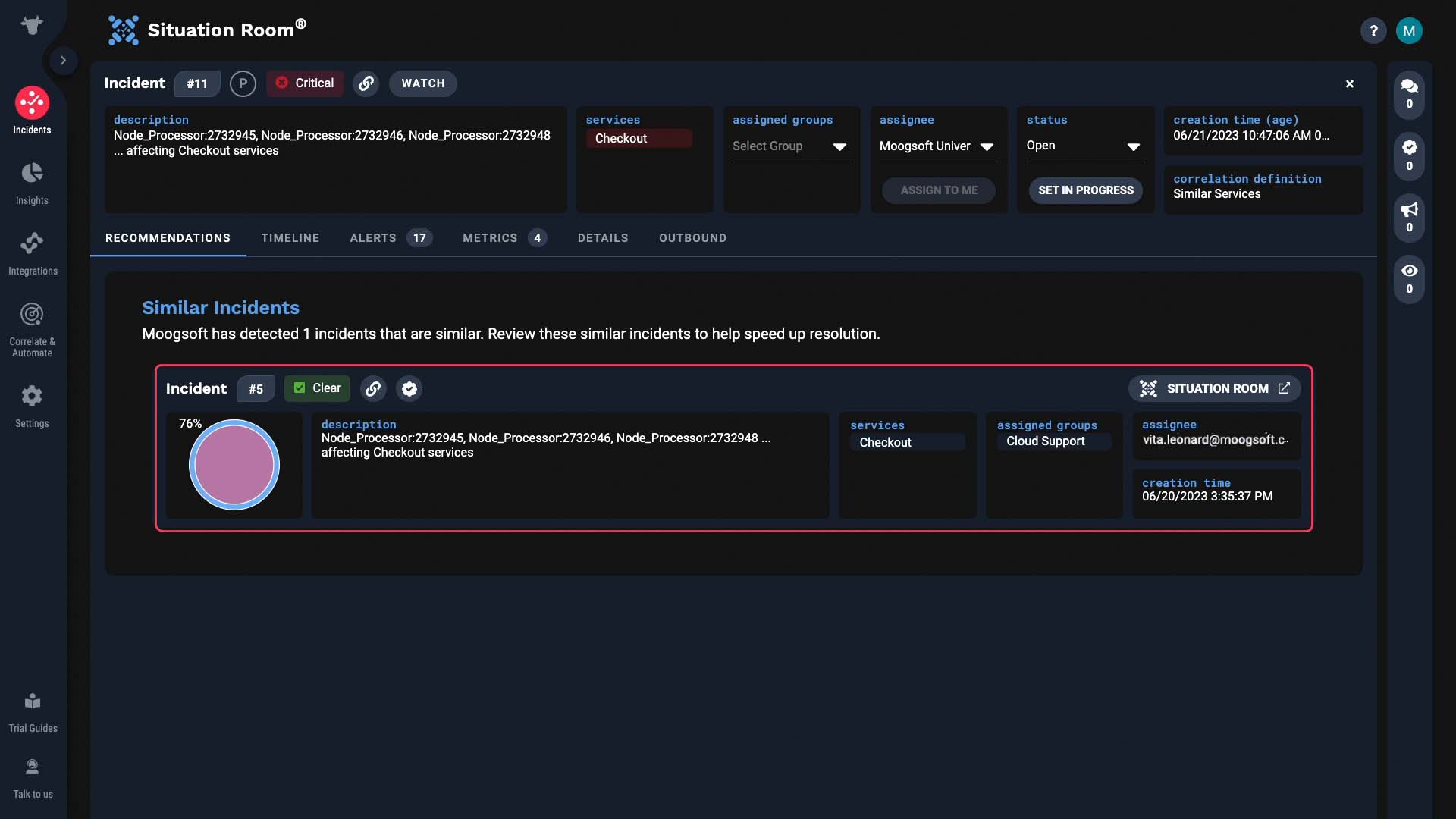

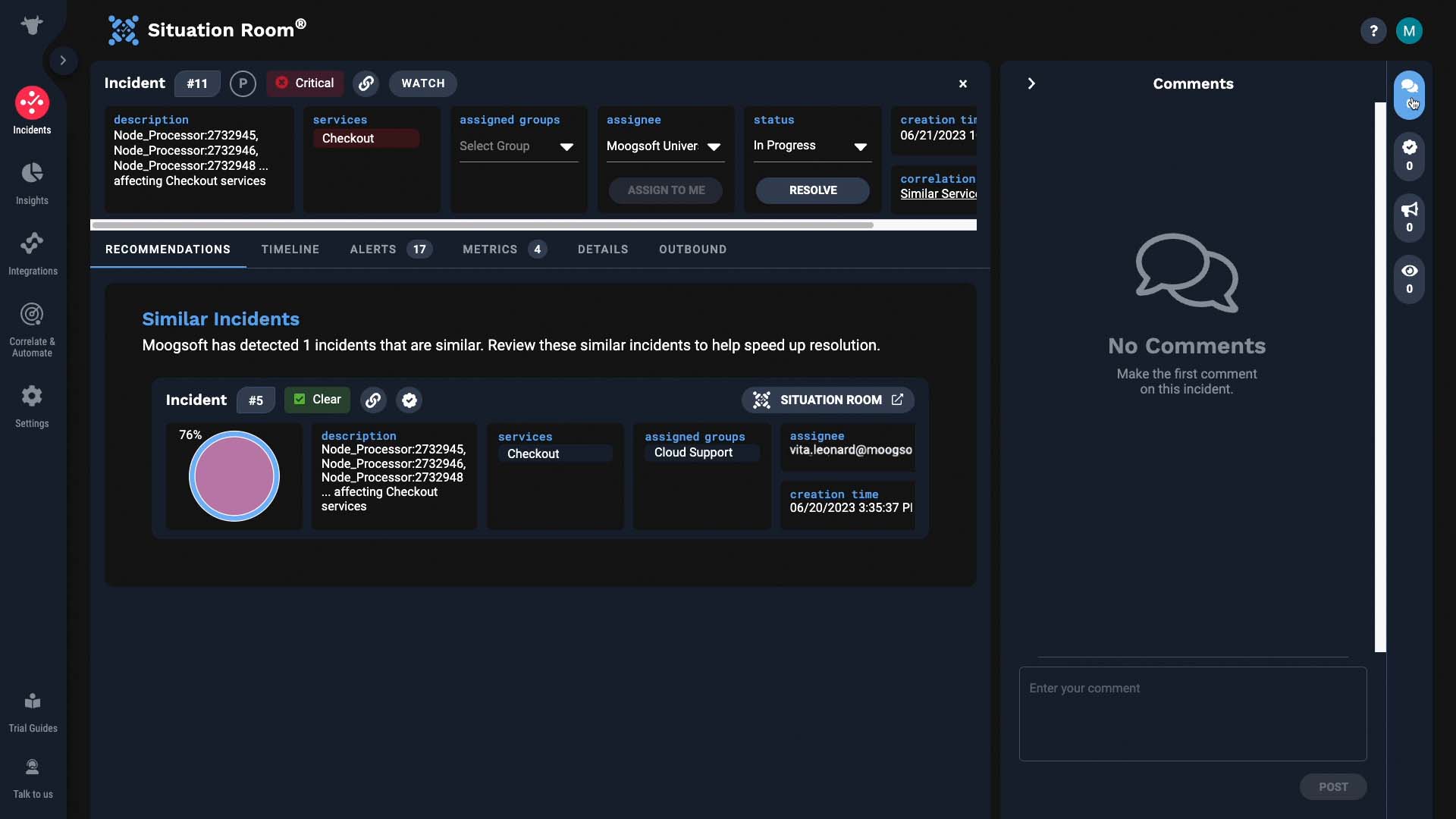

Let’s spend a few minutes learning about the recommendations tab in Situation Room.

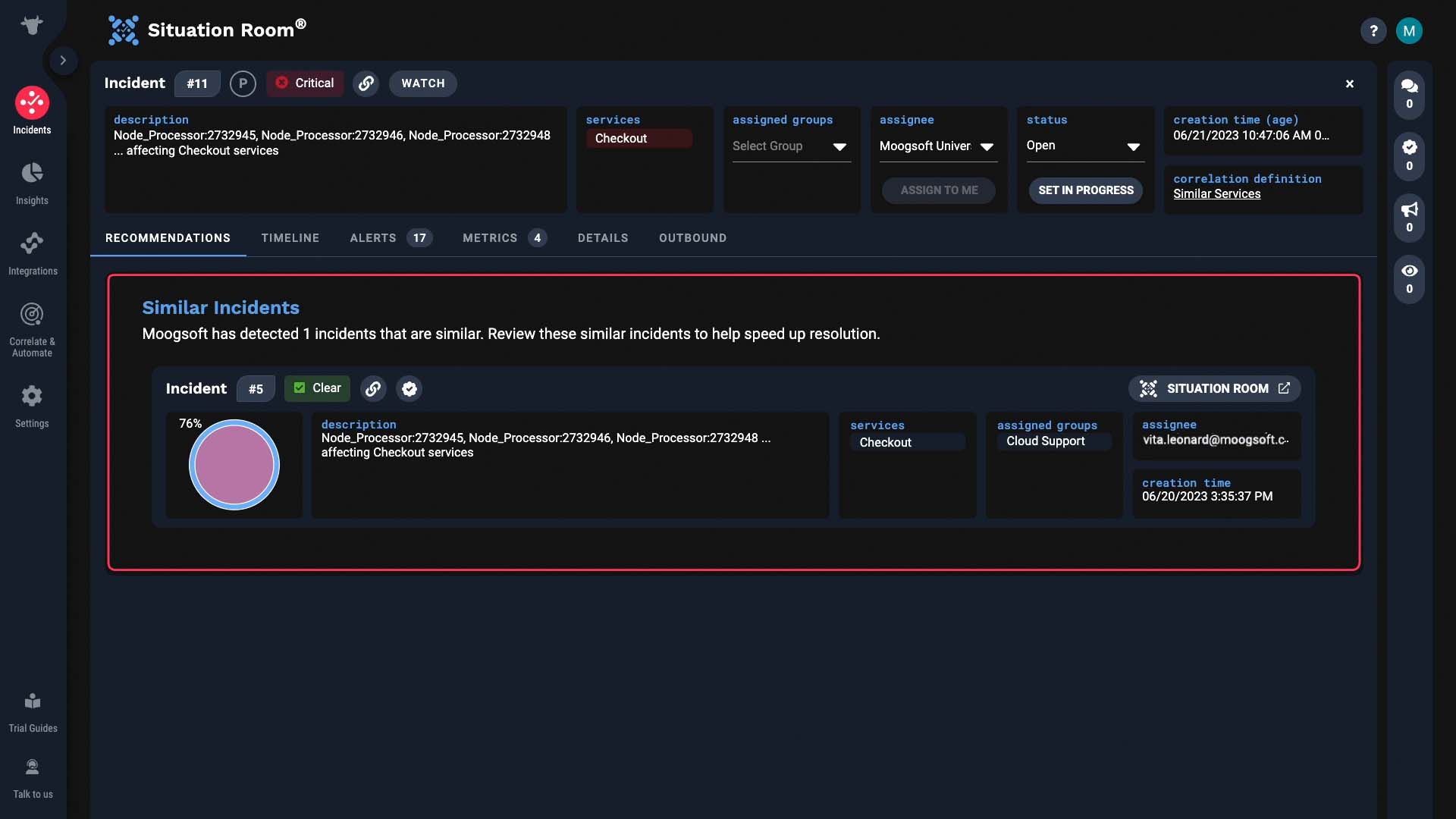

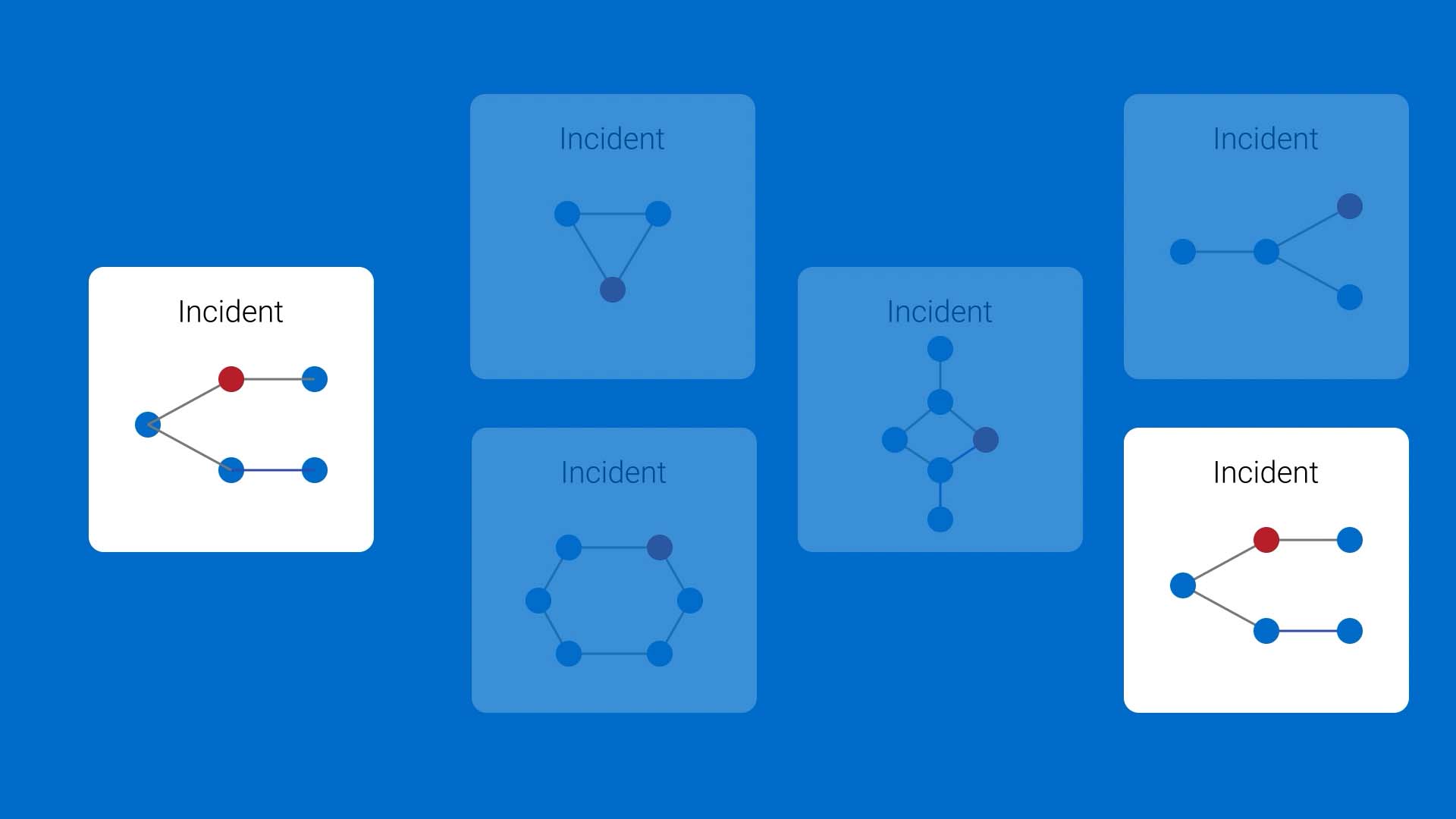

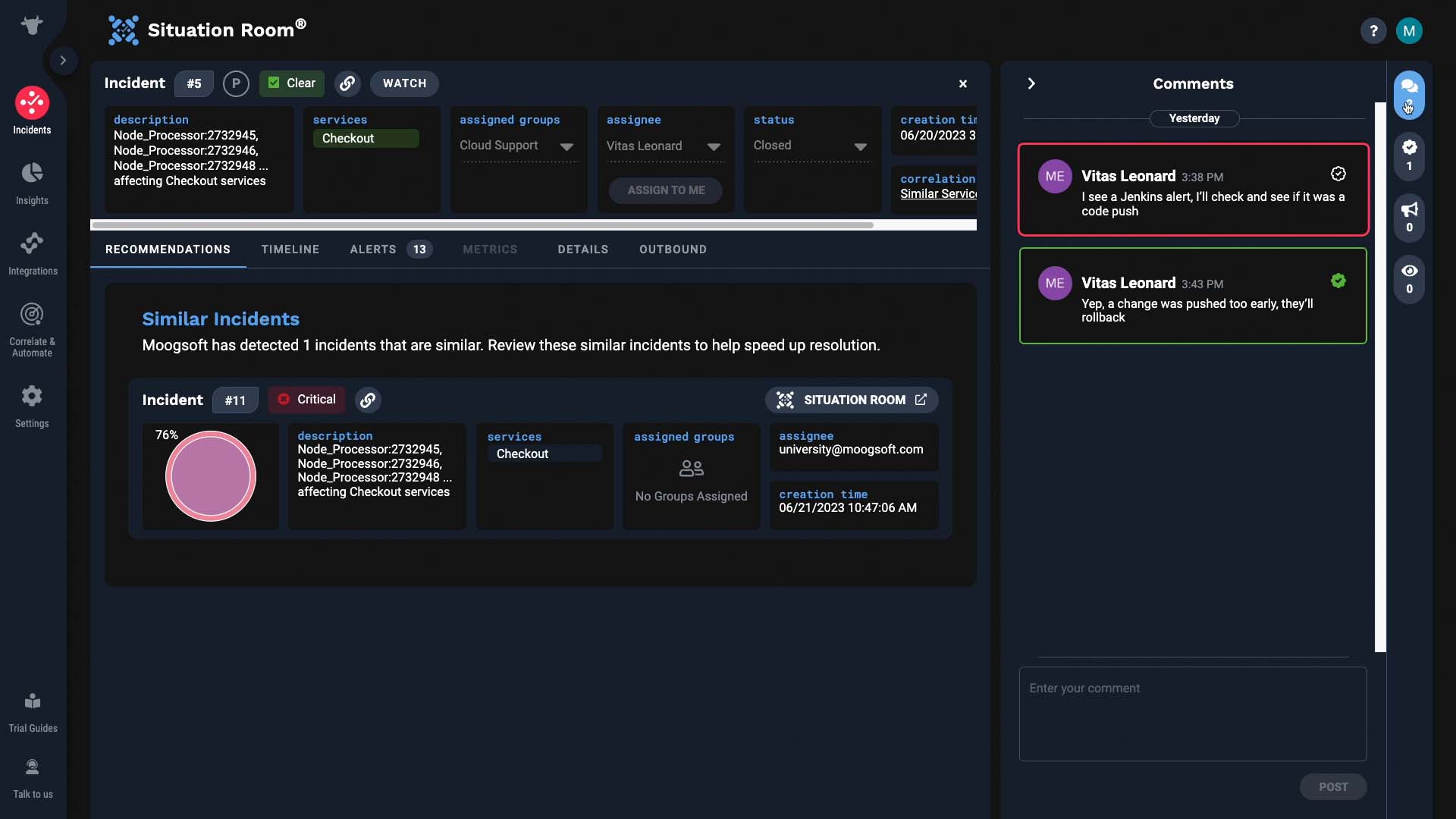

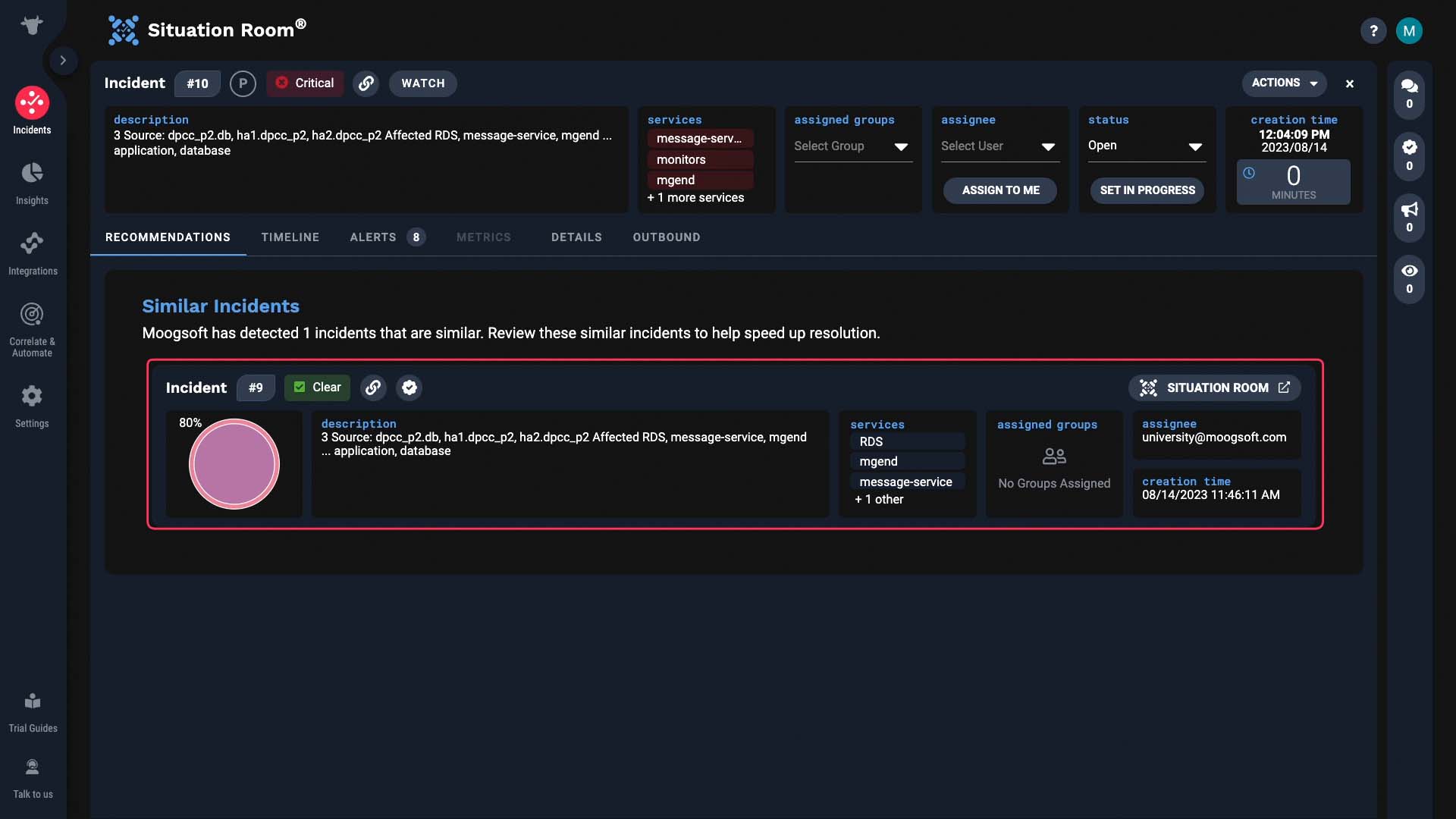

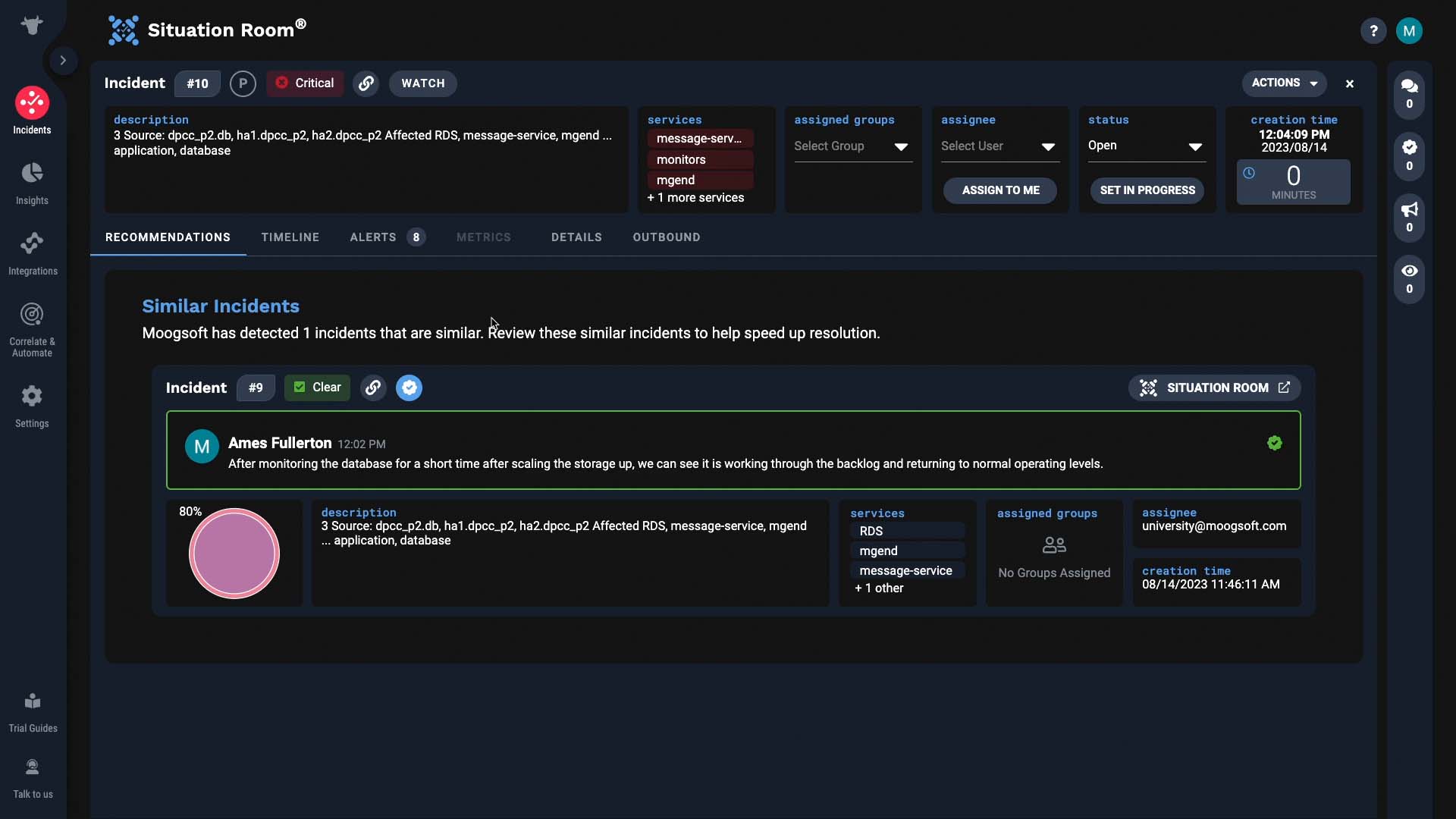

Incident Management checks if there are incidents similar to the one at hand. And if there are, it will surface them for you to reference.

In this case, we have one similar incident.

This one is 76% similar to our incident.

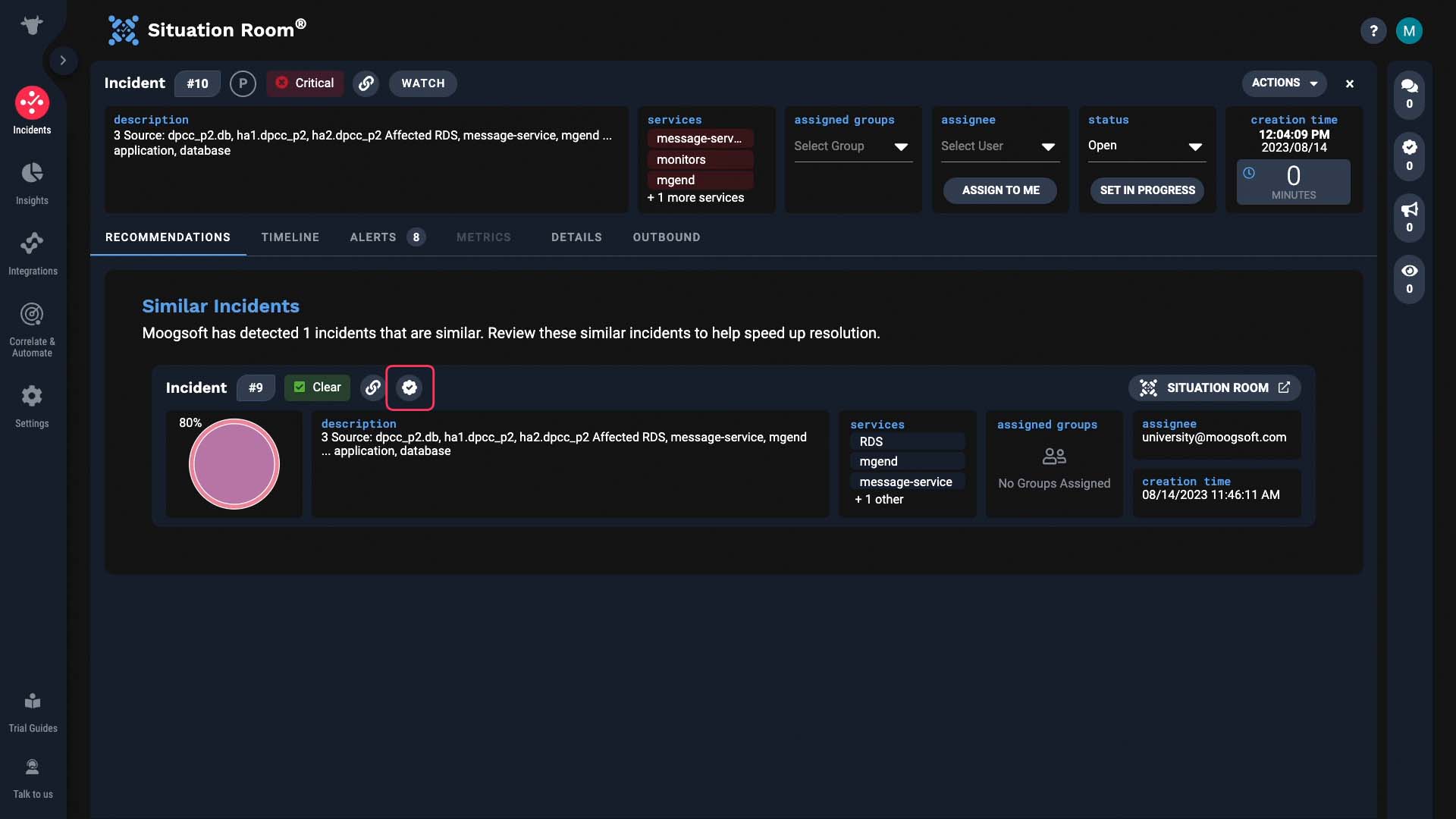

And note this icon! This means information on what resolved this incident is available! With this past incident, it looks like the problems were related to a code push. Let’s learn more about it.

Okay, now we have some more context.

Now we can go back to the incident you are working on and see if it’s got that Jenkins alert.

And indeed, here it is. So just like this, the recommendations tab expedites your problem solving.

But how did Incident Management surface that particular incident for us?

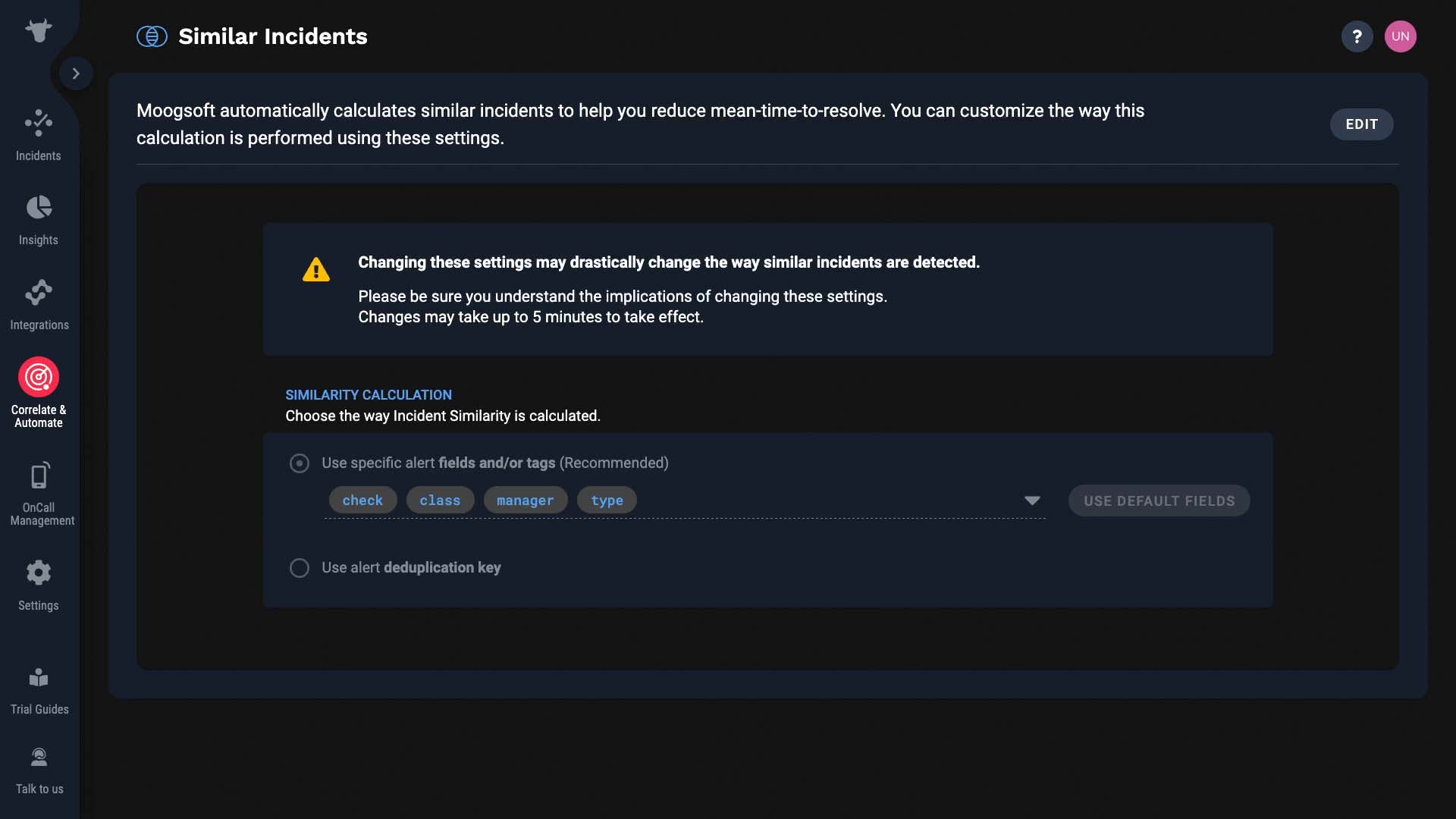

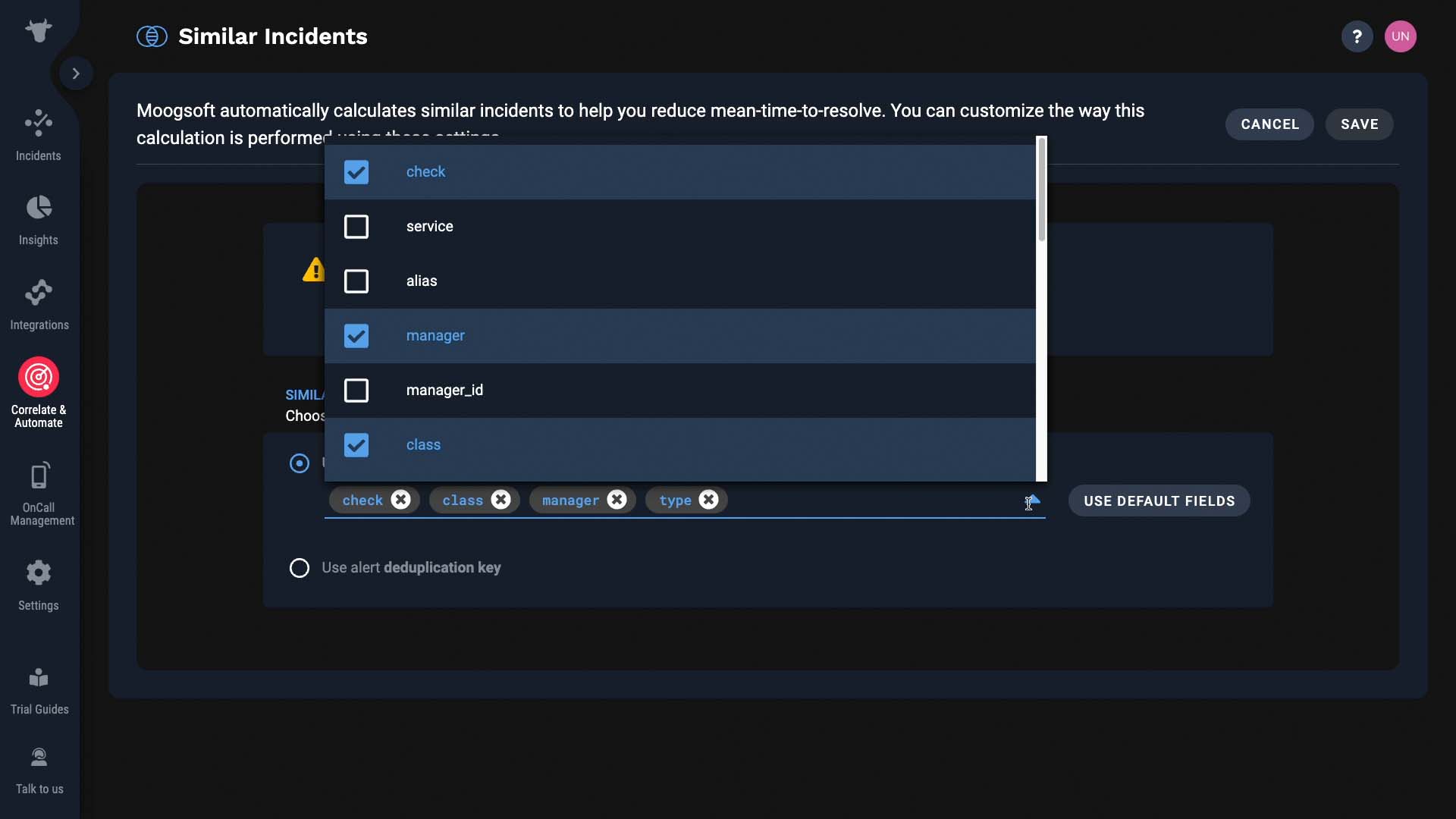

How Incident Management identifies similar incidents is configured here.

By default, Incident Management compares these fields and tags to determine similarity. But you can change which fields to use.

And how are resolving steps suggested?

It comes from comments that are tagged as resolving steps.

So as you work on incidents, make sure to always mark the resolving steps. You will be glad you did in the future!

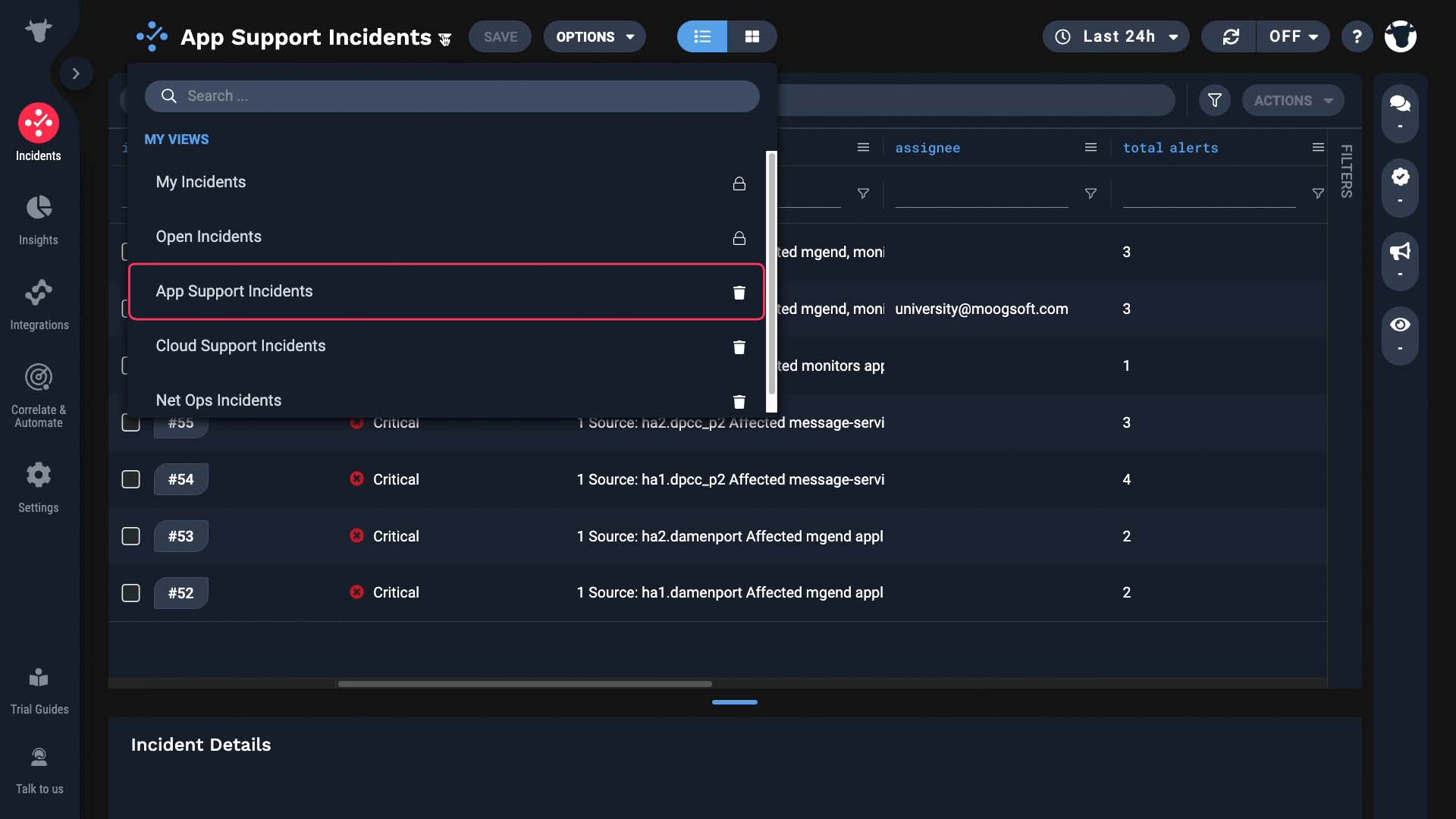

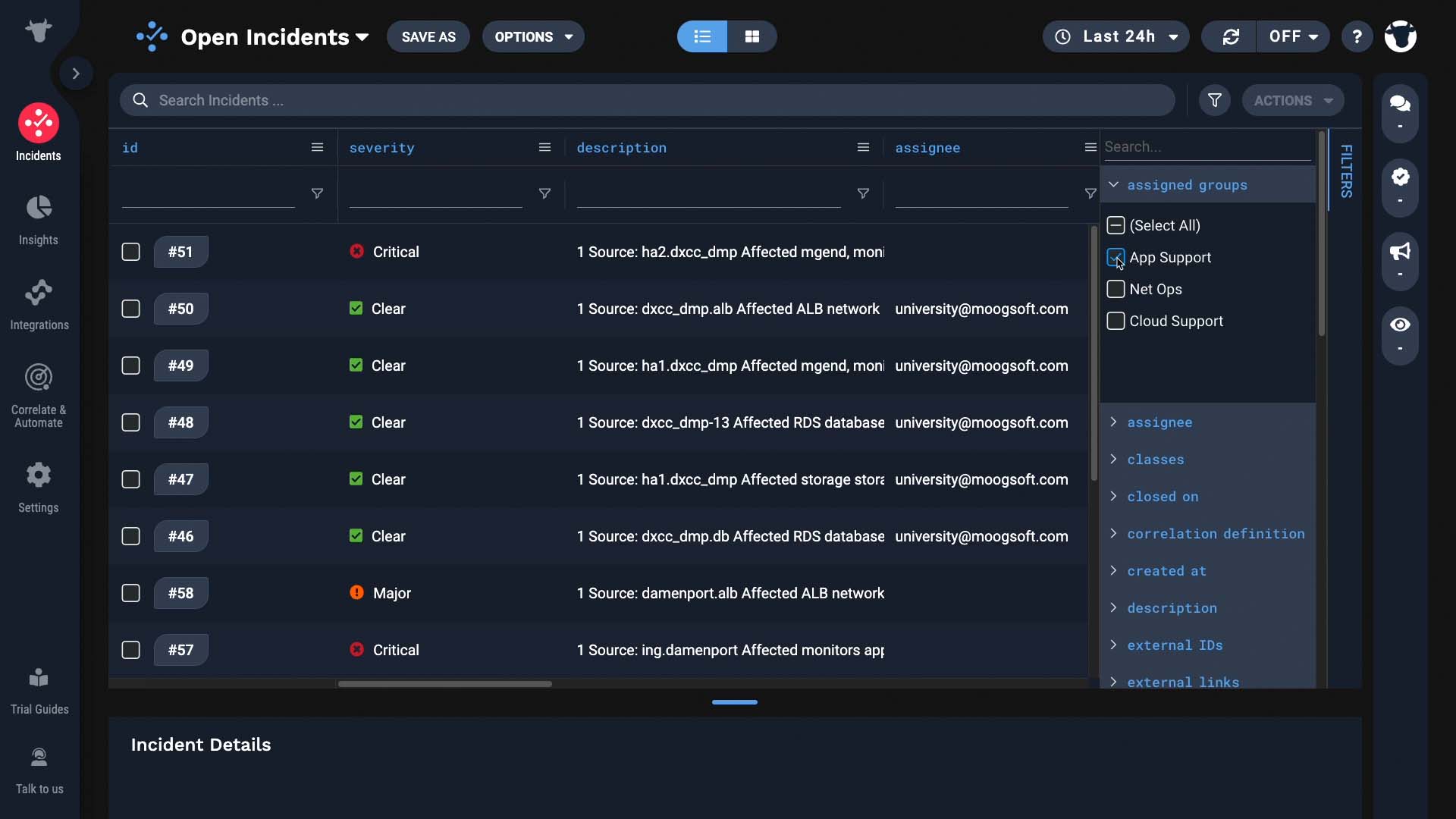

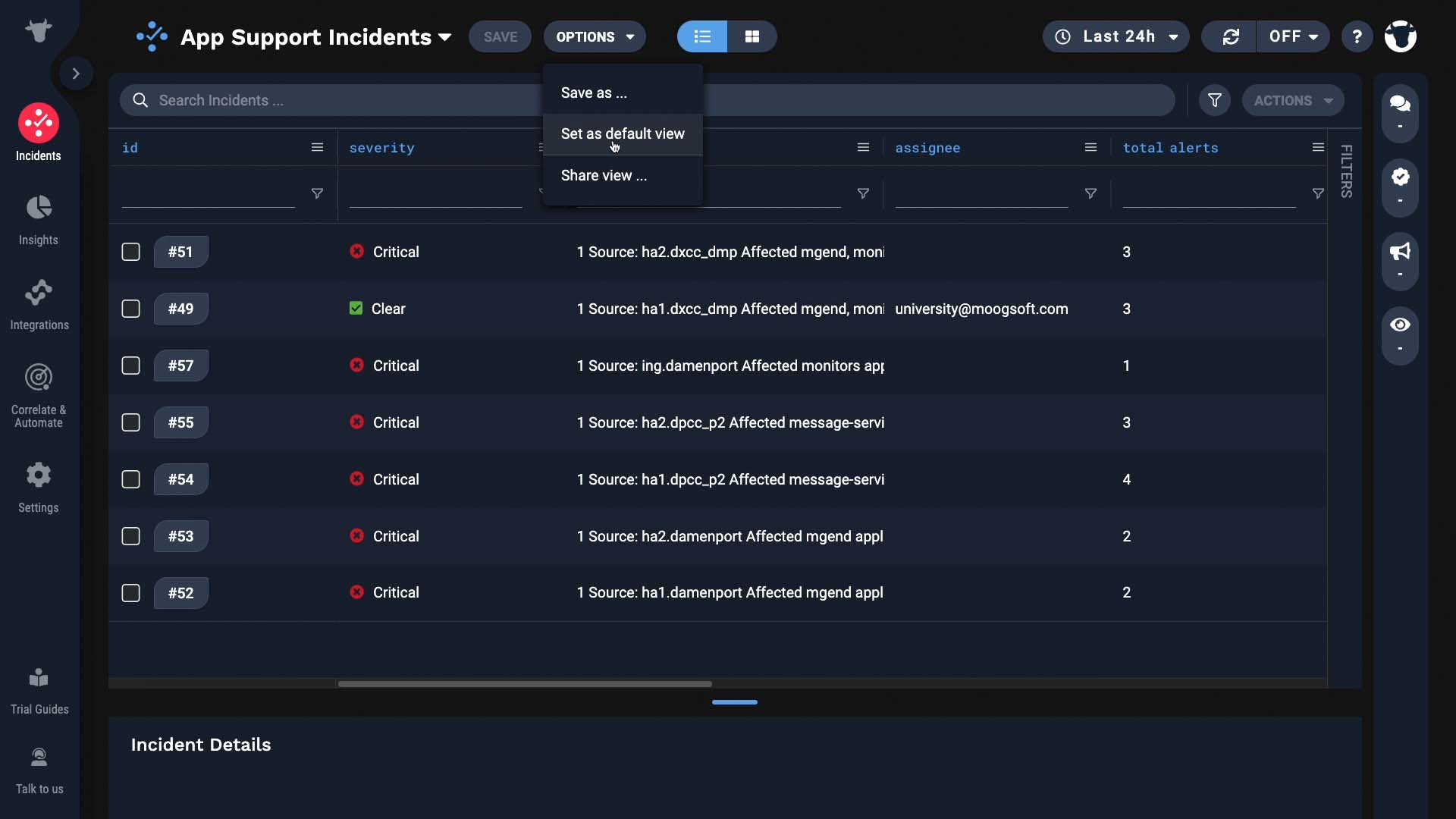

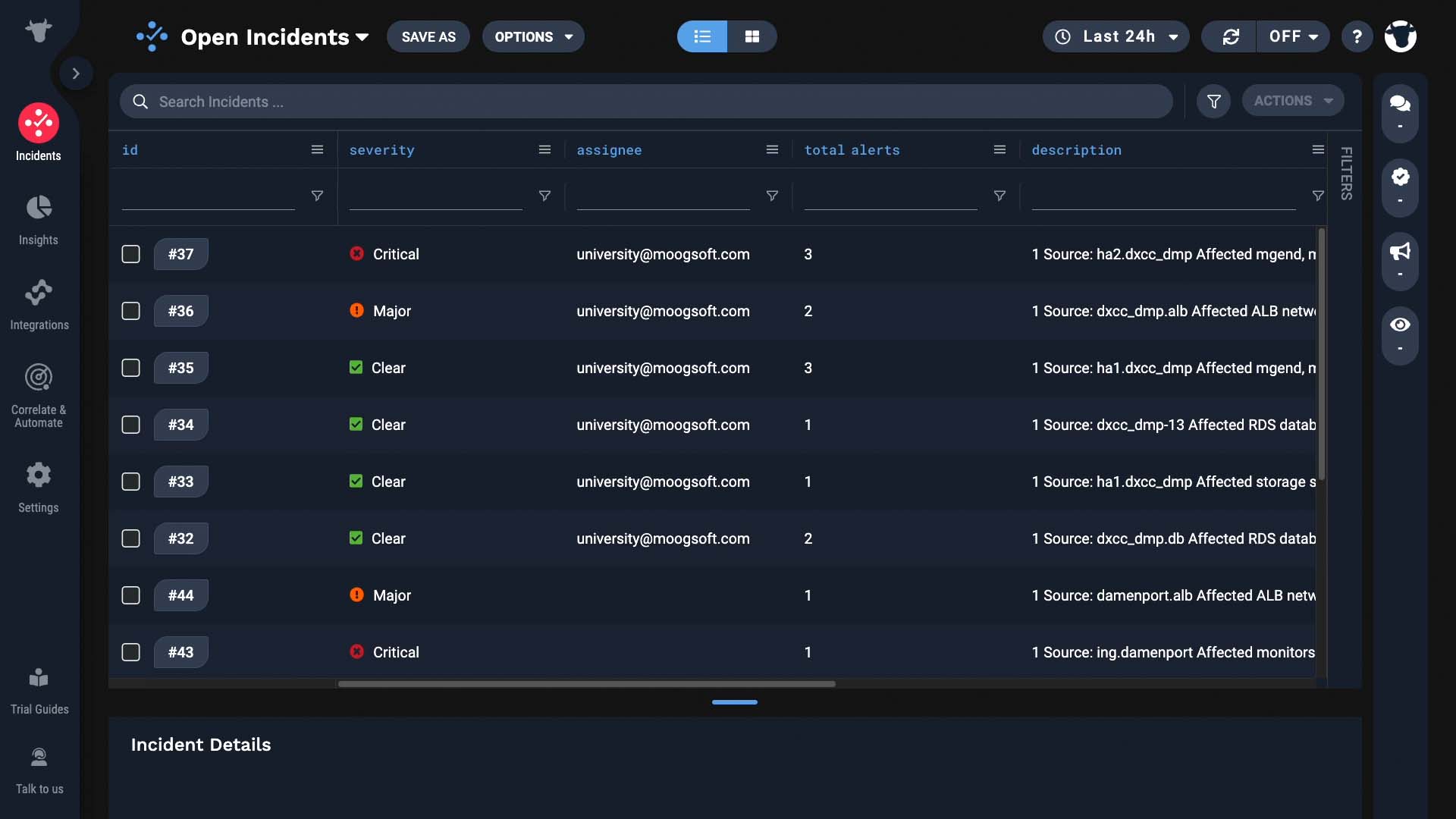

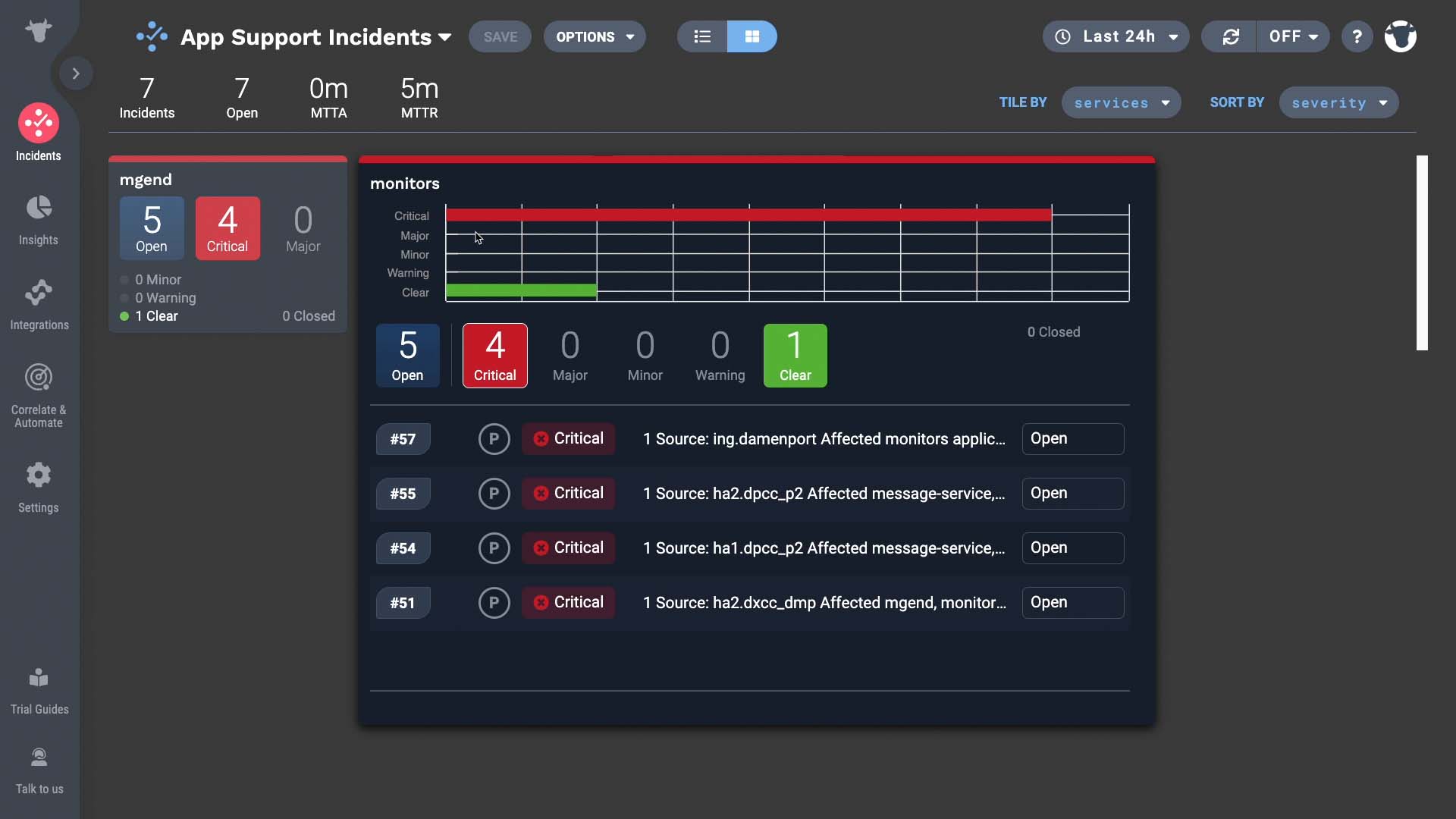

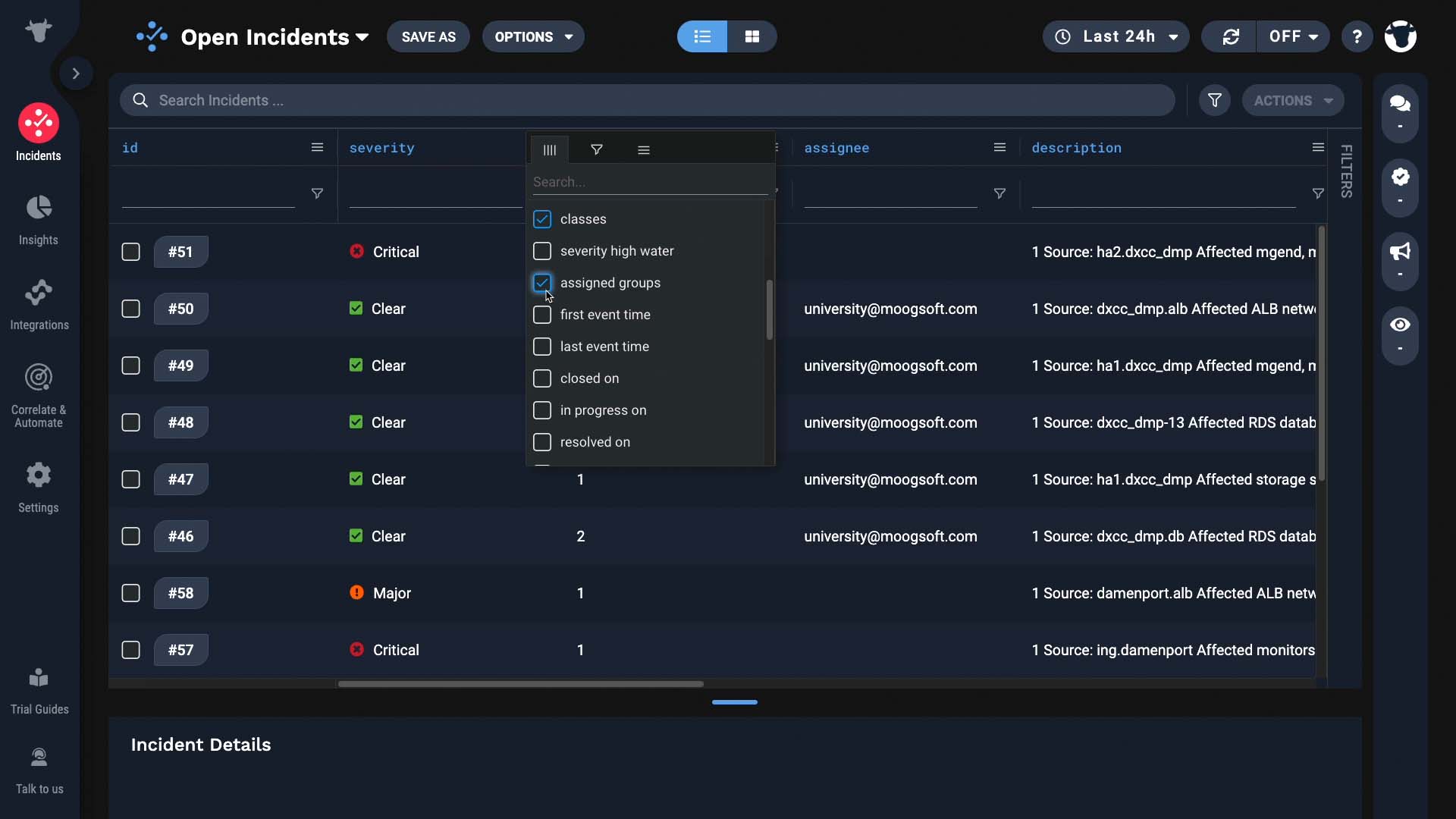

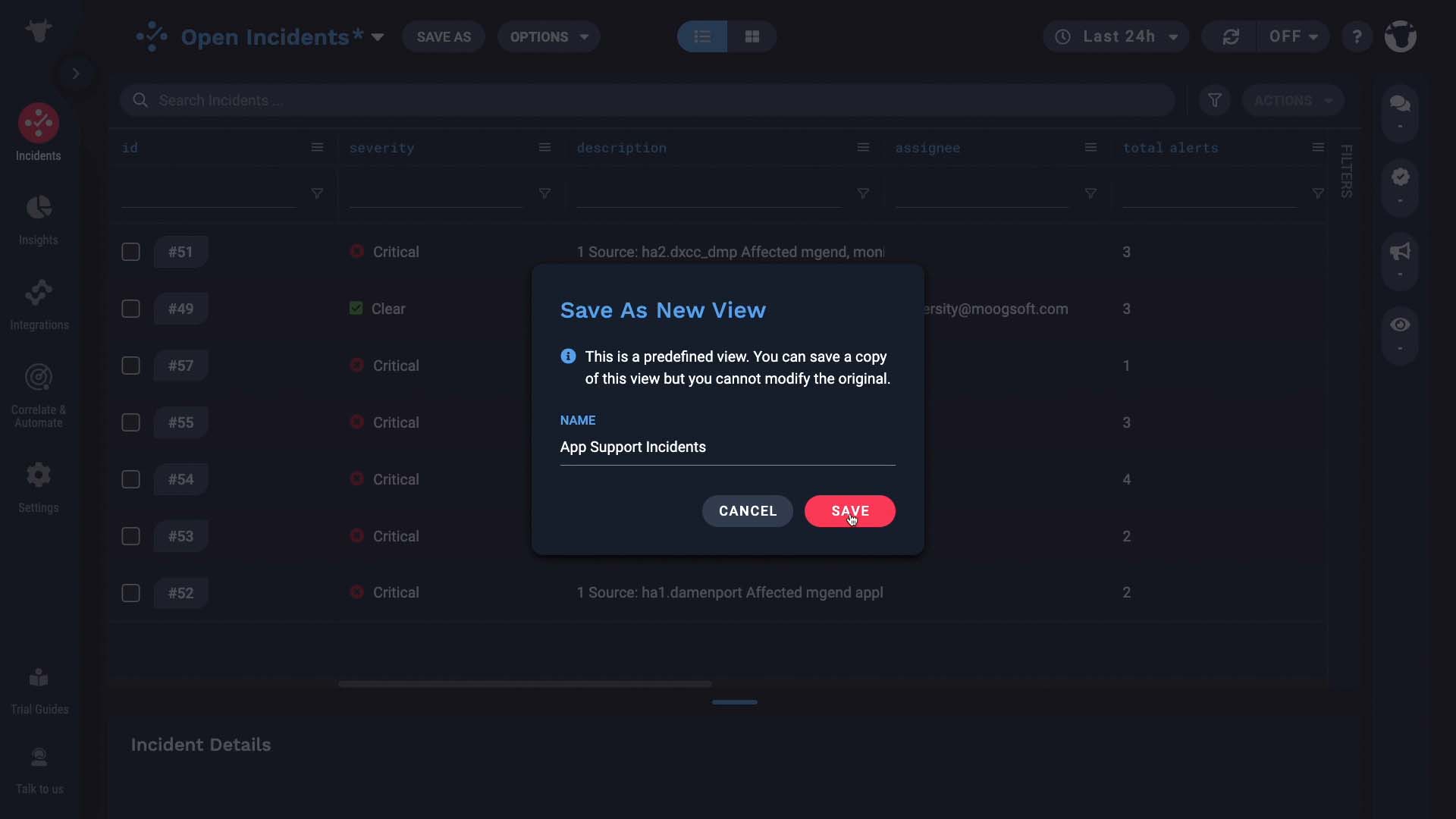

Your incident list view is customizable. You can specify which columns are displayed and in what order.

And, you can save those custom views, and share them with your team! Let’s say you are in charge of the App Support group. You can create a filtered view like this and…

…save it.

Now you don’t have to reapply filters or rearrange the columns to see the team’s queue.

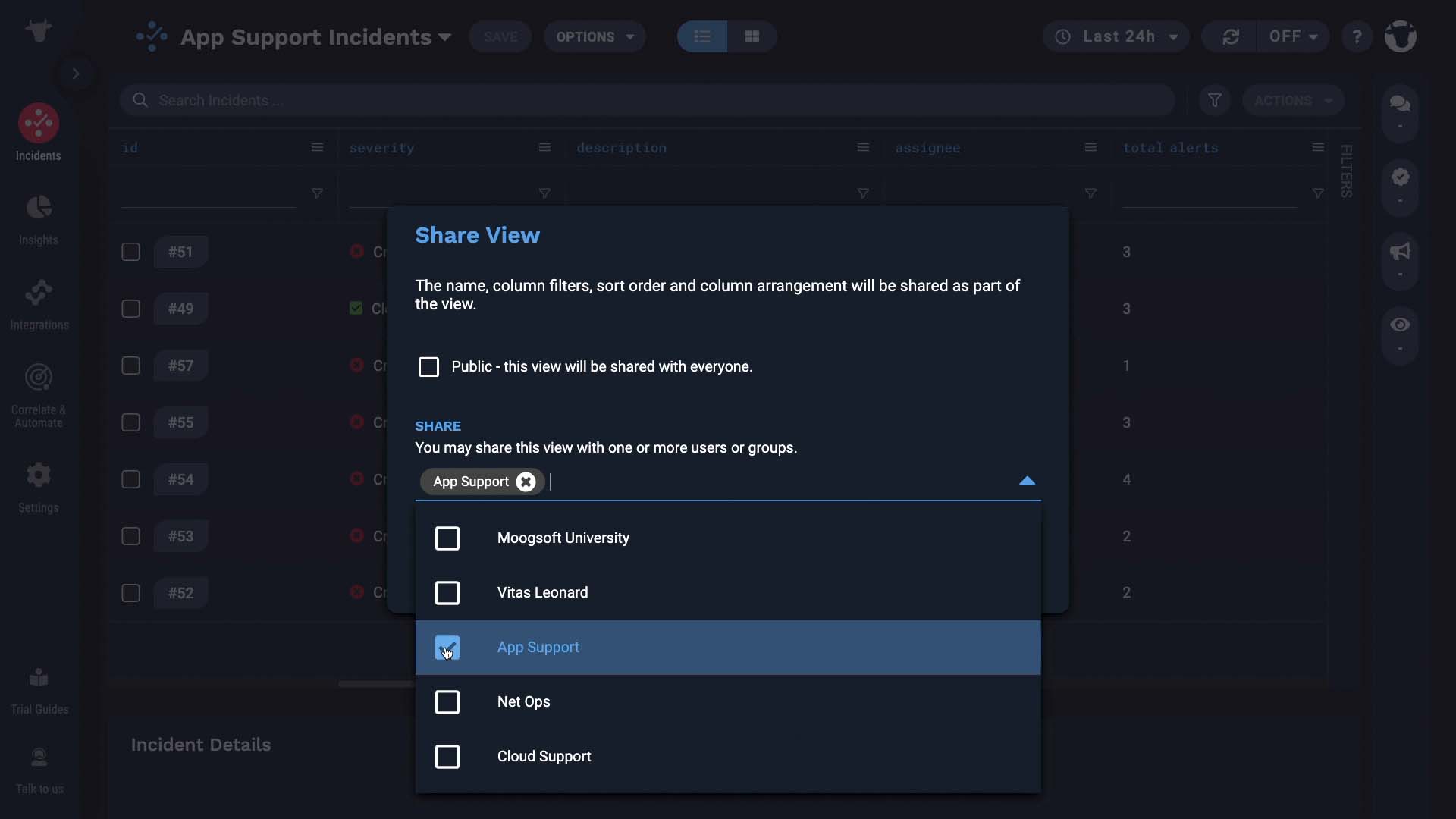

And you can share this view with your team.

Now everyone on your team is looking at exactly the same list, rendered in the exact same way. They can even save this view as their default view.

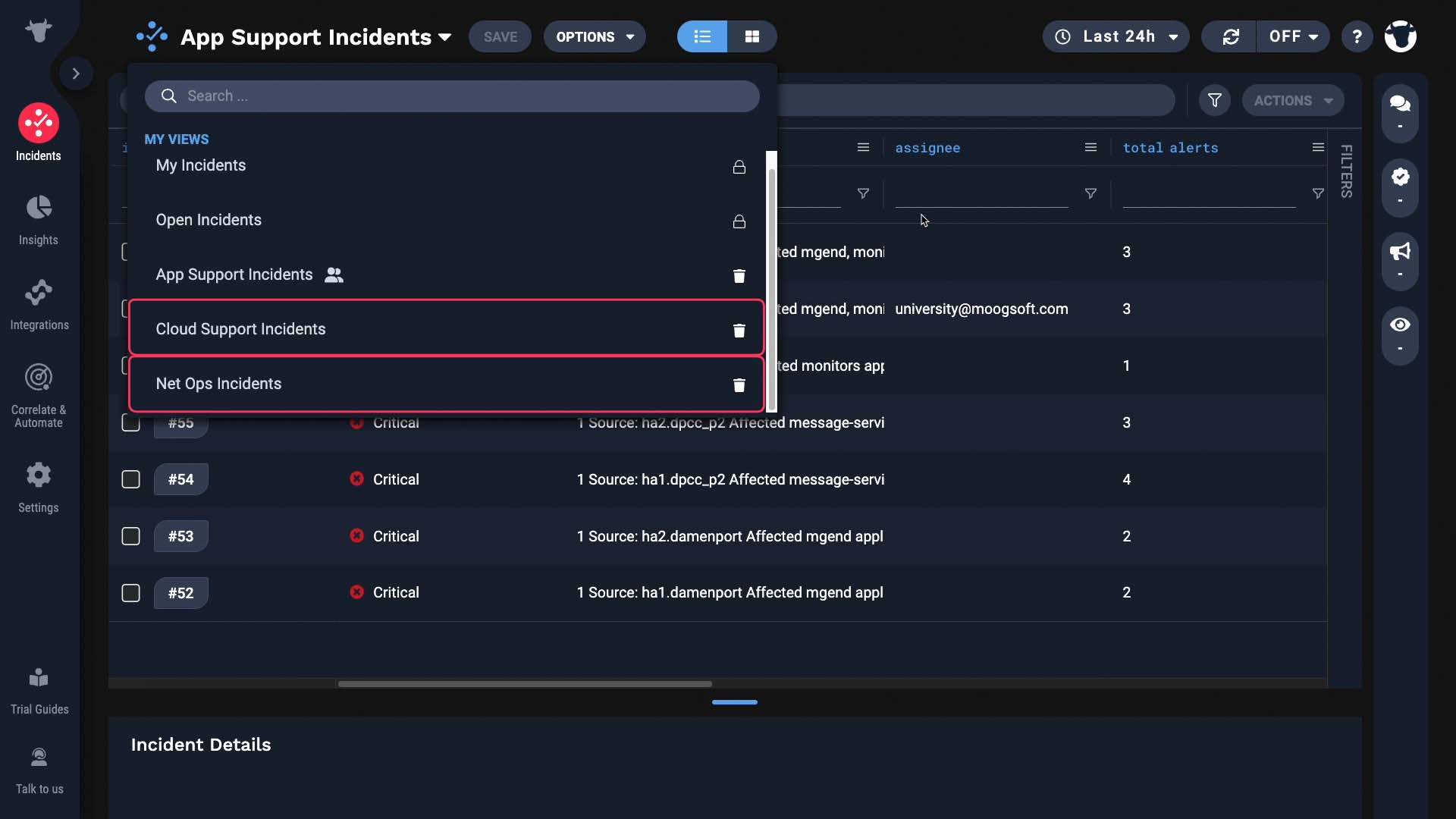

If you are managing multiple teams, you can set up a view for each team.

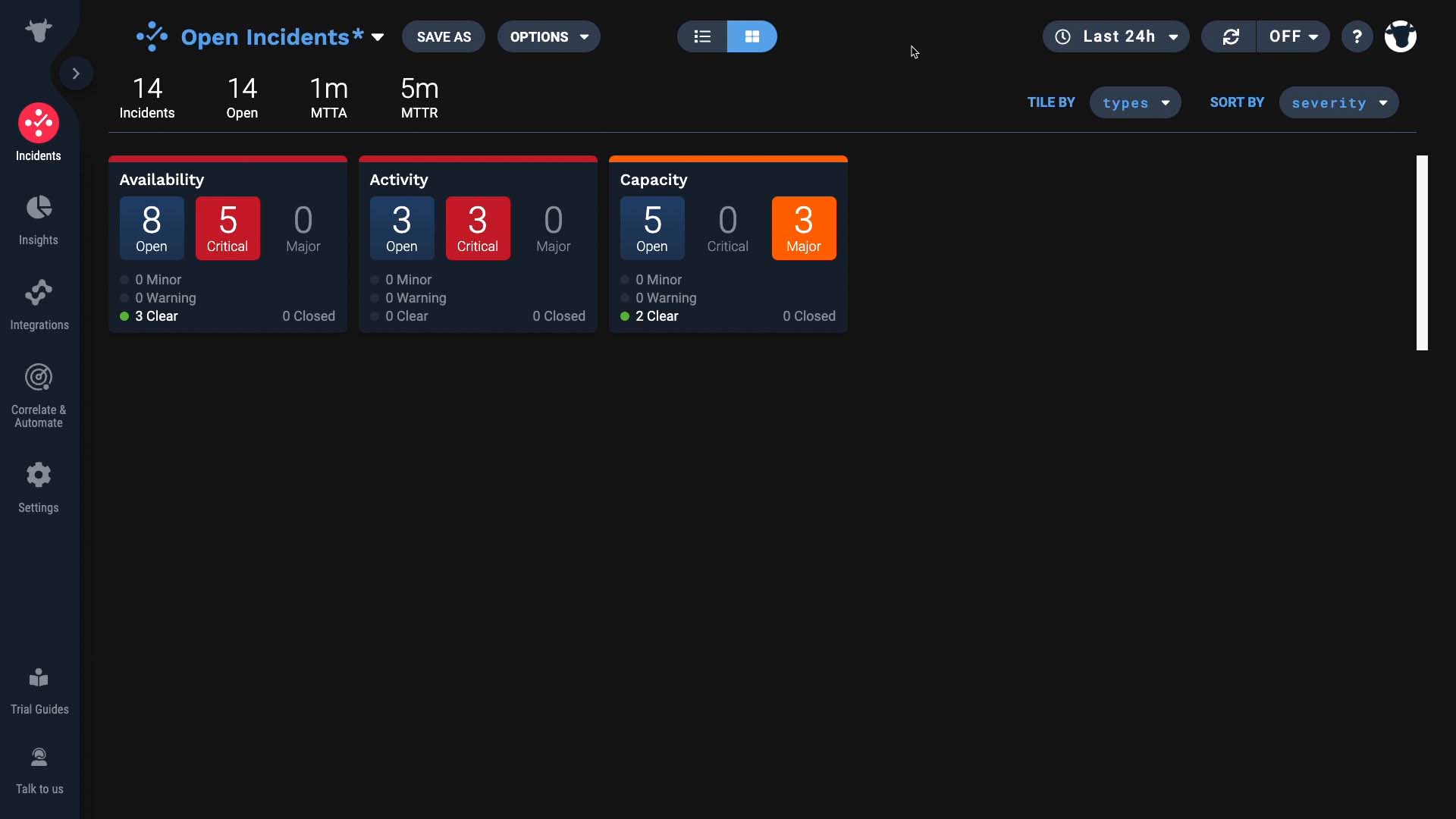

Also, you can switch to a dashboard view of the list. This is just an aggregated view of the same data. But with the dashboard view you can easily see the overall performance of the team, while still being able to drill down to a specific situation. For details about dashboards, watch this video.

Now you know how to create and share custom views with your team. Thanks for watching!

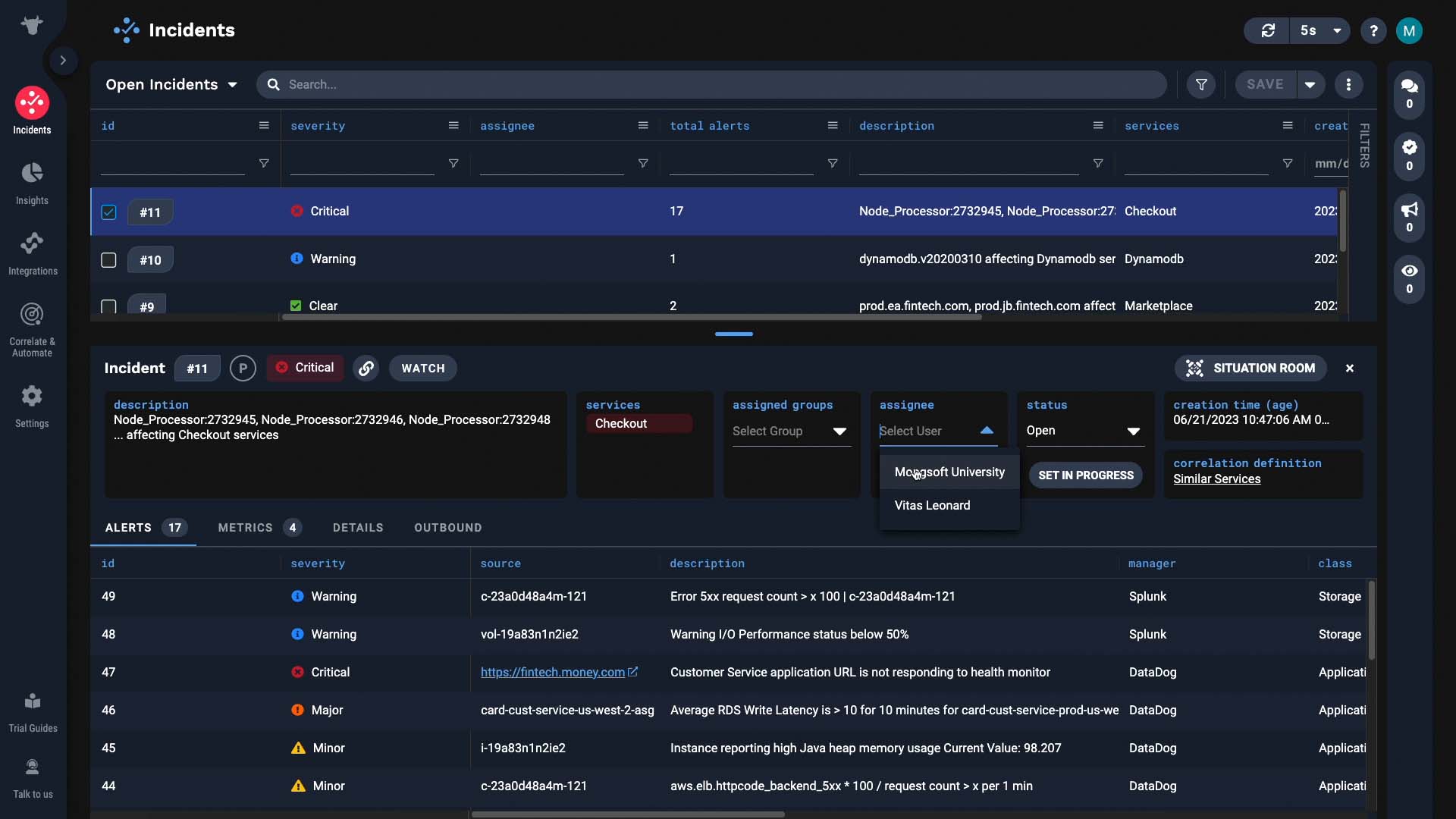

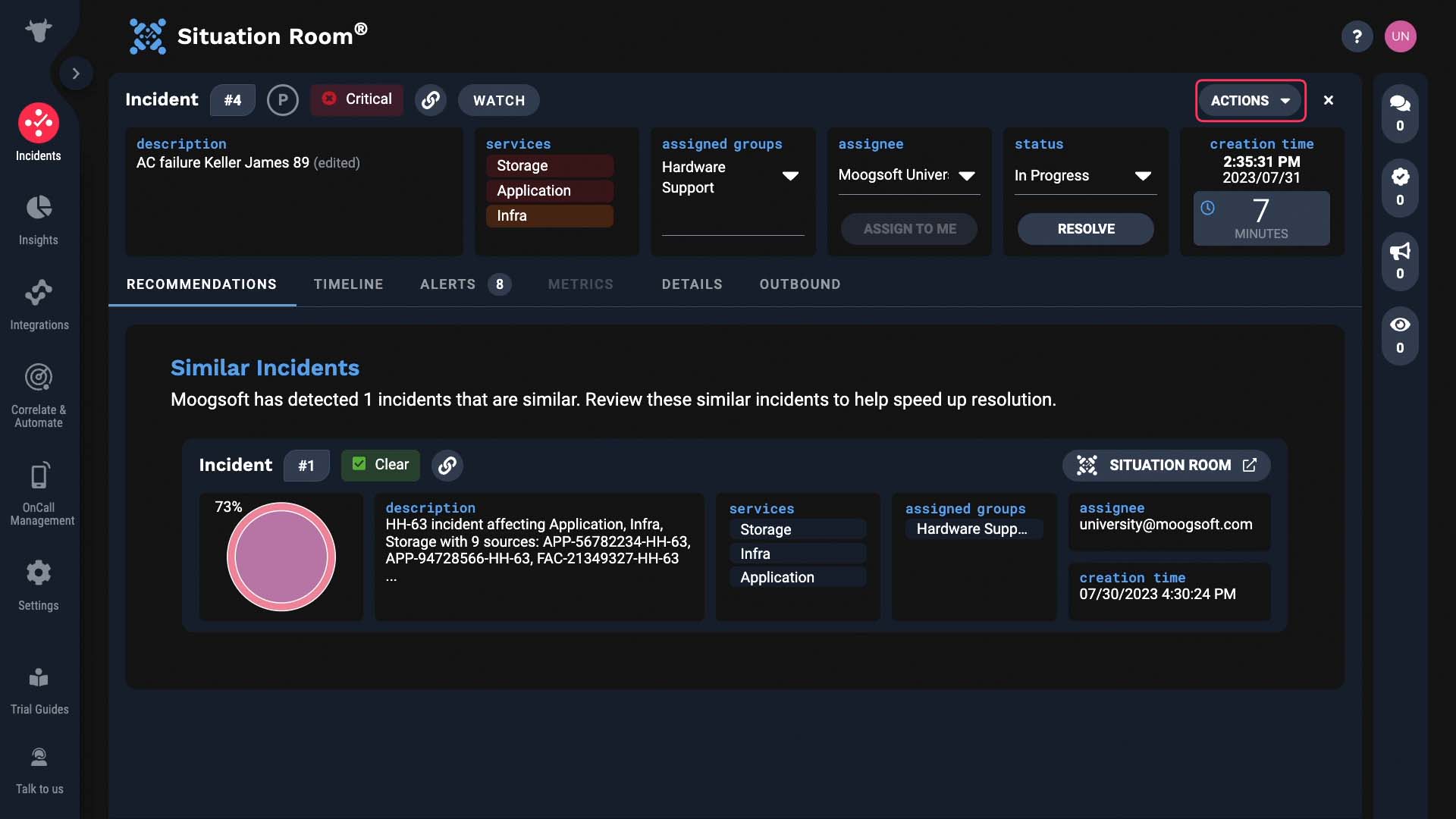

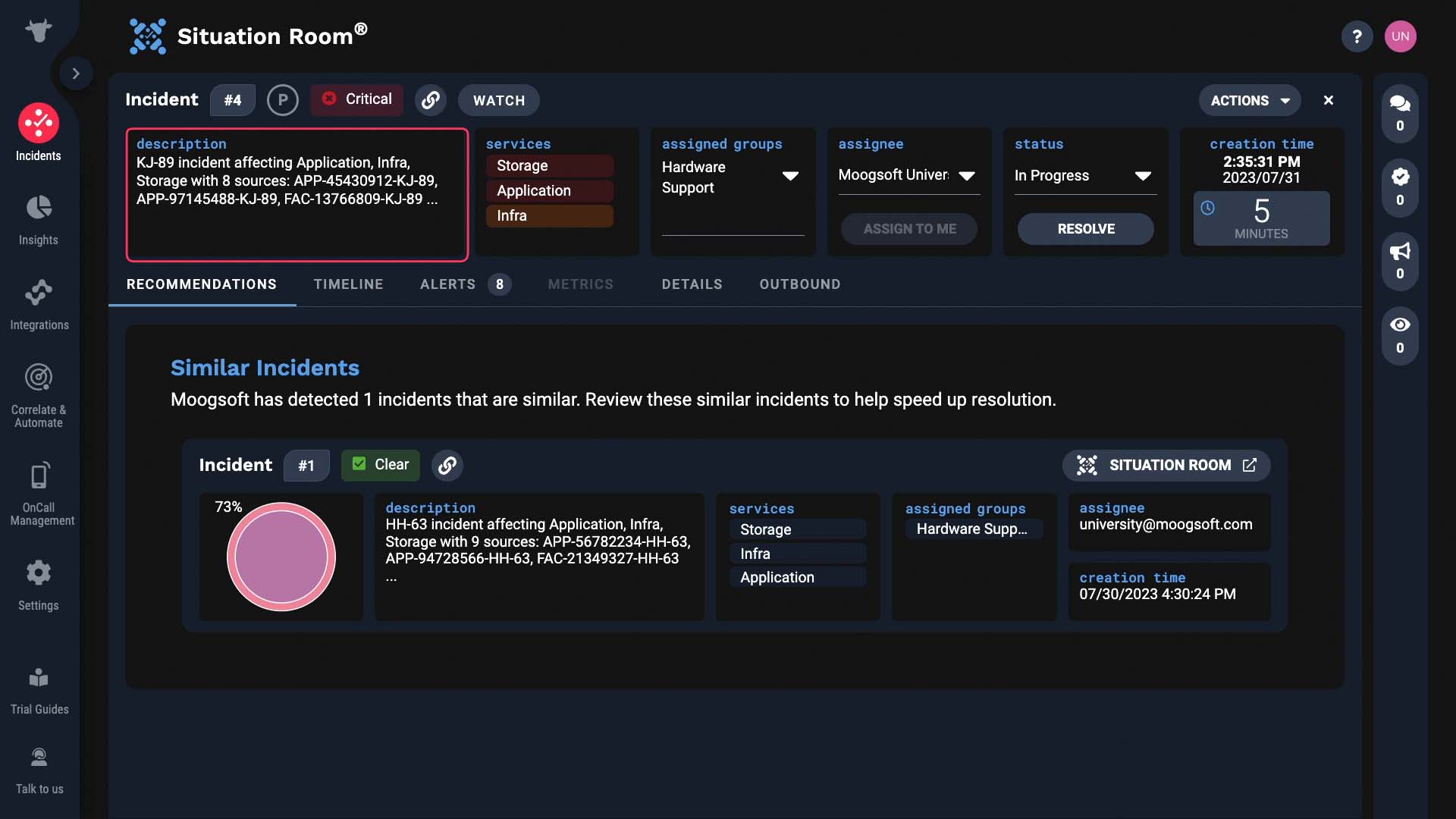

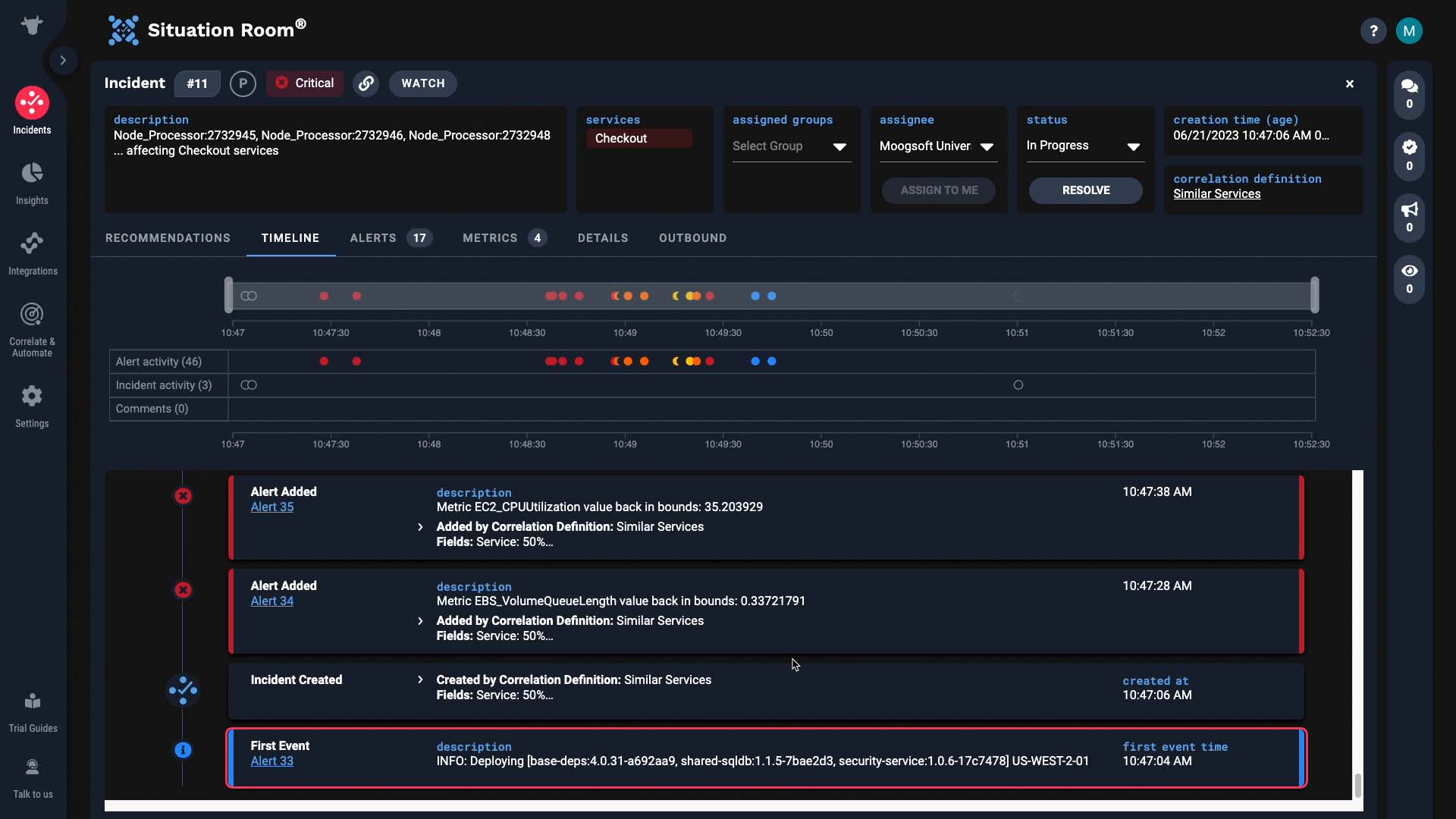

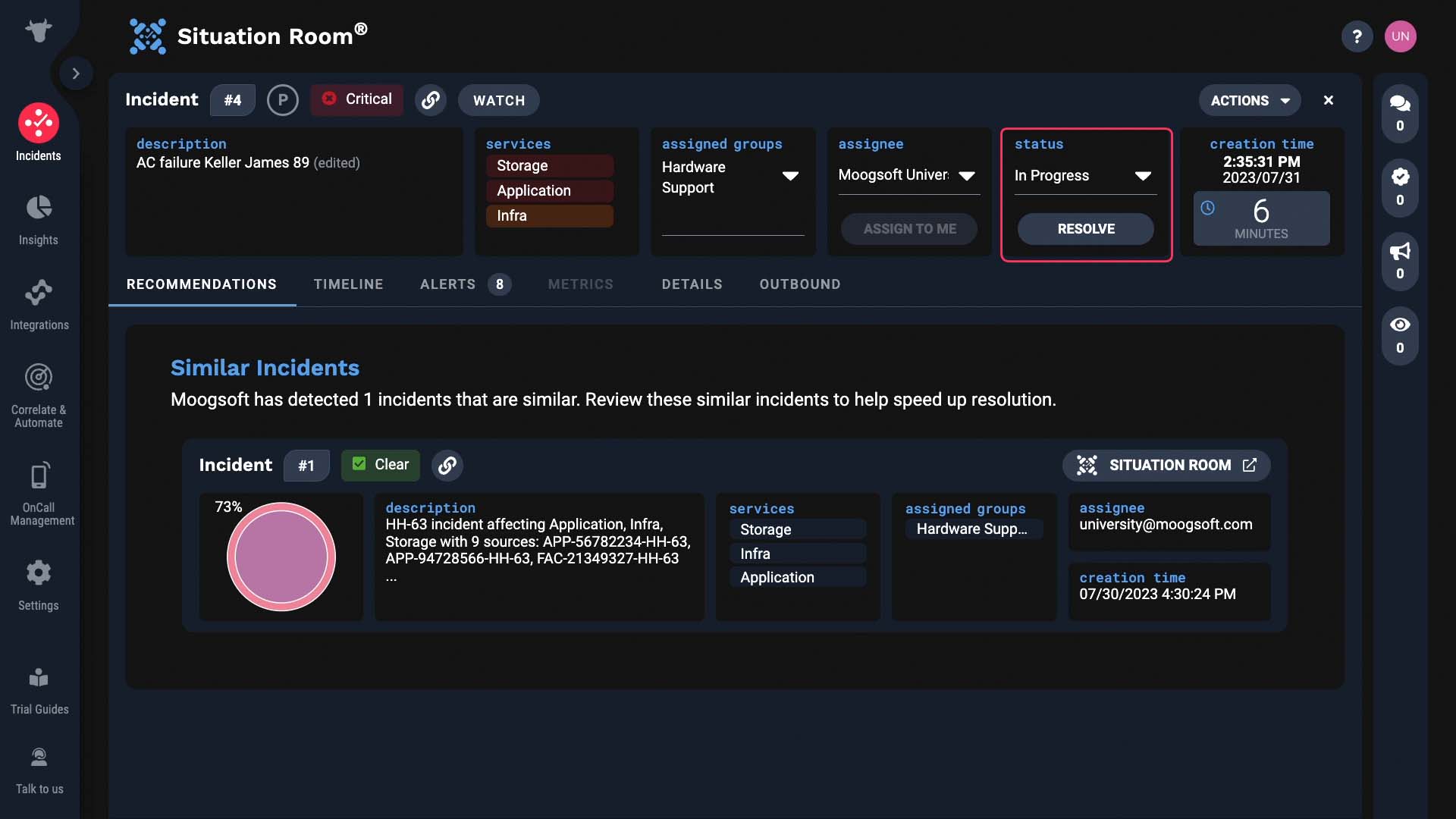

Let’s take a closer look at each field of the situation room. We’ll focus on the top pane in this video.

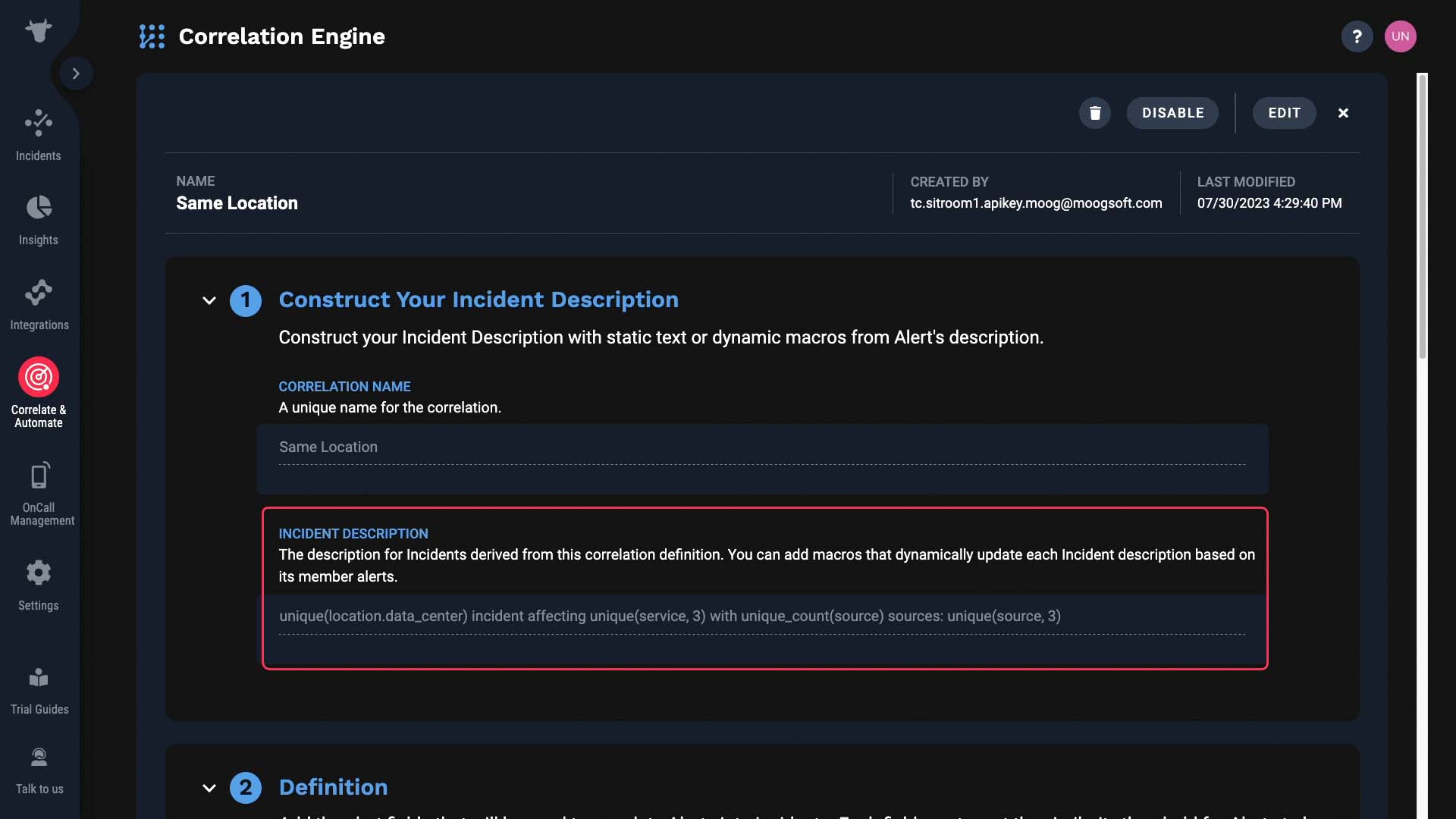

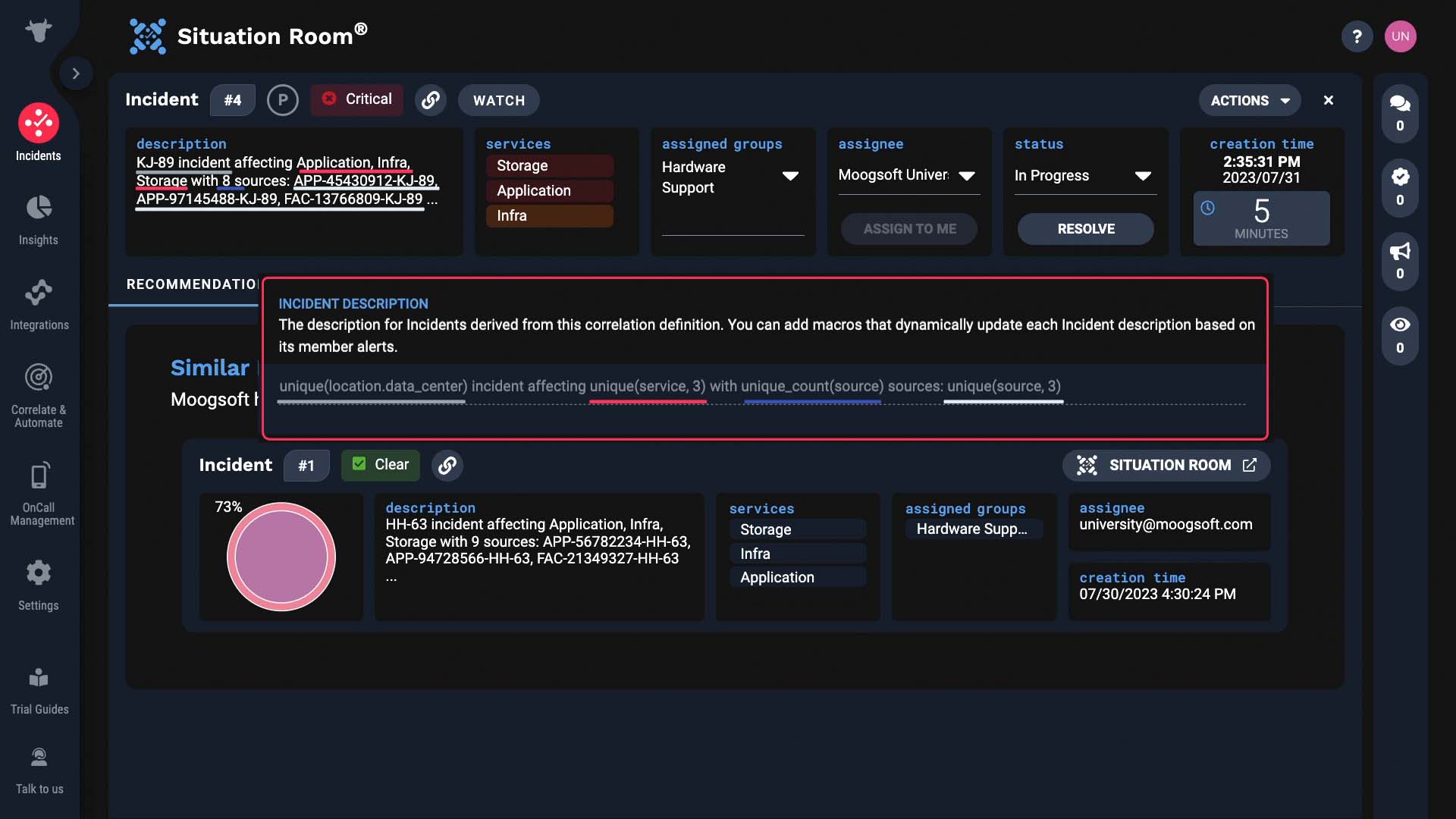

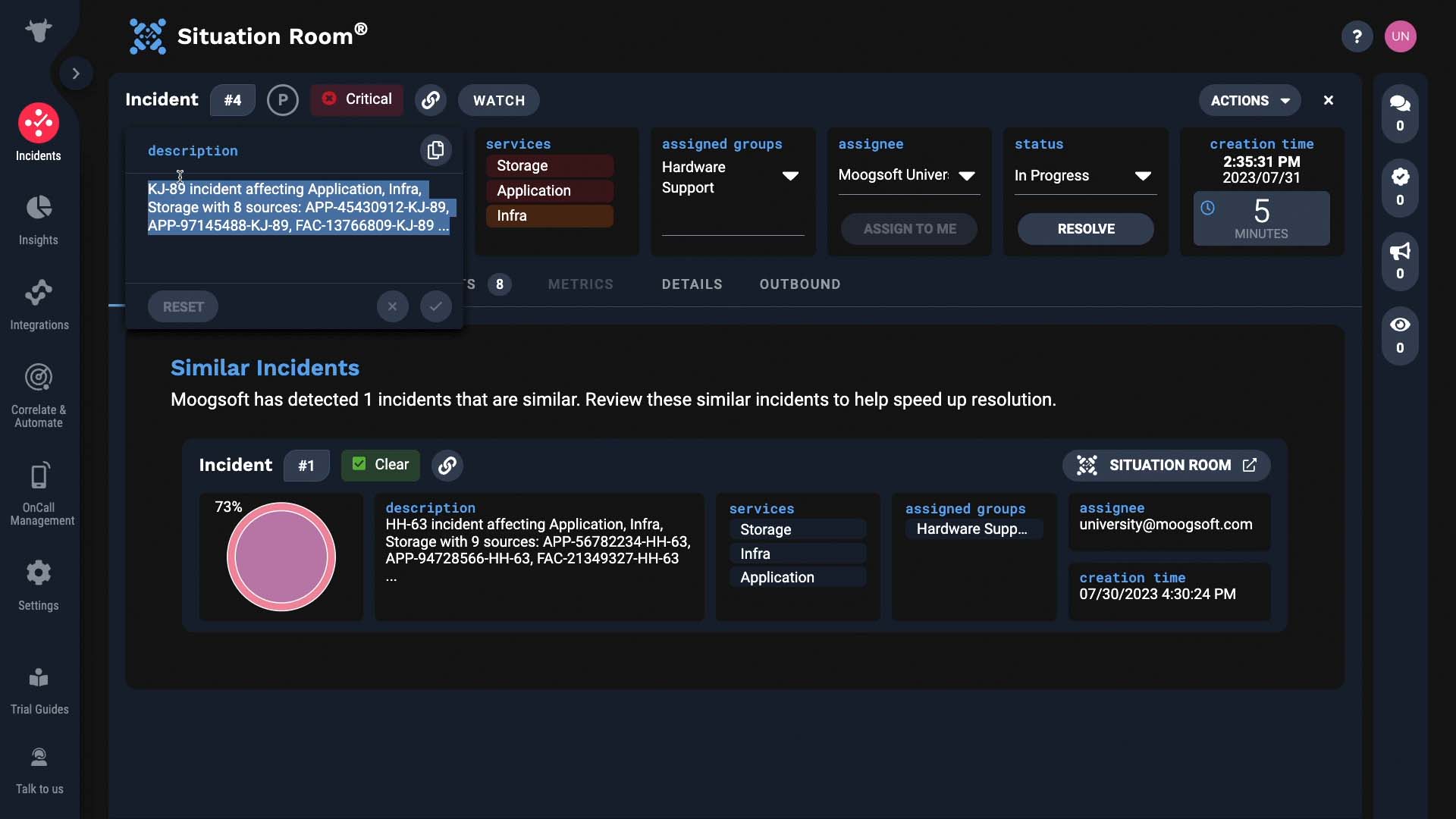

This description of the incident is generated by the correlation definition that grouped the alerts.

It is defined here.

So in this example, the location, top three service names, number of sources, and top three source names are all dynamically inserted.

But you can edit it like this, if needed.

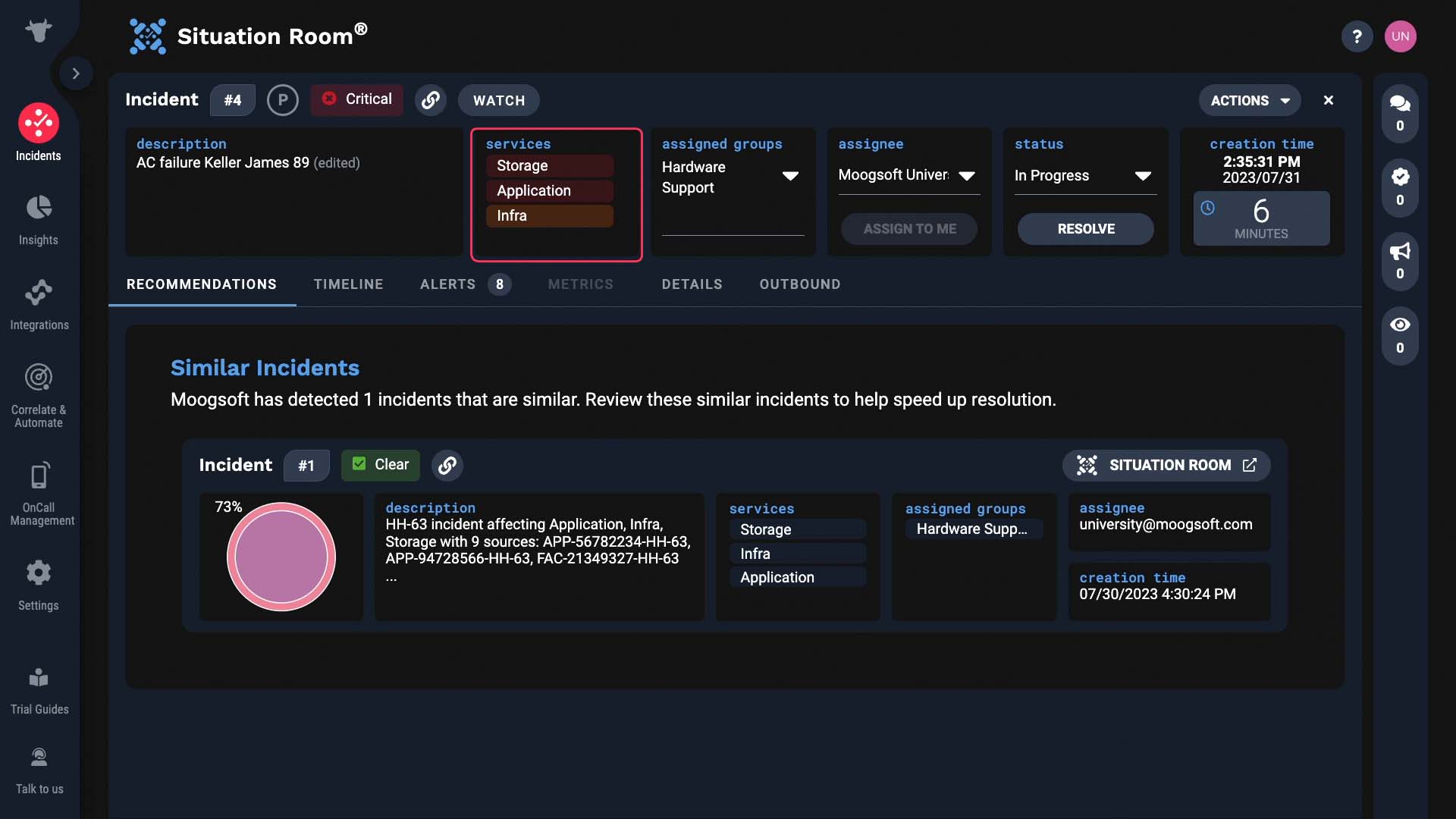

This shows the services impacted by this incident.

An incident can be assigned to an individual, and additionally, to one or more groups.

When it’s assigned to a person, the status changes.

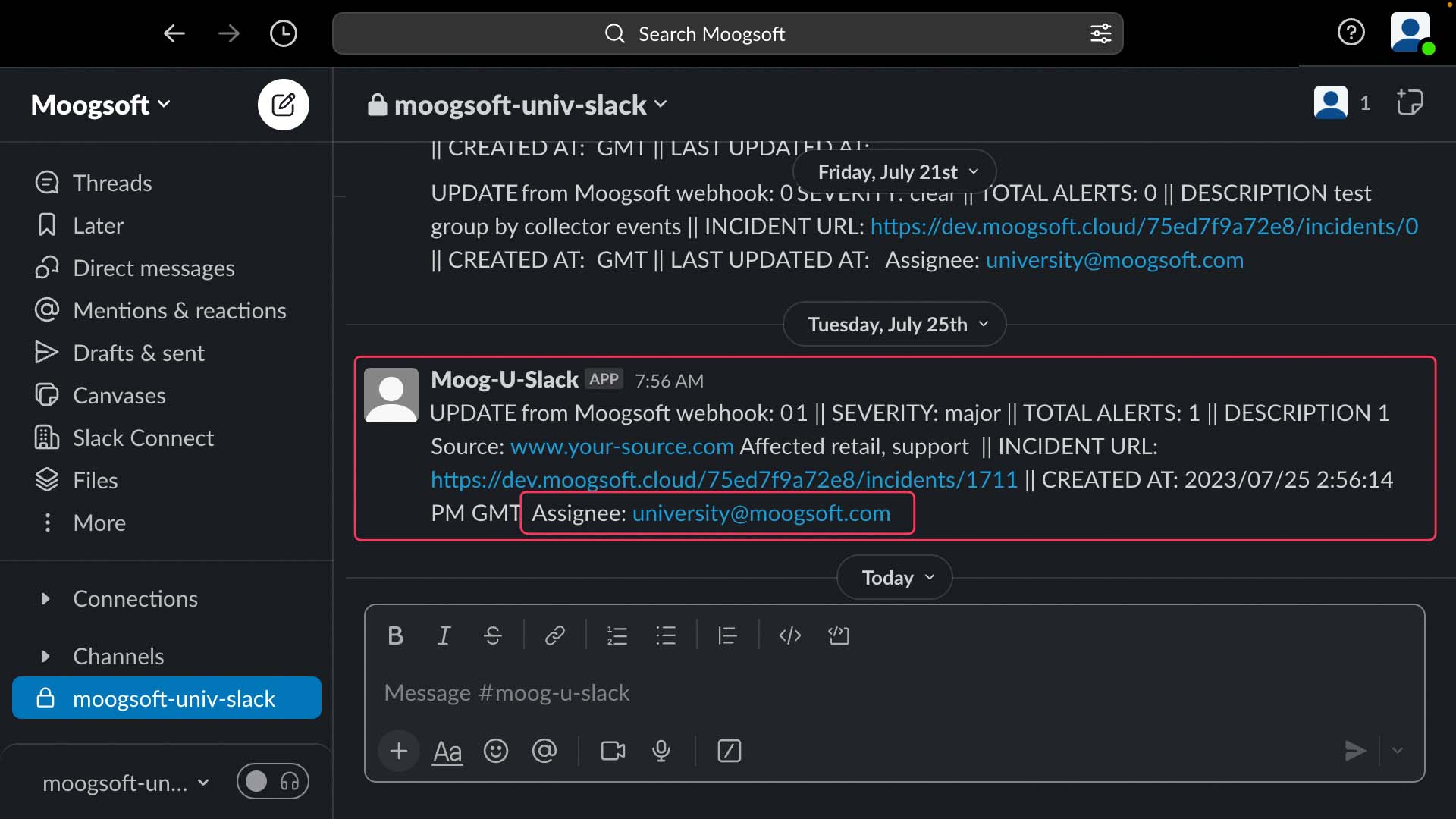

How would you know when you have an incident assigned to you? A few ways. Here you can see all the incidents assigned to you.

Or your administrator may have configured an integration to trigger a notification.

The creation time is the time Incident Management grouped these alerts and created an incident. So note that it’s not the time the first event happened.

This shows how long the incident has been open.

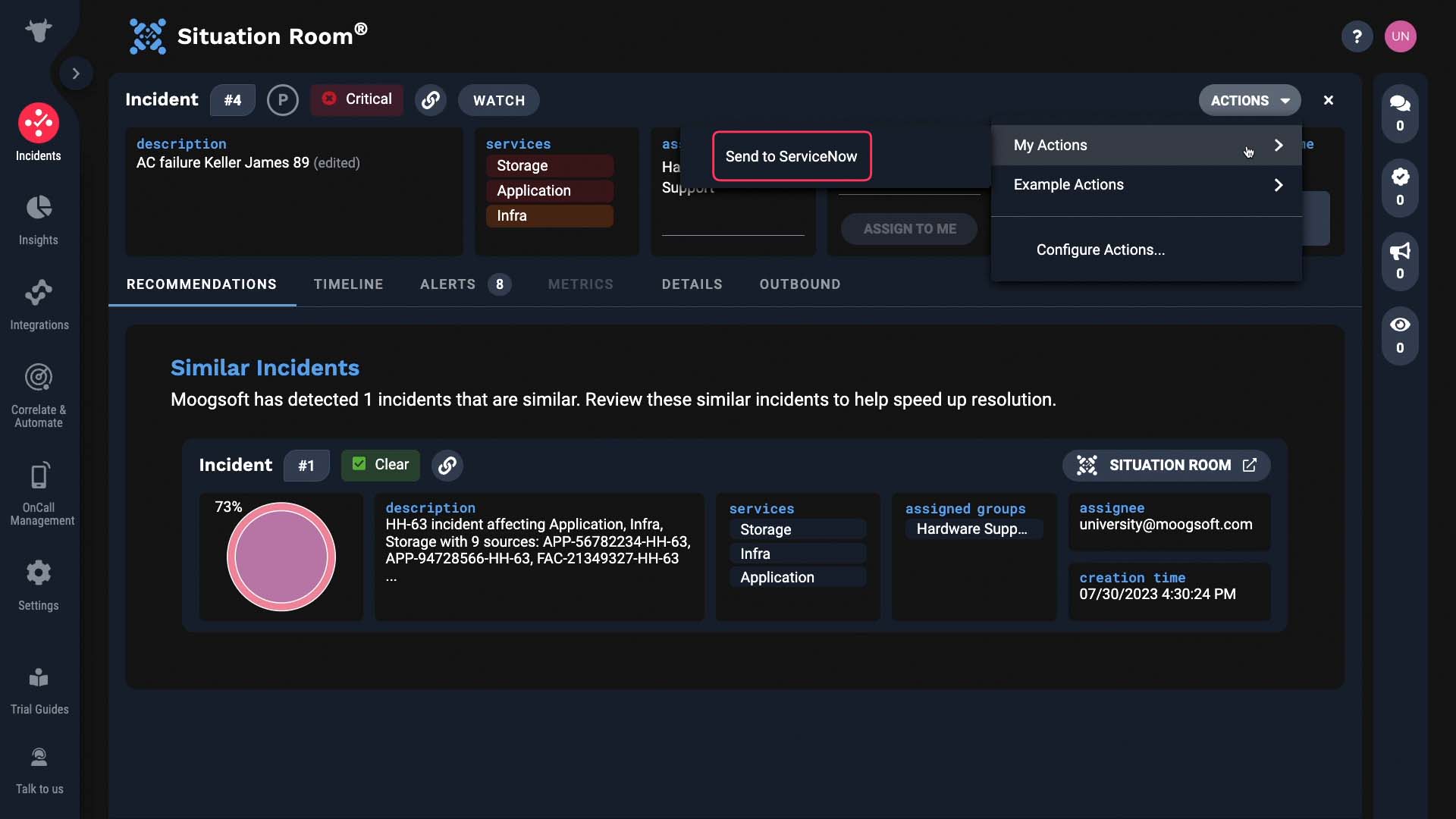

If your administrator configured this, you can set a tag or perform tasks using a designated URL.

For example, in our environment you can go here to send this incident to ServiceNow.

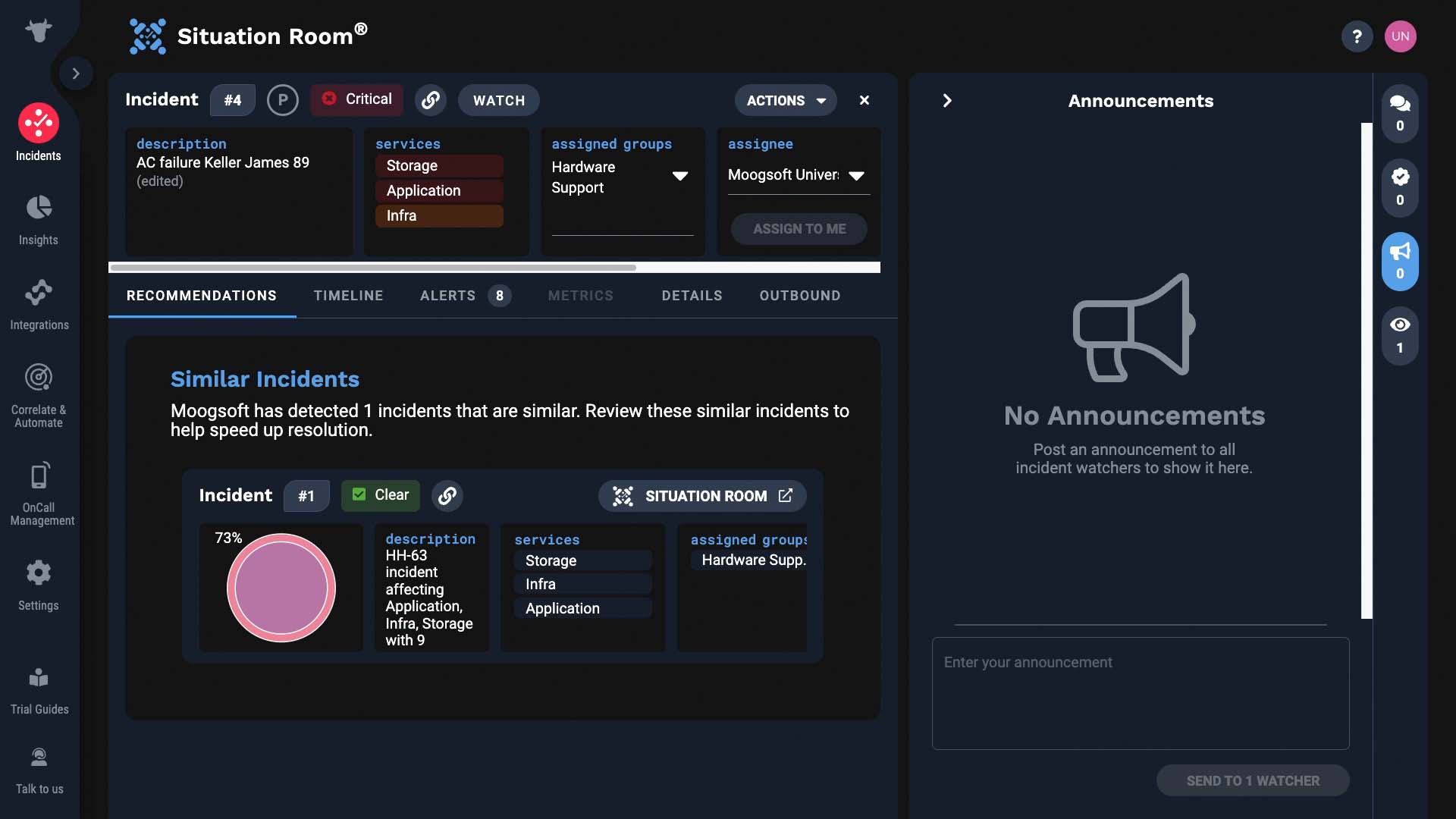

Maybe you don’t need to be actively working on this incident, but just want to stay informed. Then click on the watch button.

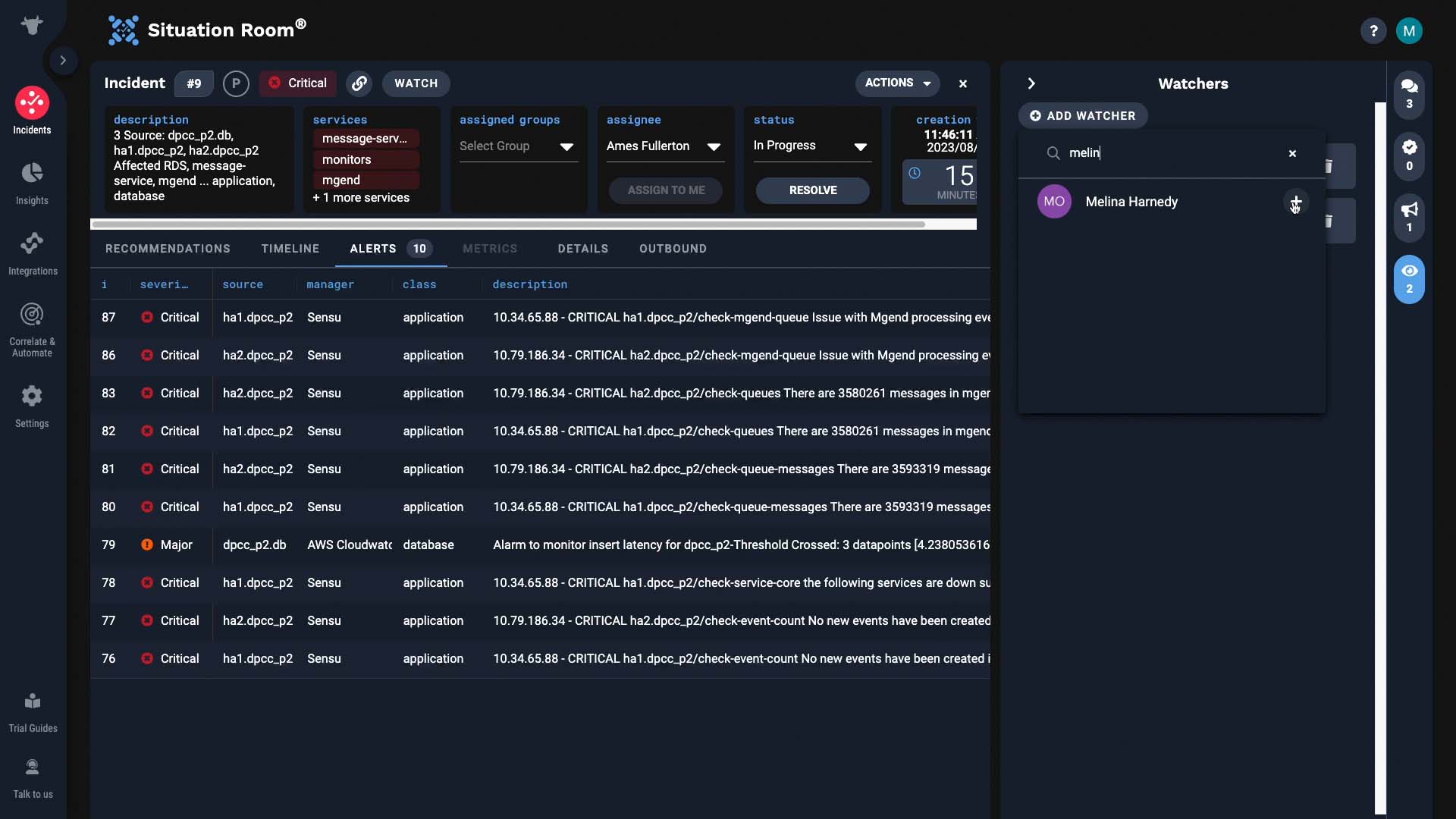

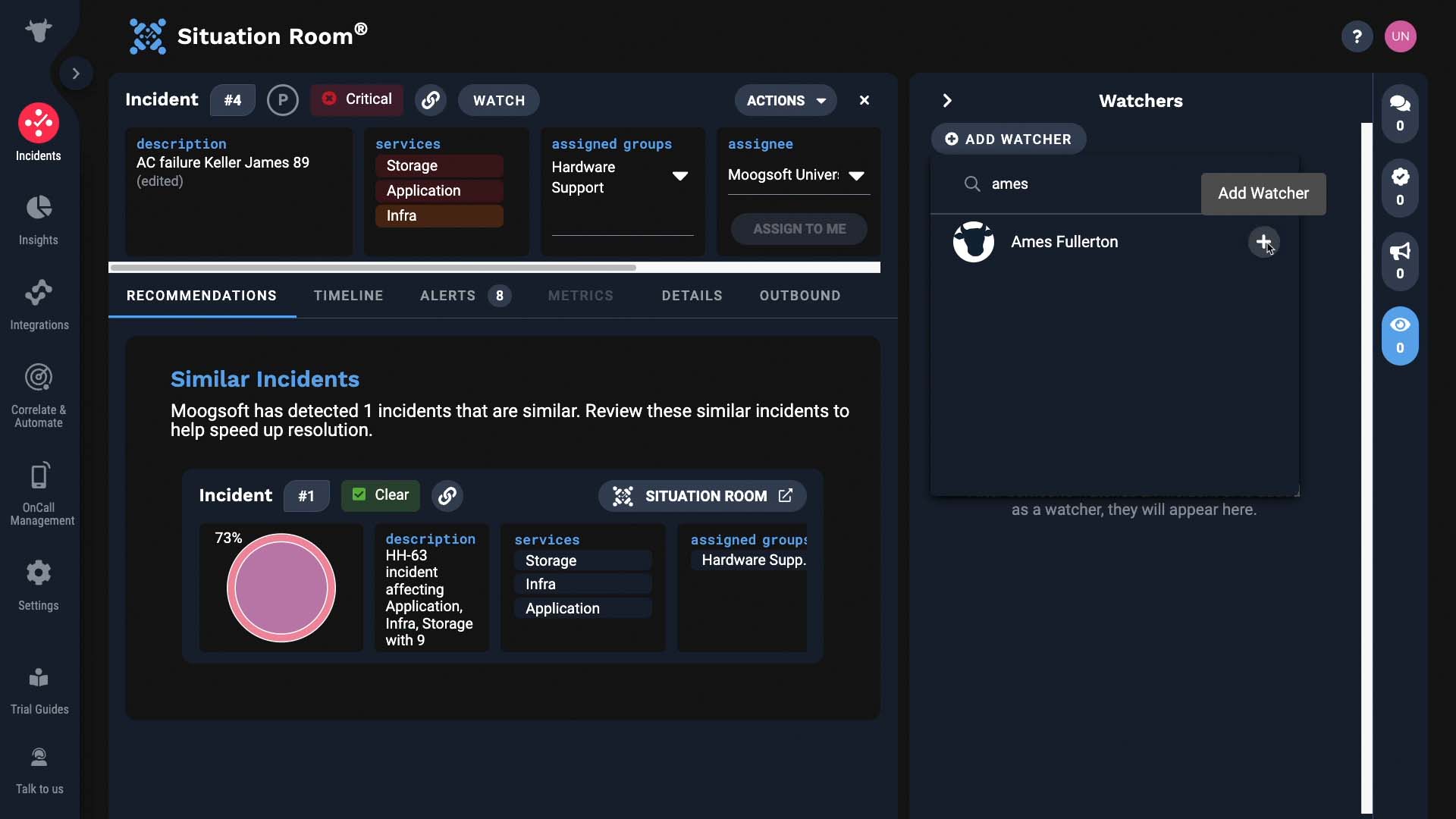

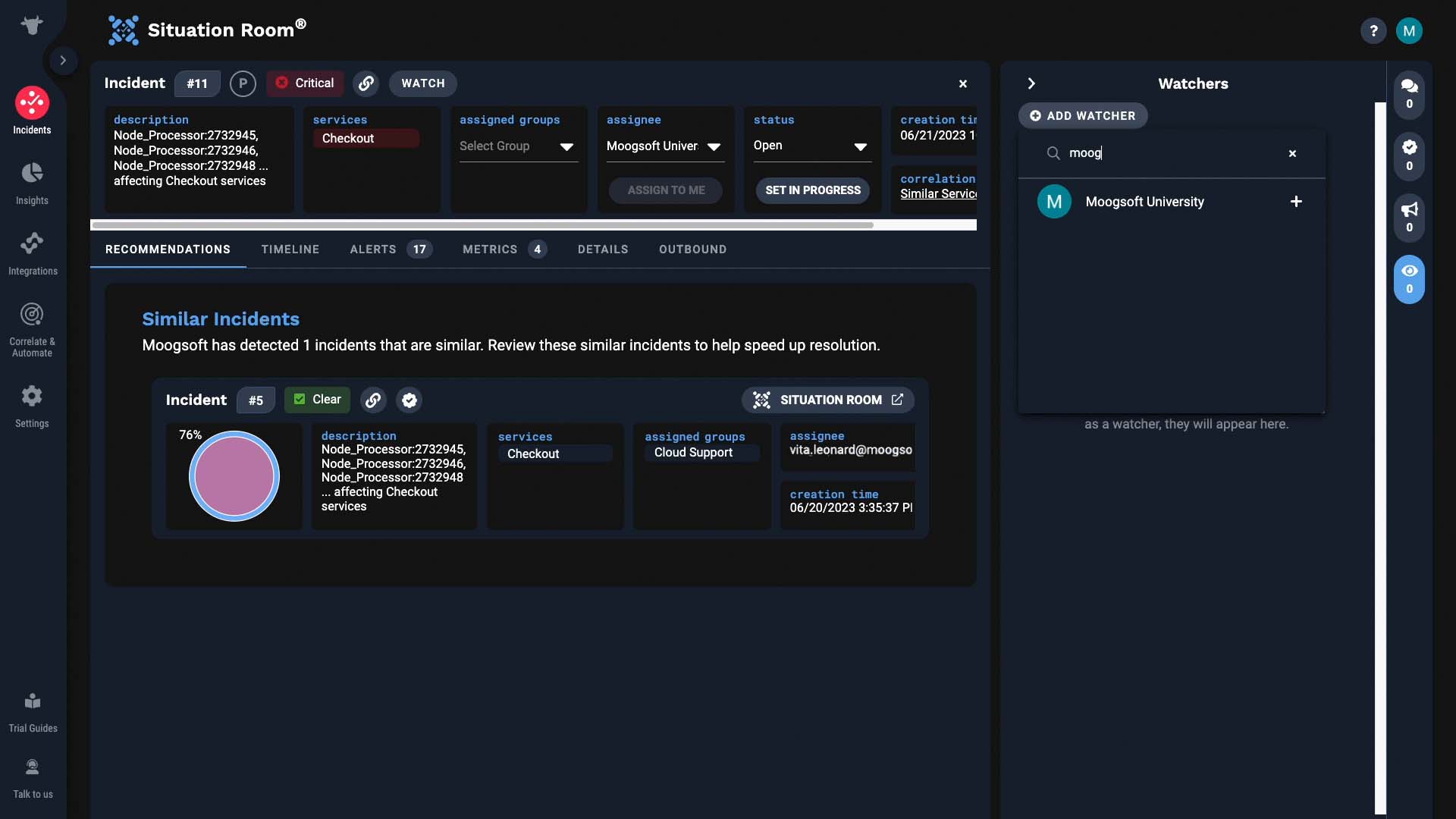

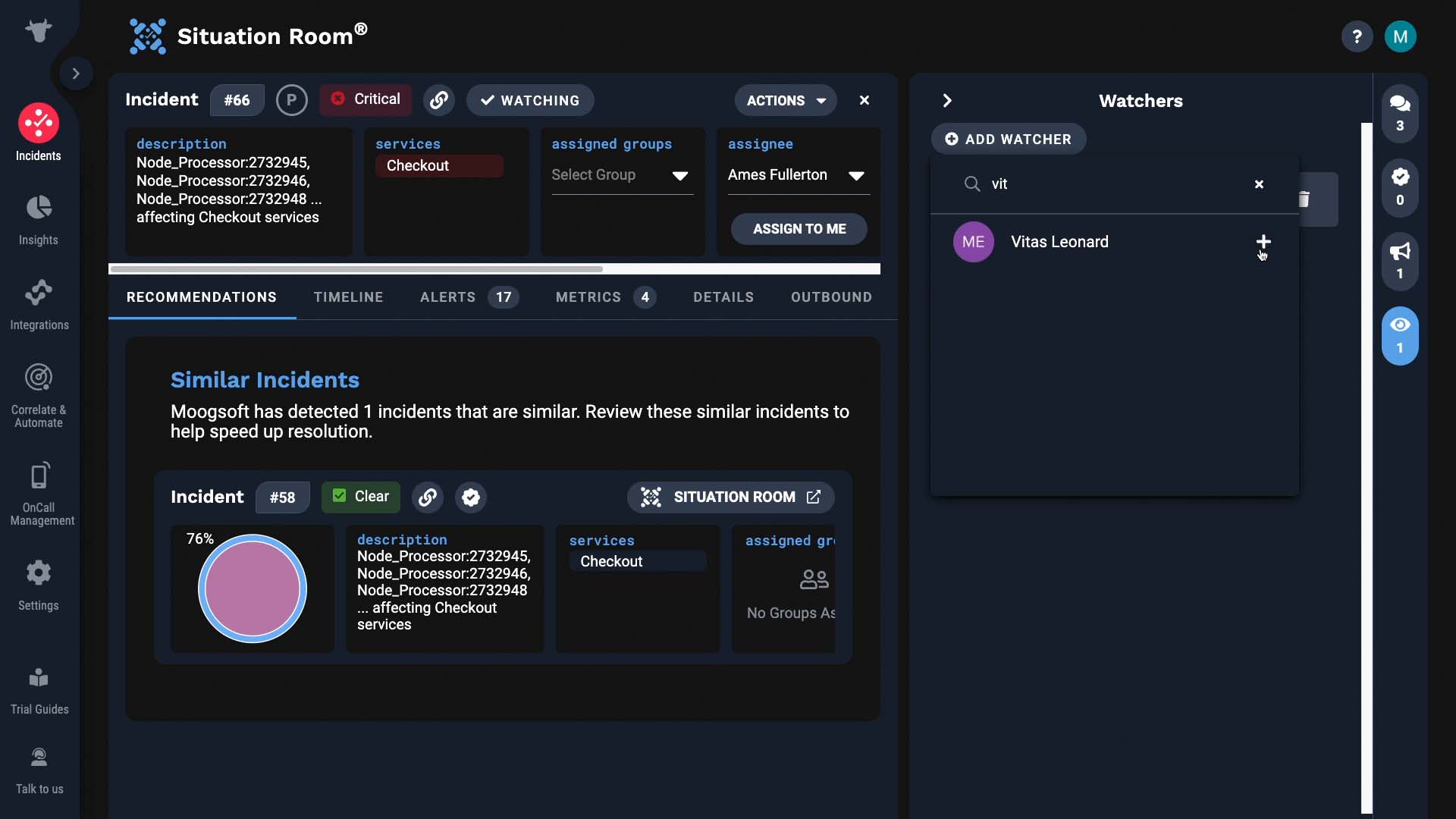

You can add people other than yourself to watch the incident, too.

Now whenever there’s an announcement about this incident added here, the watchers will receive a notification.

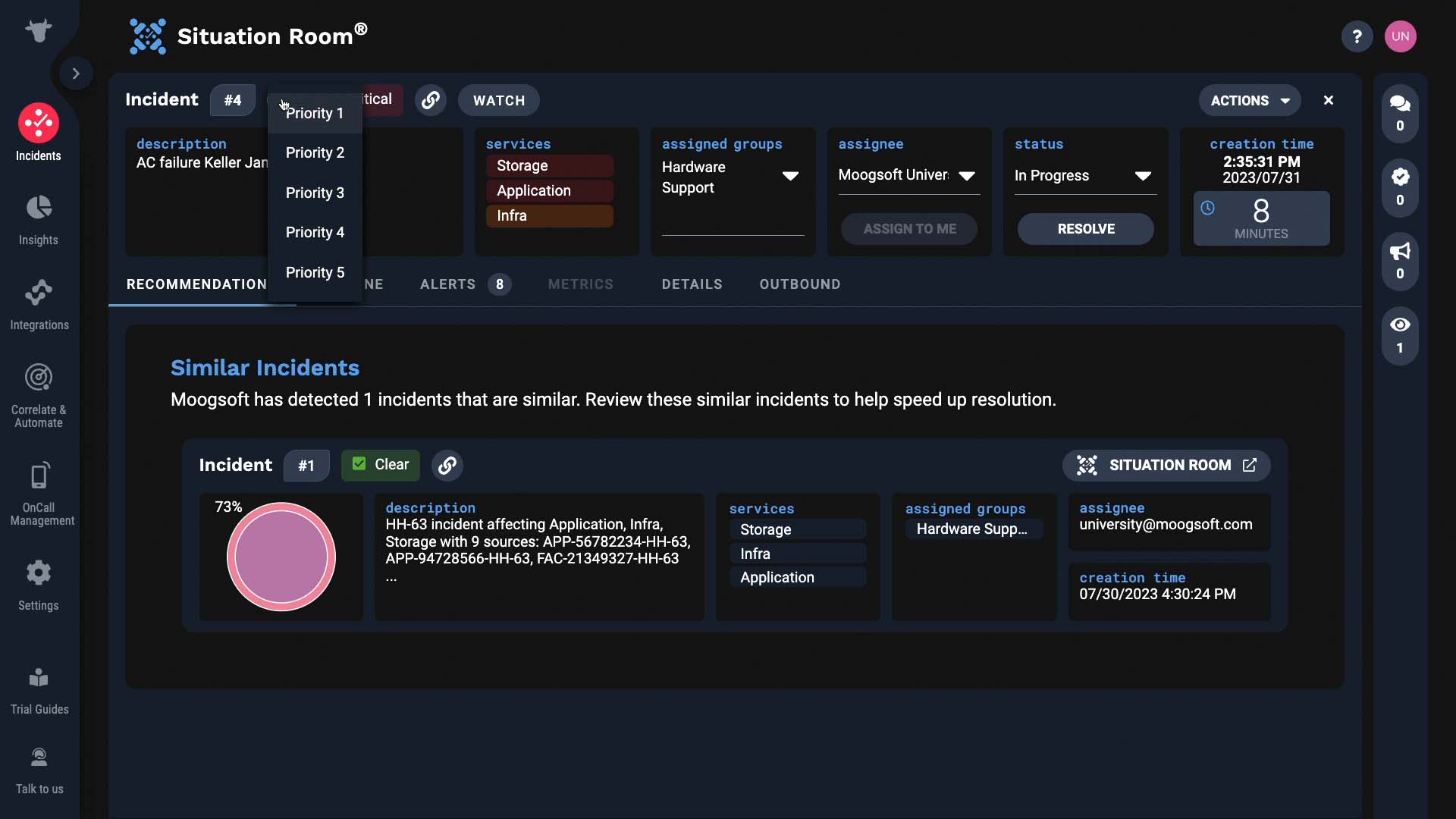

If you want to set priority for your incidents, you can do so here. Then you can sort by priority and tackle the incidents with higher priority.

Now you are familiar with the top section of the situation room. Make sure to check out the other Situation Room deep dive videos!

In this video we’ll showcase the power of the Situation Room in Incident Management.

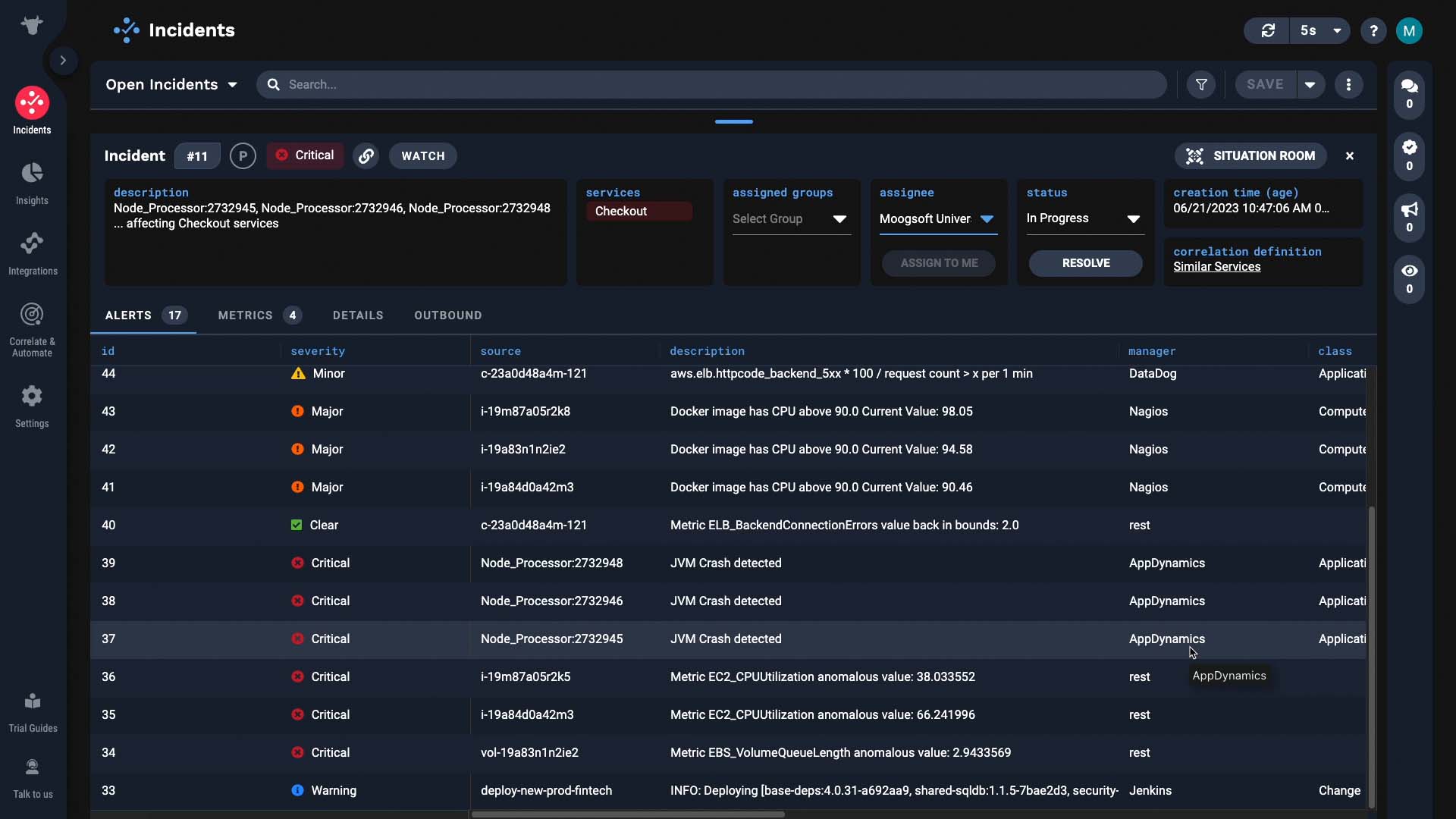

Here’s a critical incident happening…let’s take ownership of it and investigate.

There is a lot going on–several Java Virtual Machines have crashed, and we’re seeing I/O and database problems.

We’ll go to the Situation Room for this incident.

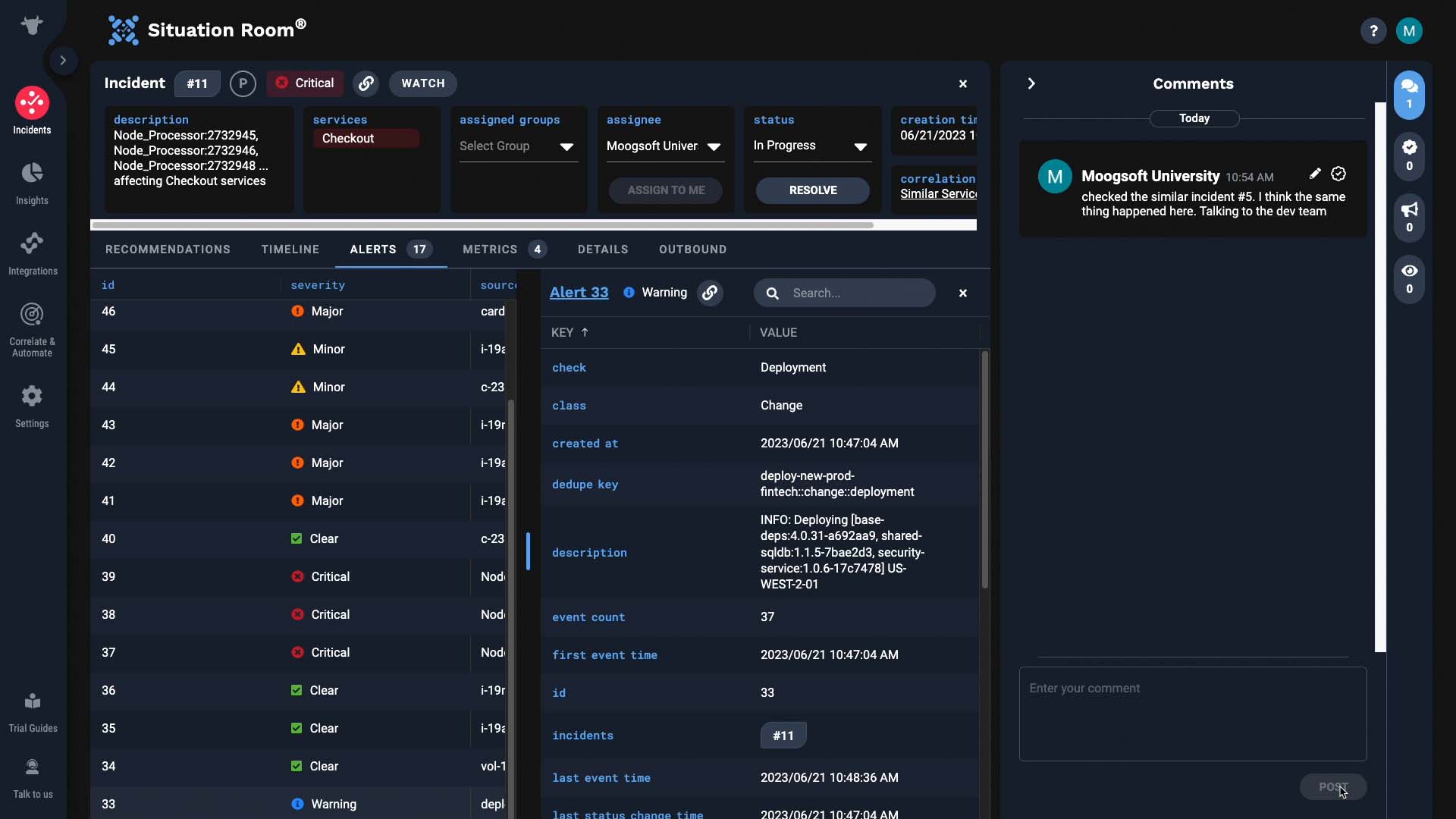

The Situation Room is a virtual collaboration space in Incident Management. It is designed to facilitate collaboration and drive incidents to resolution. Let me show you how it helps our investigation.

It has the same tools and information as the incident details page, but now the entire screen space is dedicated to resolving this one incident. You see the description of the incident, impacted services, and which correlation definition was applied to group the member alerts,

But there are a few things that make the Situation Room special.

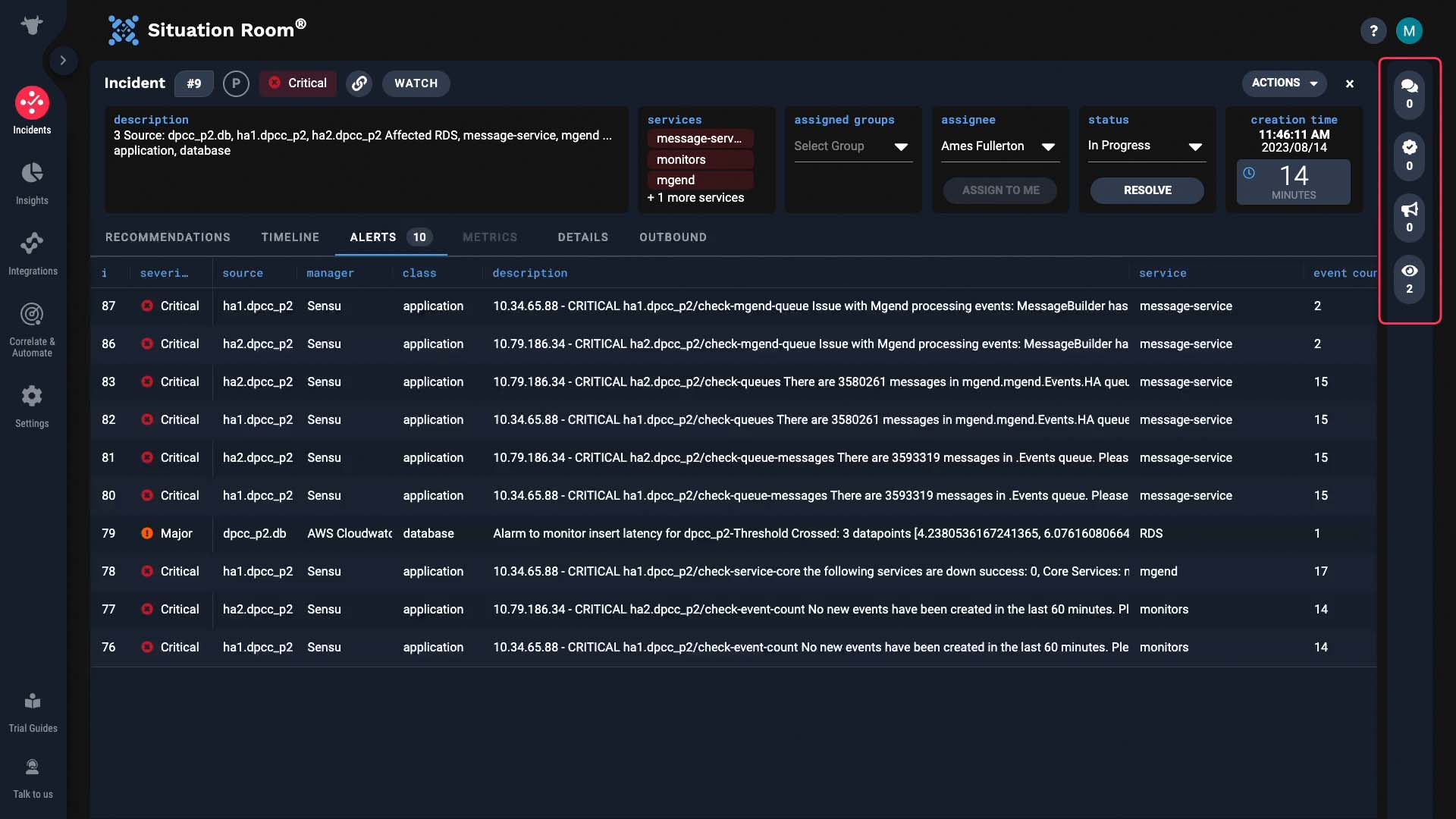

First, here is the comments tab. The team can chat as they work through the incident.

Or maybe you just want to monitor the progress of this incident. Then you can add yourself, or a stakeholder as a watcher. You will receive an email when there are any announcements.

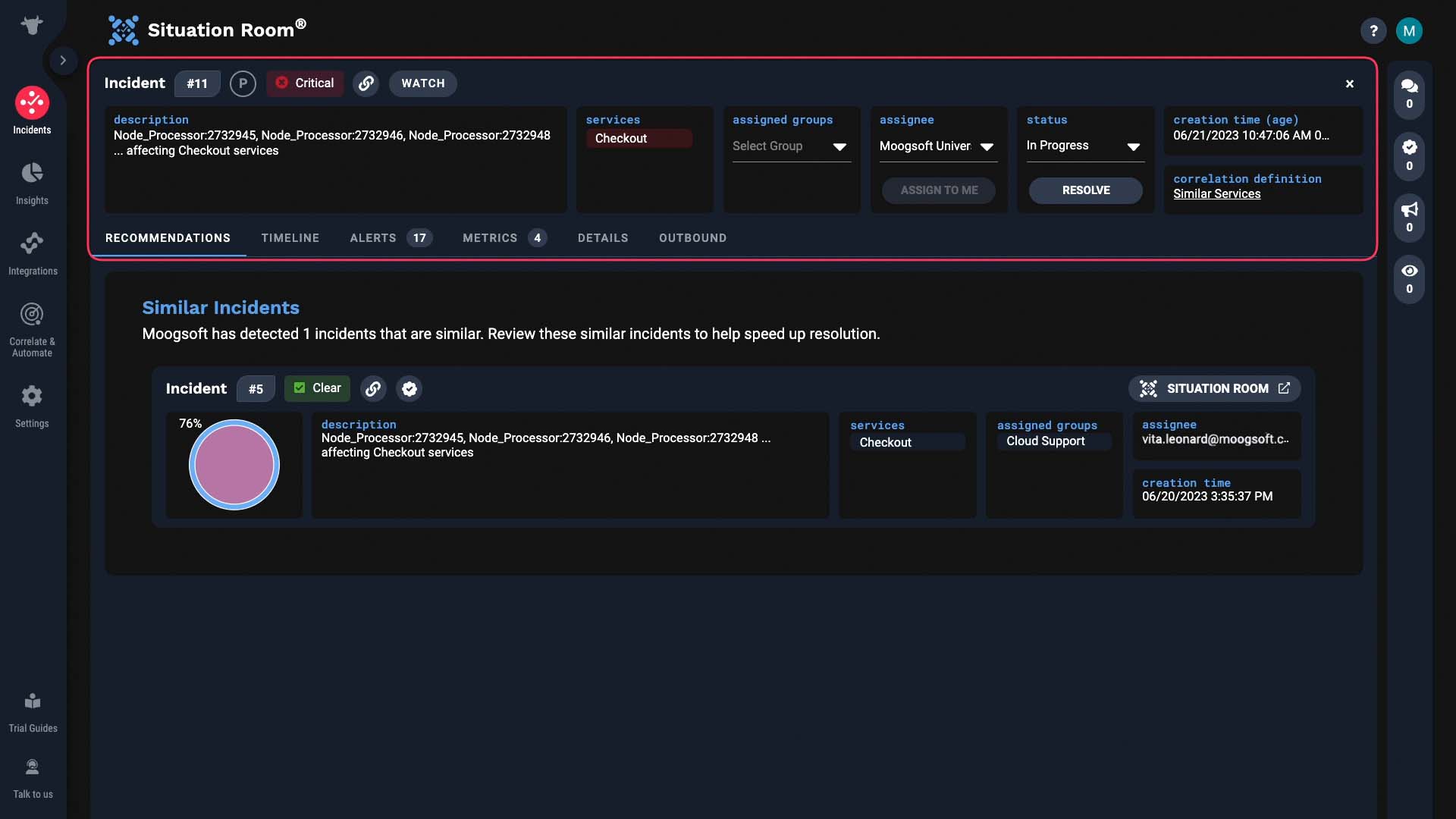

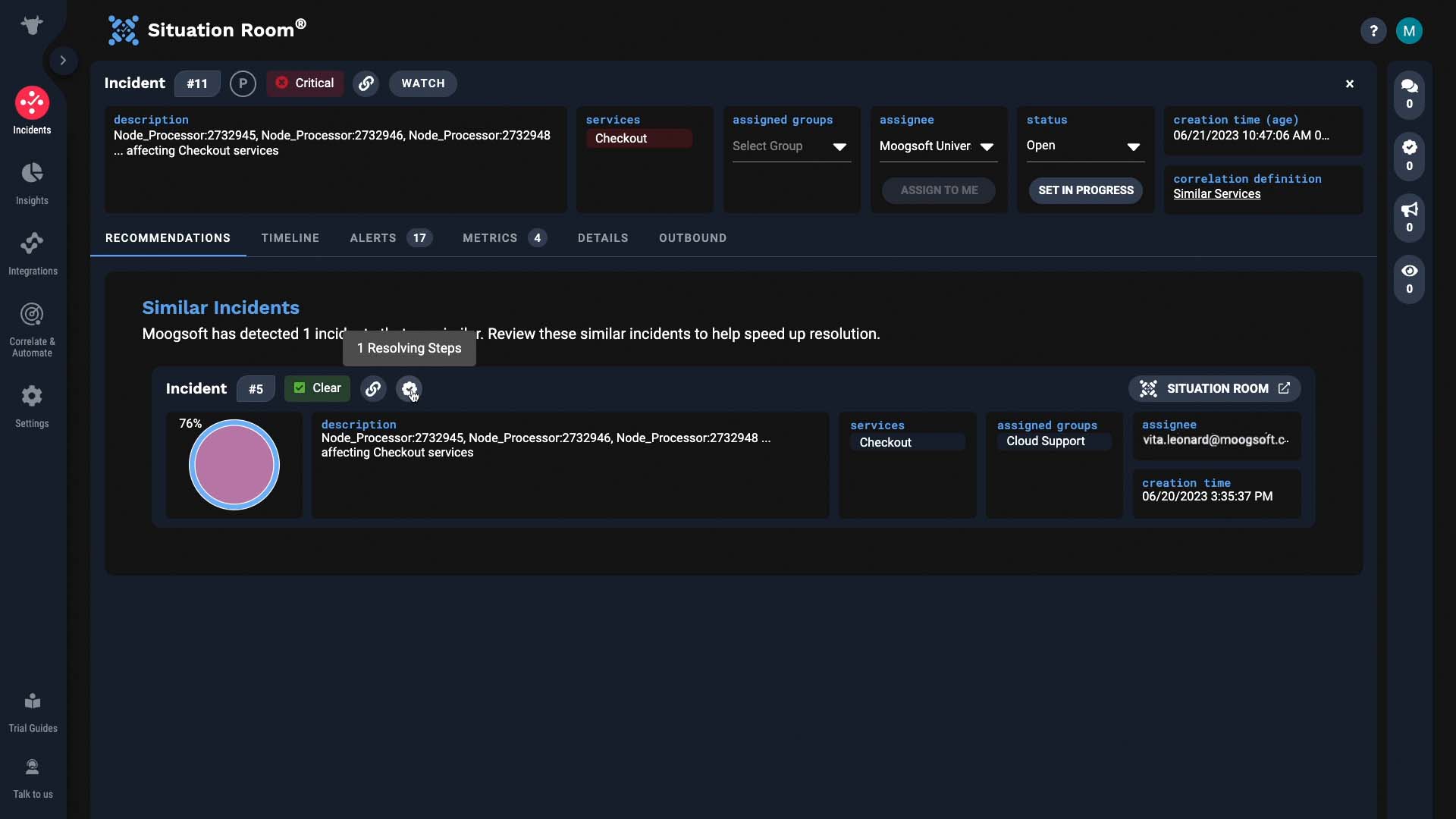

Next, the recommendations tab is a great resource. Incident Management checks if there are incidents similar to the one at hand. And if there are, it will surface them for you to reference.

In this case, we have one similar incident.

This one is 76% similar to our incident.

And note this icon! This means information on what resolved this incident is available! With this past incident, it looks like the problems were related to a code push. Let’s learn more about it.

Okay, now we have some more context.

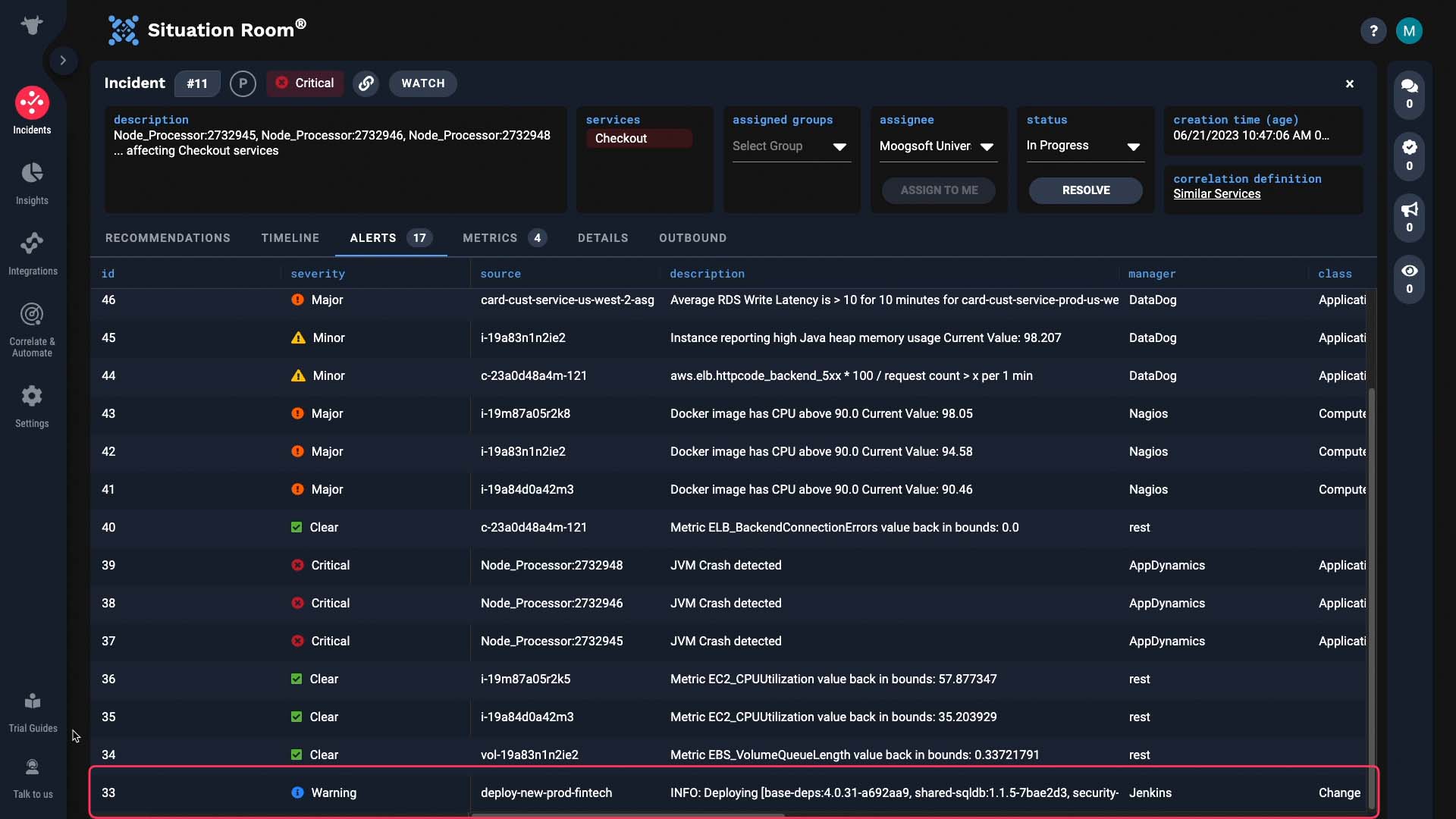

Let’s get back to the incident we were working on. Is there also a Jenkins alert in the current incident? Here’s the timeline that shows you how the incident unfolded…It says code deployment, so this is promising!

Yes, that is the Jenkins alert. It’s likely that this code change is the root cause of the incident. So indeed, that similar incident Incident Management suggested was right!

Let’s share our findings with the team. We’ll talk to the developers and get the deployment rolled back.

All fixed… that was quick! Now you know how the Situation Room supports faster incident resolution. Thanks for watching!

In this video, we will step through the typical workflow of an APEX AIOps Incident Management user as they work through incidents.

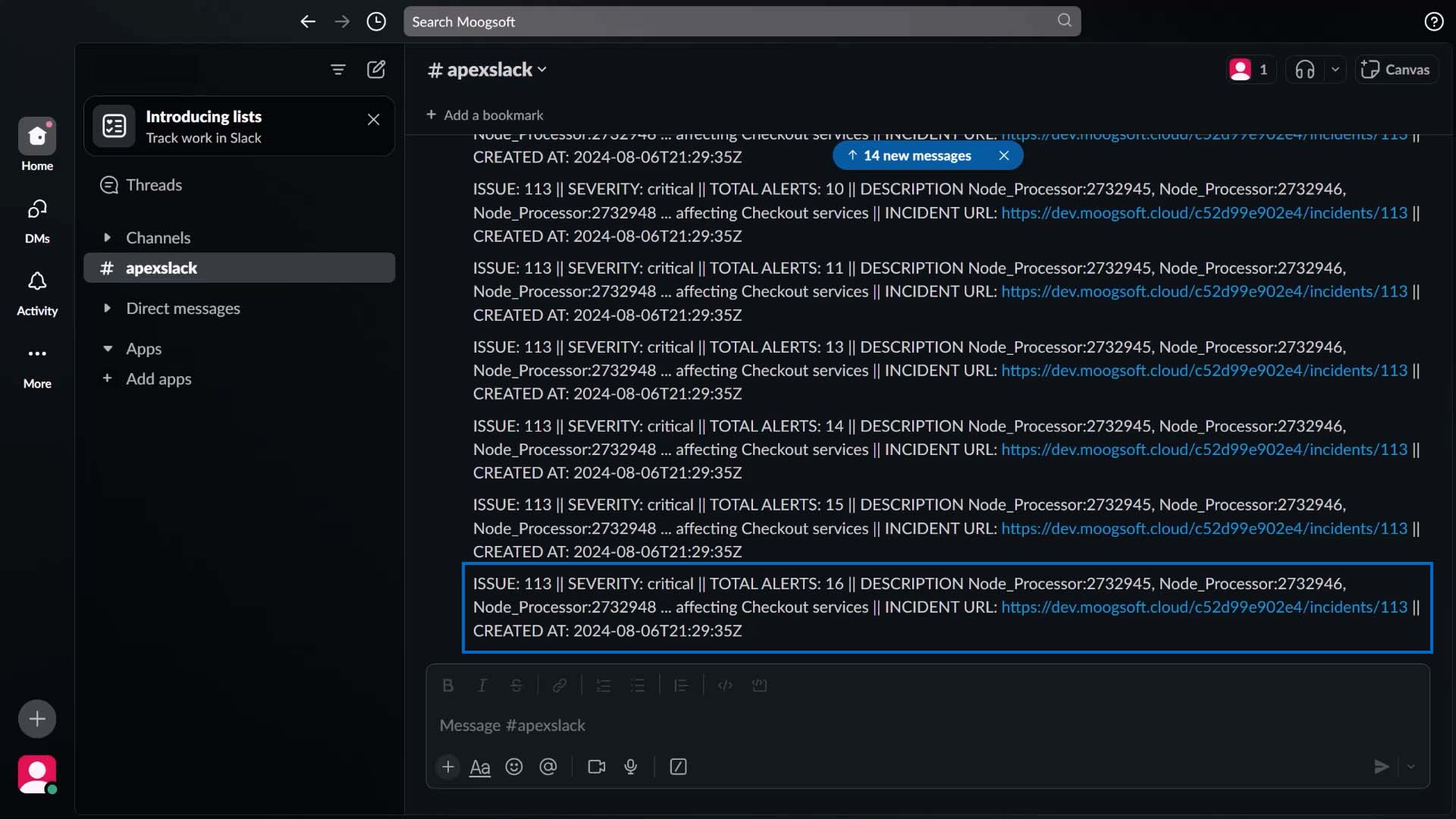

Here comes a slack message, notifying us there’s a critical incident requiring our attention.

So we click through to Incident Management, which takes us to this incident’s Situation Room.

The Situation Room is where you and your team can collaborate on an incident. This is the timeline for this incident. These sliders let you zoom in on particular areas, and the list below filters to match the time frame you choose.

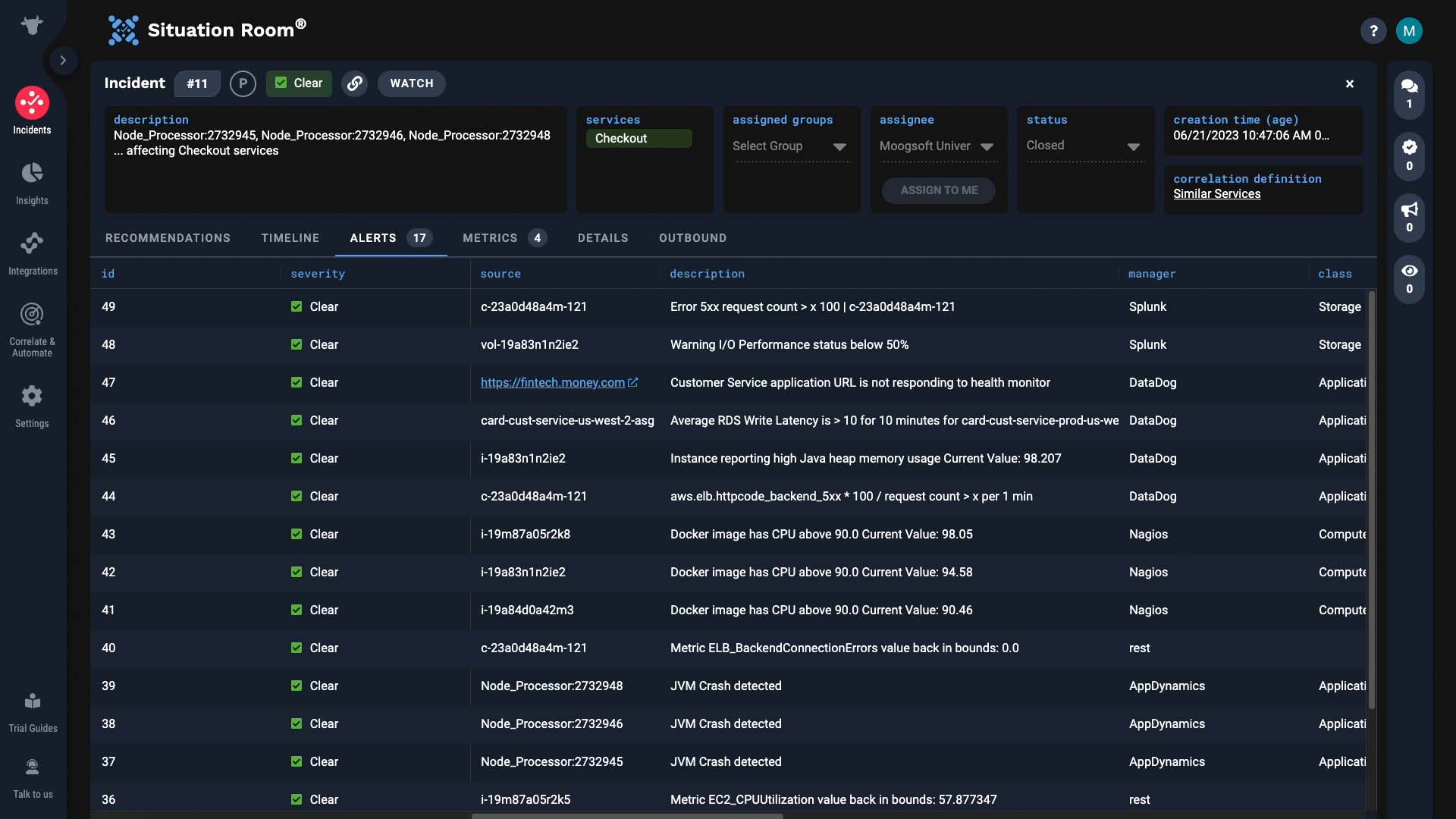

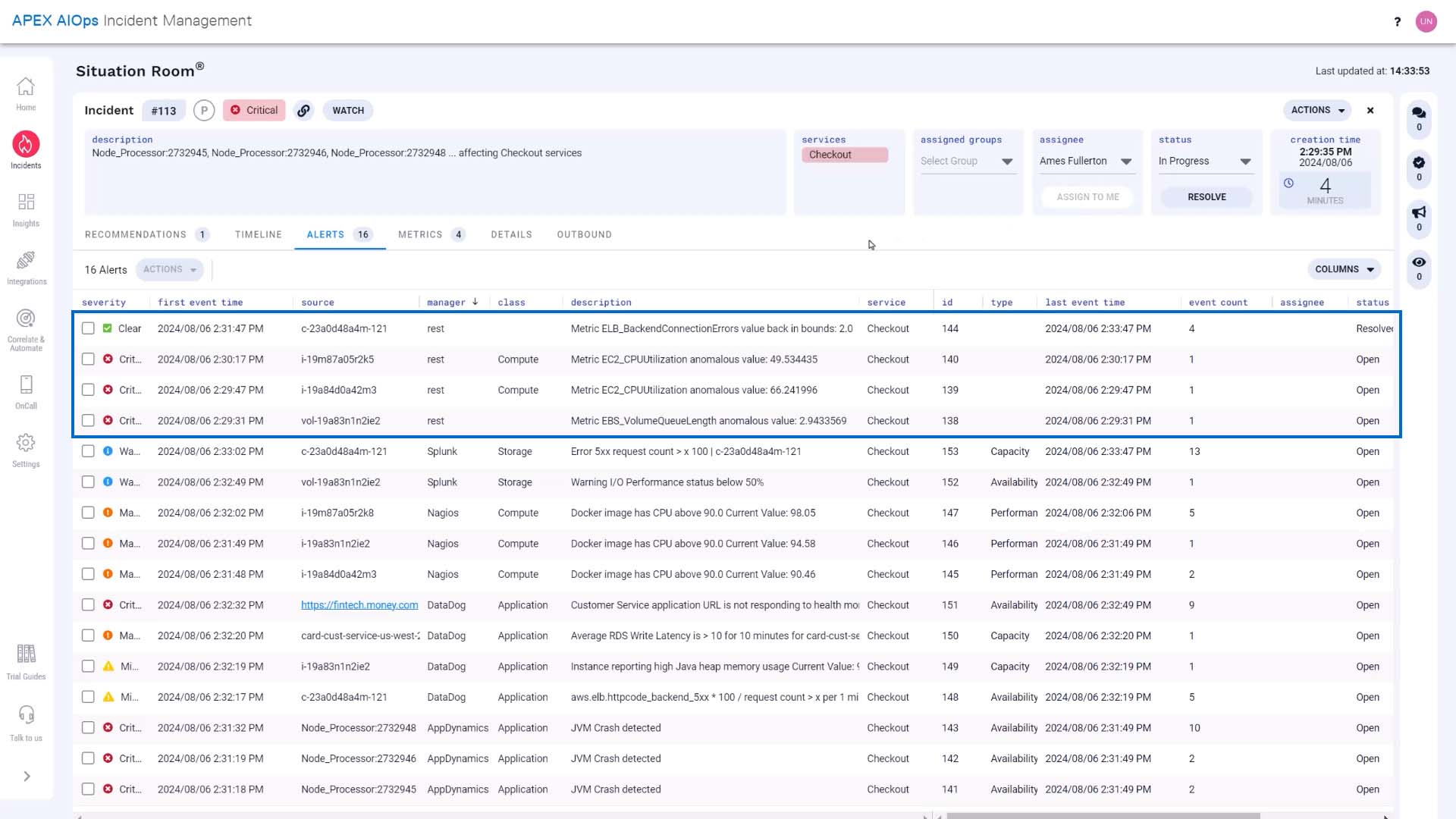

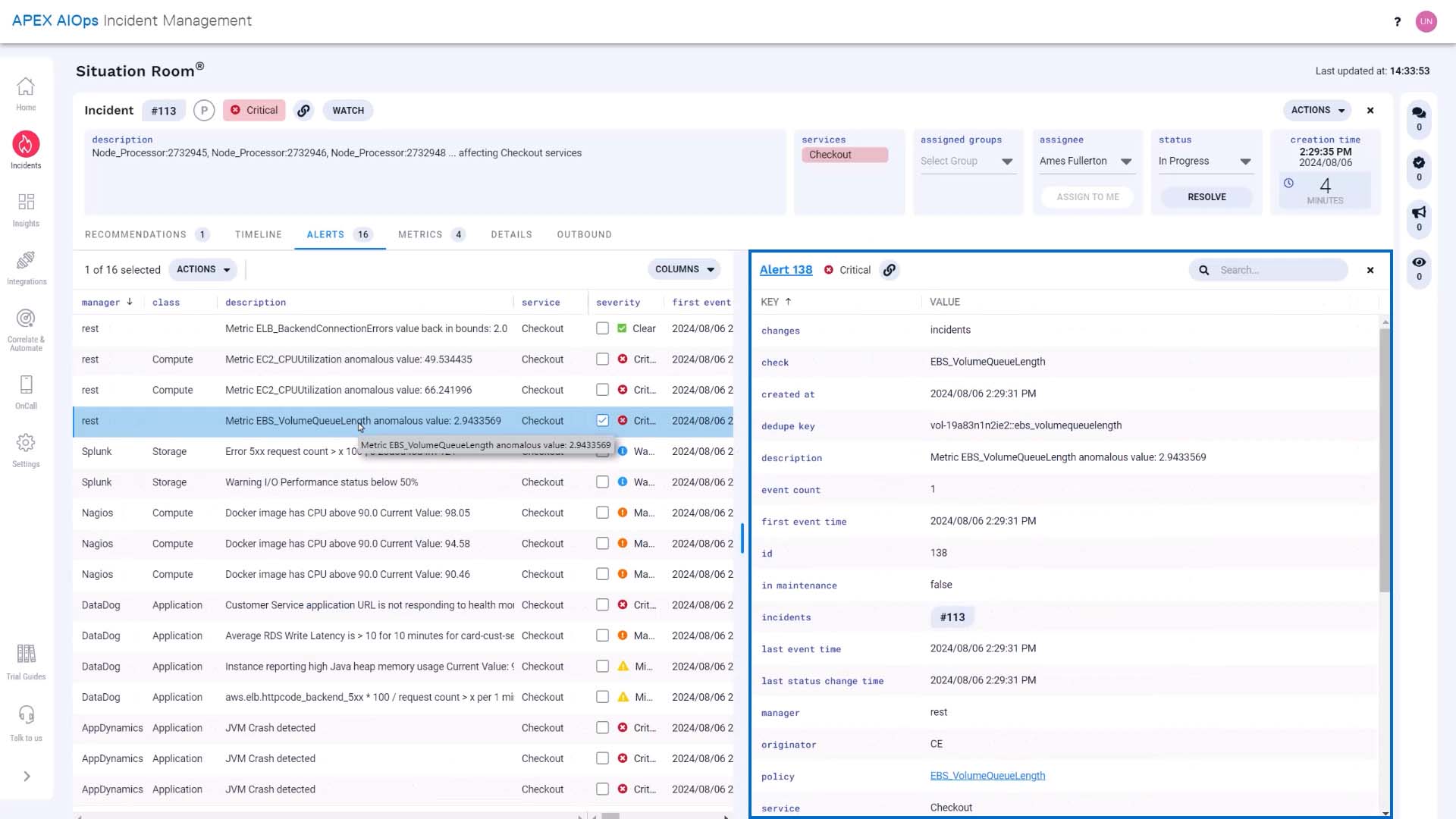

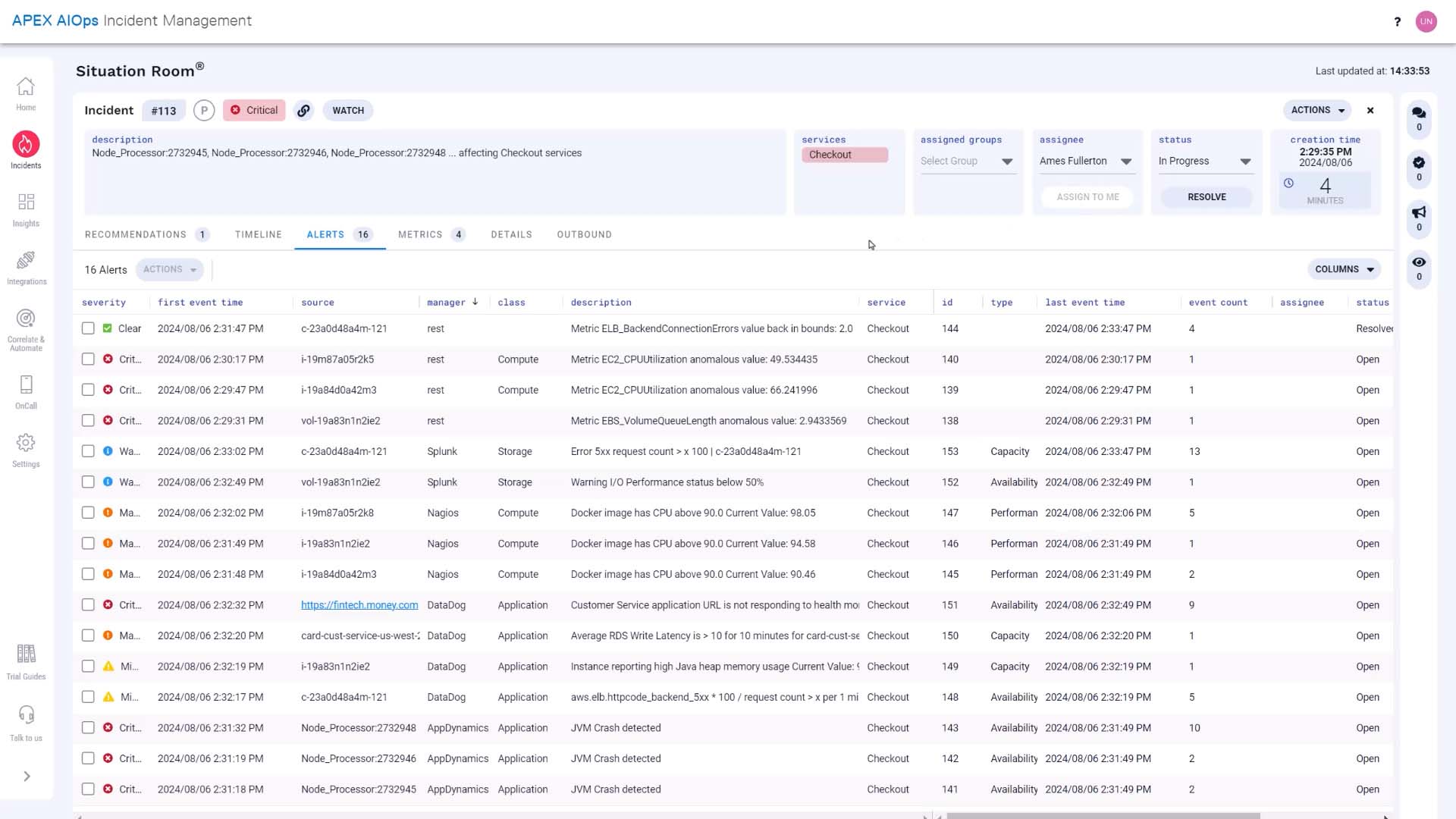

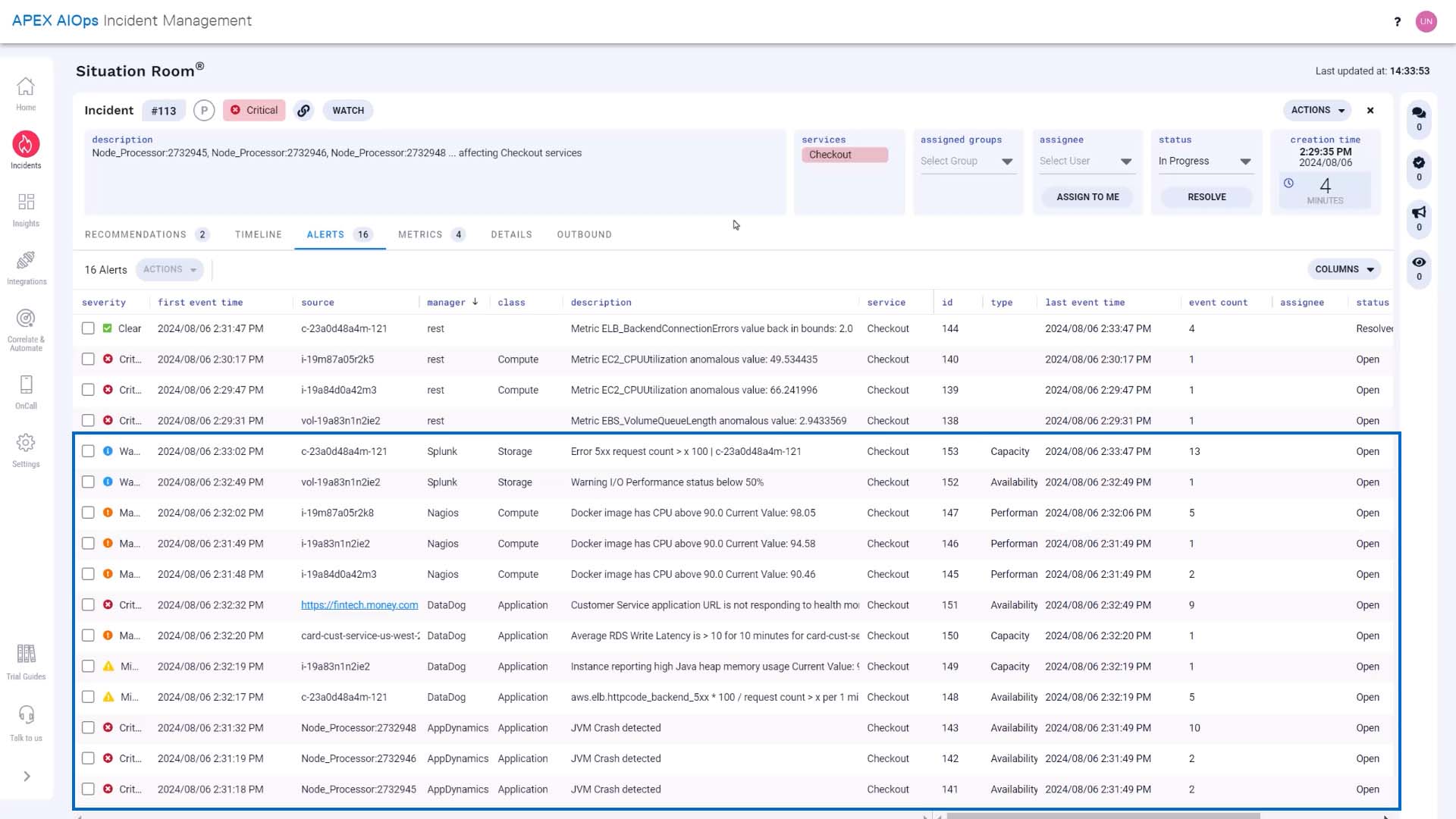

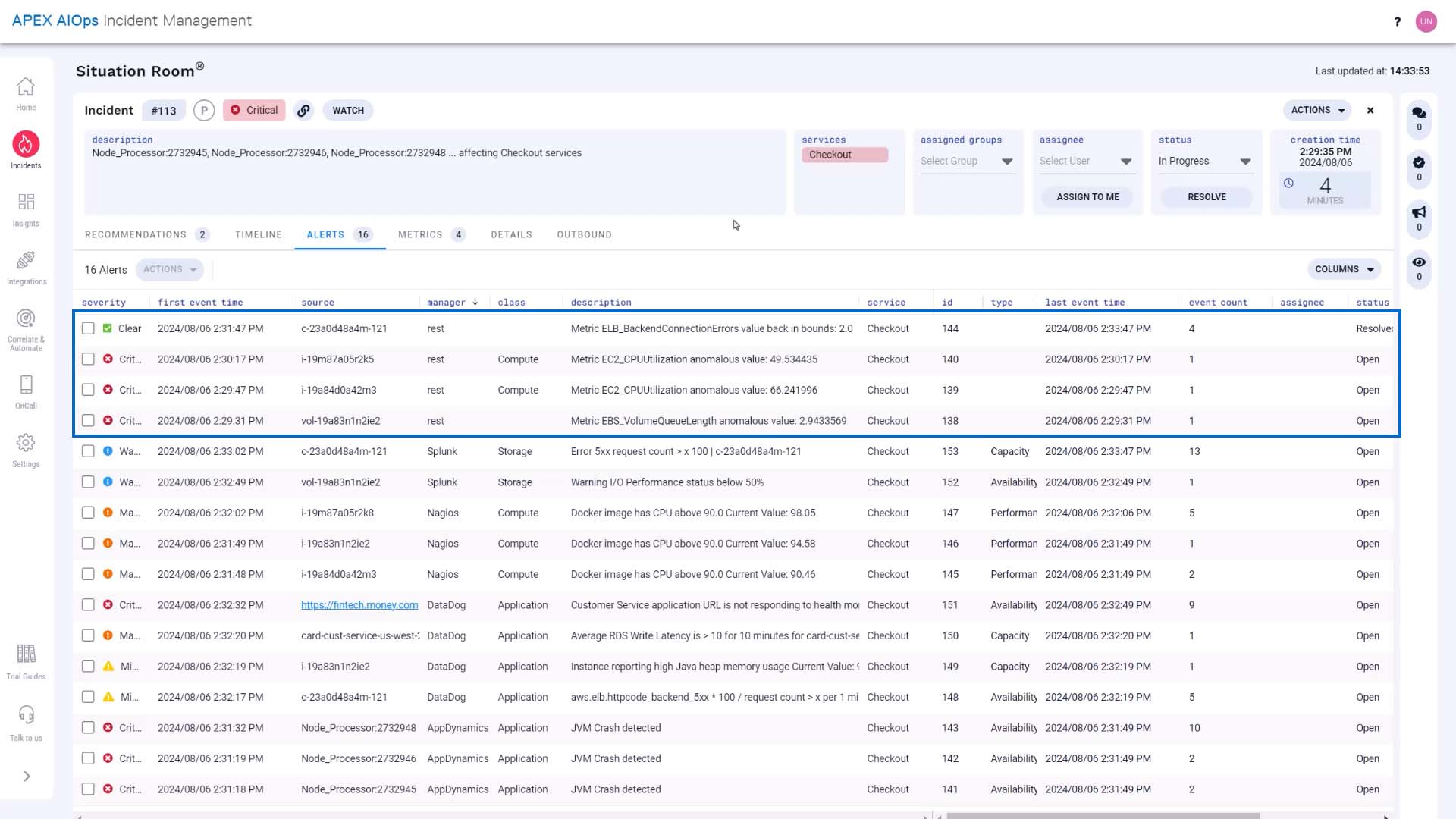

Let’s examine all alerts. These are the alerts that make up this incident.  Some of these are alerts from a monitoring system.

And these are alerts generated by Incident Management based on the metrics it is tracking.

We are going to own this incident.

Now we will start our investigation.

These alerts came in within a few seconds of each other. Let’s look at the details of the alert that first came in.

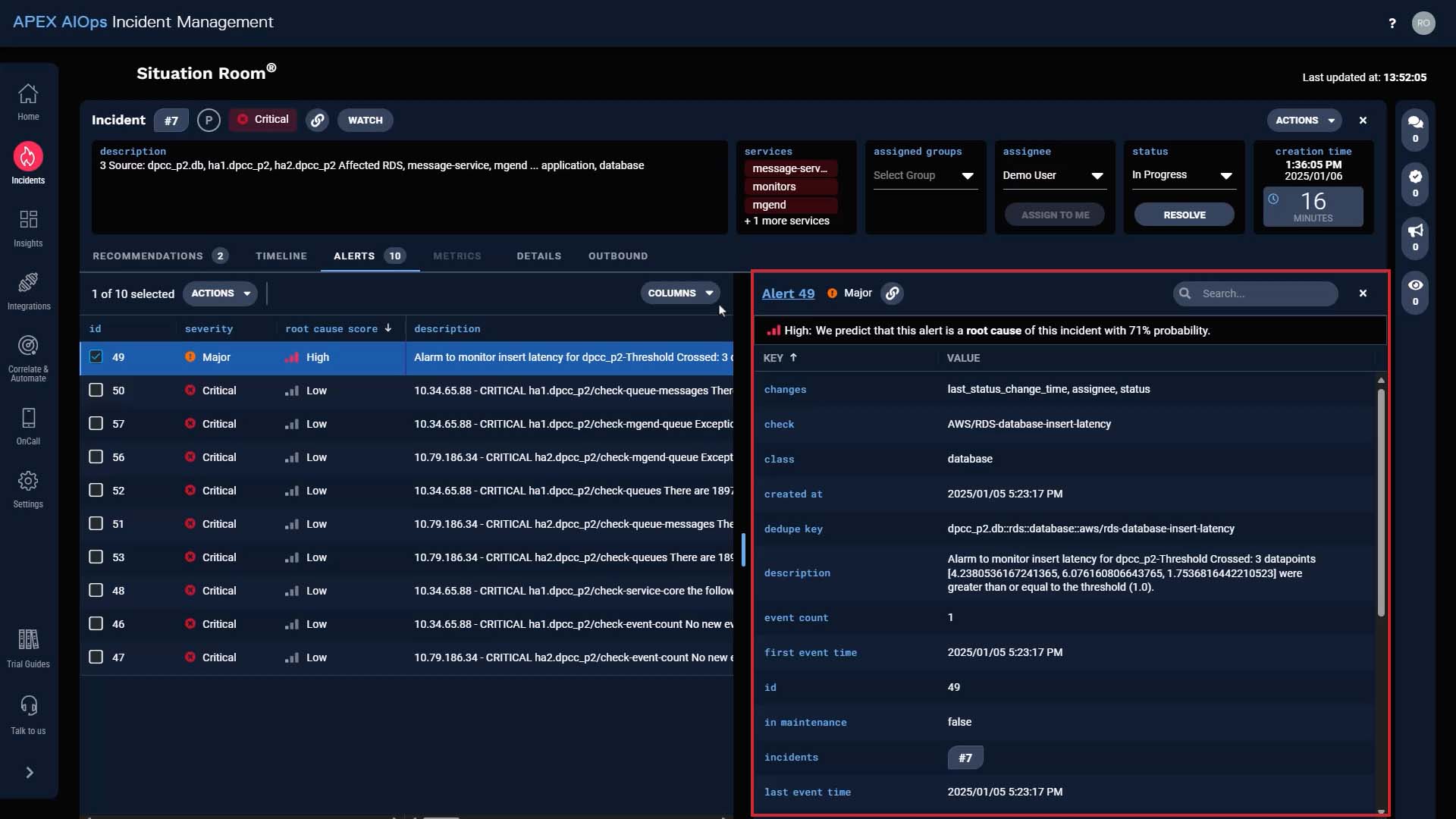

All attributes of this alert are visible now.

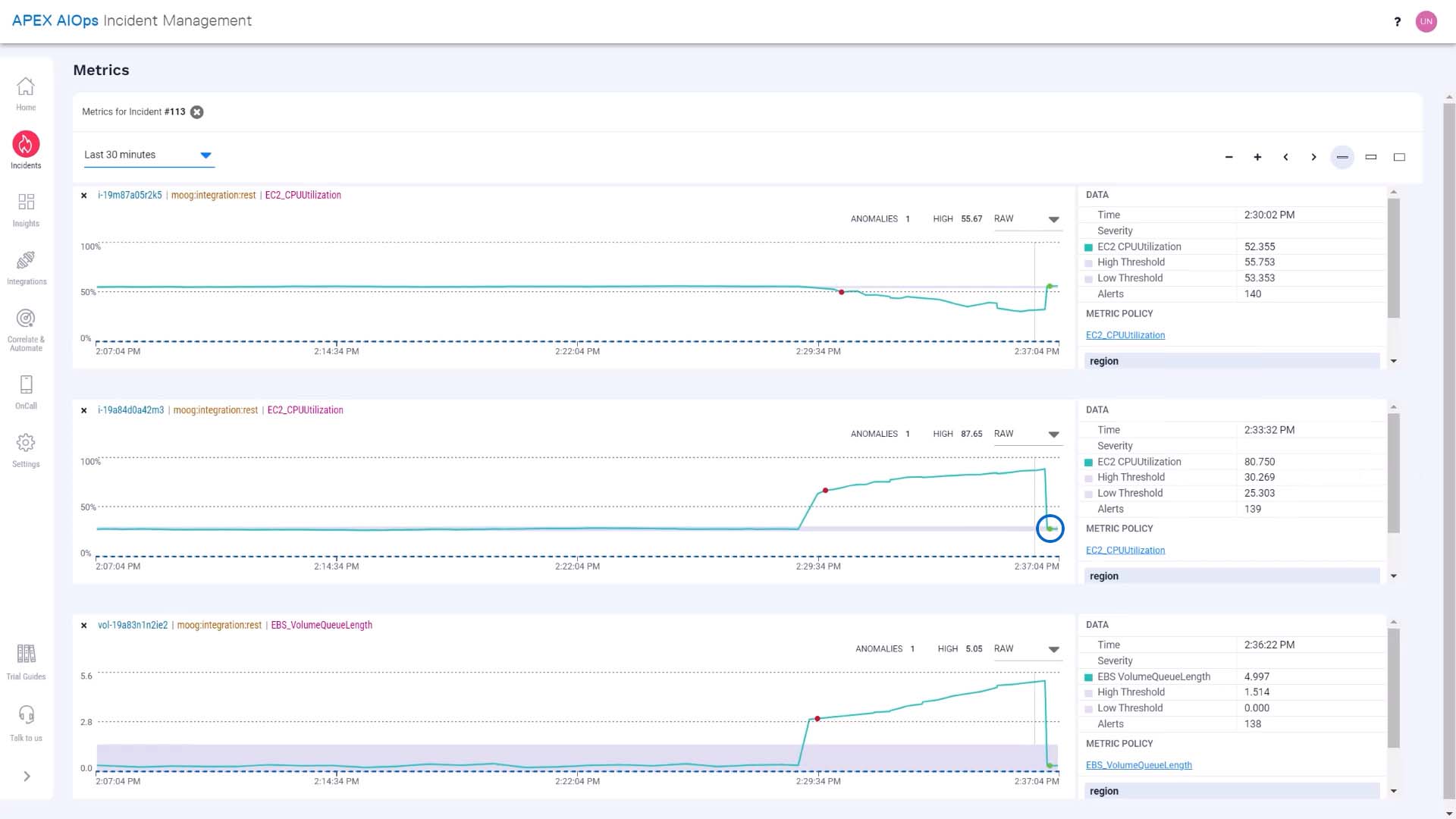

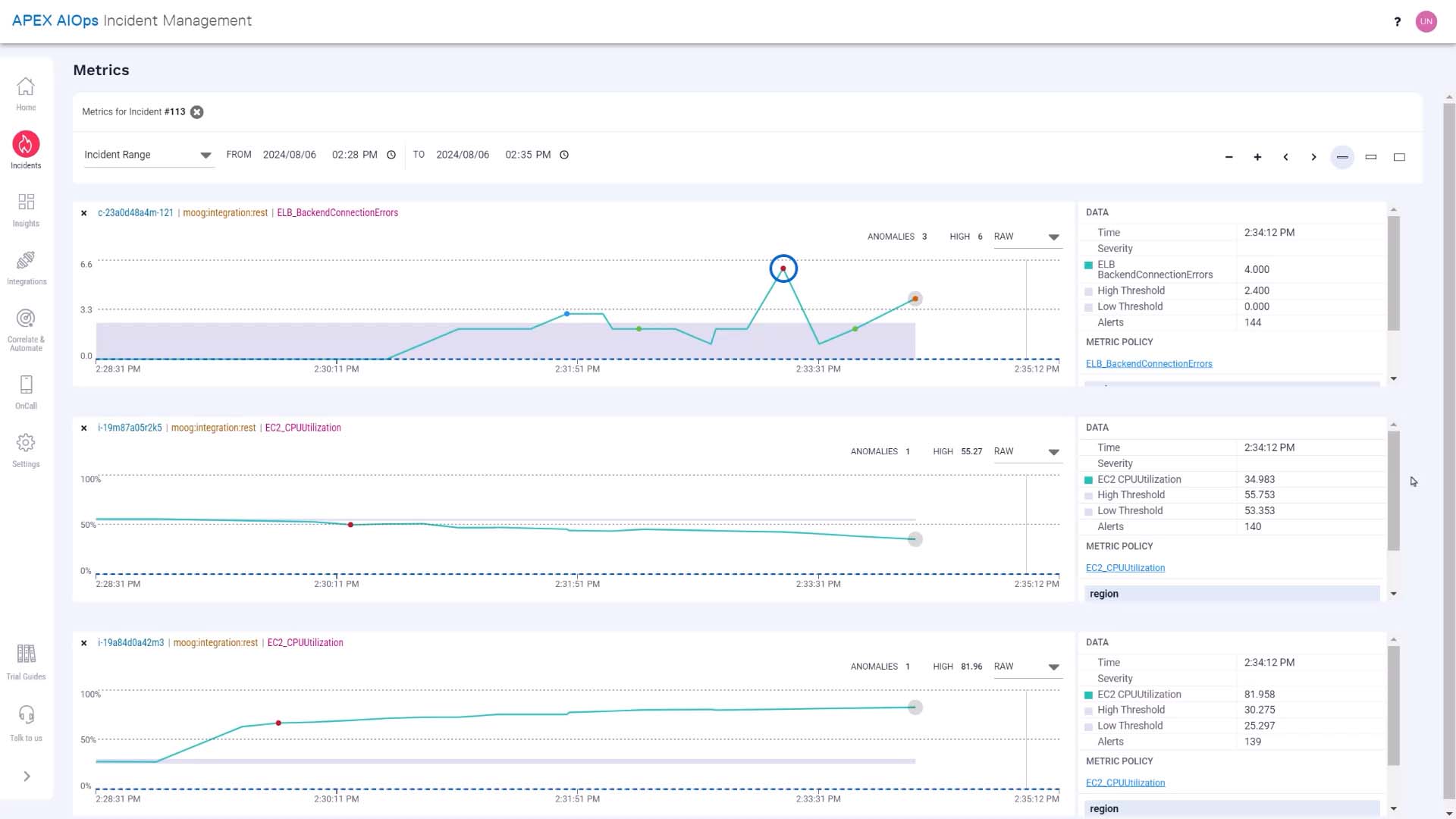

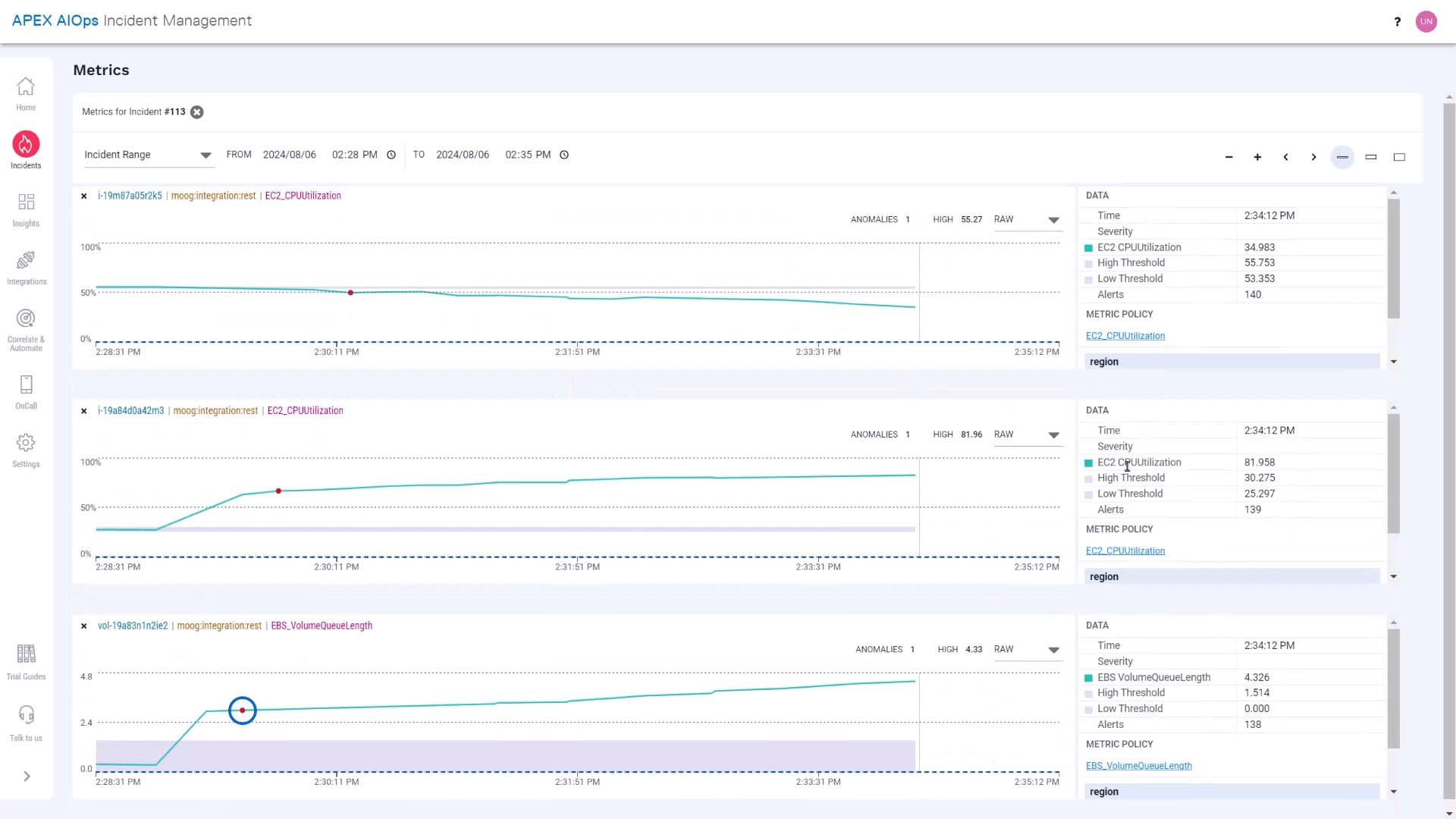

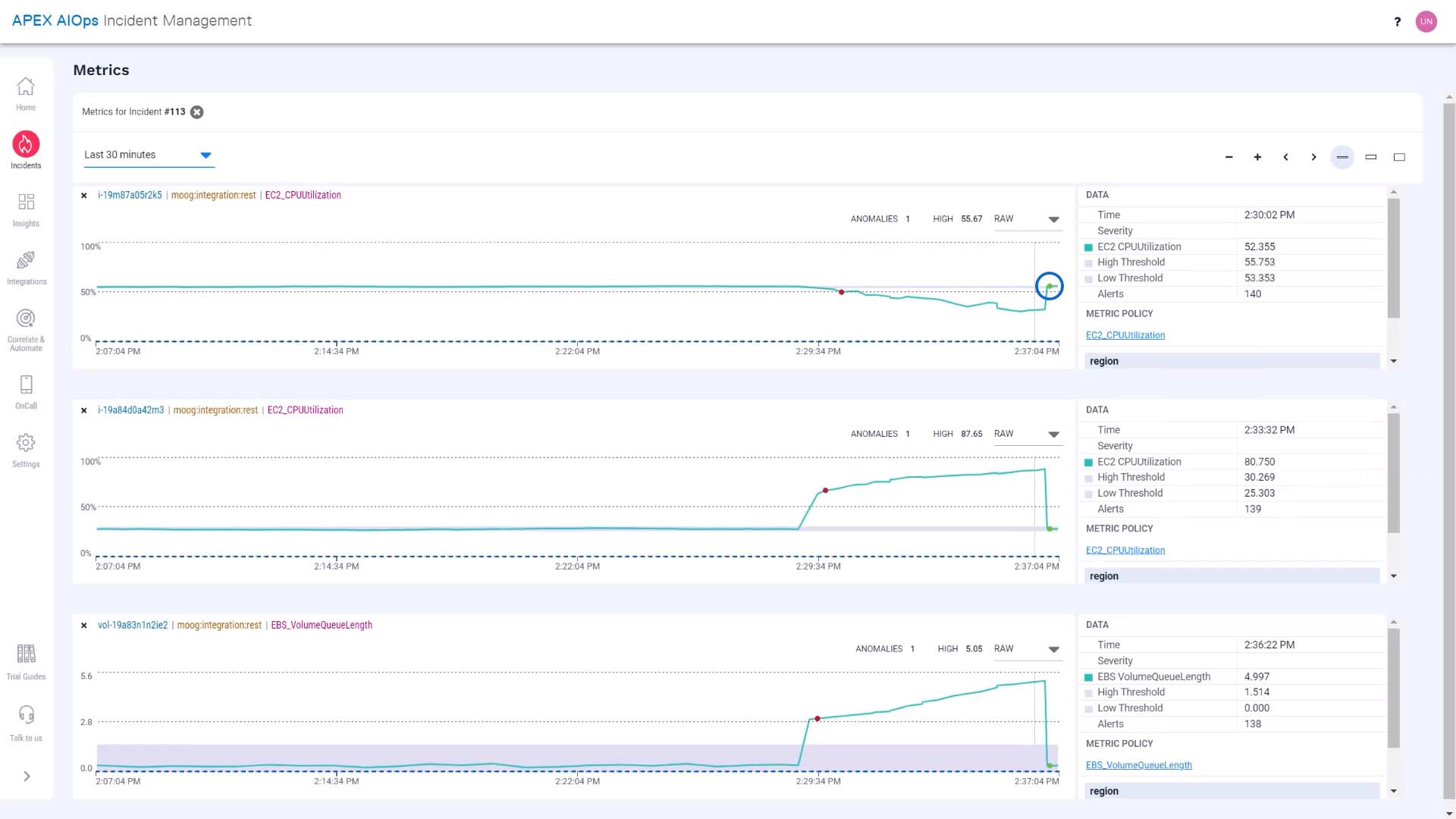

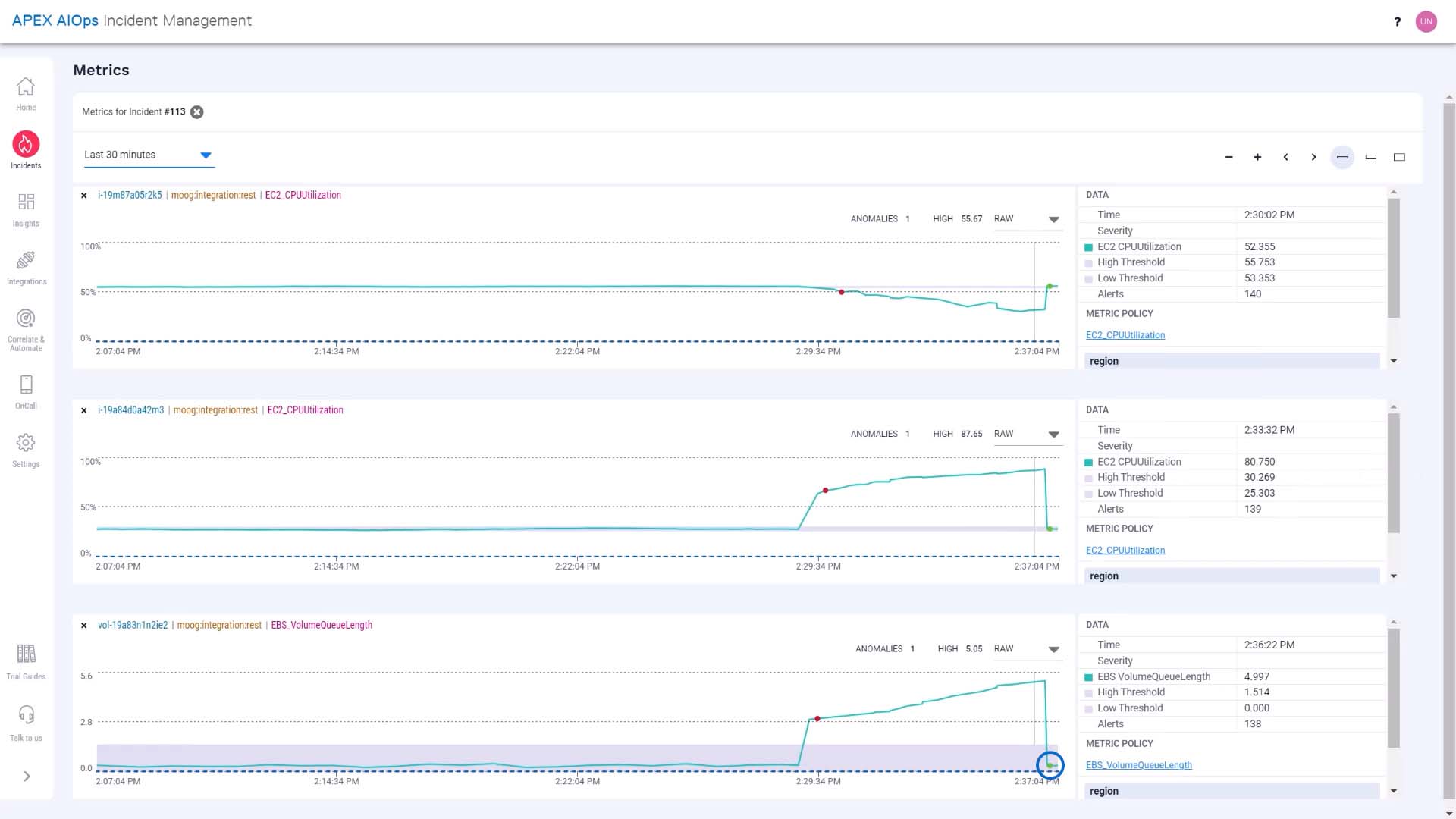

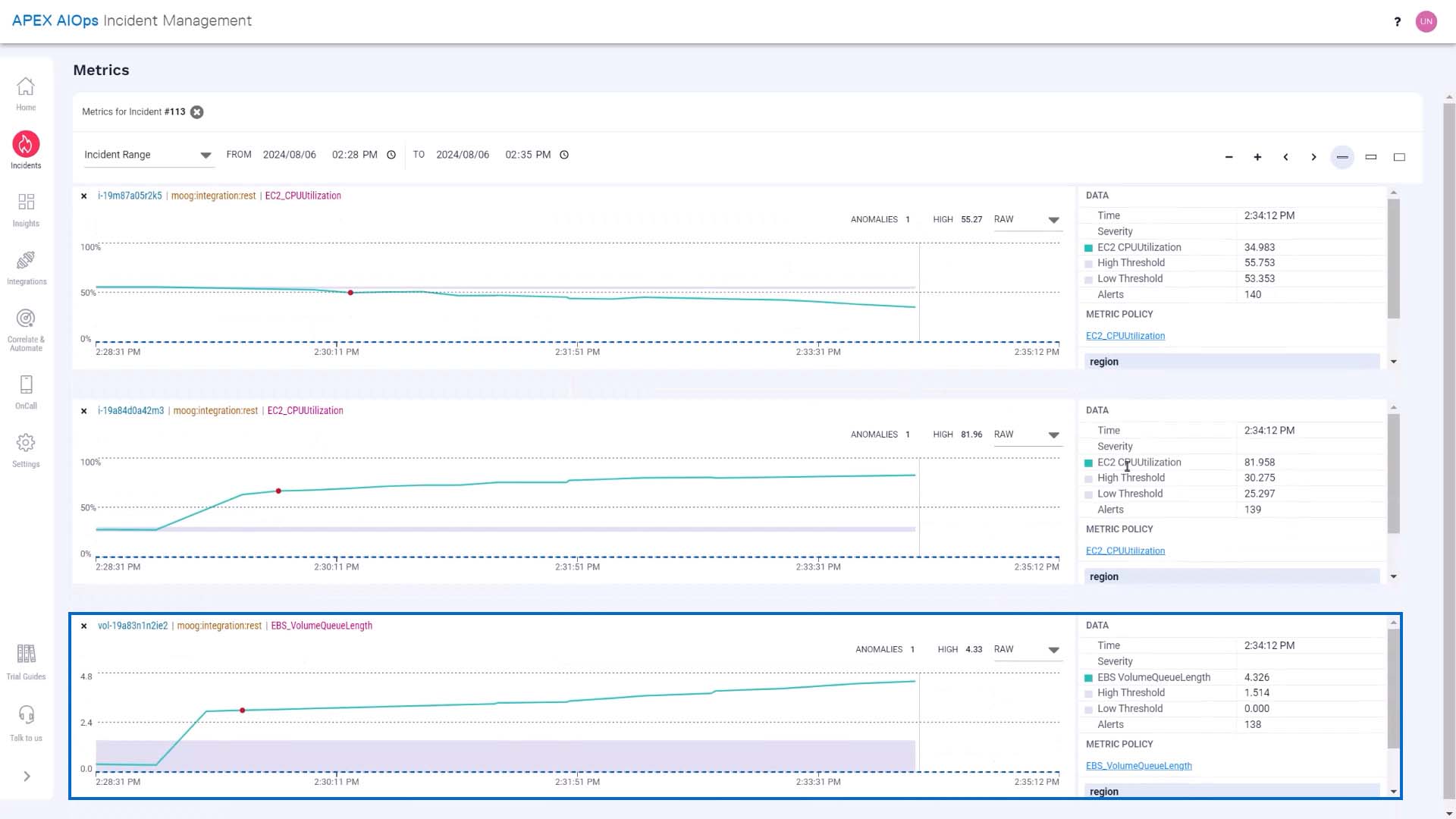

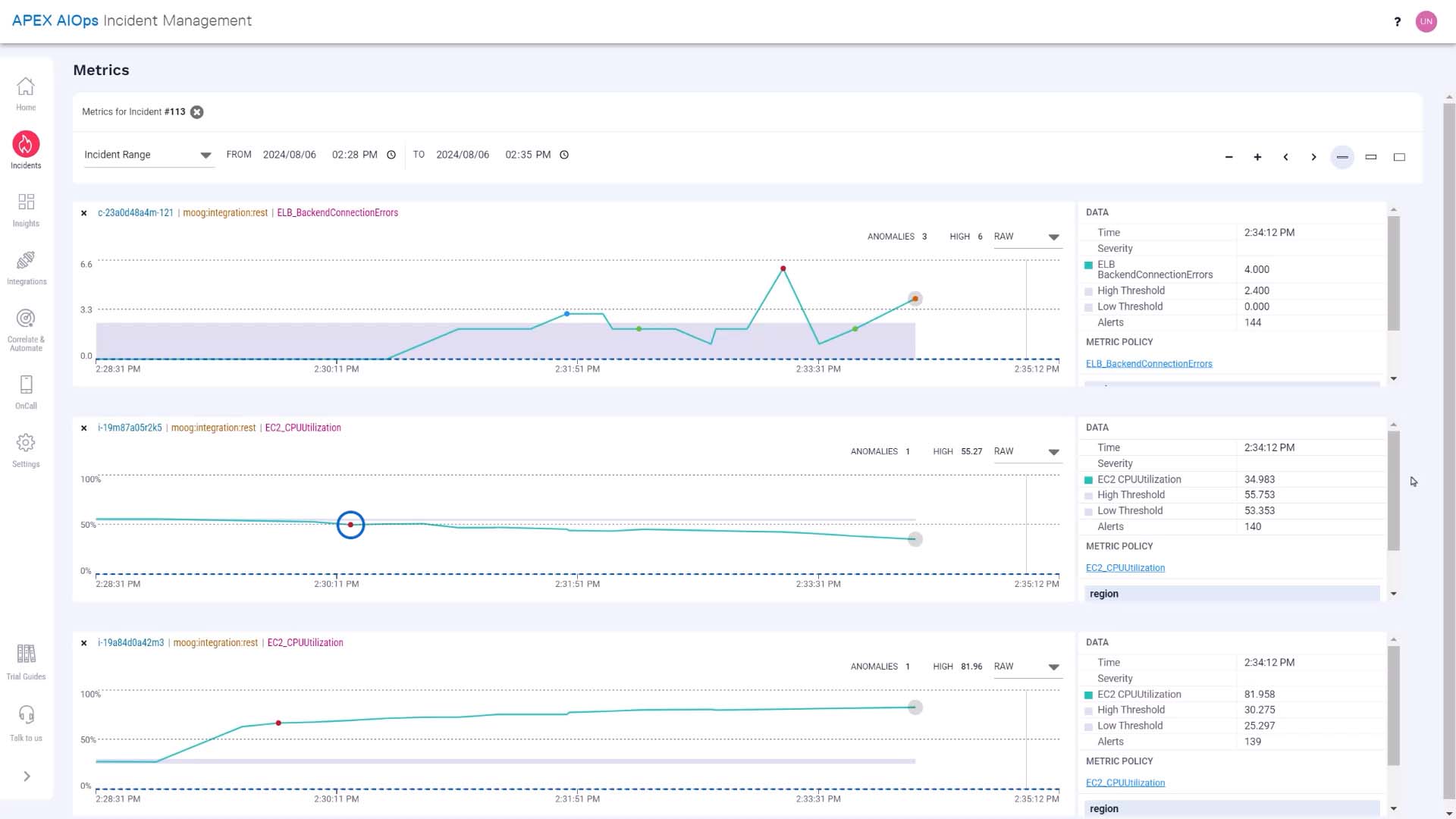

And the metric information of the alert is visually presented here.

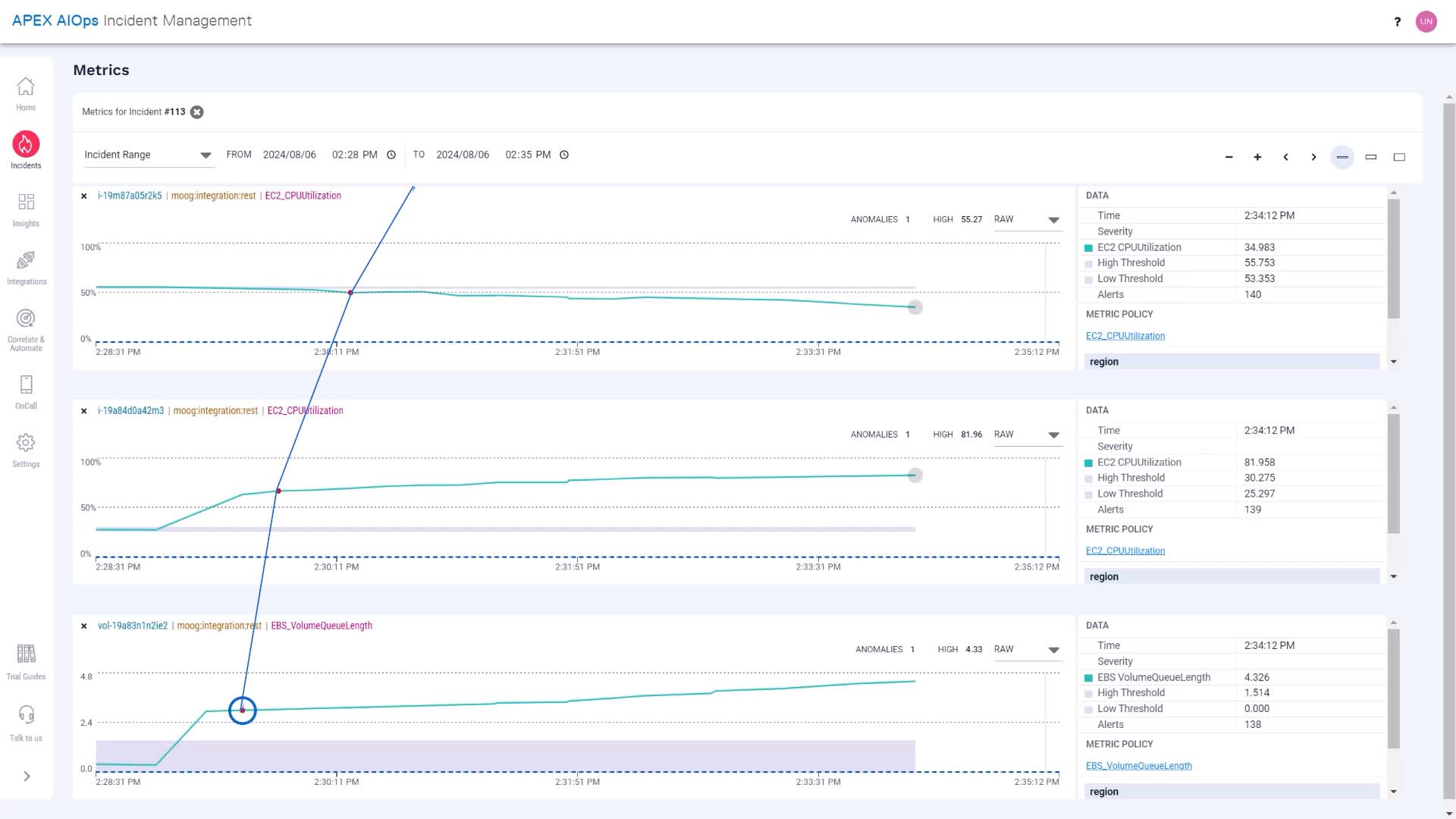

Incident Management shows you the relevant context and their relationship to each other. This way, it’s much easier to grasp how the whole incident unfolded over time.

According to this, the volume queue length metric exceeded the threshold level and triggered a warning alert.

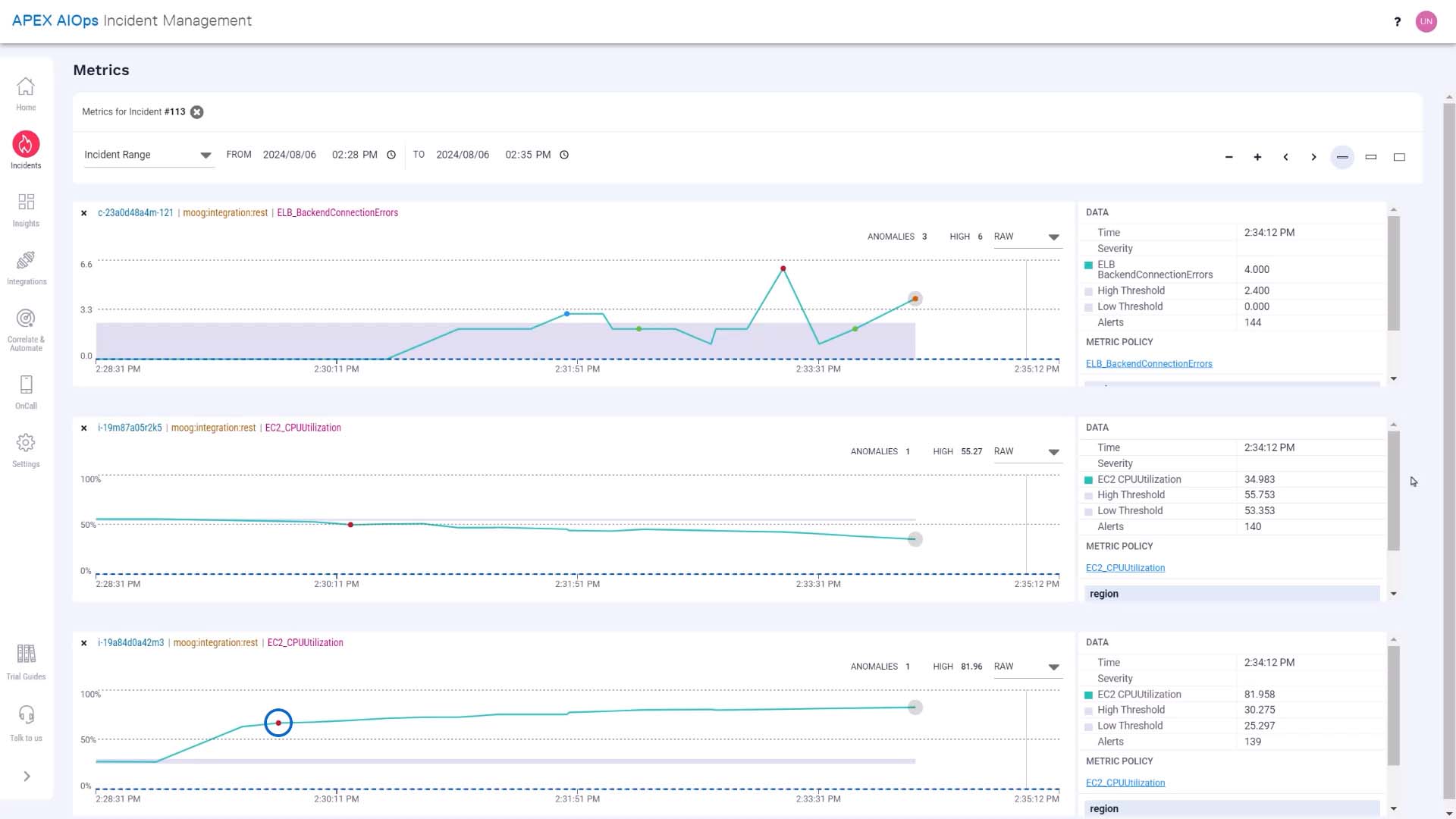

Then the CPU usage metric on our front end server increased and triggered a warning alert...

...the activity on the backend server fell...

...and we are seeing a backend connection error critical alert.

So, could this be the root cause that had a cascading effect to cause other alerts?

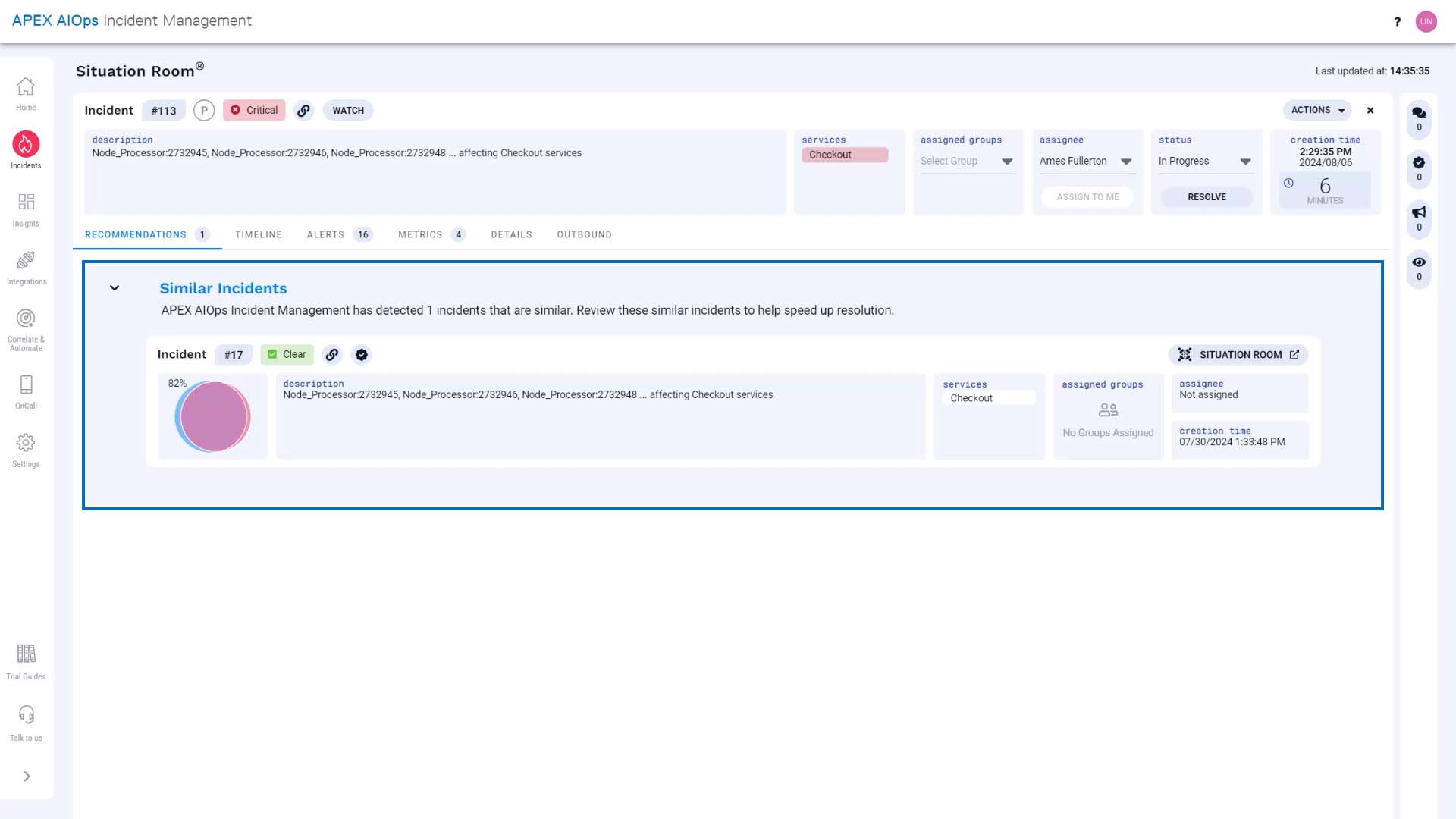

Let’s check out the recommendations tab in the Situation Room for additional insight. Any similar incidents from the past will be surfaced here.

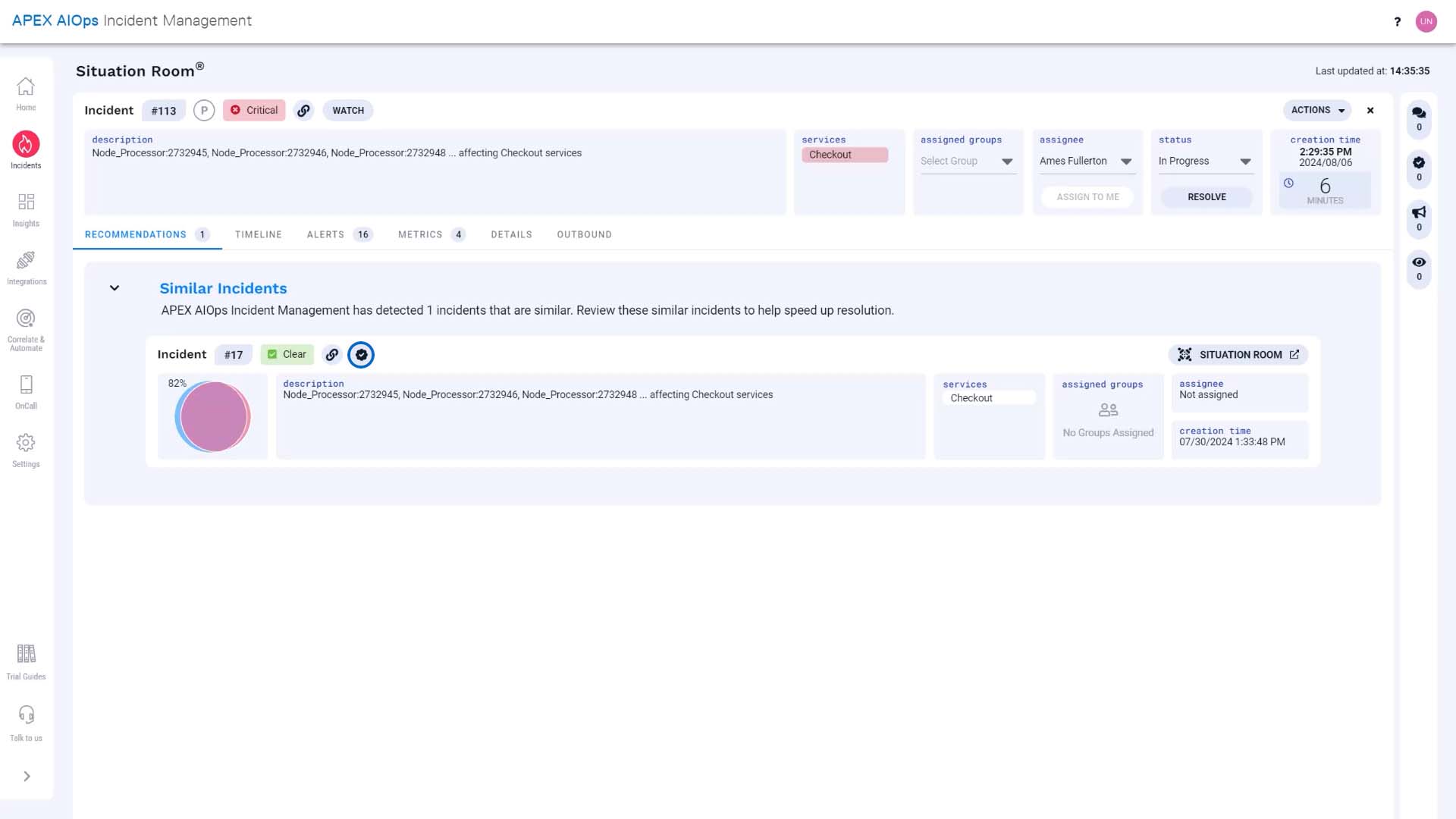

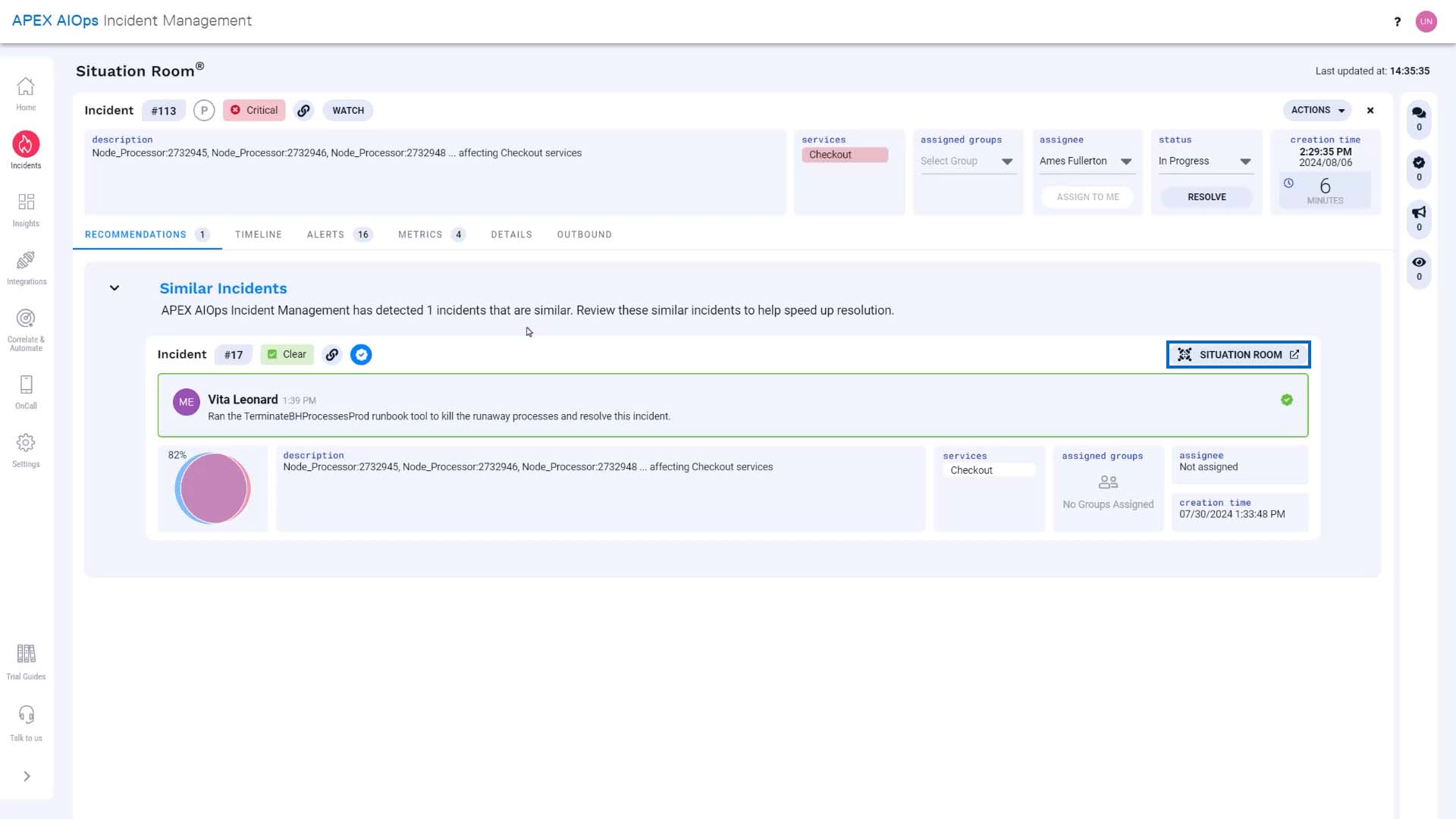

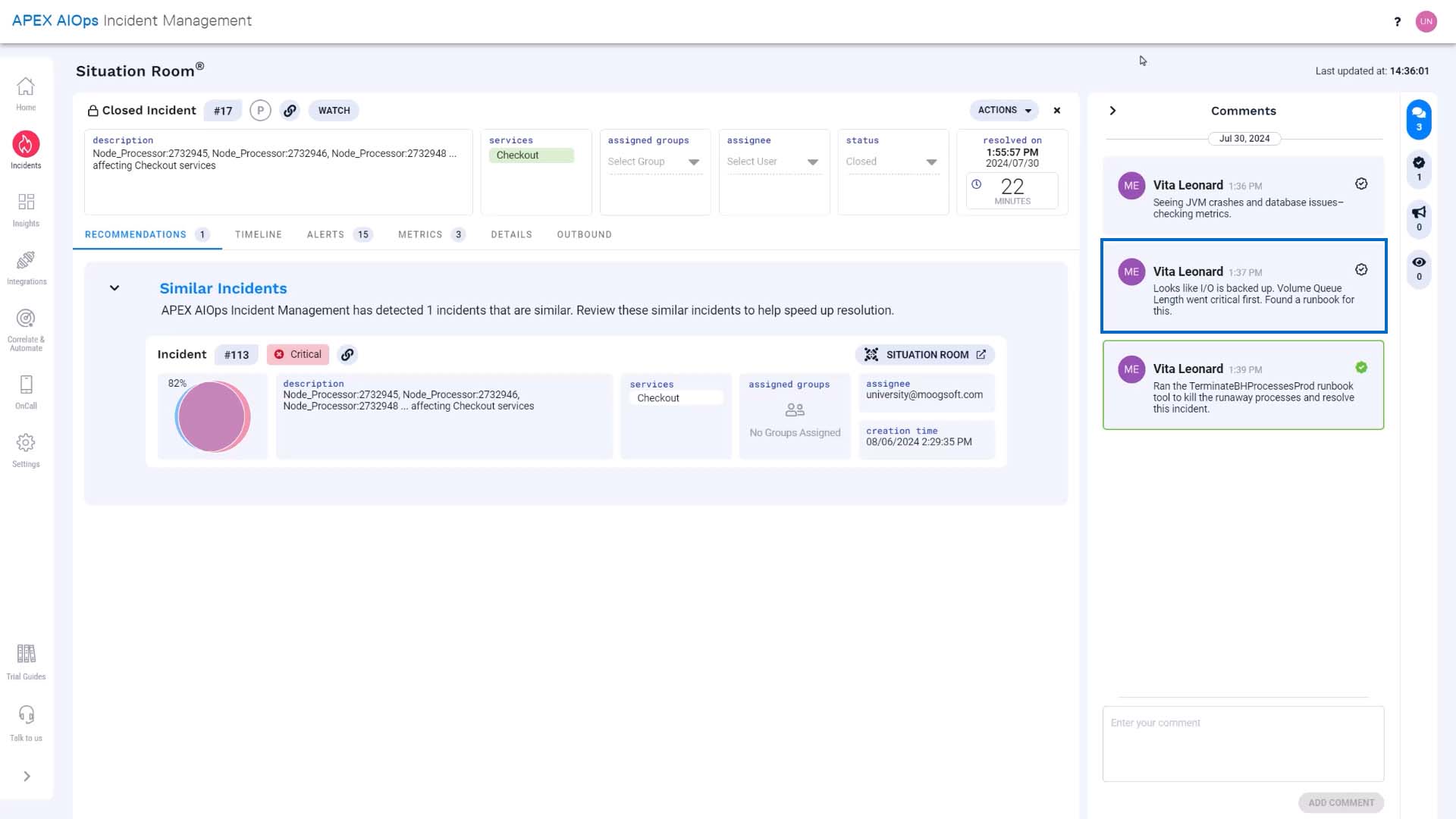

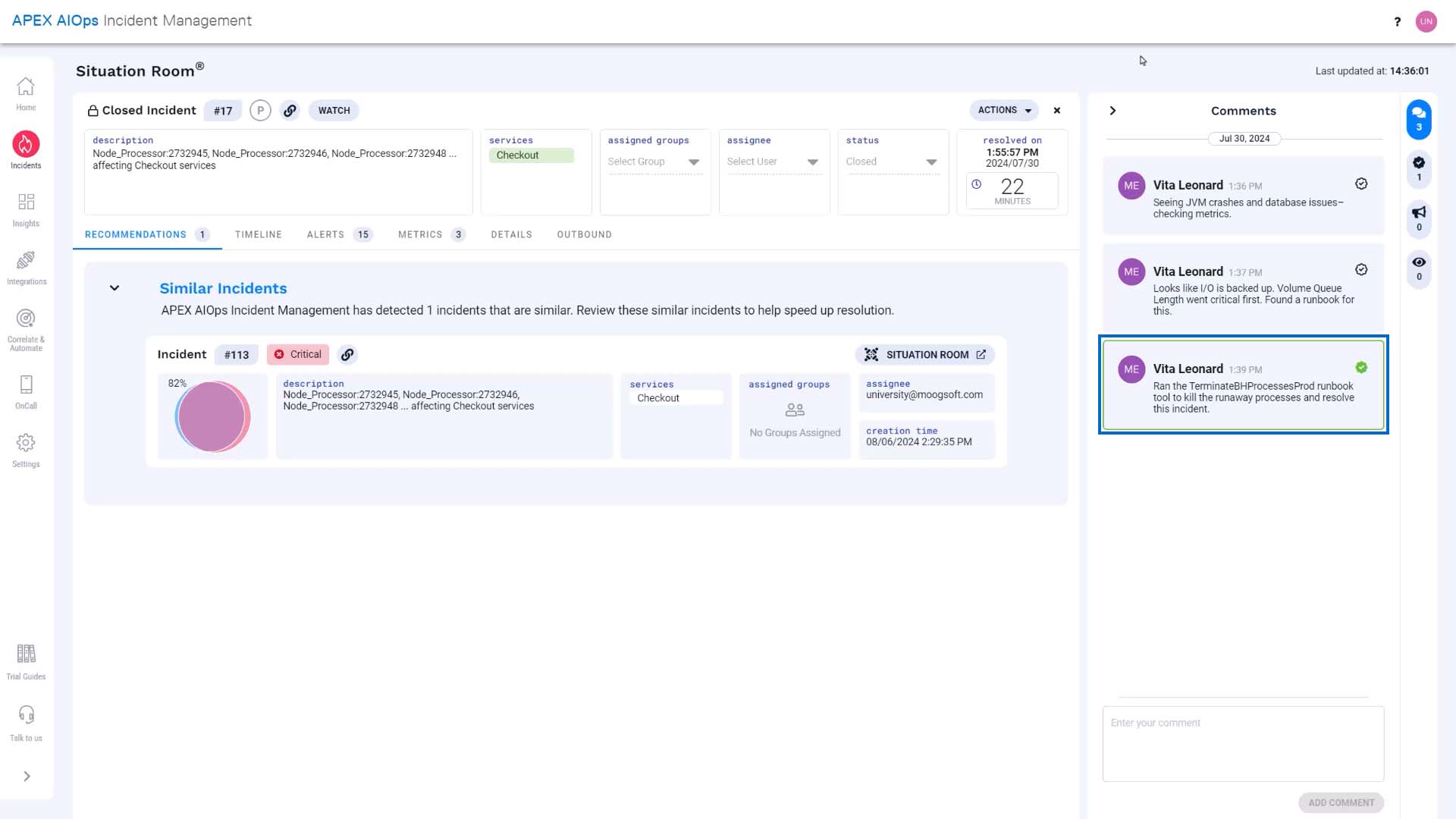

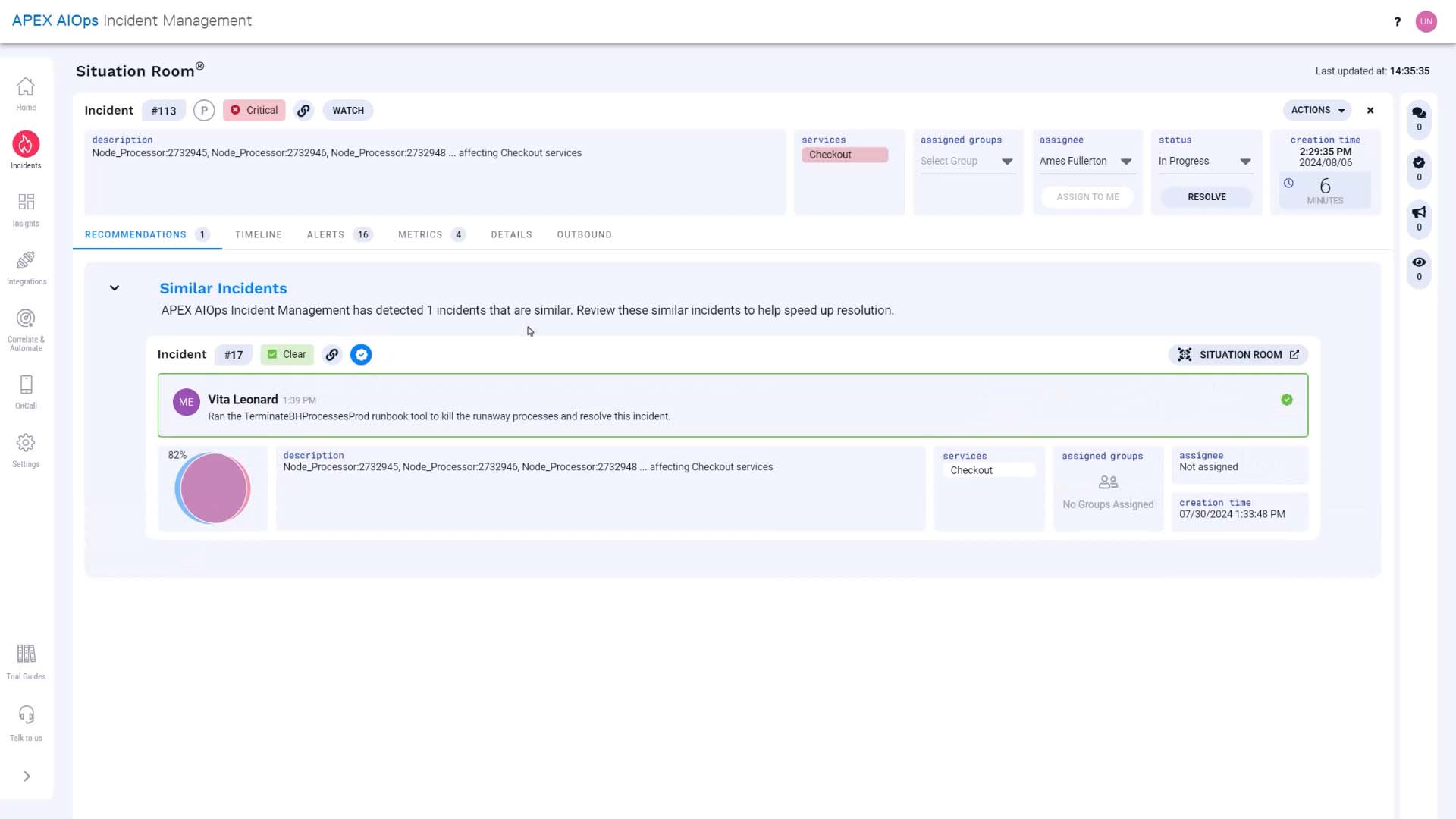

Here's an incident that is 82% similar.

And this icon means it has a resolving step we can review. Great!

This indicates the similar incident was resolved using a runbook tool.

Let’s go to this incident to get more context and confirm we can resolve our incident the same way.

Let’s look at the comments. This incident involved a disk I/O bottleneck that showed up as an increase in Volume Queue Length. Just like our incident.

We can use the same runbook tool to terminate runaway processes and free up resources.

Let’s go back to our incident.

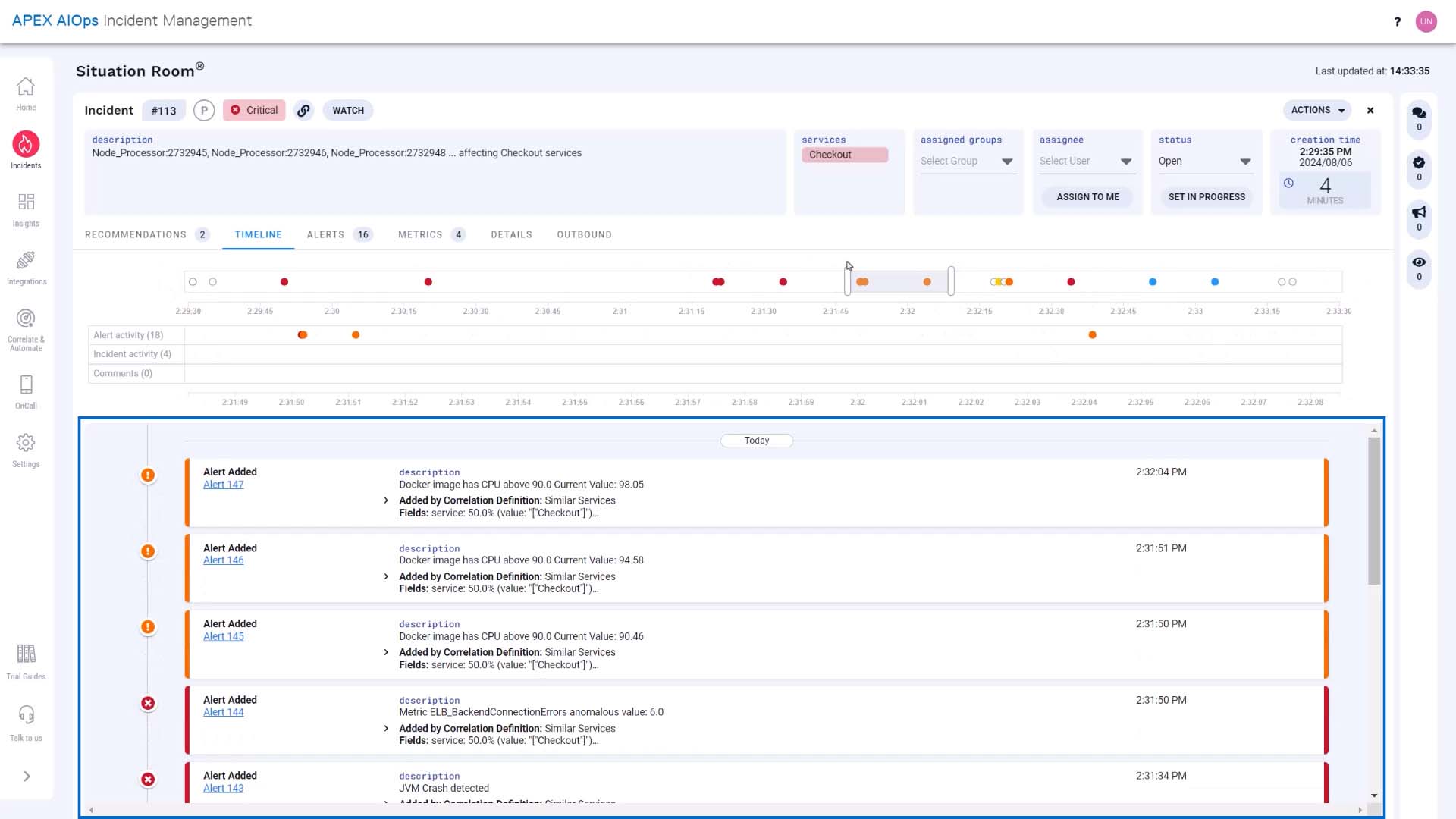

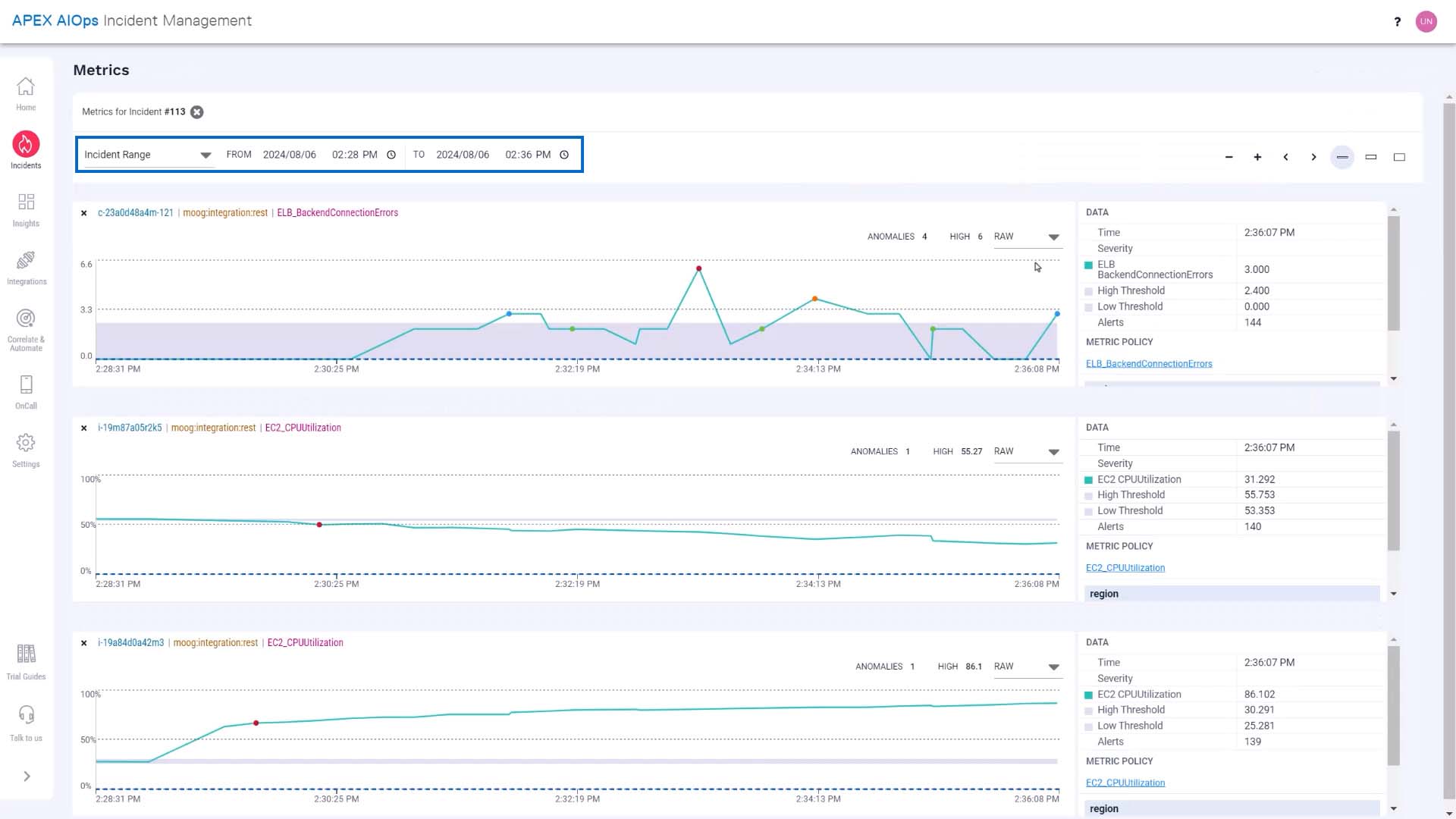

Currently the time window we are seeing is from the moment when the first alert in the incident occurred. We want to see what happens to the metrics when we run the tool. So let’s change the time frame. Now, the metrics are going to be updated in real time.

We’ve run the tool, and with the runaway processes that were overloading I/O killed, the CPU load on the front-end web server is back to normal...

...and activity has resumed on the back end server as well.

Nice! The anomaly has resolved and now the metrics are within the normal range previously learned by the system. Good job!

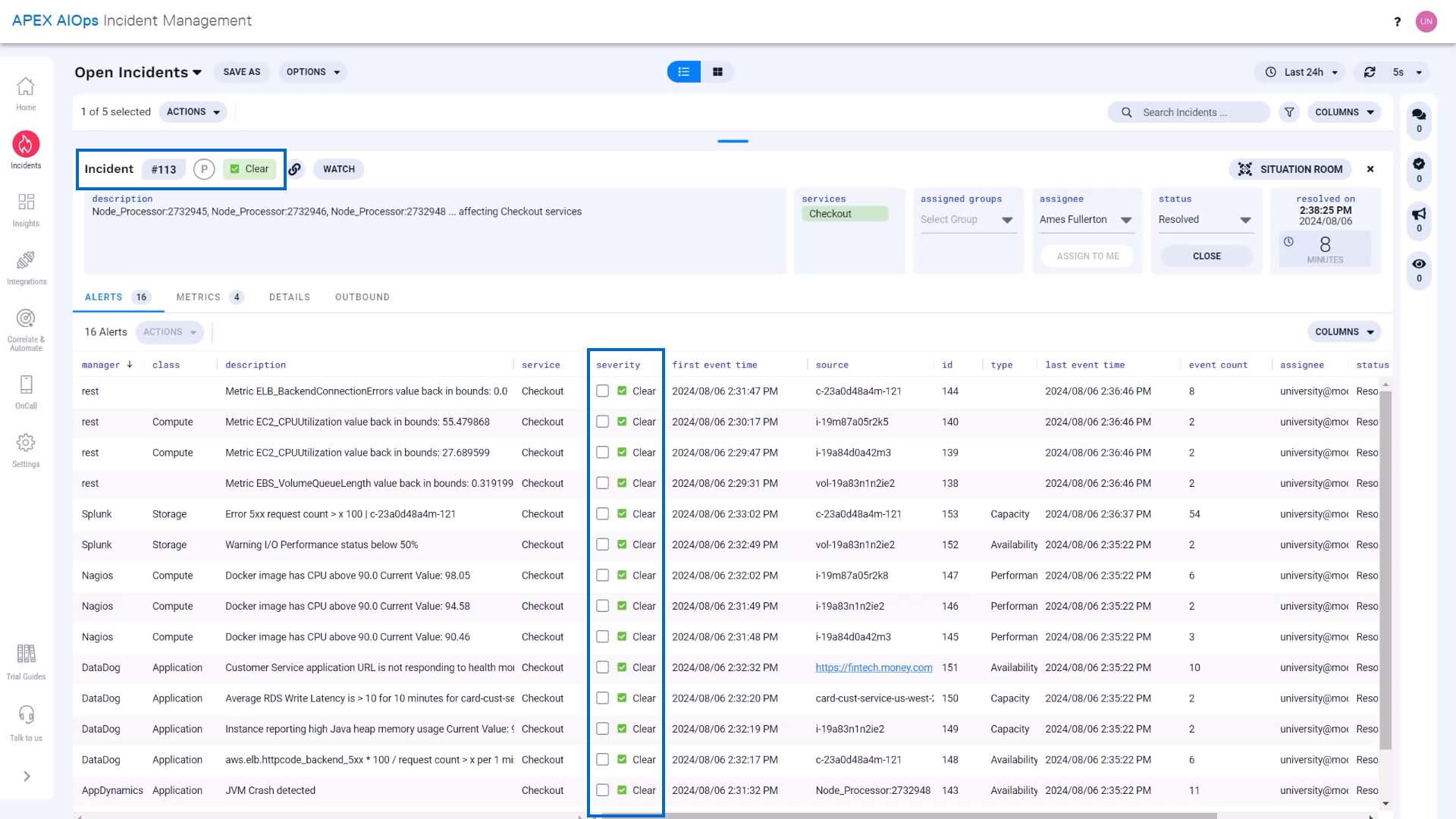

Now the alerts in our incident are all clear, as well as the incident itself.

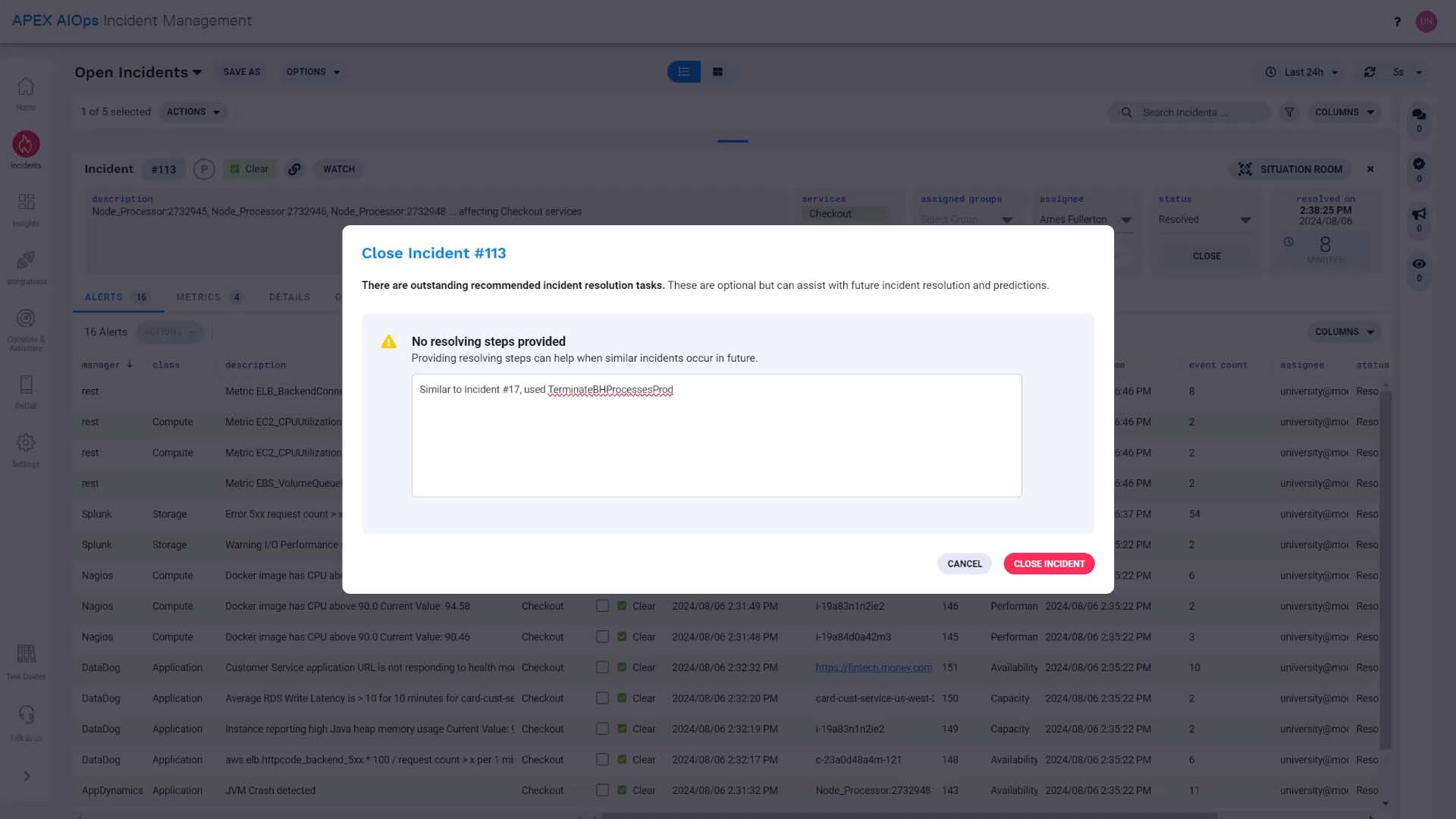

The incident status has been changed to resolved. We'll document our solution, and the case is closed!

Just like that, we have resolved our first incident in Incident Management. Now it’s your turn to experience this workflow yourself!

Thanks for watching!
